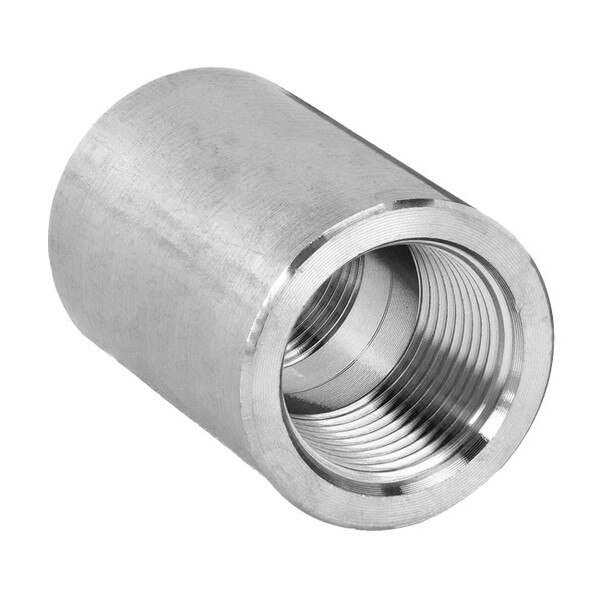

3000# Forged Full Coupling Stainless Steel Pipe Fittings - Threaded
3000# full coupling pipe fittings forged out of stainless steel to ASTM 182 and ANSI B16.11 specifications with threaded end connections. Available in 304 and 316 stainless steel alloys.
 | ||||||
| Part No. | Size (in.) | Diameter (D) | End to End (W) | Depth of Thread Min. (B) | Depth of Thread Max. (L2) | Material |
|---|---|---|---|---|---|---|
| 3MTHFCPL4S-013 | 1/8" | 0.630" (16.0mm) | 1.260" (32.0mm) | 0.252" (6.4mm) | 0.264" (6.7mm) | 304 SS |
| 3MTHFCPL4S-025 | 1/4" | 0.748" (19.0mm) | 1.378" (35.0mm) | 0.319" (8.1mm) | 0.402" (10.2mm) | 304 SS |
| 3MTHFCPL4S-038 | 3/8" | 0.866" (22.0mm) | 1.496" (38.0mm) | 0.358" (9.1mm) | 0.409" (10.4mm) | 304 SS |
| 3MTHFCPL4S-050 | 1/2" | 1.102" (28.0mm) | 1.890" (48.0mm) | 0.429" (10.9mm) | 0.535" (13.6mm) | 304 SS |
| 3MTHFCPL4S-075 | 3/4" | 1.378" (35.0mm) | 2.008" (51.0mm) | 0.500" (12.7mm) | 0.547" (13.9mm) | 304 SS |
| 3MTHFCPL4S-100 | 1" | 1.732" (44.0mm) | 2.362" (60.0mm) | 0.579" (14.7mm) | 0.681" (17.3mm) | 304 SS |
| 3MTHFCPL4S-125 | 1-1/4" | 2.244" (57.0mm) | 2.638" (67.0mm) | 0.669" (17.0mm) | 0.709" (18.0mm) | 304 SS |
| 3MTHFCPL4S-150 | 1-1/2" | 2.520" (64.0mm) | 3.110" (79.0mm) | 0.701" (17.8mm) | 0.724" (18.4mm) | 304 SS |
| 3MTHFCPL4S-200 | 2" | 2.992" (76.0mm) | 3.386" (86.0mm) | 0.748" (19.0mm) | 0.756" (19.2mm) | 304 SS |
| 3MTHFCPL4S-250 | 2-1/2" | 3.622" (92.0mm) | 3.622" (92.0mm) | 0.929" (23.6mm) | 1.138" (28.9mm) | 304 SS |
| 3MTHFCPL4S-300 | 3" | 4.252" (108.0mm) | 4.252" (108.0mm) | 1.020" (25.9mm) | 1.201" (30.5mm) | 304 SS |
| 3MTHFCPL4S-400 | 4" | 5.512" (140.0mm) | 4.764" (121.0mm) | 1.091" (27.7mm) | 1.299" (33.0mm) | 304 SS |
| 3MTHFCPL6S-013 | 1/8" | 0.630" (16.0mm) | 1.260" (32.0mm) | 0.252" (6.4mm) | 0.264" (6.7mm) | 316 SS |
| 3MTHFCPL6S-025 | 1/4" | 0.748" (19.0mm) | 1.378" (35.0mm) | 0.319" (8.1mm) | 0.402" (10.2mm) | 316 SS |
| 3MTHFCPL6S-038 | 3/8" | 0.866" (22.0mm) | 1.496" (38.0mm) | 0.358" (9.1mm) | 0.409" (10.4mm) | 316 SS |
| 3MTHFCPL6S-050 | 1/2" | 1.102" (28.0mm) | 1.890" (48.0mm) | 0.429" (10.9mm) | 0.535" (13.6mm) | 316 SS |
| 3MTHFCPL6S-075 | 3/4" | 1.378" (35.0mm) | 2.008" (51.0mm) | 0.500" (12.7mm) | 0.547" (13.9mm) | 316 SS |
| 3MTHFCPL6S-100 | 1" | 1.732" (44.0mm) | 2.362" (60.0mm) | 0.579" (14.7mm) | 0.681" (17.3mm) | 316 SS |
| 3MTHFCPL6S-125 | 1-1/4" | 2.244" (57.0mm) | 2.638" (67.0mm) | 0.669" (17.0mm) | 0.709" (18.0mm) | 316 SS |
| 3MTHFCPL6S-150 | 1-1/2" | 2.520" (64.0mm) | 3.110" (79.0mm) | 0.701" (17.8mm) | 0.724" (18.4mm) | 316 SS |
| 3MTHFCPL6S-200 | 2" | 2.992" (76.0mm) | 3.386" (86.0mm) | 0.748" (19.0mm) | 0.756" (19.2mm) | 316 SS |
| 3MTHFCPL6S-250 | 2-1/2" | 3.622" (92.0mm) | 3.622" (92.0mm) | 0.929" (23.6mm) | 1.138" (28.9mm) | 316 SS |
| 3MTHFCPL6S-300 | 3" | 4.252" (108.0mm) | 4.252" (108.0mm) | 1.020" (25.9mm) | 1.201" (30.5mm) | 316 SS |
| 3MTHFCPL6S-400 | 4" | 5.512" (140.0mm) | 4.764" (121.0mm) | 1.091" (27.7mm) | 1.299" (33.0mm) | 316 SS |
