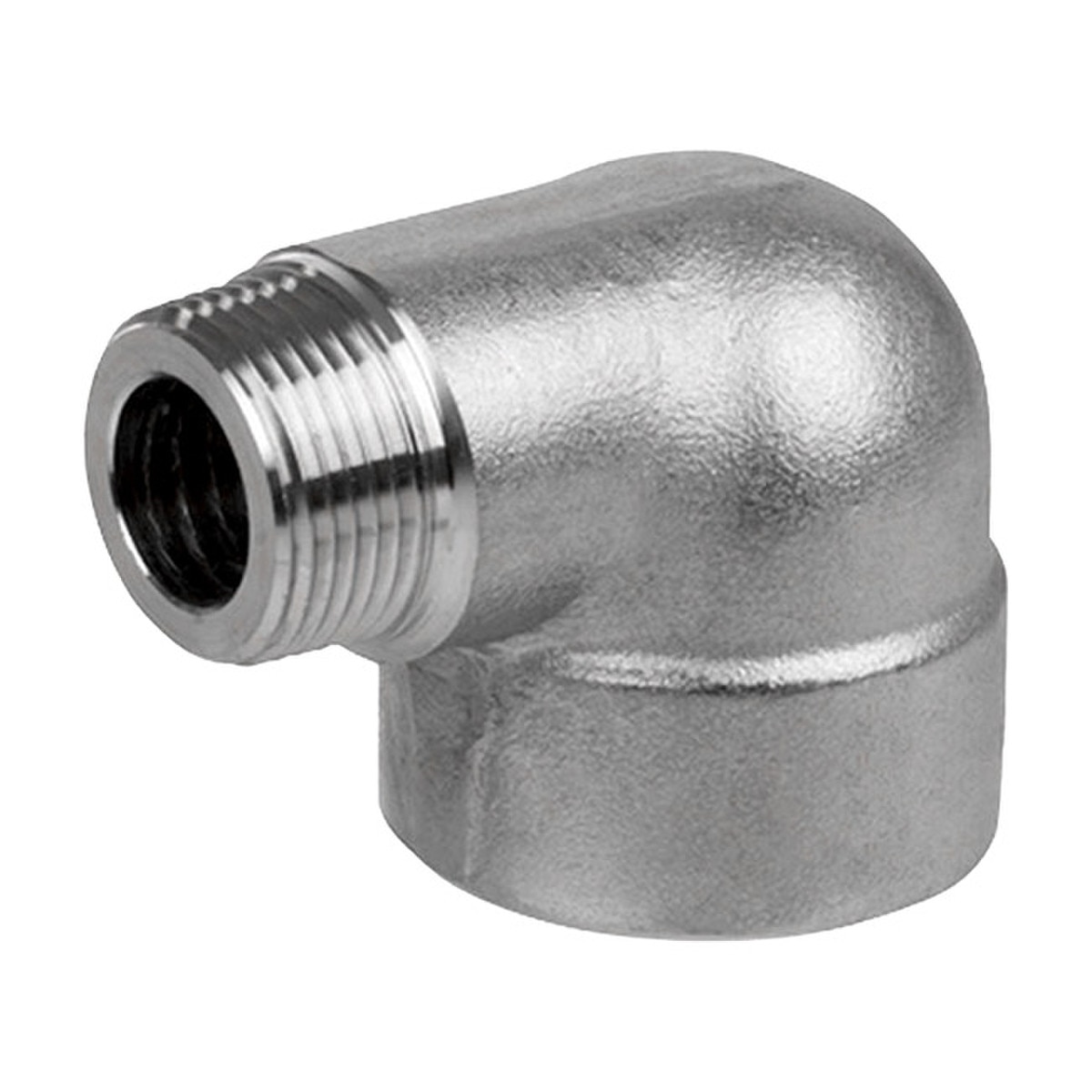

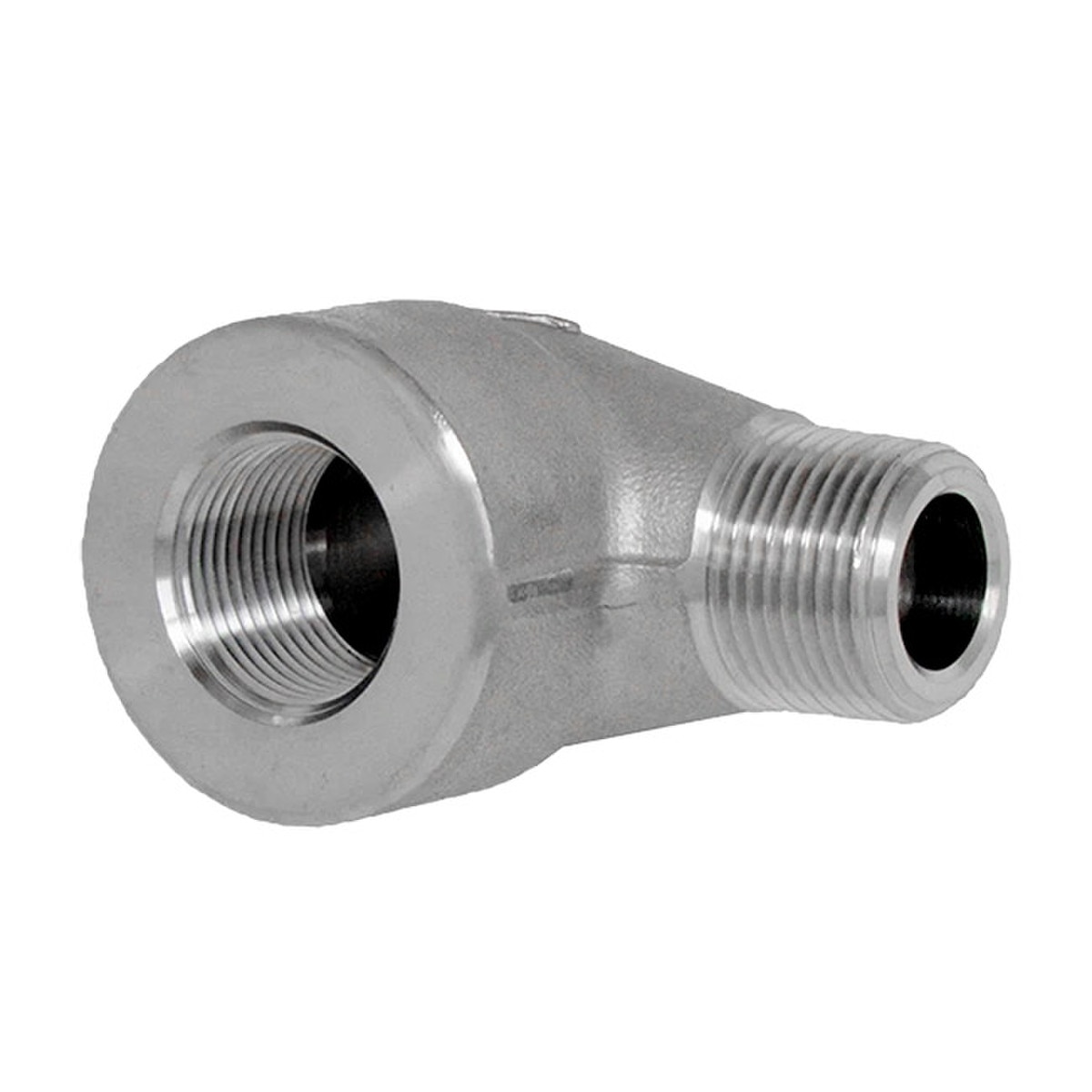

3000# Forged 90° Street Elbow Stainless Steel Pipe Fittings - Threaded
3000# 90° street elbow pipe fittings forged out of stainless steel to ASTM 182 and ANSI B16.11 specifications with threaded end connections. Available in 304 and 316 stainless steel alloys.
 | ||||||||||
| Part No. | Size (in.) | A | A1 | B Min. | B1 Min. | d | d1 | G Min. | H | Material |
|---|---|---|---|---|---|---|---|---|---|---|
| 3MTH90ST4S-025 | 1/4" | 0.874" (22.2mm) | 1.248" (31.7mm) | 0.315" (8.0mm) | 0.406" (10.3mm) | 0.441" (11.2mm) | 0.276" (7.0mm) | 0.130" (3.3mm) | 0.984" (25.0mm) | 304 SS |
| 3MTH90ST4S-038 | 3/8" | 1.000" (25.4mm) | 1.500" (38.1mm) | 0.354" (9.0mm) | 0.409" (10.4mm) | 0.571" (14.5mm) | 0.354" (9.0mm) | 0.138" (3.5mm) | 1.299" (33.0mm) | 304 SS |
| 3MTH90ST4S-050 | 1/2" | 1.126" (28.6mm) | 1.622" (41.2mm) | 0.433" (11.0mm) | 0.535" (13.6mm) | 0.618" (15.7mm) | 0.512" (13.0mm) | 0.161" (4.1mm) | 1.496" (38.0mm) | 304 SS |
| 3MTH90ST4S-075 | 3/4" | 1.374" (34.9mm) | 1.874" (47.6mm) | 0.492" (12.5mm) | 0.543" (13.8mm) | 0.823" (20.9mm) | 0.630" (16.0mm) | 0.170" (4.3mm) | 1.811" (46.0mm) | 304 SS |
| 3MTH90ST4S-100 | 1" | 1.752" (44.5mm) | 2.268" (57.6mm) | 0.571" (14.5mm) | 0.681" (17.3mm) | 1.047" (26.6mm) | 0.787" (20.0mm) | 0.196" (5.0mm) | 2.205" (56.0mm) | 304 SS |
| 3MTH90ST4S-125 | 1-1/4" | 2.000" (50.8mm) | 2.626" (66.7mm) | 0.669" (17.0mm) | 0.709" (18.0mm) | 1.378" (35.0mm) | 1.102" (28.0mm) | 0.208" (5.3mm) | 2.441" (62.0mm) | 304 SS |
| 3MTH90ST4S-150 | 1-1/2" | 2.126" (54.0mm) | 2.811" (71.4mm) | 0.709" (18.0mm) | 0.724" (18.4mm) | 1.610" (40.9mm) | 1.181" (30.0mm) | 0.219" (5.6mm) | 2.953" (75.0mm) | 304 SS |
| 3MTH90ST4S-200 | 2" | 2.500" (63.5mm) | 3.307" (84.0mm) | 0.748" (19.0mm) | 0.760" (19.3mm) | 2.067" (52.5mm) | 1.575" (40.0mm) | 0.281" (7.1mm) | 3.307" (84.0mm) | 304 SS |
| 3MTH90ST6S-025 | 1/4" | 0.874" (22.2mm) | 1.248" (31.7mm) | 0.315" (8.0mm) | 0.406" (10.3mm) | 0.441" (11.2mm) | 0.276" (7.0mm) | 0.130" (3.3mm) | 0.984" (25.0mm) | 316 SS |
| 3MTH90ST6S-038 | 3/8" | 1.000" (25.4mm) | 1.500" (38.1mm) | 0.354" (9.0mm) | 0.409" (10.4mm) | 0.571" (14.5mm) | 0.354" (9.0mm) | 0.138" (3.5mm) | 1.299" (33.0mm) | 316 SS |
| 3MTH90ST6S-050 | 1/2" | 1.126" (28.6mm) | 1.622" (41.2mm) | 0.433" (11.0mm) | 0.535" (13.6mm) | 0.618" (15.7mm) | 0.512" (13.0mm) | 0.161" (4.1mm) | 1.496" (38.0mm) | 316 SS |
| 3MTH90ST6S-075 | 3/4" | 1.374" (34.9mm) | 1.874" (47.6mm) | 0.492" (12.5mm) | 0.543" (13.8mm) | 0.823" (20.9mm) | 0.630" (16.0mm) | 0.170" (4.3mm) | 1.811" (46.0mm) | 316 SS |
| 3MTH90ST6S-100 | 1" | 1.752" (44.5mm) | 2.268" (57.6mm) | 0.571" (14.5mm) | 0.681" (17.3mm) | 1.047" (26.6mm) | 0.787" (20.0mm) | 0.196" (5.0mm) | 2.205" (56.0mm) | 316 SS |
| 3MTH90ST6S-125 | 1-1/4" | 2.000" (50.8mm) | 2.626" (66.7mm) | 0.669" (17.0mm) | 0.709" (18.0mm) | 1.378" (35.0mm) | 1.102" (28.0mm) | 0.208" (5.3mm) | 2.441" (62.0mm) | 316 SS |
| 3MTH90ST6S-150 | 1-1/2" | 2.126" (54.0mm) | 2.811" (71.4mm) | 0.709" (18.0mm) | 0.724" (18.4mm) | 1.610" (40.9mm) | 1.181" (30.0mm) | 0.219" (5.6mm) | 2.953" (75.0mm) | 316 SS |
| 3MTH90ST6S-200 | 2" | 2.500" (63.5mm) | 3.307" (84.0mm) | 0.748" (19.0mm) | 0.760" (19.3mm) | 2.067" (52.5mm) | 1.575" (40.0mm) | 0.281" (7.1mm) | 3.307" (84.0mm) | 316 SS |
