3000# Forged 45° Elbow Stainless Steel Pipe Fittings - Threaded

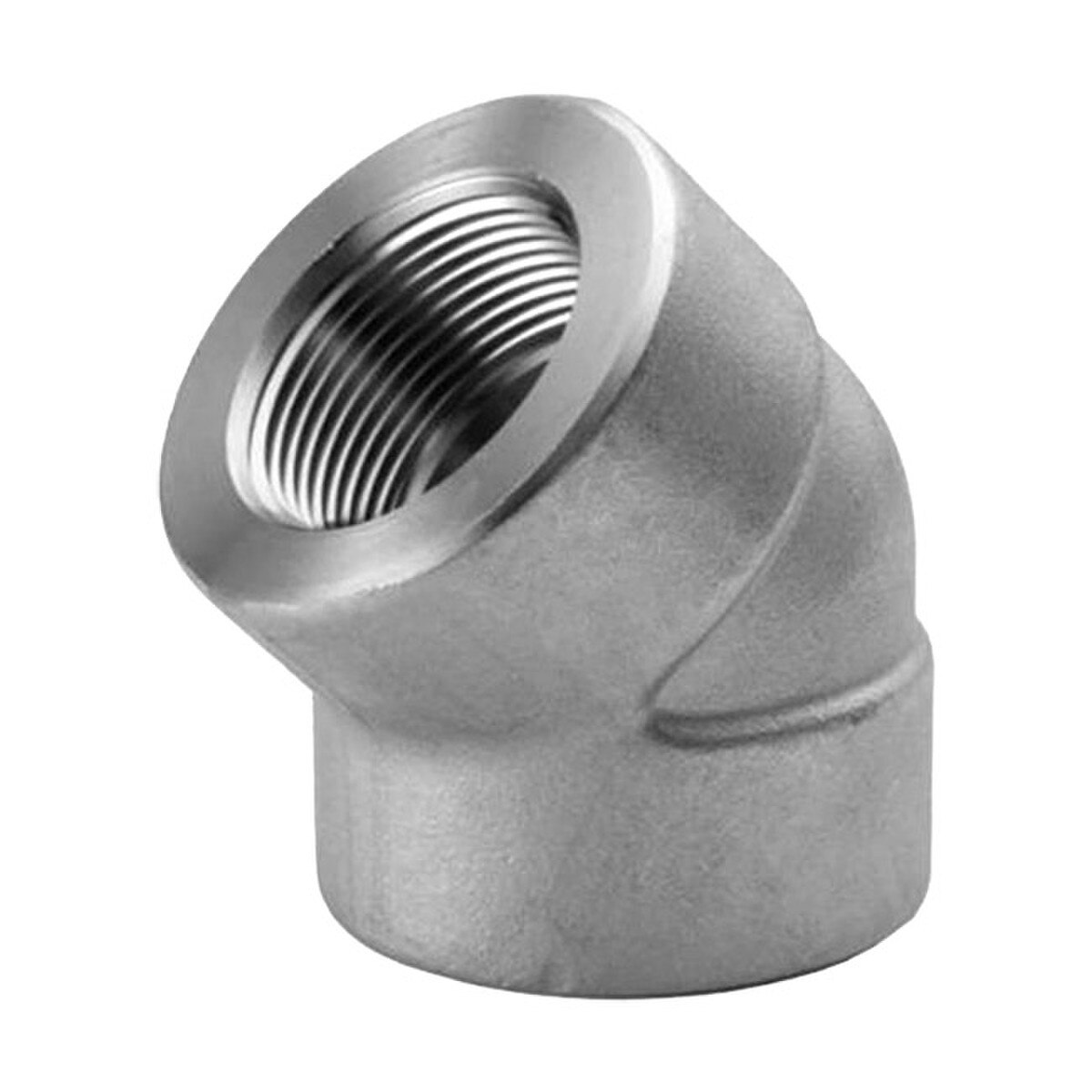

3000# 45° elbow pipe fittings forged out of stainless steel to ASTM 182 and ANSI B16.11 specifications with threaded end connections. Available in 304 and 316 stainless steel alloys.
 | ||||||
| Part No. | Size (in.) | Center to End (C) | Band OD (H) | Depth of Thread Min. (B) | Depth of Thread Max. (L2) | Material |
|---|---|---|---|---|---|---|
| 3MTH454S-013 | 1/8" | 0.669" (17.0mm) | 0.866" (22.0mm) | 0.252" (6.4mm) | 0.264" (6.7mm) | 304 SS |
| 3MTH454S-025 | 1/4" | 0.748" (19.0mm) | 0.984" (25.0mm) | 0.319" (8.1mm) | 0.402" (10.2mm) | 304 SS |
| 3MTH454S-038 | 3/8" | 0.866" (22.0mm) | 1.299" (33.0mm) | 0.358" (9.1mm) | 0.409" (10.4mm) | 304 SS |
| 3MTH454S-050 | 1/2" | 0.984" (25.0mm) | 1.496" (38.0mm) | 0.429" (10.9mm) | 0.535" (13.6mm) | 304 SS |
| 3MTH454S-075 | 3/4" | 1.102" (28.0mm) | 1.811" (46.0mm) | 0.500" (12.7mm) | 0.547" (13.9mm) | 304 SS |
| 3MTH454S-100 | 1" | 1.299" (33.0mm) | 2.205" (56.0mm) | 0.579" (14.7mm) | 0.681" (17.3mm) | 304 SS |
| 3MTH454S-125 | 1-1/4" | 1.378" (35.0mm) | 2.441" (62.0mm) | 0.669" (17.0mm) | 0.709" (18.0mm) | 304 SS |
| 3MTH454S-150 | 1-1/2" | 1.693" (43.0mm) | 2.953" (75.0mm) | 0.701" (17.8mm) | 0.724" (18.4mm) | 304 SS |
| 3MTH454S-200 | 2" | 1.732" (44.0mm) | 3.307" (84.0mm) | 0.748" (19.0mm) | 0.756" (19.2mm) | 304 SS |
| 3MTH454S-250 | 2-1/2" | 2.047" (52.0mm) | 4.016" (102.0mm) | 0.929" (23.6mm) | 1.138" (28.9mm) | 304 SS |
| 3MTH454S-300 | 3" | 2.520" (64.0mm) | 4.764" (121.0mm) | 1.020" (25.9mm) | 1.201" (30.5mm) | 304 SS |
| 3MTH454S-400 | 4" | 3.110" (79.0mm) | 5.984" (152.0mm) | 1.091" (27.7mm) | 1.299" (33.0mm) | 304 SS |
| 3MTH456S-013 | 1/8" | 0.669" (17.0mm) | 0.866" (22.0mm) | 0.252" (6.4mm) | 0.264" (6.7mm) | 316 SS |
| 3MTH456S-025 | 1/4" | 0.748" (19.0mm) | 0.984" (25.0mm) | 0.319" (8.1mm) | 0.402" (10.2mm) | 316 SS |
| 3MTH456S-038 | 3/8" | 0.866" (22.0mm) | 1.299" (33.0mm) | 0.358" (9.1mm) | 0.409" (10.4mm) | 316 SS |
| 3MTH456S-050 | 1/2" | 0.984" (25.0mm) | 1.496" (38.0mm) | 0.429" (10.9mm) | 0.535" (13.6mm) | 316 SS |
| 3MTH456S-075 | 3/4" | 1.102" (28.0mm) | 1.811" (46.0mm) | 0.500" (12.7mm) | 0.547" (13.9mm) | 316 SS |
| 3MTH456S-100 | 1" | 1.299" (33.0mm) | 2.205" (56.0mm) | 0.579" (14.7mm) | 0.681" (17.3mm) | 316 SS |
| 3MTH456S-125 | 1-1/4" | 1.378" (35.0mm) | 2.441" (62.0mm) | 0.669" (17.0mm) | 0.709" (18.0mm) | 316 SS |
| 3MTH456S-150 | 1-1/2" | 1.693" (43.0mm) | 2.953" (75.0mm) | 0.701" (17.8mm) | 0.724" (18.4mm) | 316 SS |
| 3MTH456S-200 | 2" | 1.732" (44.0mm) | 3.307" (84.0mm) | 0.748" (19.0mm) | 0.756" (19.2mm) | 316 SS |
| 3MTH456S-250 | 2-1/2" | 2.047" (52.0mm) | 4.016" (102.0mm) | 0.929" (23.6mm) | 1.138" (28.9mm) | 316 SS |
| 3MTH456S-300 | 3" | 2.520" (64.0mm) | 4.764" (121.0mm) | 1.020" (25.9mm) | 1.201" (30.5mm) | 316 SS |
| 3MTH456S-400 | 4" | 3.110" (79.0mm) | 5.984" (152.0mm) | 1.091" (27.7mm) | 1.299" (33.0mm) | 316 SS |
