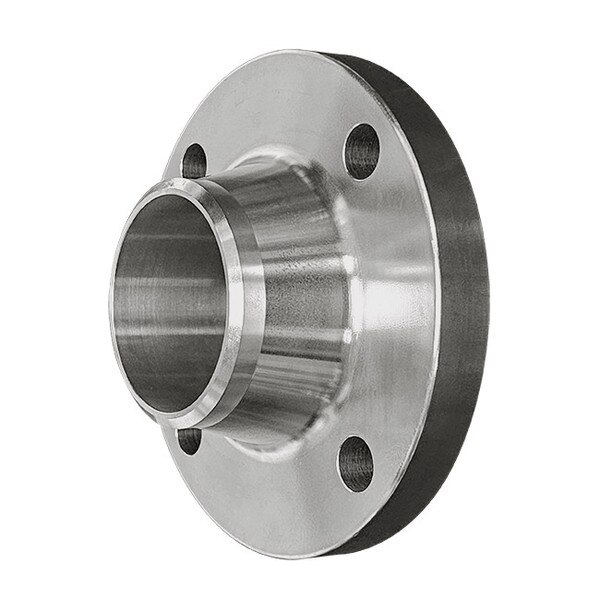

150# Raised Face Weld Neck Flanges - Schedule 80 Stainless Steel
150 # Schedule 80 Raised Face Weld Neck flanges manufactured to A182 specification. Available in 304L or 316L stainless steel in nominal schedule 10 pipe sizes ranging from 1/2" to 24".
 | |||||||||||
| Size (in.) | A (in.) | B (in.) | C (in.) | D (in.) | E (in.) | F (in.) | G (in.) | Bolt Circle (in.) | Bolt Hole Diameter (in.) | Number of Bolt Holes | Approx. Weight (lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 3.50 | 0.44 | 1.38 | 1.88 | 0.55 | 0.84 | 1.19 | 2.38 | 0.62 | 4 | 2 |
| 3/4 | 3.88 | 0.50 | 1.69 | 2.06 | 0.74 | 1.05 | 1.50 | 2.75 | 0.62 | 4 | 2 |
| 1 | 4.25 | 0.56 | 2.00 | 2.19 | 0.96 | 1.32 | 1.94 | 3.12 | 0.62 | 4 | 3 |
| 1-1/4 | 4.62 | 0.62 | 2.50 | 2.25 | 1.28 | 1.66 | 2.31 | 3.50 | 0.62 | 4 | 3 |
| 1-1/2 | 5.00 | 0.69 | 2.88 | 2.44 | 1.50 | 1.90 | 2.56 | 3.88 | 0.62 | 4 | 4 |
| 2 | 6.00 | 0.75 | 3.62 | 2.50 | 1.94 | 2.38 | 3.06 | 4.75 | 0.75 | 4 | 6 |
| 2-1/2 | 7.00 | 0.88 | 4.12 | 2.75 | 2.32 | 2.88 | 3.56 | 5.50 | 0.75 | 4 | 8 |
| 3 | 7.50 | 0.94 | 5.00 | 2.75 | 2.90 | 3.50 | 4.25 | 6.00 | 0.75 | 4 | 10 |
| 4 | 9.00 | 0.94 | 6.19 | 3.00 | 3.83 | 4.50 | 5.31 | 7.50 | 0.75 | 8 | 15 |
| 5 | 10.00 | 0.94 | 7.31 | 3.50 | 4.81 | 5.56 | 6.44 | 8.50 | 0.88 | 8 | 19 |
| 6 | 11.00 | 1.00 | 8.50 | 3.50 | 5.76 | 6.63 | 7.56 | 9.50 | 0.88 | 8 | 24 |
| 8 | 13.50 | 1.12 | 10.62 | 4.00 | 7.63 | 8.63 | 9.69 | 11.75 | 0.88 | 8 | 39 |
| 10 | 16.00 | 1.19 | 12.75 | 4.00 | 9.56 | 10.75 | 12.00 | 14.25 | 1.00 | 12 | 53 |
| 12 | 19.00 | 1.25 | 15.00 | 4.50 | 11.38 | 12.75 | 14.38 | 17.00 | 1.00 | 12 | 80 |
| 14 | 21.00 | 1.38 | 16.25 | 5.00 | 12.50 | 14.00 | 15.75 | 18.75 | 1.12 | 12 | 107 |
| 16 | 23.50 | 1.14 | 18.50 | 5.00 | 14.31 | 16.00 | 18.00 | 21.25 | 1.12 | 16 | 134 |
| 18 | 25.00 | 1.56 | 21.00 | 5.50 | 16.13 | 18.00 | 19.88 | 22.75 | 1.25 | 16 | 145 |
| 20 | 27.50 | 1.69 | 23.00 | 5.69 | 17.94 | 20.00 | 22.00 | 25.00 | 1.25 | 20 | 183 |
| 24 | 32.00 | 1.88 | 27.25 | 6.00 | 21.56 | 24.00 | 26.12 | 29.50 | 1.38 | 20 | 256 |
