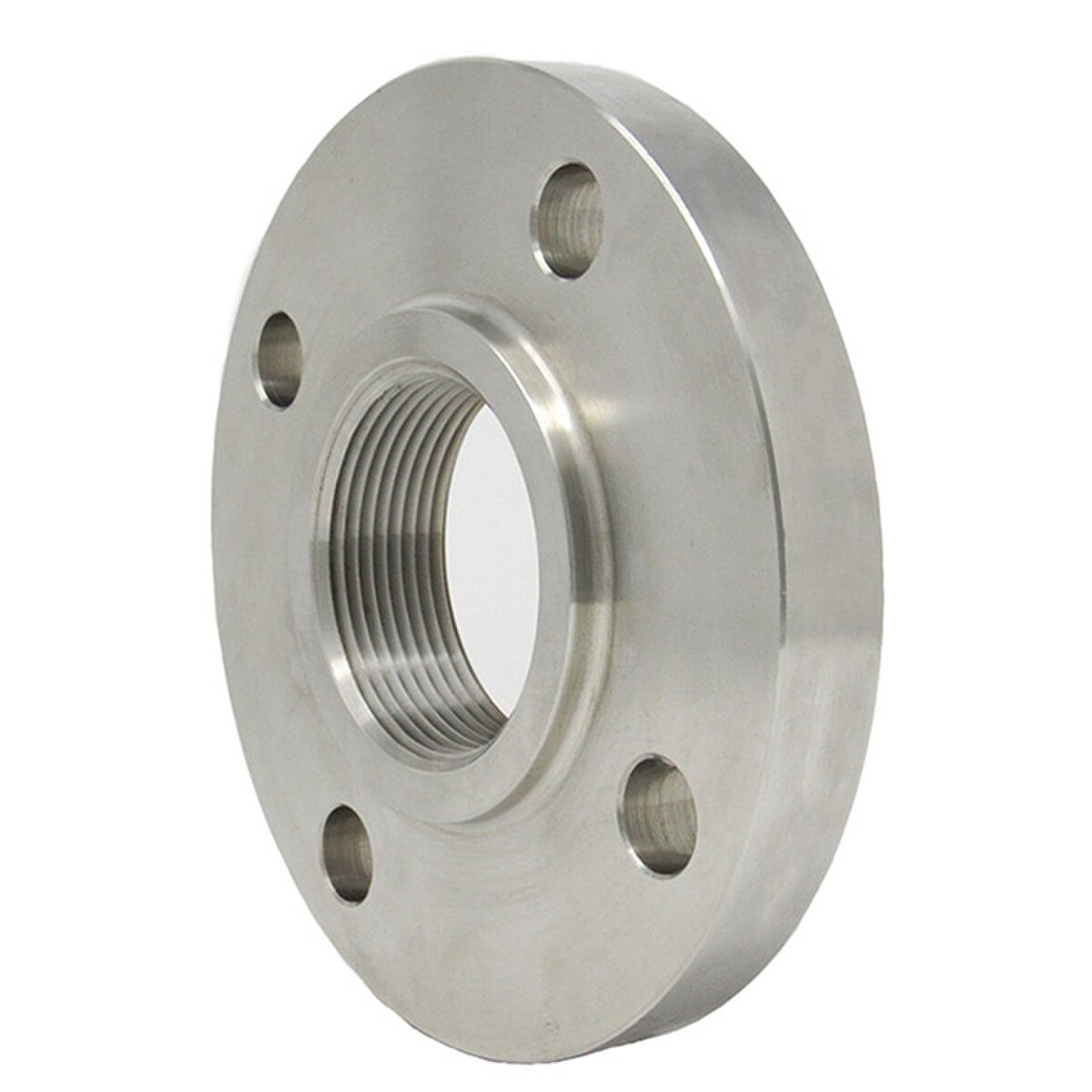

150# Raised Face Threaded Flanges - Stainless Steel
150# Raised Face Threaded flanges manufactured to A182 specification. Available in 304L or 316L stainless steel in nominal pipe sizes ranging from 1/2" to 12".
 | |||||||||
| Size (in.) | A (in.) | B (in.) | C (in.) | D (in.) | E (in.) | Bolt Circle (in.) | Bolt Hole Diameter (in.) | Number of Bolt Holes | Weight (lbs.) |
|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 3.50 | 0.44 | 1.38 | 0.62 | 1.19 | 2.38 | 0.62 | 4 | 1 |
| 3/4 | 3.88 | 0.50 | 1.69 | 0.62 | 1.50 | 2.75 | 0.62 | 4 | 1.5 |
| 1 | 4.25 | 0.56 | 2.00 | 0.69 | 1.94 | 3.12 | 0.62 | 4 | 2 |
| 1-1/4 | 4.62 | 0.62 | 2.50 | 0.81 | 2.31 | 3.50 | 0.62 | 4 | 3 |
| 1-1/2 | 5.00 | 0.69 | 2.88 | 0.88 | 2.56 | 3.88 | 0.62 | 4 | 3.5 |
| 2 | 6.00 | 0.75 | 3.62 | 1.00 | 3.06 | 4.75 | 0.75 | 4 | 5 |
| 2-1/2 | 7.00 | 0.88 | 4.12 | 1.12 | 3.56 | 5.50 | 0.75 | 4 | 7 |
| 3 | 7.50 | 0.94 | 5.00 | 1.19 | 4.25 | 6.00 | 0.75 | 4 | 9.25 |
| 4 | 9.00 | 0.94 | 6.19 | 1.31 | 5.31 | 7.50 | 0.75 | 8 | 12.5 |
| 5 | 10.00 | 0.94 | 7.31 | 1.44 | 6.44 | 8.50 | 0.88 | 8 | 15 |
| 6 | 11.00 | 1.00 | 8.50 | 1.56 | 7.56 | 9.50 | 0.88 | 8 | 19 |
| 8 | 13.50 | 1.12 | 10.62 | 1.75 | 9.69 | 11.75 | 0.88 | 8 | 30 |
| 10 | 16.00 | 1.19 | 12.75 | 1.94 | 12.00 | 14.25 | 1.00 | 12 | 43 |
| 12 | 19.00 | 1.25 | 15.00 | 2.19 | 14.38 | 17.00 | 1.00 | 12 | 64 |
