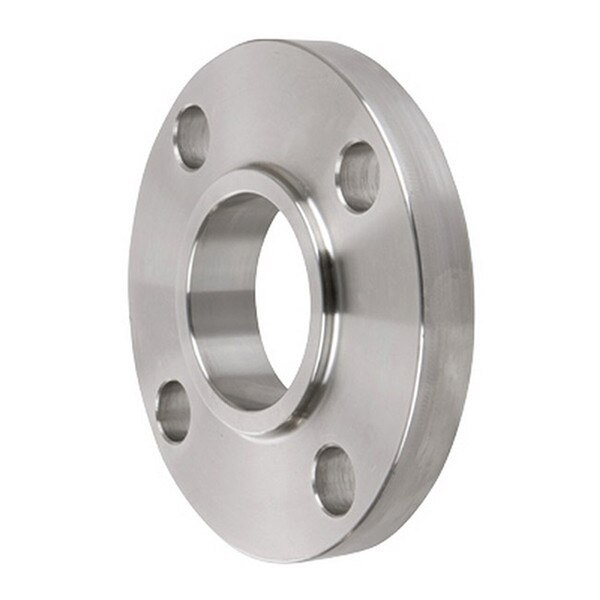

150# Lap Joint Flanges - Stainless Steel
150# Lap Joint flanges manufactured to A182 specification. Available in 304L or 316L stainless steel in nominal pipe sizes ranging from 1/2" to 16".
 | ||||||||||

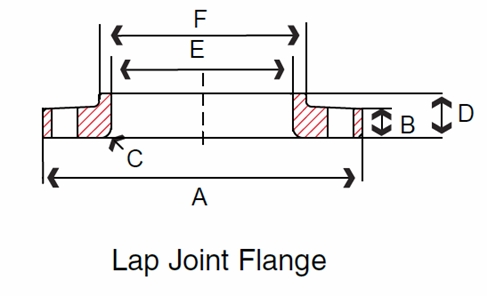

| Size(in.) | A(in.) | B(in.) | C(in.) | D(in.) | E(in.) | F(in.) | Bolt Circle(in.) | Bolt Hole Diameter(in.) | Number of Bolt Holes | Weight(lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 3.50 | 0.44 | 0.12 | 0.62 | 0.90 | 1.19 | 2.38 | 0.62 | 4 | 1 |
| 3/4 | 3.88 | 0.50 | 0.12 | 0.62 | 1.11 | 1.50 | 2.75 | 0.62 | 4 | 1.5 |
| 1 | 4.25 | 0.56 | 0.12 | 0.69 | 1.38 | 1.94 | 3.12 | 0.62 | 4 | 2 |
| 1-1/4 | 4.62 | 0.62 | 0.19 | 0.81 | 1.72 | 2.31 | 3.50 | 0.62 | 4 | 3 |
| 1-1/2 | 5.00 | 0.69 | 0.25 | 0.88 | 1.97 | 2.56 | 3.88 | 0.62 | 4 | 3.5 |
| 2 | 6.00 | 0.75 | 0.31 | 1.00 | 2.46 | 3.06 | 4.75 | 0.75 | 4 | 5 |
| 2-1/2 | 7.00 | 0.88 | 0.31 | 1.12 | 2.97 | 3.56 | 5.50 | 0.75 | 4 | 7 |
| 3 | 7.50 | 0.94 | 0.38 | 1.19 | 3.60 | 4.25 | 6.00 | 0.75 | 4 | 9.25 |
| 4 | 9.00 | 0.94 | 0.44 | 1.31 | 4.60 | 5.31 | 7.50 | 0.75 | 8 | 12.5 |
| 5 | 10.00 | 0.94 | 0.50 | 1.44 | 5.69 | 6.44 | 8.50 | 0.88 | 8 | 15 |
| 6 | 11.00 | 1.00 | 0.50 | 1.56 | 6.75 | 7.56 | 9.50 | 0.88 | 8 | 19 |
| 8 | 13.50 | 1.12 | 0.50 | 1.75 | 8.75 | 9.69 | 11.75 | 0.88 | 8 | 30 |
| 10 | 16.00 | 1.19 | 0.50 | 1.94 | 10.92 | 12.00 | 14.25 | 1.00 | 12 | 43 |
| 12 | 19.00 | 1.25 | 0.50 | 2.19 | 12.92 | 14.38 | 17.00 | 1.00 | 12 | 64 |
| 16 | 23.50 | 1.14 | 0.50 | 3.44 | 16.19 | 18.00 | 21.25 | 1.12 | 16 | 140 |
