Weld x Weld x Short Clamp Tee made from 316L Stainless Steel.

This VNE MaxPure ASME BPE Compliant Bio-Pharm Fitting is available with the following finishes:

20Ra Mechanically Polished Inside Surface with a Mill Finished Outside Surface, SFF1 (PC)

20Ra Mechanically Polished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF1 (PL)

15Ra Mechanically Polished & Electropolished Inside Surface with a Mill Finished Outside Surface, SFF4 (PD)

15Ra Mechanically Polished & Electropolished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF4 (PM)

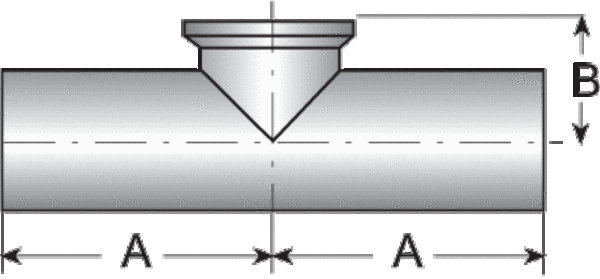

Ordering Code	Nominal Size(in.)	A (in.)	A (mm)	B (in.)	B (mm)

TE7WWCS6L.25-..	1/4	1.750in.	44.5mm	1.000in.	25.4mm
TE7WWCS6L.375-..	3/8	1.750in.	44.5mm	1.000in.	25.4mm
TE7WWCS6L.5-..	1/2	1.875in.	47.6mm	1.000in.	25.4mm
TE7WWCS6L.75-..	3/4	2.000in.	50.8mm	1.125in.	28.6mm
TE7WWCS6L1.0-..	1	2.125in.	54.0mm	1.125in.	28.6mm
TE7WWCS6L1.5-..	1 1/2	2.375in.	60.3mm	1.375in.	34.9mm
TE7WWCS6L2.0-..	2	2.875in.	73.0mm	1.625in.	41.3mm
TE7WWCS6L2.5-..	2 1/2	3.125in.	79.4mm	1.875in.	47.6mm
TE7WWCS6L3.0-..	3	3.375in.	85.7mm	2.125in.	54.0mm
TE7WWCS6L4.0-..	4	4.125in.	104.8mm	2.750in.	69.9mm
TE7WWCS6L6.0-..	6	5.625in.	142.9mm	4.625in.	117.5mm
