Weld x Weld x Clamp Reducing Tee made from 316L Stainless Steel.

This VNE MaxPure ASME BPE Compliant Bio-Pharm Fitting is available with the following finishes:

20Ra Mechanically Polished Inside Surface with a Mill Finished Outside Surface, SFF1 (PC)

20Ra Mechanically Polished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF1 (PL)

15Ra Mechanically Polished & Electropolished Inside Surface with a Mill Finished Outside Surface, SFF4 (PD)

15Ra Mechanically Polished & Electropolished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF4 (PM)

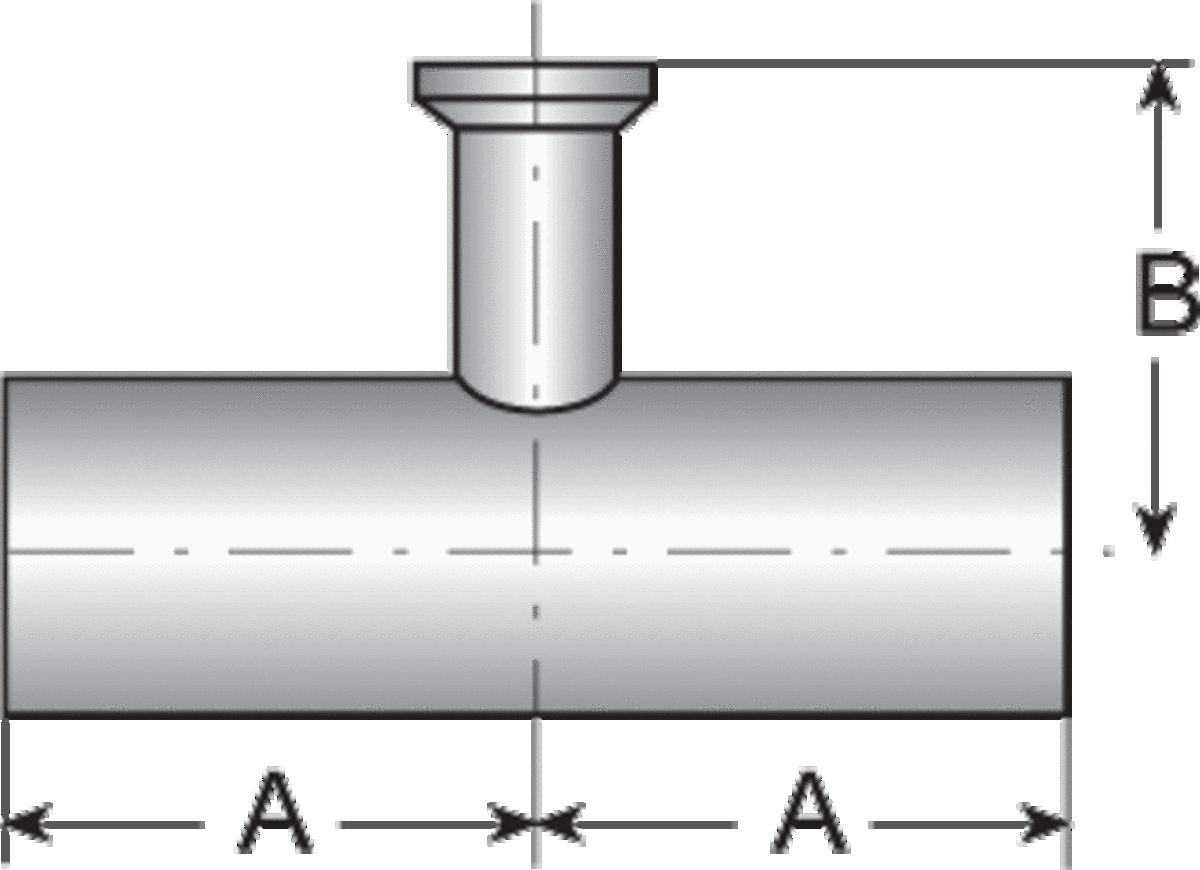

Ordering Code	Nominal Size(in.)	A (in.)	A (mm)	B (in.)	B (mm)

TE7RWWC6L.75x.5-..	3/4 x 1/2	2.000in.	50.8mm	2.500in.	63.5mm
TE7RWWC6L1.0x.5-..	1 x 1/2	2.125in.	53.9mm	2.625in.	66.7mm
TE7RWWC6L1.0x.75-..	1 x 3/4	2.125in.	53.9mm	2.625in.	66.7mm
TE7RWWC6L1.5x.5-..	1 1/2 x 1/2	2.375in.	60.3mm	2.875in.	73.0mm
TE7RWWC6L1.5x.75-..	1 1/2 x 3/4	2.375in.	60.3mm	2.875in.	73.0mm
TE7RWWC6L1.5x1.0-..	1 1/2 x 1	2.375in.	60.3mm	2.875in.	73.0mm
TE7RWWC6L2.0x.5-..	2 x 1/2	2.875in.	73.0mm	3.125in.	79.4mm
TE7RWWC6L2.0x.75-..	2 x 3/4	2.875in.	73.0mm	3.125in.	79.4mm
TE7RWWC6L2.0x1.0-..	2 x 1	2.875in.	73.0mm	3.125in.	79.4mm
TE7RWWC6L2.0x1.5-..	2 x 1 1/2	2.875in.	73.0mm	3.125in.	79.4mm
TE7RWWC6L2.5x.5-..	2 1/2 x 1/2	3.125in.	79.4mm	3.375in.	85.7mm
TE7RWWC6L2.5x1.5-..	2 1/2 x 1 1/2	3.125in.	79.4mm	3.375in.	85.7mm
TE7RWWC6L2.5x2.0-..	2 1/2 x 2	3.125in.	79.4mm	3.375in.	85.7mm
TE7RWWC6L3.0x1.0-..	3 x 1	3.375in.	85.7mm	3.625in.	92.1mm
TE7RWWC6L3.0x1.5-..	3 x 1 1/2	3.375in.	85.7mm	3.625in.	92.1mm
TE7RWWC6L3.0x2.0-..	3 x 2	3.375in.	85.7mm	3.625in.	92.1mm
TE7RWWC6L3.0x2.5-..	3 x 2 1/2	3.375in.	85.7mm	3.625in.	92.1mm
TE7RWWC6L4.0x1.0-..	4 x 1	4.125in.	104.8mm	4.125in.	104.8mm
TE7RWWC6L4.0x1.5-..	4 x 1 1/2	4.125in.	104.8mm	4.125in.	104.8mm
TE7RWWC6L4.0x2.0-..	4 x 2	4.125in.	104.8mm	4.375in.	111.1mm
TE7RWWC6L4.0x2.5-..	4 x 2 1/2	4.125in.	104.8mm	4.375in.	111.1mm
TE7RWWC6L4.0x3.0-..	4 x 3	4.125in.	104.8mm	4.375in.	111.1mm
TE7RWWC6L6.0x3.0-..	6 x 3	5.625in.	142.9mm	5.375in.	136.5mm
TE7RWWC6L6.0x4.0-..	6 x 4	5.625in.	142.9mm	5.750in.	146.1mm
