• Weld x Short Clamp x Weld Tee, 316L SS

Weld x Short Clamp x Weld Tee, 316L SS

(0)No Reviews yet
Back

Weld x Short Clamp x Weld Tee made from 316L Stainless Steel.

This VNE MaxPure ASME BPE Compliant Bio-Pharm Fitting is available with the following finishes:

  • 20Ra Mechanically Polished Inside Surface with a Mill Finished Outside Surface, SFF1 (PC)
  • 20Ra Mechanically Polished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF1 (PL)
  • 15Ra Mechanically Polished & Electropolished Inside Surface with a Mill Finished Outside Surface, SFF4 (PD)
  • 15Ra Mechanically Polished & Electropolished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF4 (PM)

    • Back

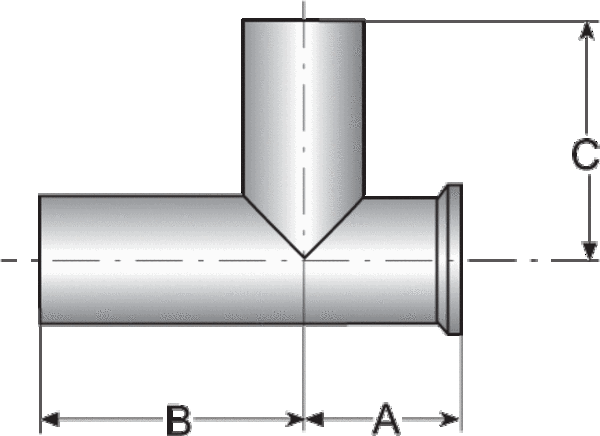

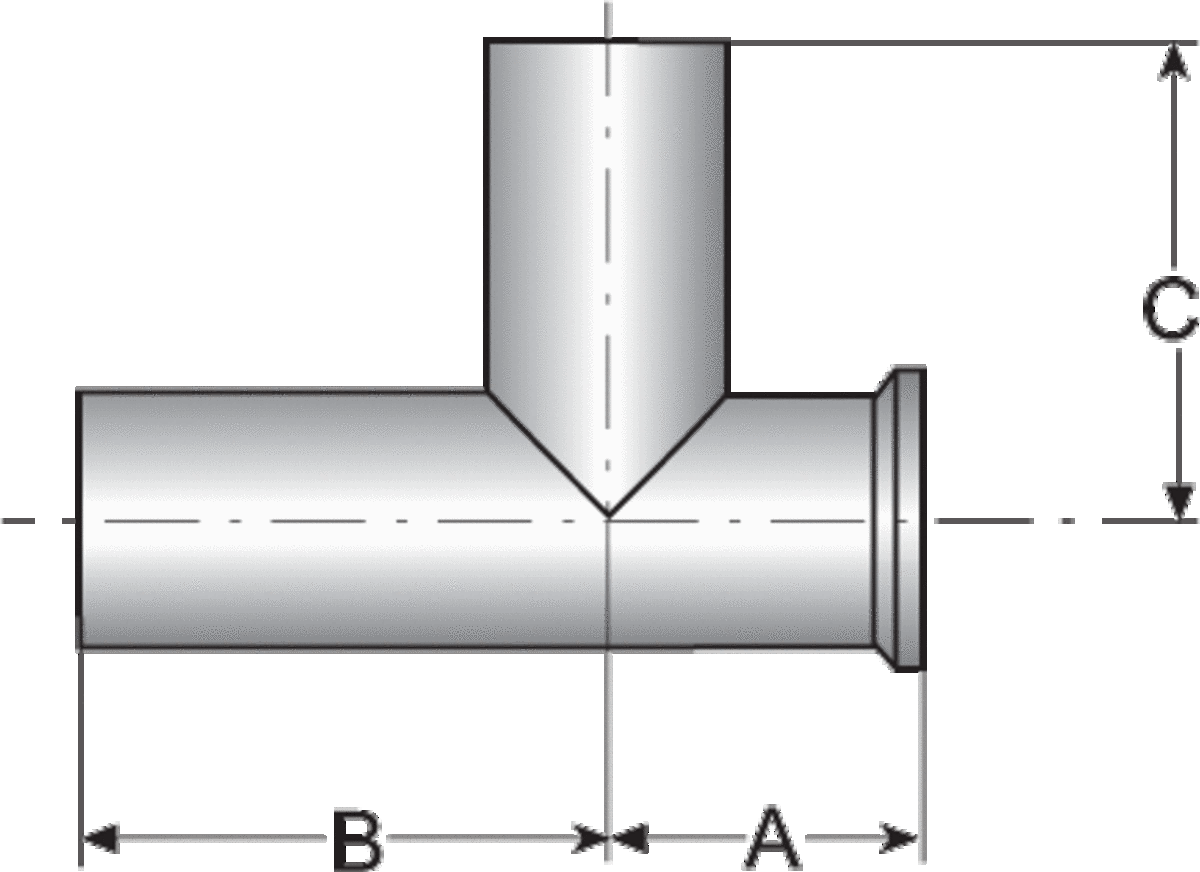

    Ordering CodeNominal Size(in.)A (in.)A (mm)B (in.)B (mm)C (in.)C (mm)
    TE7WCSW6L.25-..1/40.875in.22.2mm1.750in.44.5mm1.750in.44.5mm
    TE7WCSW6L.375-..3/80.875in.22.2mm1.750in.44.5mm1.750in.44.5mm
    TE7WCSW6L.5-..1/20.875in.22.2mm1.875in.47.6mm1.875in.47.6mm
    TE7WCSW6L.75-..3/41.000in.25.4mm2.000in.50.8mm2.000in.50.8mm
    TE7WCSW6L1.0-..11.125in.28.6mm2.125in.54.0mm2.125in.54.0mm
    TE7WCSW6L1.5-..1 1/21.375in.34.9mm2.375in.60.3mm2.375in.60.3mm
    TE7WCSW6L2.0-..21.625in.41.3mm2.875in.73.0mm2.875in.73.0mm
    TE7WCSW6L2.5-..2 1/21.875in.47.6mm3.125in.79.4mm3.125in.79.4mm
    TE7WCSW6L3.0-..32.125in.54.0mm3.375in.85.7mm3.375in.85.7mm
    TE7WCSW6L4.0-..42.750in.69.9mm4.125in.104.8mm4.125in.104.8mm
    TE7WCSW6L6.0-..64.625in.117.5mm5.625in.142.9mm5.625in.142.9mm
