Weld Tee, 316L SS

(0)No Reviews yet
Back

Weld Tee made from 316L Stainless Steel.

This VNE MaxPure ASME BPE Compliant Bio-Pharm Fitting is available with the following finishes:

  • 20Ra Mechanically Polished Inside Surface with a Mill Finished Outside Surface, SFF1 (PC)
  • 20Ra Mechanically Polished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF1 (PL)
  • 15Ra Mechanically Polished & Electropolished Inside Surface with a Mill Finished Outside Surface, SFF4 (PD)
  • 15Ra Mechanically Polished & Electropolished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF4 (PM)

    • Back

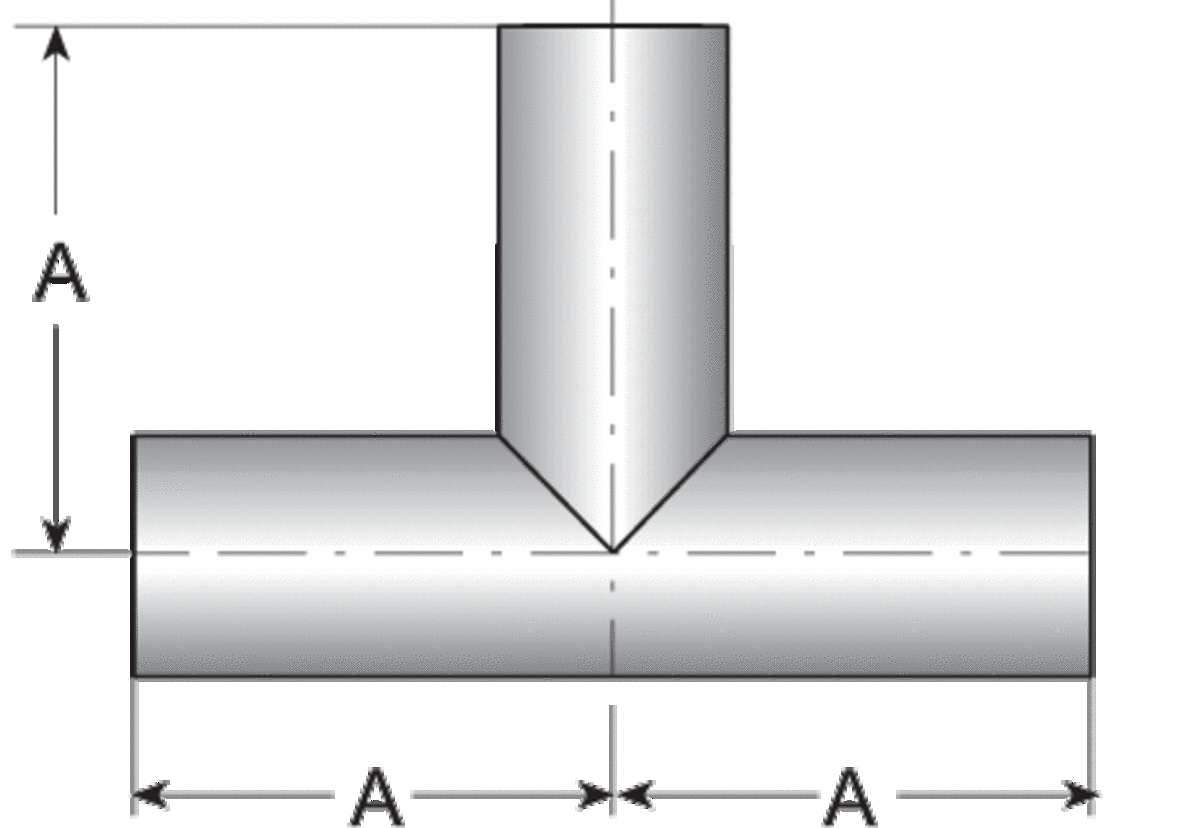

    Ordering CodeNominal Size(in.)A (in.)A (mm)
    TE7WWW6L.25-..1/41.750in.44.5mm
    TE7WWW6L.375-..3/81.750in.44.5mm
    TE7WWW6L.5-..1/21.875in.47.6mm
    TE7WWW6L.75-..3/42.000in.50.8mm
    TE7WWW6L1.0-..12.125in.54.0mm
    TE7WWW6L1.5-..1 1/22.375in.60.3mm
    TE7WWW6L2.0-..22.875in.73.0mm
    TE7WWW6L2.5-..2 1/23.125in.79.4mm
    TE7WWW6L3.0-..33.375in.85.7mm
    TE7WWW6L4.0-..44.125in.104.8mm
    TE7WWW6L6.0-..65.625in.142.9mm
