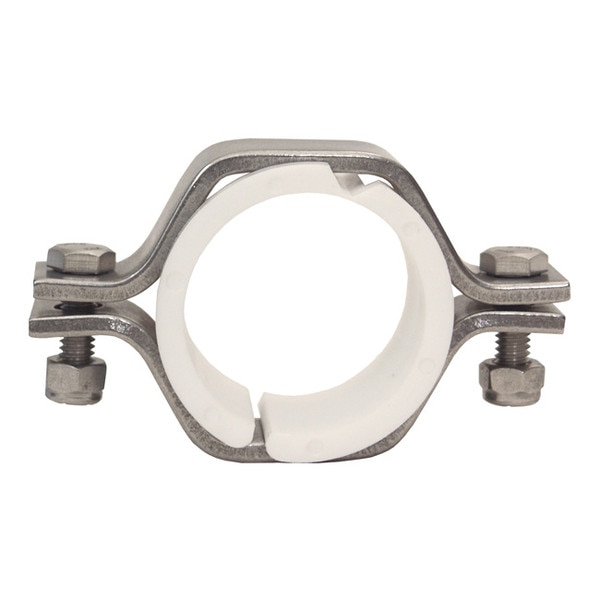

VNE Hex Hangers w/ PVC Insert (Tube Size)
VNE E24PVC Tube Hex Hangers are supplied with a PVC insert and do not have a threaded coupling attached. Use these tube hanger to support long runs of tubing. It is recommended to have a support every 10 feet along straight sections as well as at each change in direction.
VNE is a leading manufacturer of stainless steel fittings, valves, and specialty products for pharmaceutical, sanitary and industrial applications. Whether you need clamp fittings, weld fittings, or an engineered valve all products carry the quality, name, and reputation of VNE.
 | |||
| Part Number | Tube OD | A | B |
|---|---|---|---|
| E24PVC.5 | 1/2" | 3-5/8" | 2" |
| E24PVC.75 | 3/4" | 3-5/8" | 2-1/8" |
| E24PVC1.0 | 1" | 3-5/8" | 2-1/8" |
| E24PVC1.5 | 1-1/2" | 3-5/8" | 2-1/8" |
| E24PVC2.0 | 2" | 4-5/16" | 2-5/8" |
| E24PVC2.5 | 2-1/2" | 4-13/16" | 3-1/8" |
| E24PVC3.0 | 3" | 5-3/8" | 3-5/8" |
| E24PVC4.0 | 4" | 6-1/2" | 4-3/4" |
| E24PVC6.0 | 6" | 9" | 6-5/8" |
