VNE Female NPT Adapter

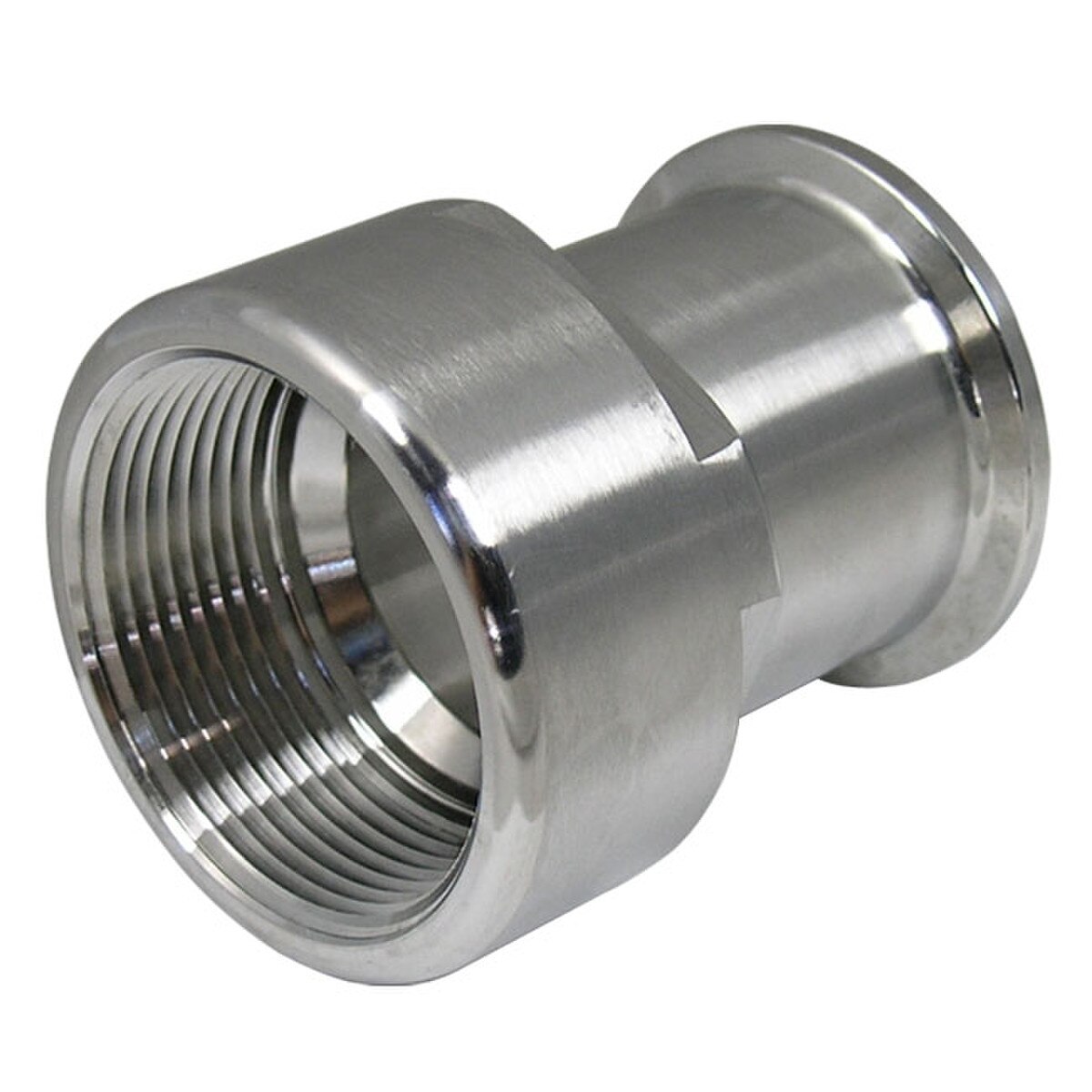

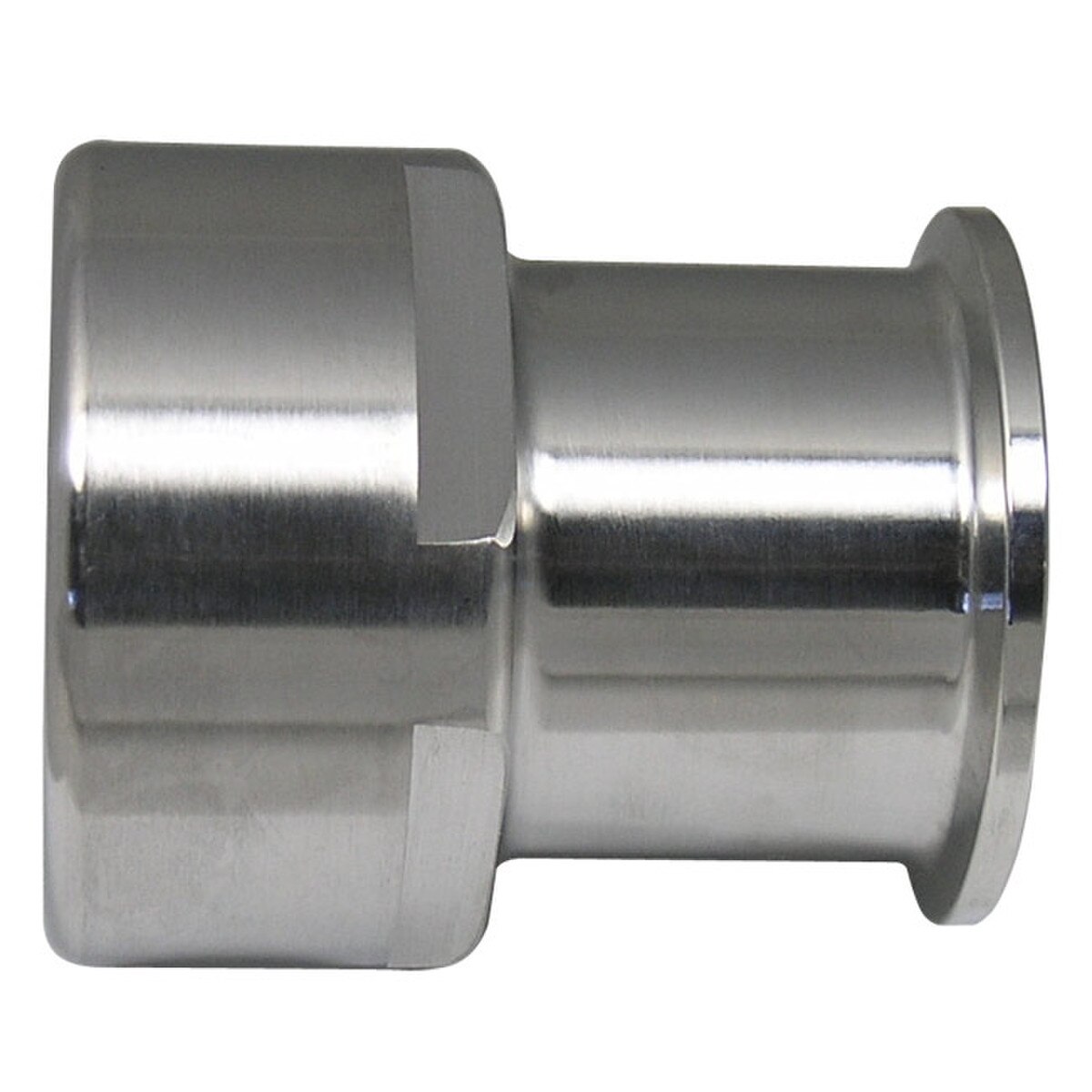

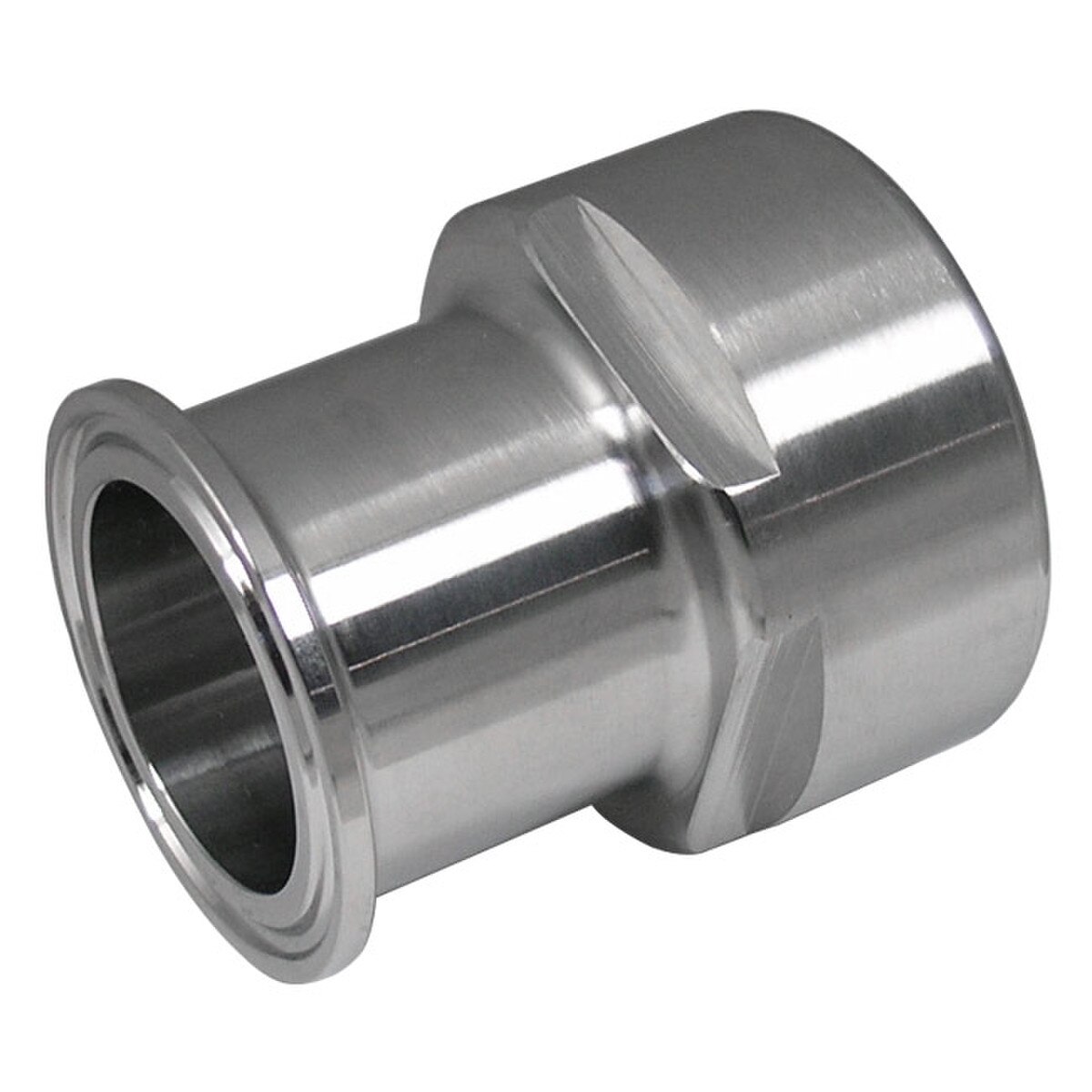

VNE EG22 Clamp x Female NPT Adapters are available in 304 or 316L Stainless Steel from 1/2" up to 4". These stainless steel NPT adapters are supplied with a 3A sanitary polished finish (32 Ra ID/OD).
Clamp style fittings are most popular due to the easy assembly and breakdown of process lines and equipment for repair or maintenance. VNE Clamp Fittings are offered in 304 and 316L Stainless Steel and meet all 3A requirements.
VNE is a leading manufacturer of stainless steel fittings, valves, and specialty products for pharmaceutical, sanitary and industrial applications. Whether you need clamp fittings, weld fittings, or an engineered valve all products carry the quality, name, and reputation of VNE.
 | |||
| Part Number | Tube OD | A | Material |
|---|---|---|---|
| EG221.0 | 1" | 2.250" | 304 Stainless Steel |
| EG221.5 | 1-1/2" | 2.562" | 304 Stainless Steel |
| EG222.0 | 2" | 2.562" | 304 Stainless Steel |
| EG222.5 | 2-1/2" | 2.750" | 304 Stainless Steel |
| EG223.0 | 3" | 2.937" | 304 Stainless Steel |
| EG224.0 | 4" | 3.125" | 304 Stainless Steel |
| EG22-6L.75X.5 | 3/4" x 1/2" | 2.000" | 316L Stainless Steel |
| EG22-6L1.0X.5 | 1" x 1/2" | 1.625" | 316L Stainless Steel |
| EG22-6L1.0X.75 | 1" x 3/4" | 1.625" | 316L Stainless Steel |
| EG22-6L1.0 | 1" | 2.250" | 316L Stainless Steel |
| EG22-6L1.5X.5 | 1-1/2" x 1/2" | 1.625" | 316L Stainless Steel |
| EG22-6L1.5X.75 | 1-1/2" x 3/4" | 1.625" | 316L Stainless Steel |
| EG22-6L1.5X1.25 | 1-1/2" x 1-1/4" | 2.560" | 316L Stainless Steel |
| EG22-6L1.5 | 1-1/2" | 2.562" | 316L Stainless Steel |
| EG22-6L2.0X1.0 | 2" x 1" | 1.625" | 316L Stainless Steel |
| EG22-6L2.0X1.25 | 2" x 1-1/4" | 1.927" | 316L Stainless Steel |
| EG22-6L2.0X1.5 | 2" x 1-1/2" | 1.937" | 316L Stainless Steel |
| EG22-6L2.0 | 2" | 2.562" | 316L Stainless Steel |
| EG22-6L2.5X1.5 | 2-1/2" x 1-1/2" | 1.937" | 316L Stainless Steel |
| EG22-6L2.5X2.0 | 2-1/2" x 2" | 1.937" | 316L Stainless Steel |
| EG22-6L2.5 | 2-1/2" | 2.750" | 316L Stainless Steel |
| EG22-6L3.0X1.5 | 3" x 1-1/2" | 1.937" | 316L Stainless Steel |
| EG22-6L3.0X2.0 | 3" x 2" | 1.937" | 316L Stainless Steel |
| EG22-6L3.0X2.5 | 3" x 2-1/2" | 2.125" | 316L Stainless Steel |
| EG22-6L3.0 | 3" | 2.937" | 316L Stainless Steel |
| EG22-6L4.0X2.0 | 4" x 2" | 2.062" | 316L Stainless Steel |
| EG22-6L4.0X2.5 | 4" x 2-1/2" | 2.250" | 316L Stainless Steel |
| EG22-6L4.0X3.0 | 4" x 3" | 2.437" | 316L Stainless Steel |
| EG22-6L4.0 | 4" | 3.125" | 316L Stainless Steel |
