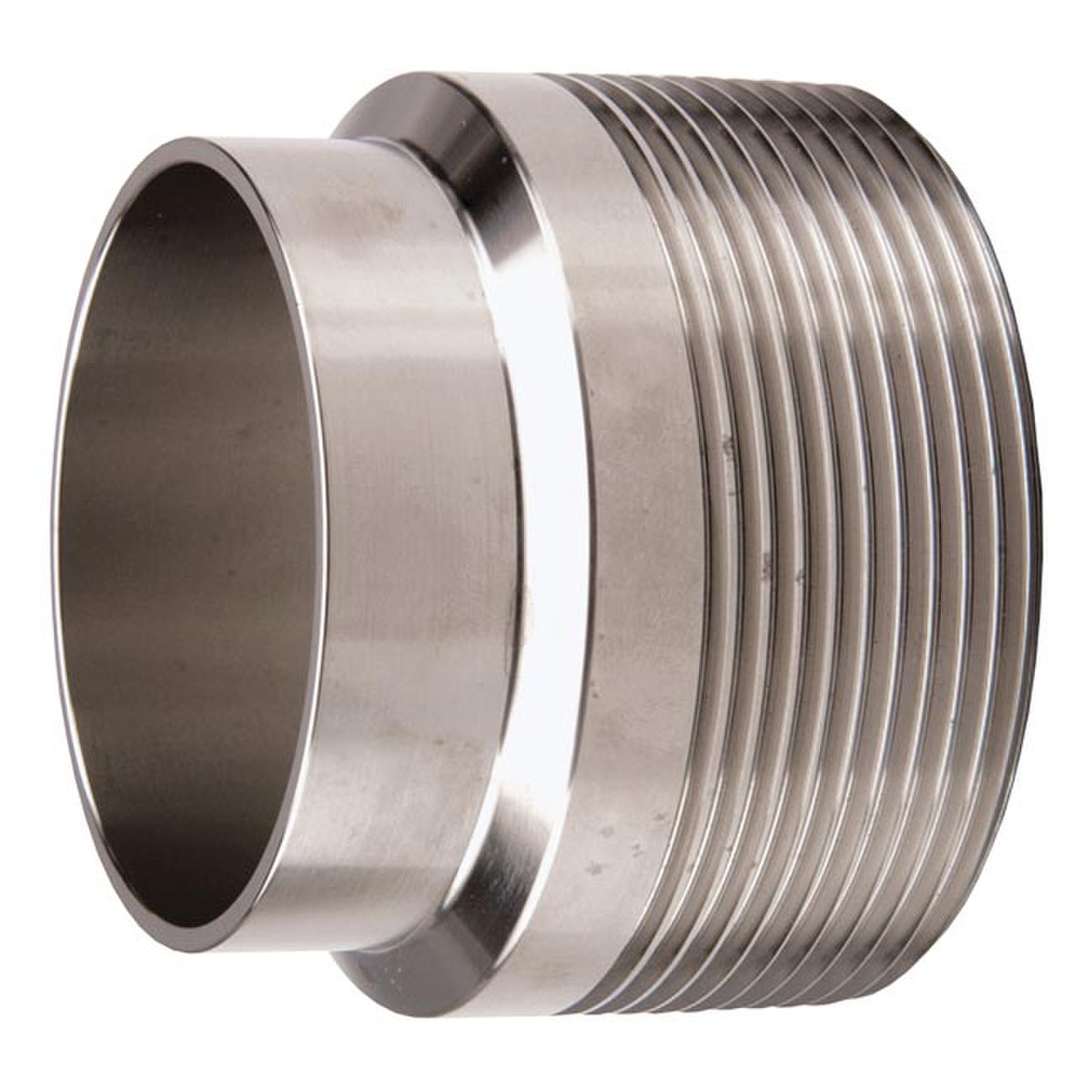

VNE Buttweld x Male NPT Adapters
VNE 19WB Male NPT Adapters are available in 304 or 316L Stainless Steel from 1/2" up to 6". These buttweld to NPT adapters are supplied with the mill finish that they come of the lathe with. Not a guaranteed 32 Ra, but it is a nice polished looks. This buttweld adapter does not carry the 3A stamp for this reason.
VNE is a leading manufacturer of stainless steel fittings, valves, and specialty products for pharmaceutical, sanitary and industrial applications. Whether you need clamp fittings, weld fittings, or an engineered valve all products carry the quality, name, and reputation of VNE.
 | ||||
| Part Number | Tube OD | A | Nom. Wall | Material |
|---|---|---|---|---|
| 19WB1.0 | 1" | 1.750" | 0.065" | 304 Stainless Steel |
| 19WB1.5 | 1-1/2" | 1.750" | 0.065" | 304 Stainless Steel |
| 19WB2.0 | 2" | 1.812" | 0.065" | 304 Stainless Steel |
| 19WB2.5 | 2-1/2" | 2.312" | 0.065" | 304 Stainless Steel |
| 19WB3.0 | 3" | 2.500" | 0.065" | 304 Stainless Steel |
| 19WB4.0 | 4" | 2.562" | 0.083" | 304 Stainless Steel |
| 19WB6.0 | 6" | 4.000" | 0.109" | 304 Stainless Steel |
| 19WB-6L.5 | 1/2" | 1.625" | 0.065" | 316L Stainless Steel |
| 19WB-6L.75 | 3/4" | 1.625" | 0.065" | 316L Stainless Steel |
| 19WB-6L1.0 | 1" | 1.750" | 0.065" | 316L Stainless Steel |
| 19WB-6L1.25 | 1-1/4" | 1.750" | 0.065" | 316L Stainless Steel |
| 19WB-6L1.5 | 1-1/2" | 1.750" | 0.065" | 316L Stainless Steel |
| 19WB-6L2.0 | 2" | 1.812" | 0.065" | 316L Stainless Steel |
| 19WB-6L2.5 | 2-1/2" | 2.312" | 0.065" | 316L Stainless Steel |
| 19WB-6L3.0 | 3" | 2.500" | 0.065" | 316L Stainless Steel |
| 19WB-6L4.0 | 4" | 2.562" | 0.083" | 316L Stainless Steel |
| 19WB-6L6.0 | 6" | 4.000" | 0.109" | 316L Stainless Steel |
