VNE Buttweld Concentric Reducers

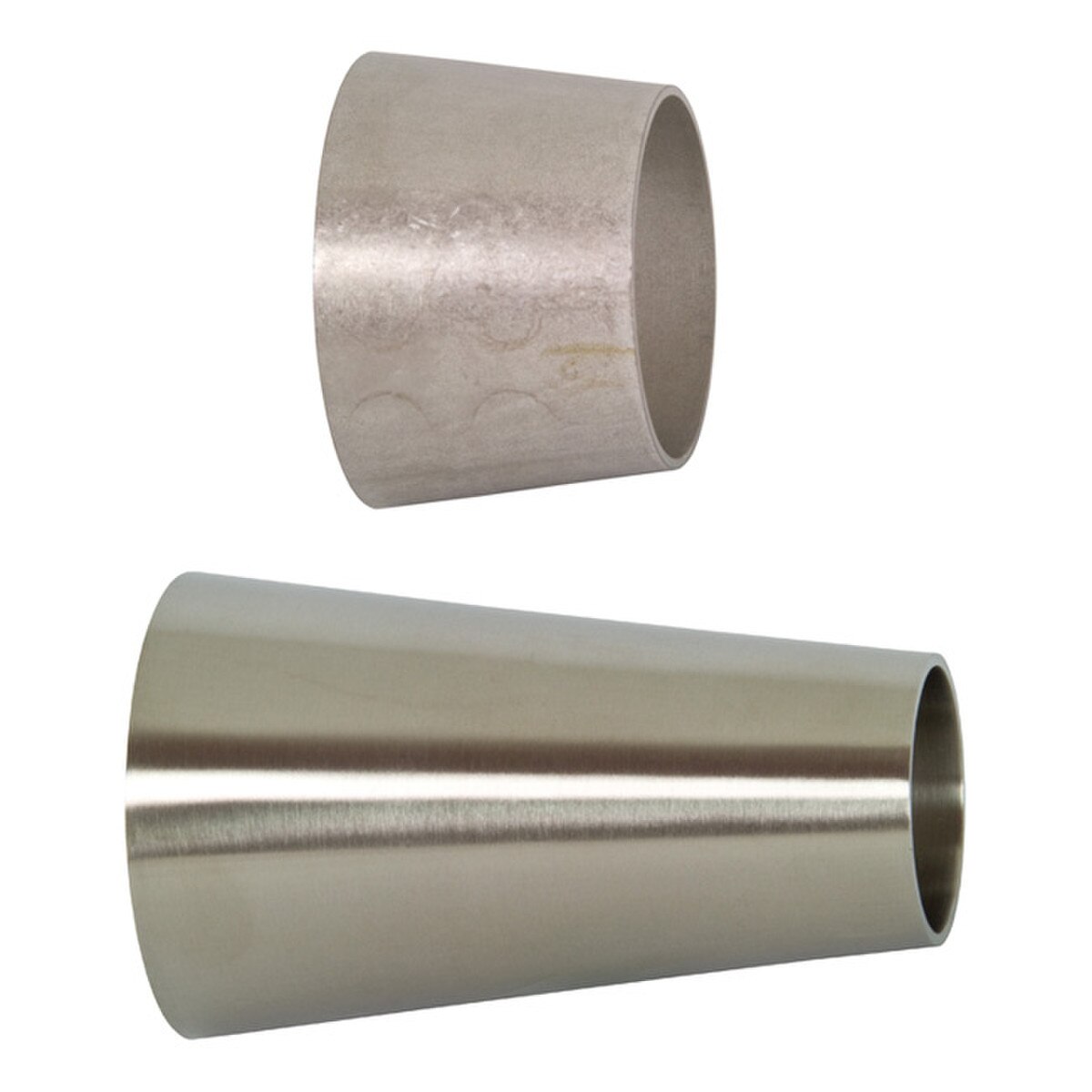

VNE V31W and E31WW Buttweld Concentric Reducers are available in 304 or 316L Stainless Steel from 1/2" up to 6". These stainless steel buttweld reducers can be furnished with either a tumbled (unpolished) finish or a 3A sanitary polished finish (32 Ra ID/OD). Buttweld Fittings are an ideal process fitting for use in permanent installations that will utilize a clean-in-place (CIP) procedure rather than having to be removed for cleaning. VNE's polished weld fittings meet all 3A requirements.

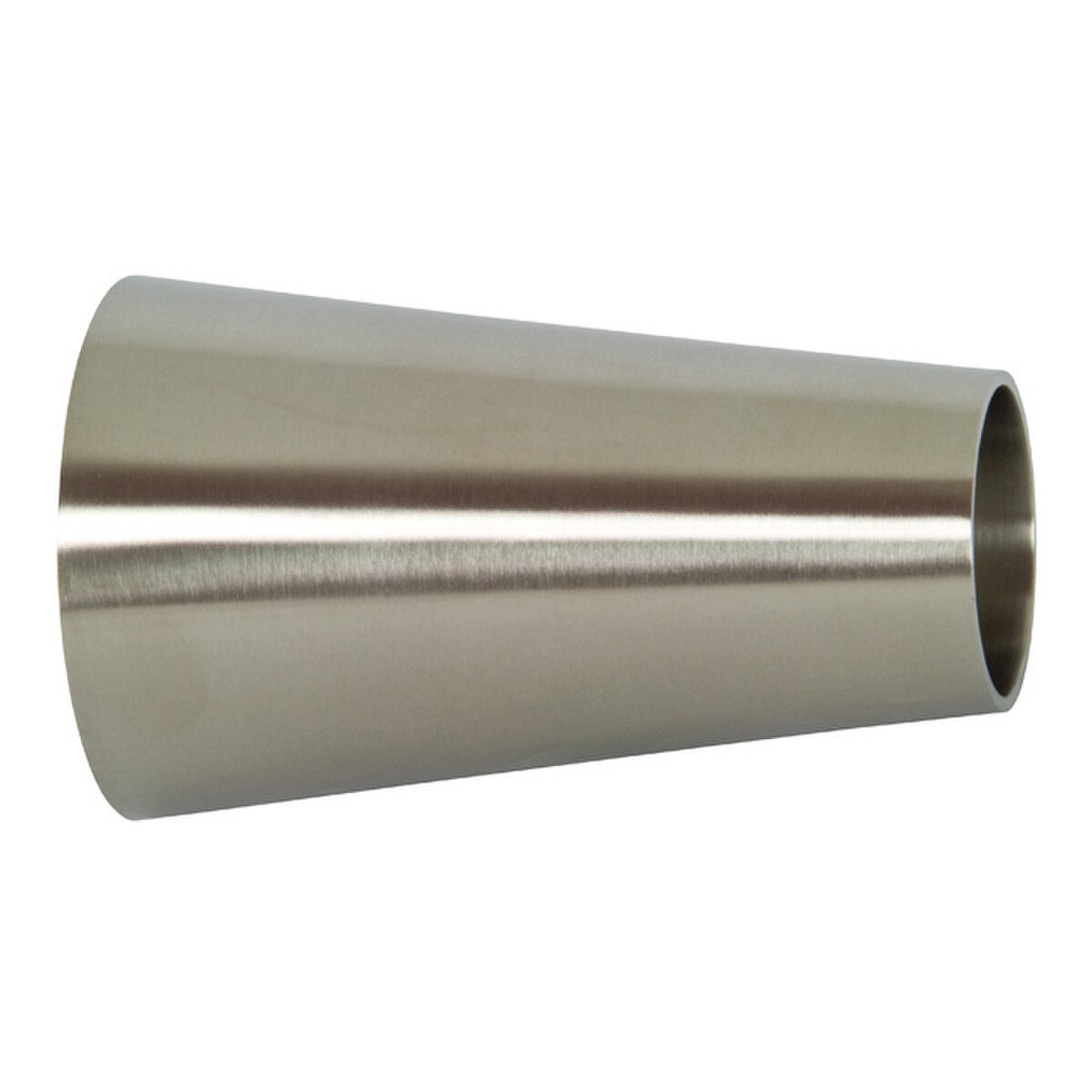

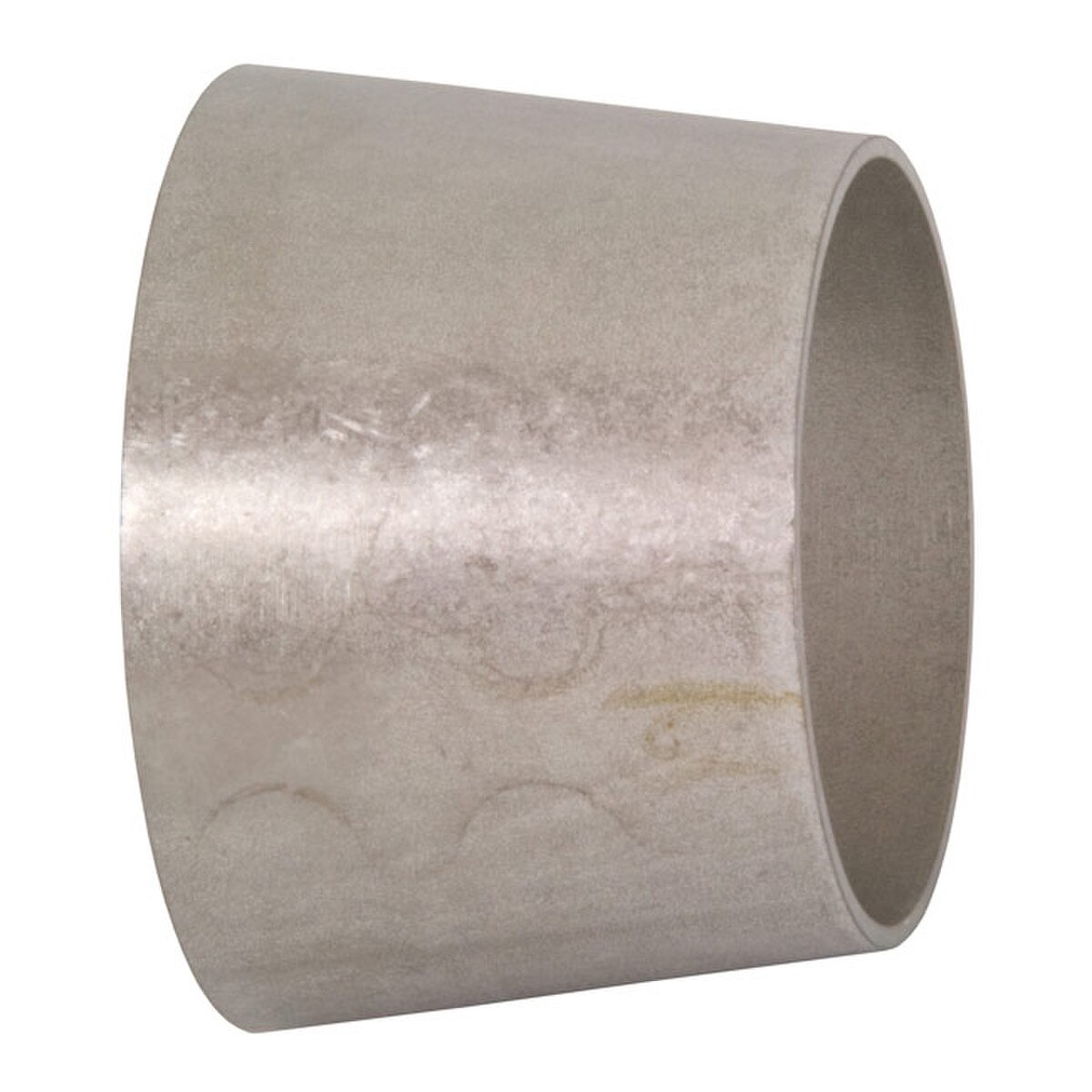

Unpolished fittings are used in a wide variety of industrial applications where sanitary finished are not generally required. Unpolished fittings are furnished with a tumbled finish for a consistent appearance. 3A Sanitary Polished Fittings are ideal for food and beverage lines where a mill finish could facilitate microbe growth and contaminate the end product.
VNE is a leading manufacturer of stainless steel fittings, valves, and specialty products for pharmaceutical, sanitary and industrial applications. Whether you need clamp fittings, weld fittings, or an engineered valve all products carry the quality, name, and reputation of VNE.
 | |||||
| Part Number | Tube OD | A | Nom. Wall | Material | Finish |
|---|---|---|---|---|---|
| E31WW1.5X1.0 | 1-1/2" x 1" | 2.000" | 0.065" | 304 Stainless Steel | Polished |
| E31WW2.0X1.0 | 2" x 1" | 4.000" | 0.065" | 304 Stainless Steel | Polished |
| E31WW2.0X1.5 | 2" x 1-1/2" | 2.000" | 0.065" | 304 Stainless Steel | Polished |
| E31WW2.5X1.5 | 2-1/2" x 1-1/2" | 4.000" | 0.065" | 304 Stainless Steel | Polished |
| E31WW2.5X2.0 | 2-1/2" x 2" | 2.000" | 0.065" | 304 Stainless Steel | Polished |
| E31WW3.0X1.5 | 3" x 1-1/2" | 6.000" | 0.065" | 304 Stainless Steel | Polished |
| E31WW3.0X2.0 | 3" x 2" | 4.000" | 0.065" | 304 Stainless Steel | Polished |
| E31WW3.0X2.5 | 3" x 2-1/2" | 2.000" | 0.065" | 304 Stainless Steel | Polished |
| E31WW4.0X2.0 | 4" x 2" | 8.000" | 0.083" x 0.065" | 304 Stainless Steel | Polished |
| E31WW4.0X2.5 | 4" x 2-1/2" | 6.000" | 0.083" x 0.065" | 304 Stainless Steel | Polished |
| E31WW4.0X3.0 | 4" x 3" | 4.000" | 0.083" x 0.065" | 304 Stainless Steel | Polished |
| E31WW6.0X2.0 | 6" x 2" | 5.500" | 0.109" x 0.065" | 304 Stainless Steel | Polished |
| E31WW6.0X3.0 | 6" x 3" | 5.500" | 0.109" x 0.083" | 304 Stainless Steel | Polished |
| E31WW6.0X4.0 | 6" x 4" | 5.500" | 0.109" x 0.083" | 304 Stainless Steel | Polished |
| E31WW-6L.75X.5 | 3/4" x 1/2" | * | 0.065" | 316L Stainless Steel | Polished |
| E31WW-6L1.0X.5 | 1" x 1/2" | * | 0.065" | 316L Stainless Steel | Polished |
| E31WW-6L1.0X.75 | 1" x 3/4" | * | 0.065" | 316L Stainless Steel | Polished |
| E31WW-6L2.0X1.0 | 1-1/2" x 1/2" | * | 0.065" | 316L Stainless Steel | Polished |
| E31WW-6L2.0X1.0 | 1-1/2" x 3/4" | * | 0.065" | 316L Stainless Steel | Polished |
| E31WW-6L2.0X1.0 | 1-1/2" x 1" | 2.000" | 0.065" | 316L Stainless Steel | Polished |
| E31WW-6L2.0X1.0 | 1-1/2" x 1-1/4" | 1.000" | 0.065" | 316L Stainless Steel | Polished |
| E31WW-6L2.0X1.0 | 2" x 1" | 4.000" | 0.065" | 316L Stainless Steel | Polished |
| E31WW-6L2.0X1.25 | 2" x 1-1/4" | 3.000" | 0.065" | 316L Stainless Steel | Polished |
| E31WW-6L2.0X1.5 | 2" x 1-1/2" | 2.000" | 0.065" | 316L Stainless Steel | Polished |
| E31WW-6L2.5X1.5 | 2-1/2" x 1-1/2" | 4.000" | 0.065" | 316L Stainless Steel | Polished |
| E31WW-6L2.5X2.0 | 2-1/2" x 2" | 2.000" | 0.065" | 316L Stainless Steel | Polished |
| E31WW-6L3.0X1.5 | 3" x 1-1/2" | 6.000" | 0.065" | 316L Stainless Steel | Polished |
| E31WW-6L3.0X2.0 | 3" x 2" | 4.000" | 0.065" | 316L Stainless Steel | Polished |
| E31WW-6L3.0X2.5 | 3" x 2-1/2" | 2.000" | 0.065" | 316L Stainless Steel | Polished |
| E31WW-6L4.0X2.0 | 4" x 2" | 8.000" | 0.083" x 0.065" | 316L Stainless Steel | Polished |
| E31WW-6L4.0X2.5 | 4" x 2-1/2" | 6.000" | 0.083" x 0.065" | 316L Stainless Steel | Polished |
| E31WW-6L4.0X3.0 | 4" x 3" | 4.000" | 0.083" x 0.065" | 316L Stainless Steel | Polished |
| E31WW-6L6.0X2.0 | 6" x 2" | 5.500" | 0.109" x 0.065" | 316L Stainless Steel | Polished |
| E31WW-6L6.0X3.0 | 6" x 3" | 5.500" | 0.109" x 0.083" | 316L Stainless Steel | Polished |
| E31WW-6L6.0X4.0 | 6" x 4" | 5.500" | 0.109" x 0.083" | 316L Stainless Steel | Polished |
| V31W1.5X1.0 | 1-1/2" x 1" | 2.000" | 0.065" | 304 Stainless Steel | Unpolished |
| V31W1.5X1.25 | 1-1/2" x 1-1/4" | 1.000" | 0.065" | 304 Stainless Steel | Unpolished |
| V31W2.0X1.0 | 2" x 1" | 4.000" | 0.065" | 304 Stainless Steel | Unpolished |
| V31W2.0X1.25 | 2" x 1-1/4" | 3.000" | 0.065" | 304 Stainless Steel | Unpolished |
| V31W2.0X1.5 | 2" x 1-1/2" | 2.000" | 0.065" | 304 Stainless Steel | Unpolished |
| V31W2.5X1.5 | 2-1/2" x 1-1/2" | 4.000" | 0.065" | 304 Stainless Steel | Unpolished |
| V31W2.5X2.0 | 2-1/2" x 2" | 2.000" | 0.065" | 304 Stainless Steel | Unpolished |
| V31W3.0X1.5 | 3" x 1-1/2" | 6.000" | 0.065" | 304 Stainless Steel | Unpolished |
| V31W3.0X2.0 | 3" x 2" | 4.000" | 0.065" | 304 Stainless Steel | Unpolished |
| V31W3.0X2.5 | 3" x 2-1/2" | 2.000" | 0.065" | 304 Stainless Steel | Unpolished |
| V31W4.0X2.0 | 4" x 2" | 8.000" | 0.083" x 0.065" | 304 Stainless Steel | Unpolished |
| V31W4.0X2.5 | 4" x 2-1/2" | 6.000" | 0.083" x 0.065" | 304 Stainless Steel | Unpolished |
| V31W4.0X3.0 | 4" x 3" | 4.000" | 0.083" x 0.065" | 304 Stainless Steel | Unpolished |
| V31W6.0X3.0 | 6" x 3" | 5.500" | 0.109" x 0.083" | 304 Stainless Steel | Unpolished |
| V31W6.0X4.0 | 6" x 4" | 5.500" | 0.109" x 0.083" | 304 Stainless Steel | Unpolished |
| V31W-6L.75X.5 | 3/4" x 1/2" | * | 0.065" | 316L Stainless Steel | Unpolished |
| V31W-6L1.0X.5 | 1" x 1/2" | * | 0.065" | 316L Stainless Steel | Unpolished |
| V31W-6L1.0X.75 | 1" x 3/4" | * | 0.065" | 316L Stainless Steel | Unpolished |
| V31W-6L1.5X.5 | 1-1/2" x 1/2" | * | 0.065" | 316L Stainless Steel | Unpolished |
| V31W-6L1.5X.75 | 1-1/2" x 3/4" | * | 0.065" | 316L Stainless Steel | Unpolished |
| V31W-6L1.5X1.0 | 1-1/2" x 1" | 2.000" | 0.065" | 316L Stainless Steel | Unpolished |
| V31W-6L1.5X1.25 | 1-1/2" x 1-1/4" | 1.000" | 0.065" | 316L Stainless Steel | Unpolished |
| V31W-6L2.0X1.0 | 2" x 1" | 4.000" | 0.065" | 316L Stainless Steel | Unpolished |
| V31W-6L2.0X1.25 | 2" x 1-1/4" | 3.000" | 0.065" | 316L Stainless Steel | Unpolished |
| V31W-6L2.0X1.5 | 2" x 1-1/2" | 2.000" | 0.065" | 316L Stainless Steel | Unpolished |
| V31W-6L2.5X1.5 | 2-1/2" x 1-1/2" | 4.000" | 0.065" | 316L Stainless Steel | Unpolished |
| V31W-6L2.5X2.0 | 2-1/2" x 2" | 2.000" | 0.065" | 316L Stainless Steel | Unpolished |
| V31W-6L3.0X1.5 | 3" x 1-1/2" | 6.000" | 0.065" | 316L Stainless Steel | Unpolished |
| V31W-6L3.0X2.0 | 3" x 2" | 4.000" | 0.065" | 316L Stainless Steel | Unpolished |
| V31W-6L3.0X2.5 | 3" x 2-1/2" | 2.000" | 0.065" | 316L Stainless Steel | Unpolished |
| V31W-6L4.0X2.0 | 4" x 2" | 8.000" | 0.083" x 0.065" | 316L Stainless Steel | Unpolished |
| V31W-6L4.0X2.5 | 4" x 2-1/2" | 6.000" | 0.083" x 0.065" | 316L Stainless Steel | Unpolished |
| V31W-6L4.0X3.0 | 4" x 3" | 4.000" | 0.083" x 0.065" | 316L Stainless Steel | Unpolished |
| V31W-6L6.0X3.0 | 6" x 3" | 5.500" | 0.109" x 0.083" | 316L Stainless Steel | Unpolished |
| * Contact us for exact dimensions | |||||
