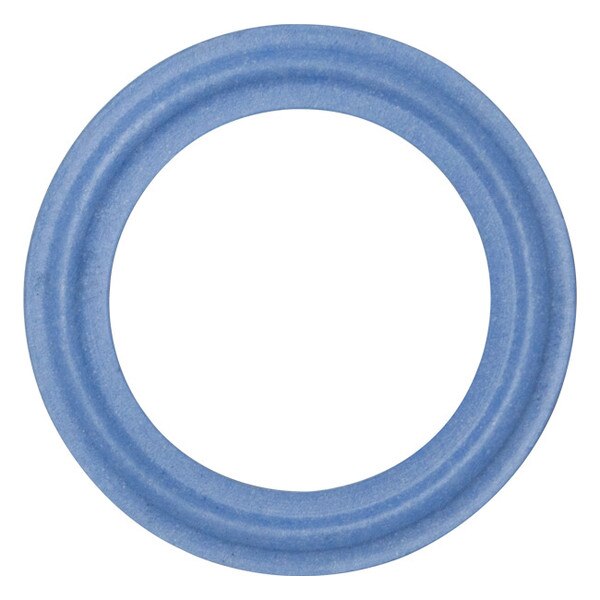

Unflanged Sanitary Tri-Clamp® Gaskets - Garlock GYLON® BIO-PRO®
Garlock GYLON BIO-PRO® Gaskets are an aseptic food grade Tri-Clamp® Gasket made from GYLON BIO-LOK, a PTFE material that provides exceptional sealing performance for all pharmaceutical and food processing applications and processes. It's restructured PTFE composition provides safe, durable, and consistent sealing performance in a range of challenging environments, including exposure to acids, caustics, sensitive media, low and high temperatures and pressures. GYLON BIO-PRO® Gaskets are dimensionally stable and resist intrusion.
By remaining flexible, tight, and flush with the pipe bore, even under high loads, GYLON BIO-LINE® gaskets further eliminate the potential for process material contamination caused by traditional elastomeric seals.
Storing GYLON® BIO-PRO® Gaskets:
- Store flat in a cool, dry area
- Do not fold or bend
- If exposed to greases, oils, or solvents in liquid or vapor form, clean before installing
- Store away from incidental exposure to all types of radiation
- Following extended storage, carefully inspect the material for damage
- If in doubt concerning any of the above provisions, consult the factory
- SHELF LIFE FOR GYLON® SHEET IS INDEFINITE, BASED ON IDEAL STORAGE CONDITIONS
Garlock GYLON® BIO-PRO® Standards Compliance:
- U.S. Pharmacopeia Class VI Certification
- FDA CFR 21, 177.1550
- EN 1935/2004
- KTW Approved
- ADI Free
- American Bureau of Shipping
Garlock GYLON BIO-PRO® Gasket Features:
- Stable dimensions - No intrusion, no cold flow, high recovery
- Temperature resistance - Can be used at all process temperatures and with high temperature fluctuations
- Temperature Range: -346°F thru 500°F
- Will not become embrittled or crack due to temperature exposure.
- Chemical resistance - Almost universal chemical resistance, FDA compliant, meets USP Class VI
- Reduces inventory
- Reduces risk of improper installation
- Maintains excellent sealing characteristics under vibration, flange misalignment and high temperature differentials
- Can be installed in a wide range of pressure connections
- Reduces downtime and costs
- Resistant to all SIP and CIP processes
Tri-Clamp® BIO-PRO® Gasket Sizing | ||||
| MFG Part # | Size | Inside Diameter | Outer Diameter | Bead Diameter |
|---|---|---|---|---|
| 42MPG-BIO-PRO-050 | 1/2" | 0.40" (10.2mm) | 0.87" (22mm) | n/a |
| 42MPG-BIO-PRO-075 | 3/4" | 0.64" (16.2mm) | 0.87" (22mm) | n/a |
| 40MPG-BIO-PRO-100 | 1" | 0.90" (22.9mm) | 2.00" (50.5mm) | 1.71" (43.5mm) |
| 40MPG-BIO-PRO-150 | 1-1/2" | 1.39" (35.3mm) | 2.00" (50.5mm) | 1.71" (43.5mm) |
| 40MPG-BIO-PRO-200 | 2" | 1.88" (47.8mm) | 2.52" (64mm) | 2.22" (56.5mm) |
| 40MPG-BIO-PRO-250 | 2-1/2" | 2.38" (60.4mm) | 3.05" (77.5mm) | 2.78" (70.5mm) |
| 40MPG-BIO-PRO-300 | 3" | 2.88" (73.1mm) | 3.58" (91mm) | 3.29" (83.5mm) |
| 40MPG-BIO-PRO-400 | 4" | 3.85" (97.8mm) | 4.67" (119mm) | 4.33" (110mm) |
| 40MPG-BIO-PRO-600 | 6" | 5.79" (147.1mm) | 6.57" (167mm) | 6.16" (156.5mm) |
