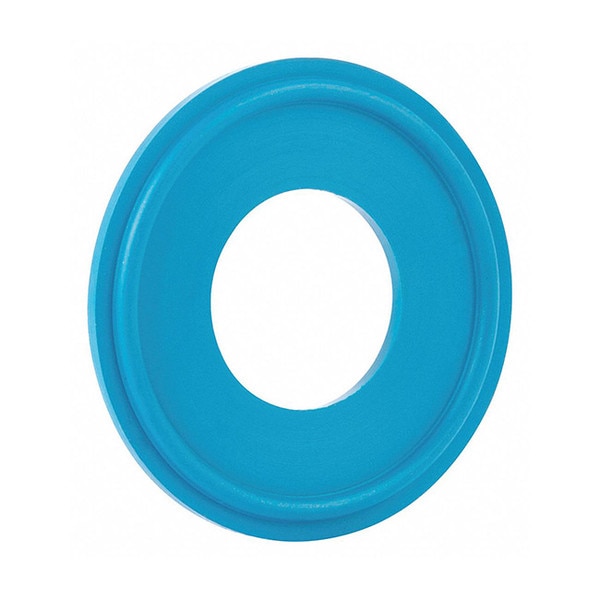

Unflanged Sanitary Tri-Clamp® Detectomers® Metal Detectable Gaskets - FKM
Rubber Fab FKM Detectomers® Tri-Clamp® Gaskets are part of their full line of x-ray inspectable and metal detectable sanitary gaskets. X-ray inspection and metal detection systems provides confidence to food, dairy and pharmaceutical manufacturers by insuring product safety and integrity as outlined by the Food Safety Modernization Act. Developing an effective inspection program to detect contaminants and to monitor the consistency and quality of product helps avoid product waste, recalls, costly down time and customer complaints. Due to it's low conductivity, elastomeric material is often missed by even the strongest detection systems. Rubber Fab's line of Detectomers® can be spotted by in-line x-ray inspection and metal detection systems as well as magnetic separators. Detectomers® products are a simple step in providing processing security against elastomeric contamination. FKM Metal Detectable gasket particles are detectable down to 1mm in size.
FKM Tri-Clamp® Gaskets are specified by many process equipment manufacturers and are generally suitable for these applications, however service life must be considered and a preventative maintenance program must be in place to mitigate degradation. While acceptable, we do not recommend FKM Gaskets for continuous use in SIP (steam in place) procedures. With that said, FKM Sanitary Gaskets have excellent compatibility with strong acids and maintain a broad range of operating temperatures from -30°F to 400°F.
Storing FKM Detectomers® Gaskets:
FKM Tri-Clamp® Detectomers® Features & Benefits:
Typical Applications for Detectomer Products:
| 1 = Excellent 2 = Good 3 = Acceptable 4 = Marginal 5 = Poor 6 = Do Not Use | ||||||||
|---|---|---|---|---|---|---|---|---|
| Material | Cont. Steam | Inter. Steam | Pure Water Ambient | Pure Water Hot | Process Fluids Ambient | Process Fluids Hot | Process Fluid Variables 0°-100°C | Temperature Range |
| Tuf-Steel® | 1 | 1 | 1 | 1 | 1 | 1 | 1 | -350°-550°F |
| Tuf-Flex® | 1 | 1 | 1 | 1 | 1 | 1 | 1 | -20°-300°F |
| Food-Flex® | 1 | 1 | 1 | 1 | 1 | 1 | 1 | -30°-250°F |
| PTFE | 1 | 1 | 1 | 1 | 1 | 1 | 3 | -100° to 500°F |
| Silicone (platinum) | 2 | 2 | 2 | 2 | 2 | 2 | 1 | -40°-450°F |
| Silicone (peroxide) | 2 | 2 | 2 | 2 | 2 | 2 | 1 | -40°-450°F |
| FKM | 3 | 2 | 2 | 2 | 2 | 2 | 2 | -30°-400°F |
| EPDM (peroxide) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | -30°-300°F |
| Buna | 0 | 0 | 5 | 5 | 5 | 5 | 5 | -30°-200°F |

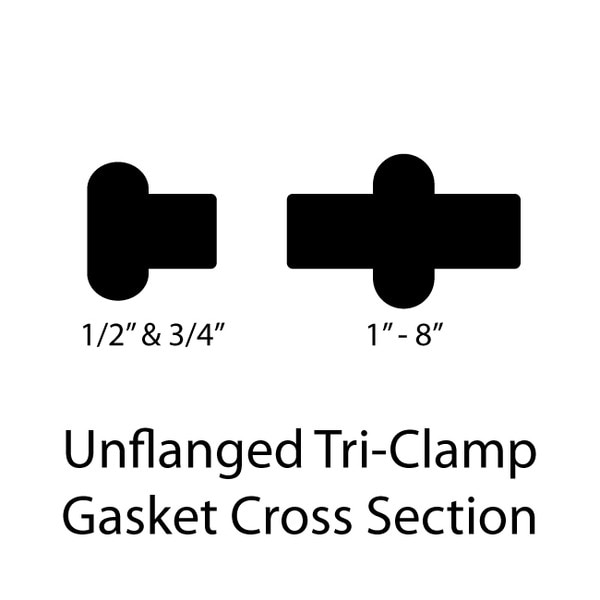

Tri-Clamp® Gasket Sizing | |||
| Size | Inside Diameter | Outer Diameter | Bead Diameter |
|---|---|---|---|
| 1/2" | 0.40" (10.2mm) | 0.87" (22mm) | n/a |
| 3/4" | 0.64" (16.2mm) | 0.87" (22mm) | n/a |
| 1" | 0.90" (22.9mm) | 2.00" (50.5mm) | 1.71" (43.5mm) |
| 1-1/2" | 1.39" (35.3mm) | 2.00" (50.5mm) | 1.71" (43.5mm) |
| 2" | 1.88" (47.8mm) | 2.52" (64mm) | 2.22" (56.5mm) |
| 2-1/2" | 2.39" (60.5mm) | 3.05" (77.5mm) | 2.78" (70.5mm) |
| 3" | 2.88" (73.1mm) | 3.58" (91mm) | 3.29" (83.5mm) |
| 4" | 3.85" (97.7mm) | 4.67" (119mm) | 4.33" (110mm) |
| 5" | 4.86" (123.5mm) | 5.68" (144.2mm) | 5.29" (134.3mm) |
| 6" | 5.80" (147.2mm) | 6.57" (167mm) | 6.16" (156.5mm) |
| 8" | 7.80" (198mm) | 8.56" (217.4mm) | 8.15" (207mm) |
| 10" | 9.74" (247.4mm) | 10.55" (268mm) | 10.12" (257mm) |
| 12" | 11.74" (298.2mm) | 12.56" (319mm) | 12.17" (309mm) |
