This valve has 2 CBC-Lok® connections. CBC-Lok® is fully interchangeable with Swagelok® & Parker A-Lok®.

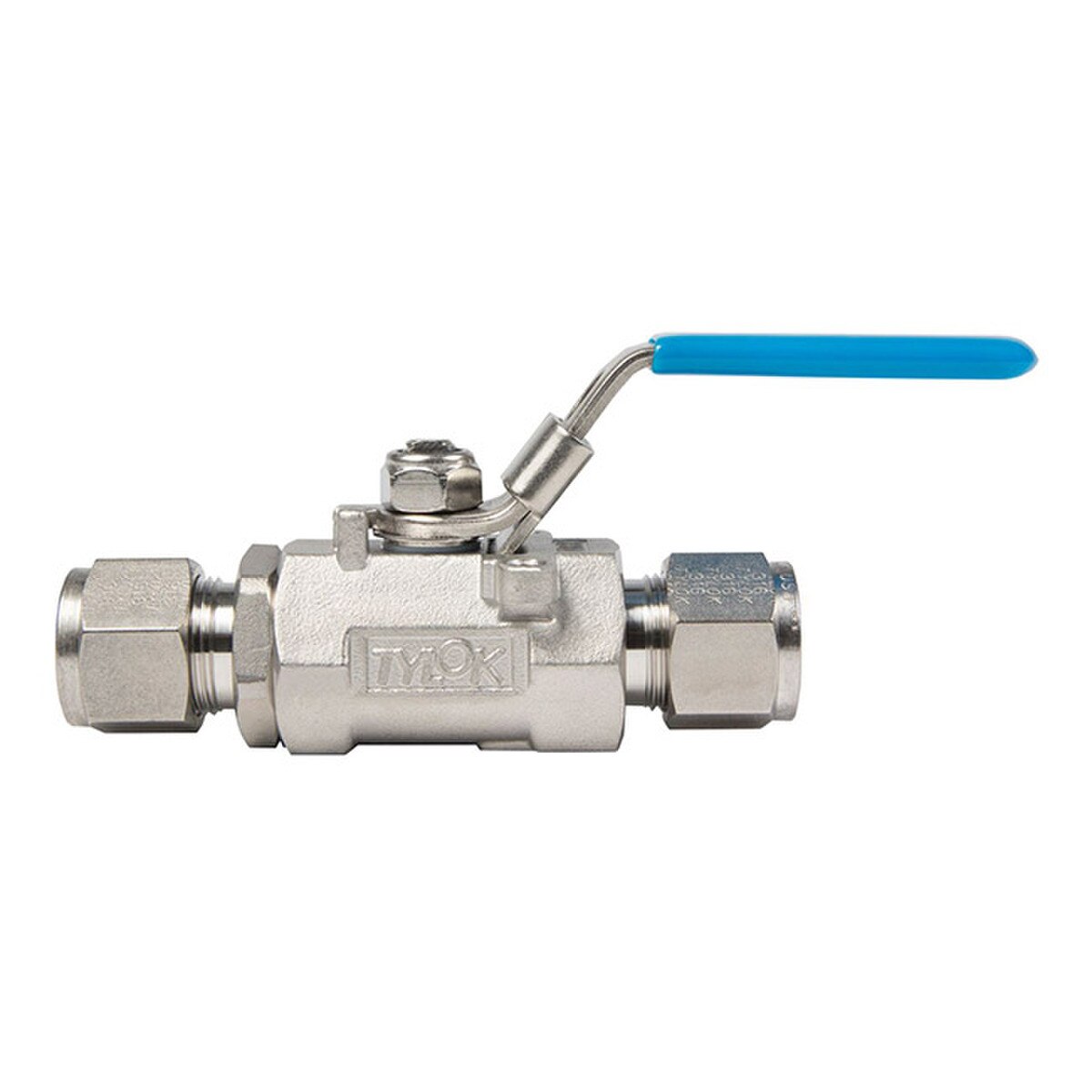

The GP Series Ball Valve is an instrumentation valve solution for tubing & piping systems. It is available from 1/4” to 1” with tube end connections and from 1/4” to 1/2” with female pipe threads for female to female applications. Tylok General Purpose Ball Valve Series is a moderate pressure ball valve for general service. They are designed for tight shut-off, long service life, and low operating torque.

Features:

  • 2,000 psig (138 bar) Pressure Rating
  • 400°F (204°C) Temperature Rating
  • Built-in actuator mounting holes for ease of automation
  • Bi-directional flow
  • Blowout-proof stem
  • Compact in size but with high flow capacity with a 1.20 to 17.35 Cv
  • Locking Handle in both On and Off positions

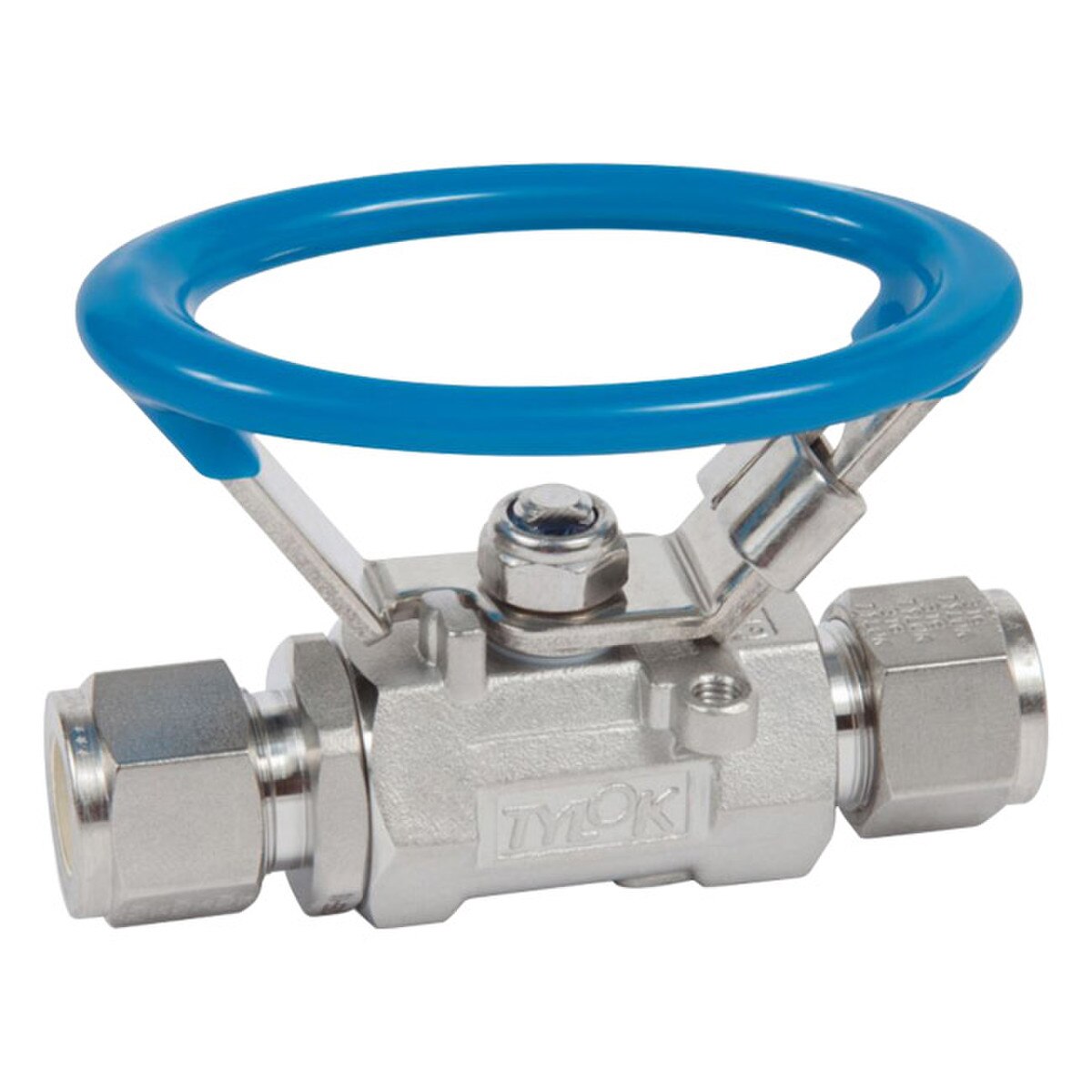

  • Oval or Butterfly Handles available (locking devices not available on butterfly handles)
  • Stainless steel cast CF8M construction
  • TFM 1600 seat
  • 100 percent factory leak tested with nitrogen at 1000psi with a maximum allowable leak rate of 0.1 std cc/min
