• Steel & O'Brien 90 Degree BPE Elbows, Clamp x Tangent Weld Ends

Steel & O'Brien 90 Degree BPE Elbows, Clamp x Tangent Weld Ends

(0)No Reviews yet
Back

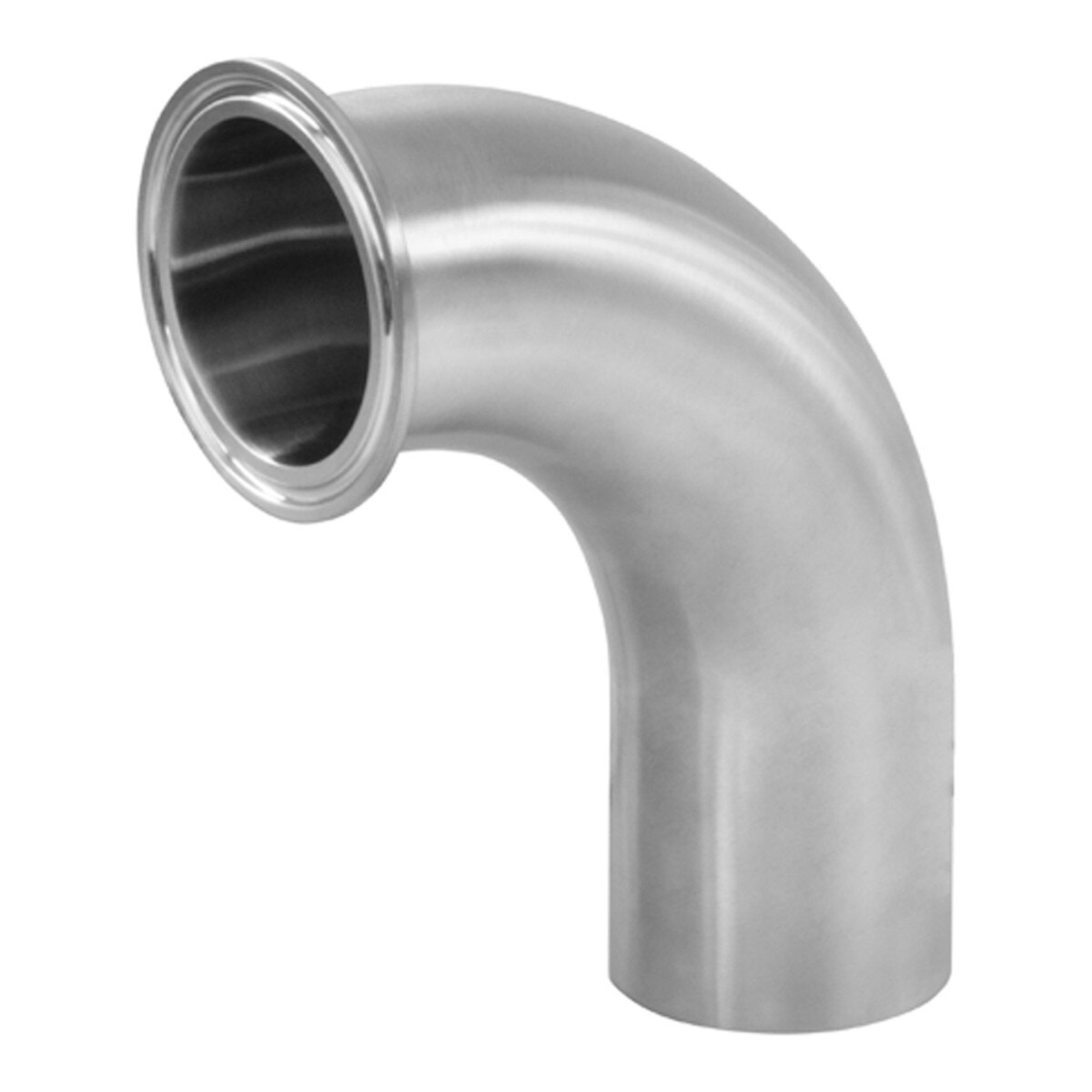

Steel & O'Brien offers a full line of ASME-BPE compliant 90 degree elbows for the biotech, pharmaceutical, cosmetic , personal care, and semiconductor industries, ranging in sizes from 1/2″ to 6″ with clamp x tangent weld end connections, in 316L stainless steel.

Traceability

All fittings are marked according to the latest ASME-BPE specifications. Permanently marking each fitting allows for full traceability back to the original stainless steel used to make the part. All Material Test Reports are available upon request.

Quality

Every BPE fitting is inspected by a highly trained staff to the latest ASME-BPE specifications.

Packaging

All BPE fittings are capped and bagged in transparent bags to prevent damage and contamination.

Borescoped

Their high resolution borescope gives Steel & O'Brien the ability to inspect for ASME-BPE weld discoloration acceptance. They can inspect and record welds with an inside diameter of .370 and larger with a reach of up to 76″ from access port.

Polishing

Polishing is an important component for BPE fittings. Polish offerings comply to the latest ASME-BPE requirements.

Back

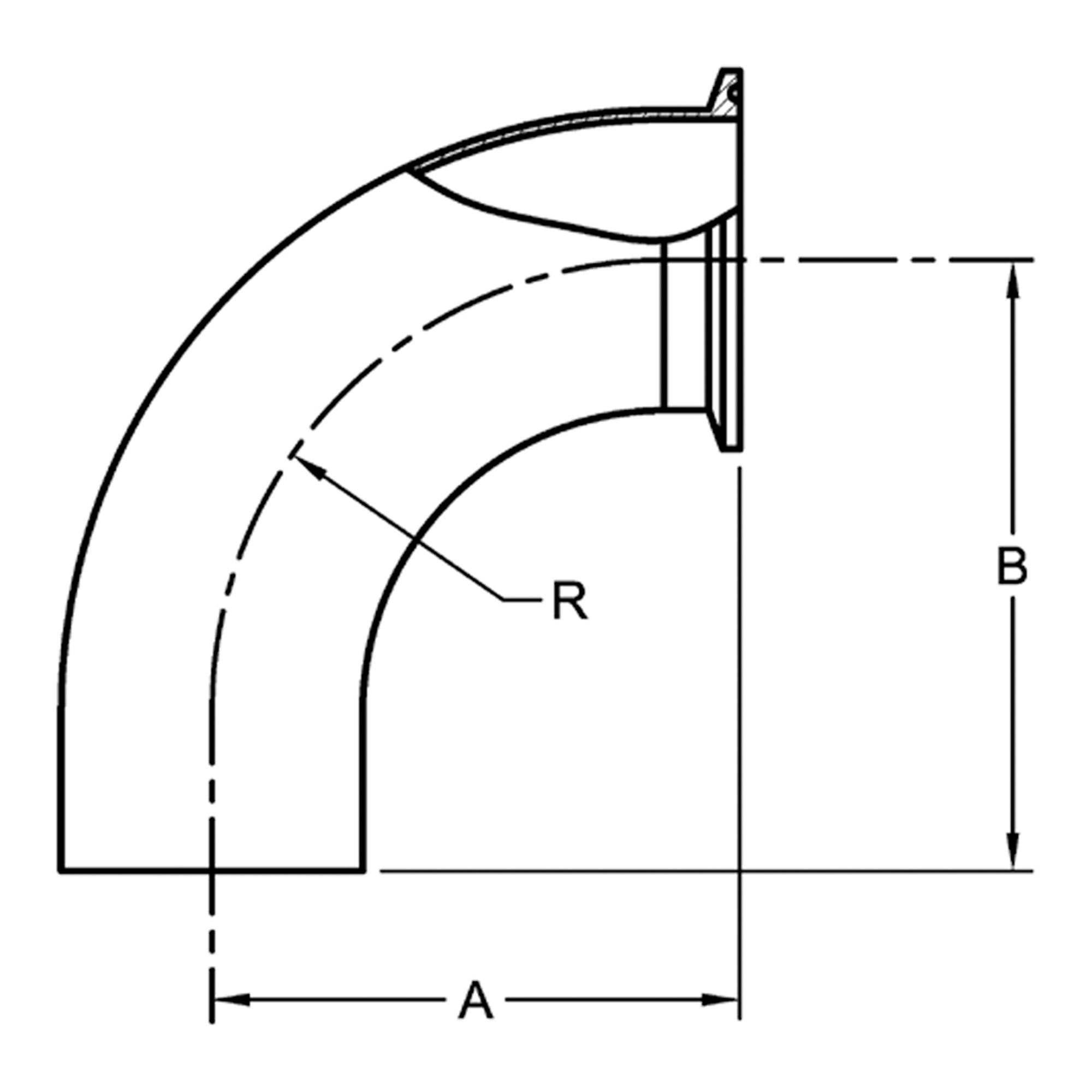

SKUSizeFinishMaterialABCenterline
Radius (R)
S2CKW-.50-PC-3161/2"20 µin Ra MPID / Mill OD (PC - SF1)316 Stainless Steel1.625"
(41.28mm)		3"
(76.2mm)		1.125"
(28.58mm)
S2CKW-.50-PL-3161/2"20 µin Ra MPID / 32 µin Ra MPOD (PL - SF1)316 Stainless Steel1.625"
(41.28mm)		3"
(76.2mm)		1.125"
(28.58mm)
S2CKW-.50-PD-3161/2"15 µin Ra EPID / Mill OD (PD - SF4)316 Stainless Steel1.625"
(41.28mm)		3"
(76.2mm)		1.125"
(28.58mm)
S2CKW-.50-PM-3161/2"15 µin Ra EPID / 32 µin Ra MPOD (PM - SF4)316 Stainless Steel1.625"
(41.28mm)		3"
(76.2mm)		1.125"
(28.58mm)
S2CKW-.75-PC-3163/4"20 µin Ra MPID / Mill OD (PC - SF1)316 Stainless Steel1.625"
(41.28mm)		3"
(76.2mm)		1.125"
(28.58mm)
S2CKW-.75-PL-3163/4"20 µin Ra MPID / 32 µin Ra MPOD (PL - SF1)316 Stainless Steel1.625"
(41.28mm)		3"
(76.2mm)		1.125"
(28.58mm)
S2CKW-.75-PD-3163/4"15 µin Ra EPID / Mill OD (PD - SF4)316 Stainless Steel1.625"
(41.28mm)		3"
(76.2mm)		1.125"
(28.58mm)
S2CKW-.75-PM-3163/4"15 µin Ra EPID / 32 µin Ra MPOD (PM - SF4)316 Stainless Steel1.625"
(41.28mm)		3"
(76.2mm)		1.125"
(28.58mm)
S2CKW-1-PC-3161"20 µin Ra MPID / Mill OD (PC - SF1)316 Stainless Steel2"
(50.8mm)		3"
(76.2mm)		1.5"
(38.1mm)
S2CKW-1-PL-3161"20 µin Ra MPID / 32 µin Ra MPOD (PL - SF1)316 Stainless Steel2"
(50.8mm)		3"
(76.2mm)		1.5"
(38.1mm)
S2CKW-1-PD-3161"15 µin Ra EPID / Mill OD (PD - SF4)316 Stainless Steel2"
(50.8mm)		3"
(76.2mm)		1.5"
(38.1mm)
S2CKW-1-PM-3161"15 µin Ra EPID / 32 µin Ra MPOD (PM - SF4)316 Stainless Steel2"
(50.8mm)		3"
(76.2mm)		1.5"
(38.1mm)
S2CKW-1.5-PC-3161-1/2"20 µin Ra MPID / Mill OD (PC - SF1)316 Stainless Steel2.75"
(69.85mm)		3.75"
(95.25mm)		2.25"
(57.15mm)
S2CKW-1.5-PL-3161-1/2"20 µin Ra MPID / 32 µin Ra MPOD (PL - SF1)316 Stainless Steel2.75"
(69.85mm)		3.75"
(95.25mm)		2.25"
(57.15mm)
S2CKW-1.5-PD-3161-1/2"15 µin Ra EPID / Mill OD (PD - SF4)316 Stainless Steel2.75"
(69.85mm)		3.75"
(95.25mm)		2.25"
(57.15mm)
S2CKW-1.5-PM-3161-1/2"15 µin Ra EPID / 32 µin Ra MPOD (PM - SF4)316 Stainless Steel2.75"
(69.85mm)		3.75"
(95.25mm)		2.25"
(57.15mm)
S2CKW-2-PC-3162"20 µin Ra MPID / Mill OD (PC - SF1)316 Stainless Steel3.5"
(88.9mm)		4.75"
(120.65mm)		3"
(76.2mm)
S2CKW-2-PL-3162"20 µin Ra MPID / 32 µin Ra MPOD (PL - SF1)316 Stainless Steel3.5"
(88.9mm)		4.75"
(120.65mm)		3"
(76.2mm)
S2CKW-2-PD-3162"15 µin Ra EPID / Mill OD (PD - SF4)316 Stainless Steel3.5"
(88.9mm)		4.75"
(120.65mm)		3"
(76.2mm)
S2CKW-2-PM-3162"15 µin Ra EPID / 32 µin Ra MPOD (PM - SF4)316 Stainless Steel3.5"
(88.9mm)		4.75"
(120.65mm)		3"
(76.2mm)
S2CKW-2.5-PC-3162-1/2"20 µin Ra MPID / Mill OD (PC - SF1)316 Stainless Steel4.25"
(107.95mm)		5.5"
(139.7mm)		3.75"
(95.25mm)
S2CKW-2.5-PL-3162-1/2"20 µin Ra MPID / 32 µin Ra MPOD (PL - SF1)316 Stainless Steel4.25"
(107.95mm)		5.5"
(139.7mm)		3.75"
(95.25mm)
S2CKW-2.5-PD-3162-1/2"15 µin Ra EPID / Mill OD (PD - SF4)316 Stainless Steel4.25"
(107.95mm)		5.5"
(139.7mm)		3.75"
(95.25mm)
S2CKW-2.5-PM-3162-1/2"15 µin Ra EPID / 32 µin Ra MPOD (PM - SF4)316 Stainless Steel4.25"
(107.95mm)		5.5"
(139.7mm)		3.75"
(95.25mm)
S2CKW-3-PC-3163"20 µin Ra MPID / Mill OD (PC - SF1)316 Stainless Steel5"
(127mm)		6.25"
(158.75mm)		4.5"
(114.3mm)
S2CKW-3-PL-3163"20 µin Ra MPID / 32 µin Ra MPOD (PL - SF1)316 Stainless Steel5"
(127mm)		6.25"
(158.75mm)		4.5"
(114.3mm)
S2CKW-3-PD-3163"15 µin Ra EPID / Mill OD (PD - SF4)316 Stainless Steel5"
(127mm)		6.25"
(158.75mm)		4.5"
(114.3mm)
S2CKW-3-PM-3163"15 µin Ra EPID / 32 µin Ra MPOD (PM - SF4)316 Stainless Steel5"
(127mm)		6.25"
(158.75mm)		4.5"
(114.3mm)
S2CKW-4-PC-3164"20 µin Ra MPID / Mill OD (PC - SF1)316 Stainless Steel6.625"
(168.28mm)		8"
(203.2mm)		6"
(152.4mm)
S2CKW-4-PL-3164"20 µin Ra MPID / 32 µin Ra MPOD (PL - SF1)316 Stainless Steel6.625"
(168.28mm)		8"
(203.2mm)		6"
(152.4mm)
S2CKW-4-PD-3164"15 µin Ra EPID / Mill OD (PD - SF4)316 Stainless Steel6.625"
(168.28mm)		8"
(203.2mm)		6"
(152.4mm)
S2CKW-4-PM-3164"15 µin Ra EPID / 32 µin Ra MPOD (PM - SF4)316 Stainless Steel6.625"
(168.28mm)		8"
(203.2mm)		6"
(152.4mm)
S2CKW-6-PC-3166"20 µin Ra MPID / Mill OD (PC - SF1)316 Stainless Steel10.5"
(266.7mm)		11.5"
(292.1mm)		9"
(228.6mm)
S2CKW-6-PL-3166"20 µin Ra MPID / 32 µin Ra MPOD (PL - SF1)316 Stainless Steel10.5"
(266.7mm)		11.5"
(292.1mm)		9"
(228.6mm)
S2CKW-6-PD-3166"15 µin Ra EPID / Mill OD (PD - SF4)316 Stainless Steel10.5"
(266.7mm)		11.5"
(292.1mm)		9"
(228.6mm)
S2CKW-6-PM-3166"15 µin Ra EPID / 32 µin Ra MPOD (PM - SF4)316 Stainless Steel10.5"
(266.7mm)		11.5"
(292.1mm)		9"
(228.6mm)
