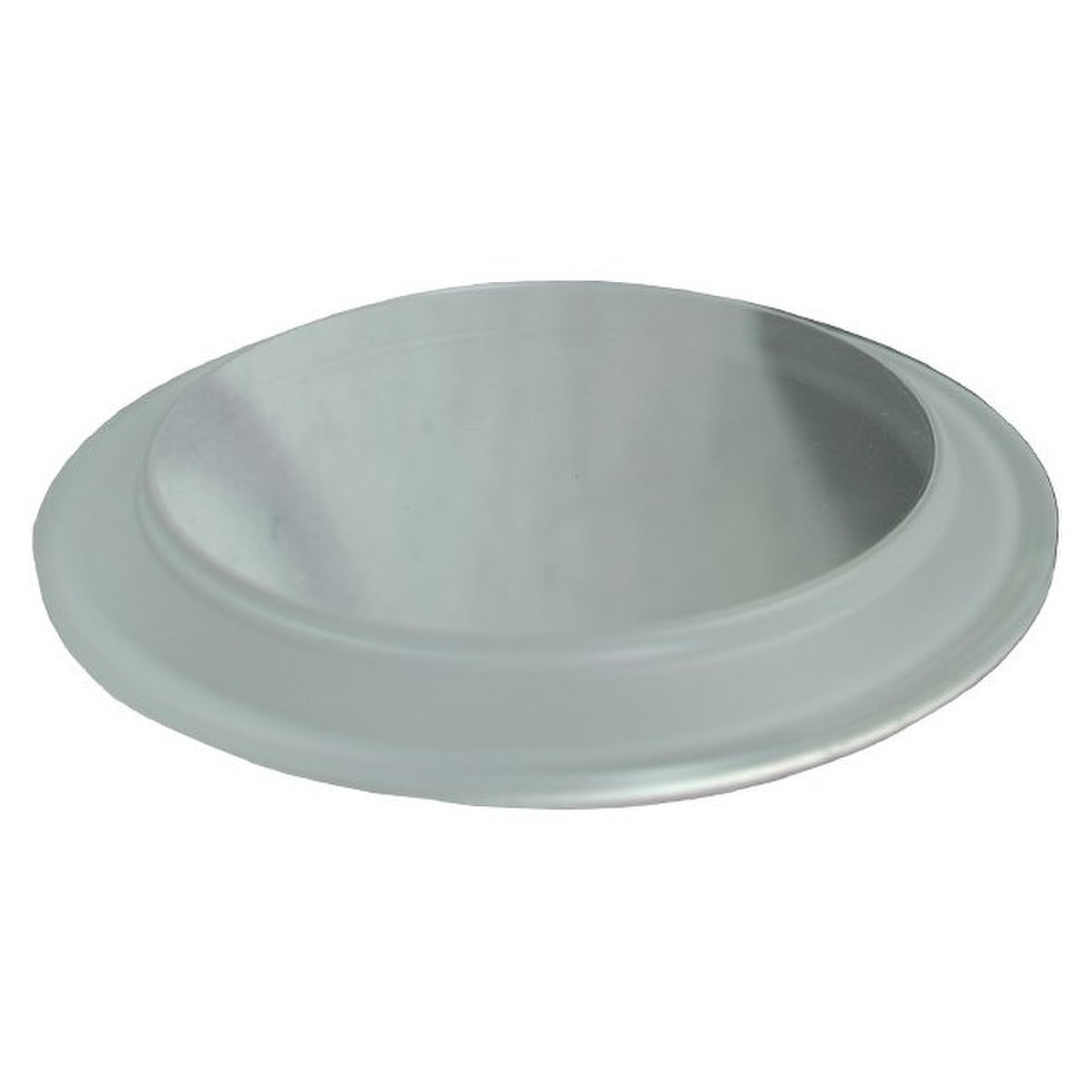

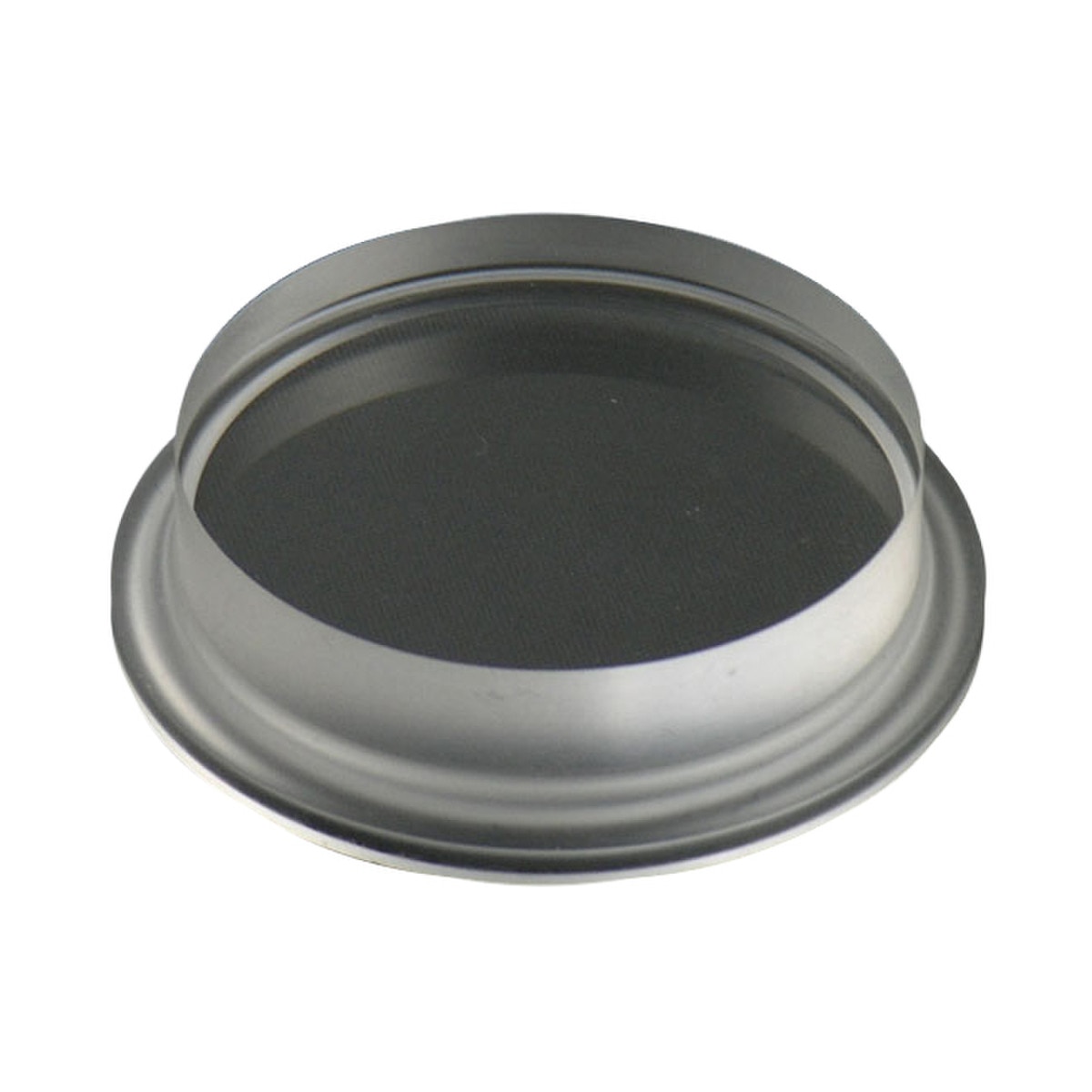

Dixon Sanitary B5416MP Acrylic Sight Glass End Caps
Dixon Sanitary B5416MP Acrylic Sight Glass End Caps offer an affordable solution compared to Dixon's In-Line and Compact Sanitary Sight Glasses. Simply clamp this end cap onto any open clamp ferrule to get a window into your process line (requires a Tri-Clamp® Gasket). Maximum temperature of 150°F and pressure of 100 PSI.
 | |||
| Part # | Size | A | B |
|---|---|---|---|
| B5416MP-A100150 | 1" & 1-1/2" | 1.984" | 0.438" |
| B5416MP-A200 | 2" | 2.516" | 0.438" |
| B5416MP-A250 | 2-1/2" | 3.047" | 0.438" |
| B5416MP-A300 | 3" | 3.579" | 0.438" |
| B5416MP-A400 | 4" | 4.682" | 0.438" |
| B5416MP-A600 | 6" | 6.562" | 0.438" |
