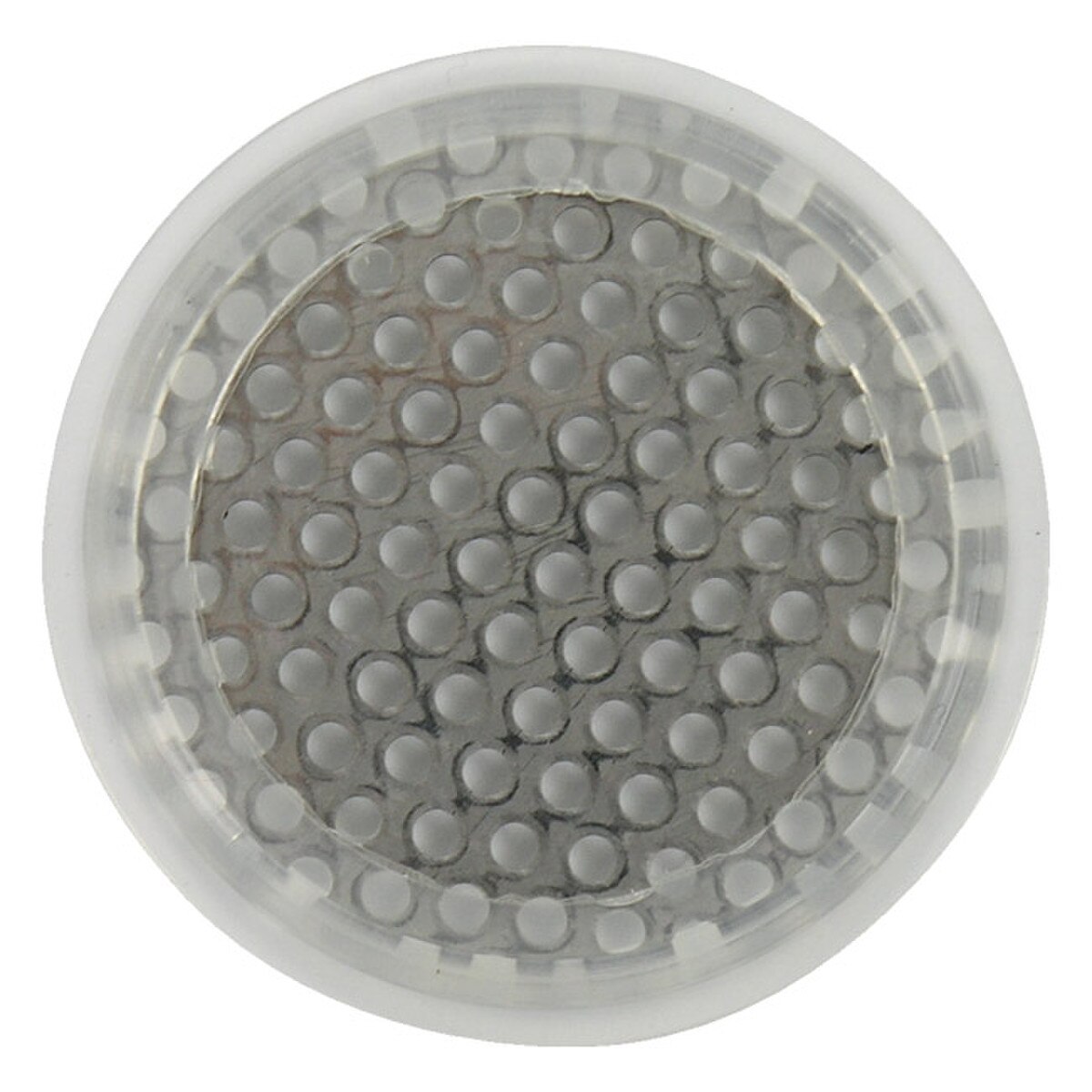

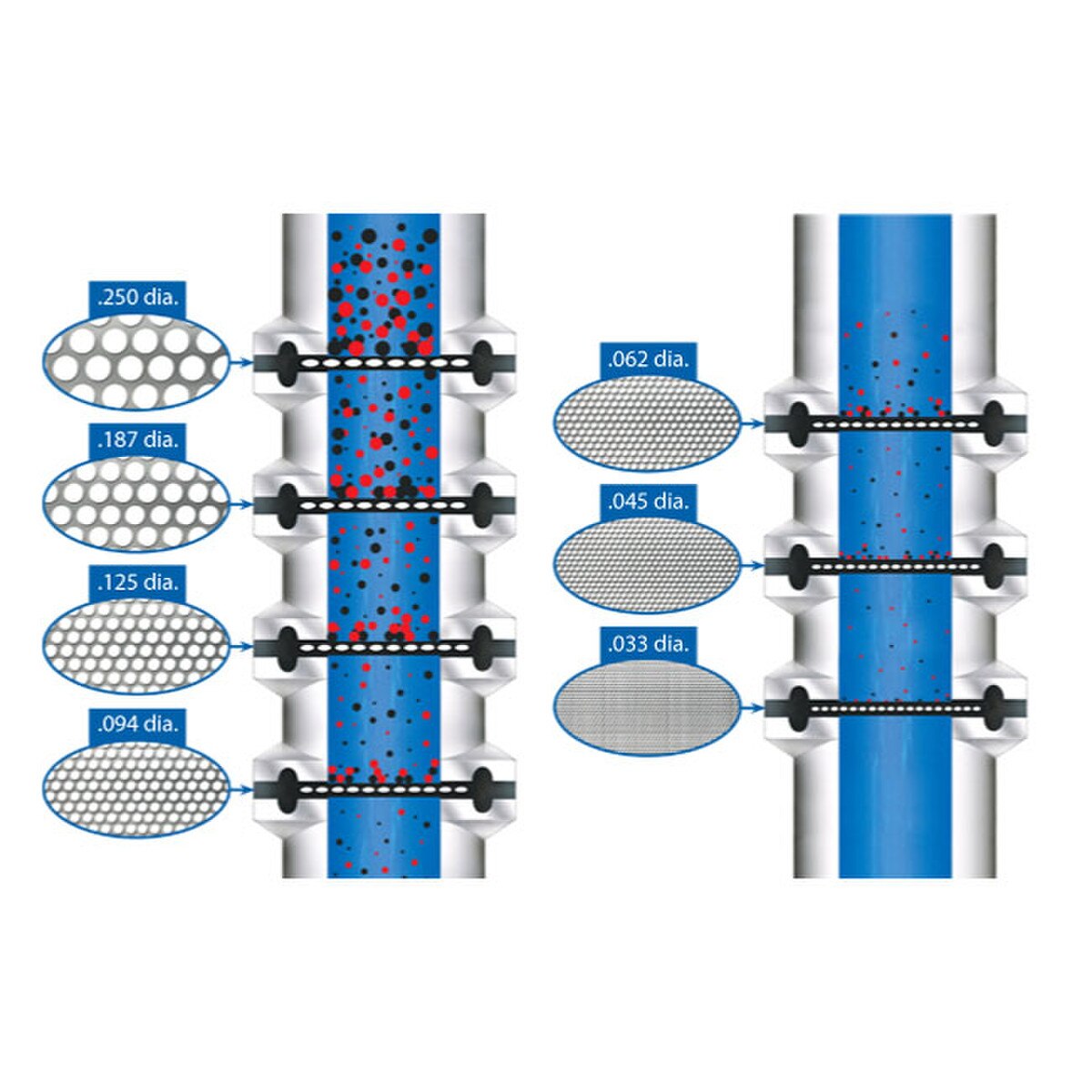

Tri-Clamp® Silicone Perforated Plate Gaskets are manufactured with a 22 Gauge 316L Stainless Steel Perforated Plate that has been flow trapped into the gasket body. These perforated hole gaskets are available standard with 0.033", 0.045", 0.062" (1/16"), 0.094" (3/32"), 0.125" (1/8"), 0.187" (3/16") and 0.250" (1/4") perforations in varying center types, please see the reference chart below for exact specifications. The center type is the center to center distance between each perforation and correlates to the holes per square inch and open area % of each gasket.

With a stringent ASME-BPE design, these filtration gaskets can be utilized for particulate removal in a number or processes and industries. Whether being used as a pre-filter for expensive membrane filters, or straining particulate in fill and finish products, these sanitary gaskets can save you from equipment wear and product contamination.

Platinum Cured Silicone Tri-Clamp® Gaskets are an excellent choice for use in production facilities for pharmaceutical, biotechnology, high-purity water, and food/beverage products. Silicone Sanitary Gaskets can withstand temperature extremes, radiation, corona, ozone exposure, moisture and steam. We recommend considering Silicone Gaskets when it is not feasible to use PTFE Gaskets due to severely misaligned fittings, or if the cost of high pressure clamps outweighs the benefits of PTFE (extended service life). Unlike PTFE, Silicone gaskets are very flexible at low temperatures. They are also odorless, tasteless, non-toxic, and hygienic. With the ability to be autoclaved, irradiated and gas sterilized, Platinum Cured Silicone Gaskets provide you with the ultimate high purity contact surface.

The curing process of Silicone Gaskets has a direct affect on the amount and type of extractables the hygienic seal will emit. The peroxide curing process leaves residuals of Benzoic Acid (the curing additive) that results in unwanted surface conditions that can lead to product contamination. The platinum curing process eliminates this problem and minimizes reaction between the gasket and process fluids. These gaskets are post cured and will not cause cell mutation or growth retardation. Our Platinum Cured Silicone Gaskets maintain and uphold ultrapure water and cGMP process fluid standards. These gaskets have been manufactured from milled gum silicone which offers superior resistance to tearing and deformation when compared to traditional liquid injection molding silicone.

Storing Platinum Cured Silicone Gaskets:

• Shelf Life: 8 Years from cure date
• Store in original packaging in clean and dry warehouse
• Do not expose to direct sunlight
• Keep more than 6' away from electric motors
• Maintain temperature between 65°F and 85°F

• FDA CFR 21, 177.2600
• U.S. Pharmacopeia Class VI Certification
• USDA Hazard Analysis and Critical Control Points
• Cytotoxicity Criteria
• USDA and 3-A Sanitary Standards
• USP Chapter 87 & 88 Tested
• ASME-BPE Standards for Type I and Type II
• ADI Free® (Animal Derived Ingredient Free)
• Current Good Manufacturing Practices (CGMP)

• Color Code: No Dot
• -40°F to 450°F Temperature Range
• Eliminates particulates
• Non-pyrogenic
• No pigmentation (clear version)
• No plasticizers
• No Benzoic Acid
• Non-toxic
• SIP up to 30 psi @ 123°C
• No reversion
• Smooth bore
• Non-leaching
• Odorless
• Tasteless
• Superior tear resistance

• Pre-filtration for critical membrane filters
• Coalescence of water vapor from process lines
• Liquid gassing or degassing
• Large particulate removal before fill and finish
• Turbulence generation for enhanced mass or heat transfer
• Protection for pumps, check valves, and components
• Particulate removal in sterile filling operations
• Sparging
• Chromatography purification
