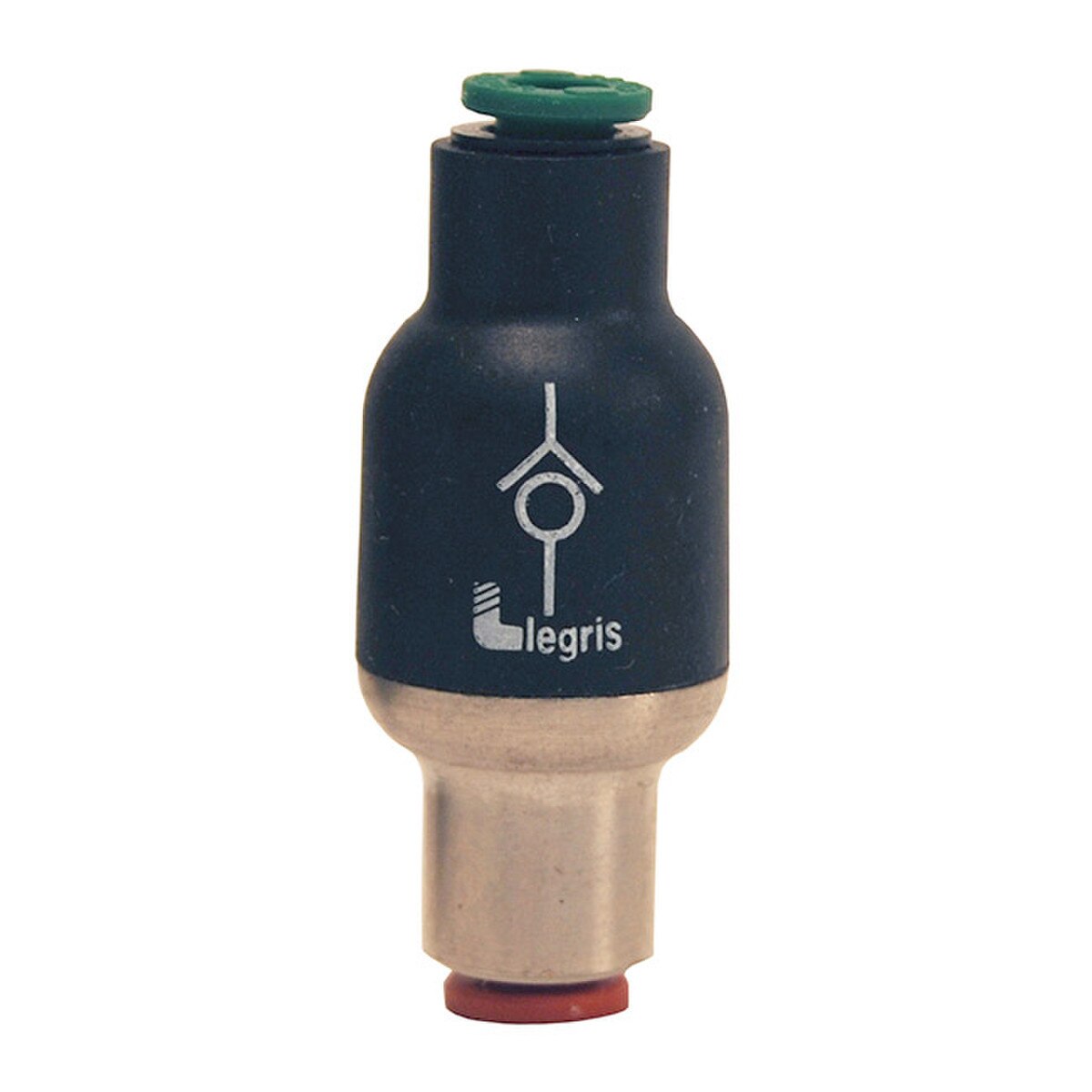

Parker Legris Non-Return In-Line Check Valve

Parker Legris 7996 Non-Return In-Line Check Valves feature LF3000 push-fit connections and allow air to pass in one direction while blocking flow in the other direction. Feature an arrow to indicate the free flowing direction. Perfect sealing, compact and light weight, supply version. A pressure of more than 7 PSI will overcome the spring pressure and allow flow.

Legris LF3000 fittings offer performance and reliability. Gripping and sealing within the fitting is achieved using the outside of the tube without deformation so there is no flow restriction. The o-ring within the fitting provides a positive seal on the OD of the tube, in both static and dynamic positions, due to the optimized design of the tube guide. Parker Legris fittings feature individual unit quality control and dating in order to guarantee quality and traceability. All male threaded fittings are provided with a pre-coated sealant on the threads.

The LF 3000 push-in fitting is the most intuitive way of connecting tubes to a fitting in order to create a fluid distribution network. Thanks to its quick installation, versatility and exceptional lifespan, the push-in fitting contributes to improving machine efficiency. Moreover, the advanced patented design of the LF 3000 contributes to reducing total cost of use. LF3000 fittings allow for instant fitting, just push your tube into the fittings. Disconnection is just as instantaneous. Reliable performance is dependent upon the type of tubing being used, ambient temperature, and fluid conveyed together with the suitability of component materials of the fitting, according to the application.

Parker Legris 7996 Non-Return In-Line Check Valve Features:

• Wide Range
• Push-in connection for ease of use
• Lip seals for improved sealing performance
• Excellent vibration resistance
• Compact
• Lightweight
• Max Operating Pressure: 145 psi @ ambient 70°F (21°C)

Parker Legris 7996 Non-Return In-Line Check Valve Construction:

• Body: Nylon/Nickel-Plated Brass
