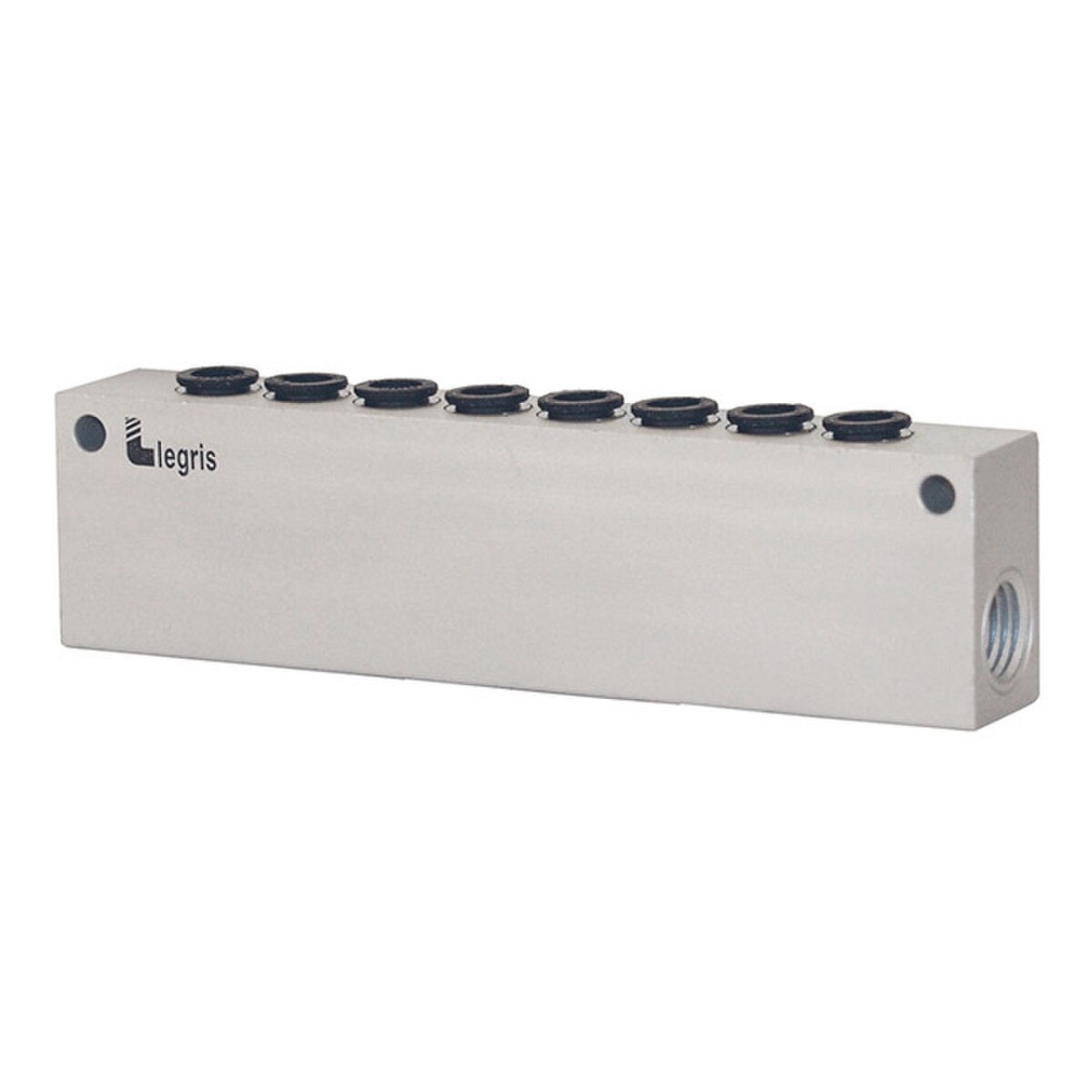

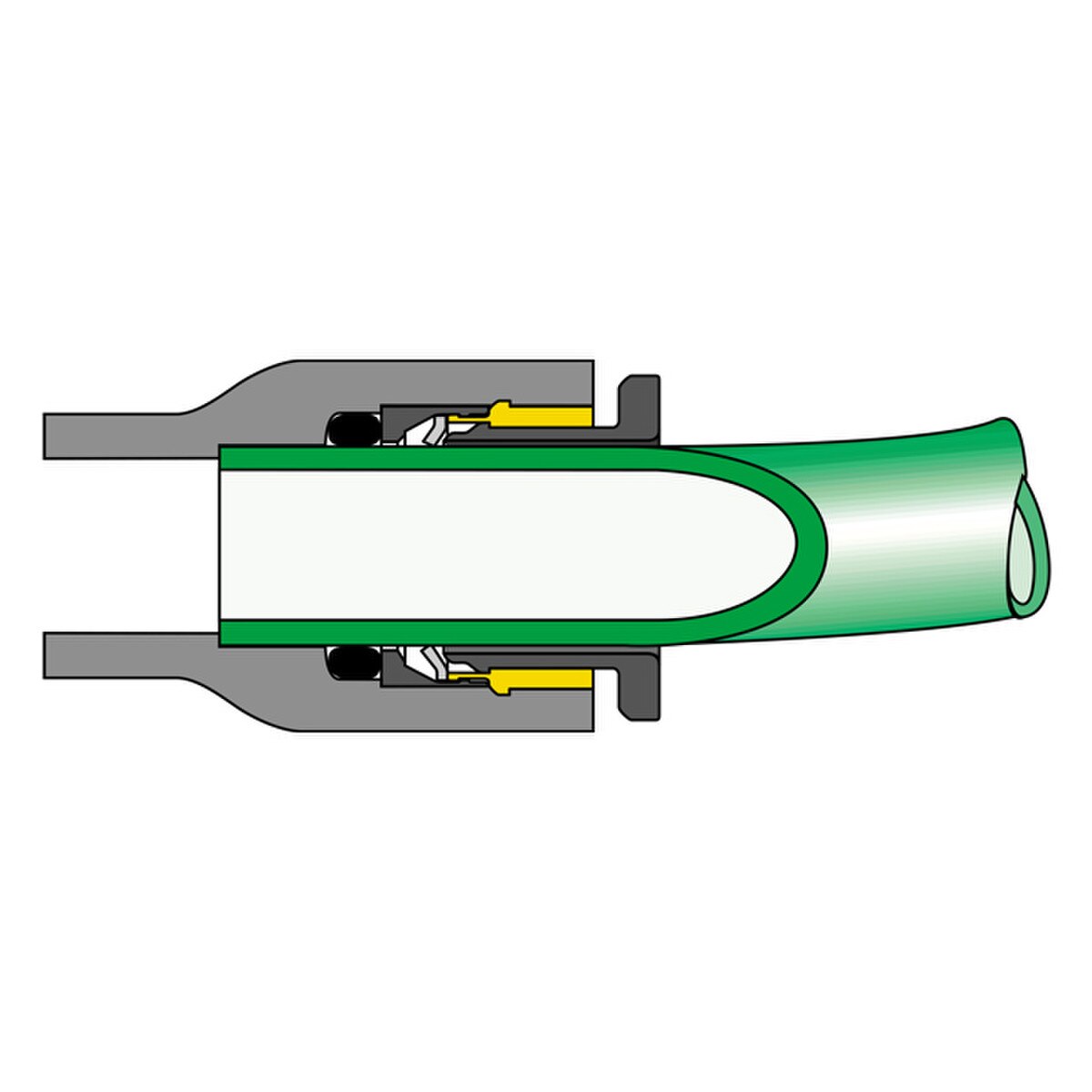

Parker Legris 33155614 Modular Manifold is made from treated aluminum with (8) LF3000 Push-In connections and suitable for use up to 290 psi (20 bar). Use these for distribution of compressed air through numerous circuits. Legris LF3000 fittings offer performance and reliability. Gripping and sealing within the fitting is achieved using the outside of the tube without deformation so there is no flow restriction. The o-ring within the fitting provides a positive seal on the OD of the tube, in both static and dynamic positions, due to the optimized design of the tube guide. Parker Legris fittings feature individual unit quality control and dating in order to guarantee quality and traceability.

The LF3000 system was launched by Legris in 1969 and has become universally adopted. LF3000 fittings allow for instant fitting, just push your tube into the fittings. Disconnection is just as instantaneous. Reliable performance is dependent upon the type of tubing being used, ambient temperature, and fluid conveyed together with the suitability of component materials of the fitting, according to the application.
