Dixon Sanitary B54BMP In-Line Sight Glass - Replacement Glass

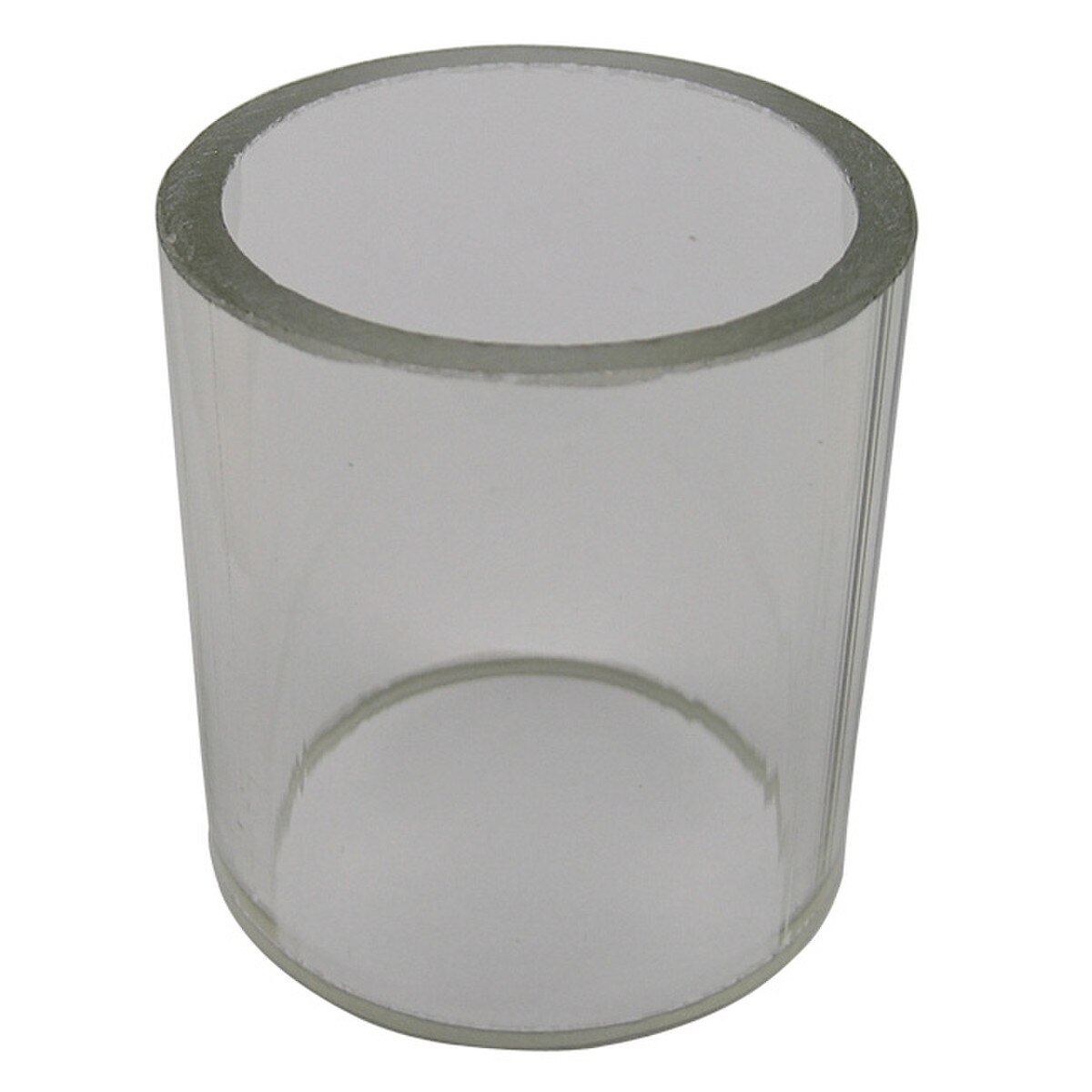

B54G-P Replacement Glass Inserts for Dixon Sanitary B54BMP Compact Sight Glasses are available in either borosilicate glass or polycarbonate plastic. Easy replacement with just the use of an crescent wrench or socket set. Dixon Sanitary B54BMP In-Line Sight Glasses are available for 1" thru 6" clamp connections, but are also available as special order with other end configurations. Constructed with a 316L stainless steel housing, borosilicate glass, and white buna seals. Metal surfaces have been furnished to a 3A polish (32RA ID/OD) for a sanitary finish. These Sanitary Sight Glasses are common components in food, beverage and dairy plants. Easily replaceable seals and glass for an extended service life. Maximum temperature of 200°F, maximum pressure varies by size, please refer to chart below.
| B54BMP Replacement Glass Part Numbers | ||
| Part # | Size | Insert Material |
|---|---|---|
| B54G-P100 | 1" | Borosilicate Glass |
| B54G-P150 | 1-1/2" | Borosilicate Glass |
| B54G-P200 | 2" | Borosilicate Glass |
| B54G-P250 | 2-1/2" | Borosilicate Glass |
| B54G-P300 | 3" | Borosilicate Glass |
| B54G-P400 | 4" | Borosilicate Glass |
| B54G-P600 | 6" | Borosilicate Glass |
| B54BM-LX100 | 1" | Polycarbonate Plastic |
| B54BM-LX150 | 1-1/2" | Polycarbonate Plastic |
| B54BM-LX200 | 2" | Polycarbonate Plastic |
| B54BM-LX200 | 2-1/2" | Polycarbonate Plastic |
| B54BM-LX300 | 3" | Polycarbonate Plastic |
| B54BM-LX400 | 4" | Polycarbonate Plastic |
| B54BM-LX200 | 6" | Polycarbonate Plastic |
