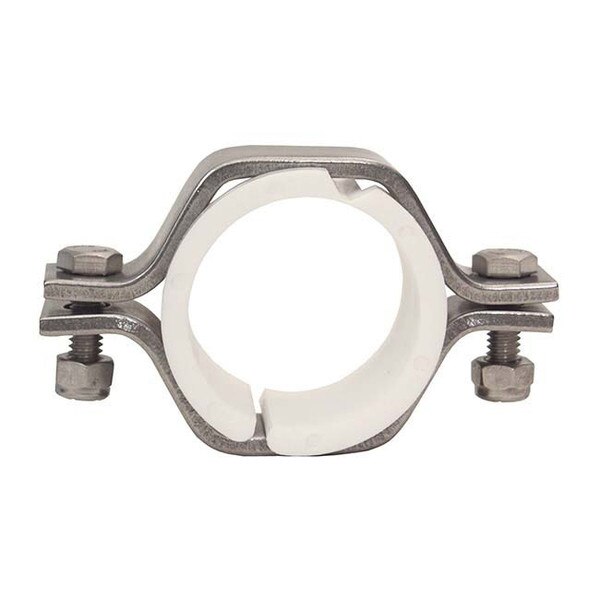

Hex Tube Hangers with Polypropylene Sleeves
Dixon Sanitary polishes all their hangers and ensures that all sharp edges are removed.
Dixon Offers:Hex Tube Hangers: For flexibility in temperature variations Round Tube Hangers: For resisting movement and vibration Block Tube Hangers: For flexibility and FDA applications
Support Guidelines: Lines should not be anchored to equipment. Lines need to be able to float with temperature variations
Installing: Support straight sections every 10 feet Support both sides of every valve at both sides as close to the connection as possible Support at every change of direction
Dixon Offers:
Support Guidelines:
Installing:
 | ||||
| Part Number | Tube OD | A | B | Material |
|---|---|---|---|---|
| B24PS-G50 | 1/2" | 2.800 | 1.150 | 304 Stainless |
| B24PS-G75 | 3/4" | 2.800 | 1.150 | 304 Stainless |
| B24PS-G100 | 1" | 3.425 | 1.450 | 304 Stainless |
| B24PS-G150 | 1 1/2" | 4.000 | 2.125 | 304 Stainless |
| B24PS-G200 | 2" | 4.500 | 2.500 | 304 Stainless |
| B24PS-G250 | 2 1/2" | 4.950 | 3.125 | 304 Stainless |
| B24PS-G300 | 3" | 5.500 | 3.750 | 304 Stainless |
| B24PS-G400 | 4" | 6.950 | 4.750 | 304 Stainless |
| B24PS-G500 | 5" | 8.063 | 5.625 | 304 Stainless |
| B24PS-G600 | 6" | 9.250 | 6.625 | 304 Stainless |
| B24PS-G800 | 8" | 11.500 | 8.625 | 304 Stainless |
| B24PS-G1000 | 10" | 14.500 | 10.500 | 304 Stainless |
| B24PS-G1200 | 12" | 16.625 | 13.000 | 304 Stainless |
