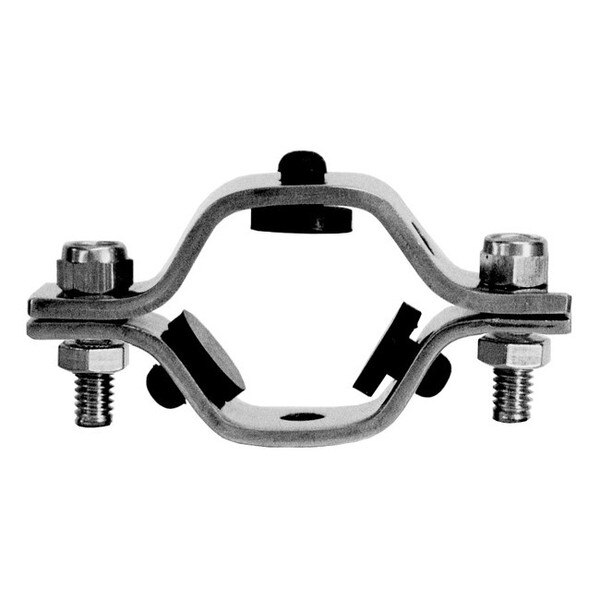

• Hex Tube Hangers with Nitrile Grommets

Hex Tube Hangers with Nitrile Grommets

(0)No Reviews yet
Nitrile grommets have a maximum temperature of 230 degrees Fahrenheit.
Dixon Sanitary polishes all their hangers and ensures that all sharp edges are removed.
Dixon Offers:
  • Hex Tube Hangers: For flexibility in temperature variations
  • Round Tube Hangers: For resisting movement and vibration
  • Block Tube Hangers: For flexibility and FDA applications
    Support Guidelines:
  • Lines should not be anchored to equipment.
  • Lines need to be able to float with temperature variations
    Installing:
  • Support straight sections every 10 feet
  • Support both sides of every valve at both sides as close to the connection as possible
  • Support at every change of direction
  • Part NumberTube ODABMaterial
    B24RG-G751/2" - 3/4"3.4251.450304 Stainless
    B24RG-G1001"3.4251.450304 Stainless
    B24RG-G1501 1/2"4.0002.125304 Stainless
    B24RG-G2002"4.5002.500304 Stainless
    B24RG-G2502 1/2"4.9503.125304 Stainless
    B24RG-G3003"5.5003.750304 Stainless
    B24RG-G4004"6.9504.750304 Stainless
    B24RG-G5005"8.0005.625304 Stainless
    B24RG-G6006"9.2506.625304 Stainless
    B24RG-G8008"11.5008.625304 Stainless
    B24RG-G100010"14.50010.500304 Stainless
    B24RG-G120012"16.75012.625304 Stainless
