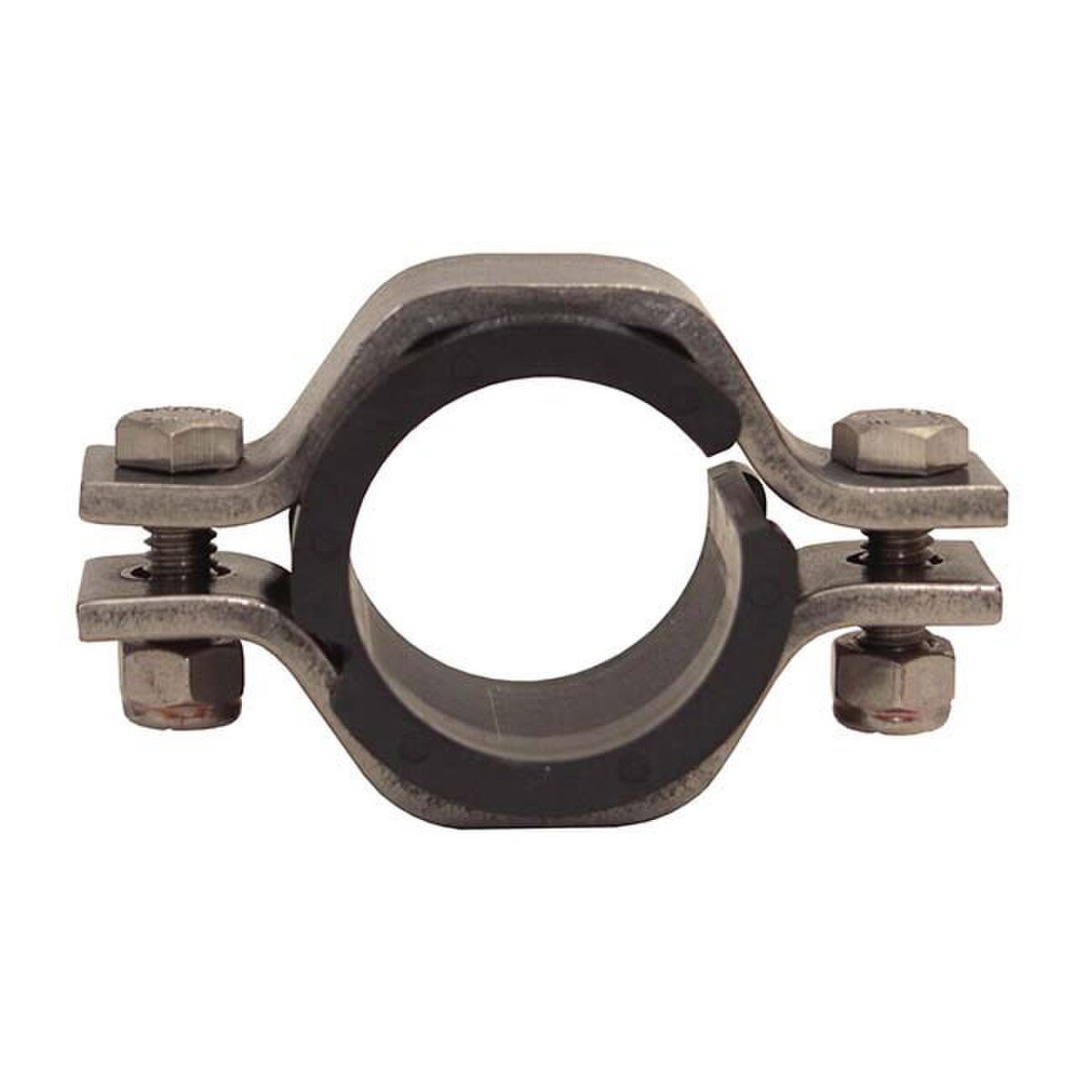

Hex Tube Hangers with High Temp Sleeves

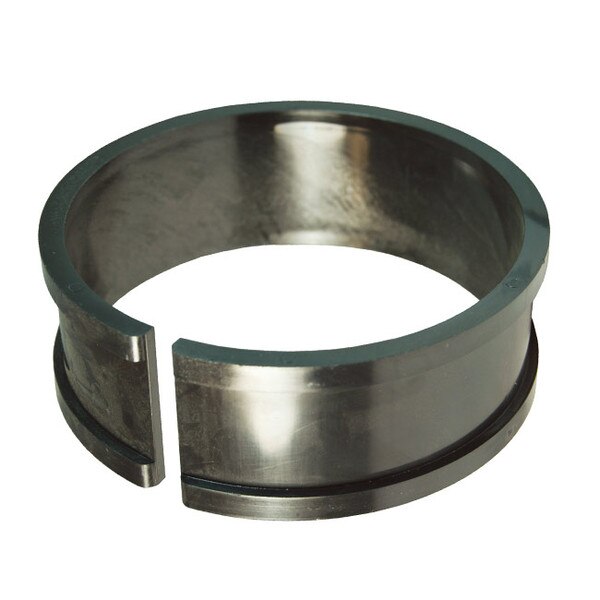

High Temperature Sleeves have a maximum temperature of 325 degrees Fahrenheit.
Dixon Sanitary polishes all their hangers and ensures that all sharp edges are removed.
Dixon Offers:Hex Tube Hangers: For flexibility in temperature variations Round Tube Hangers: For resisting movement and vibration Block Tube Hangers: For flexibility and FDA applications
Support Guidelines: Lines should not be anchored to equipment. Lines need to be able to float with temperature variations
Installing: Support straight sections every 10 feet Support both sides of every valve at both sides as close to the connection as possible Support at every change of direction
Dixon Sanitary polishes all their hangers and ensures that all sharp edges are removed.
Dixon Offers:
Support Guidelines:
Installing:
 | ||||
| Part Number | Tube OD | A | B | Material |
|---|---|---|---|---|
| B24HS-G50 | 1/2" | 2.375 | 1.062 | 304 Stainless |
| B24HS-G75 | 3/4" | 2.625 | 1.188 | 304 Stainless |
| B24HS-G100 | 1" | 2.688 | 1.563 | 304 Stainless |
| B24HS-G150 | 1 1/2" | 3.625 | 2.125 | 304 Stainless |
| B24HS-G200 | 2" | 4.625 | 2.625 | 304 Stainless |
| B24HS-G250 | 2 1/2" | 4.813 | 3.125 | 304 Stainless |
| B24HS-G300 | 3" | 5.375 | 3.625 | 304 Stainless |
| B24HS-G400 | 4" | 6.625 | 4.625 | 304 Stainless |
| B24HS-G600 | 6" | 9.000 | 6.625 | 304 Stainless |
