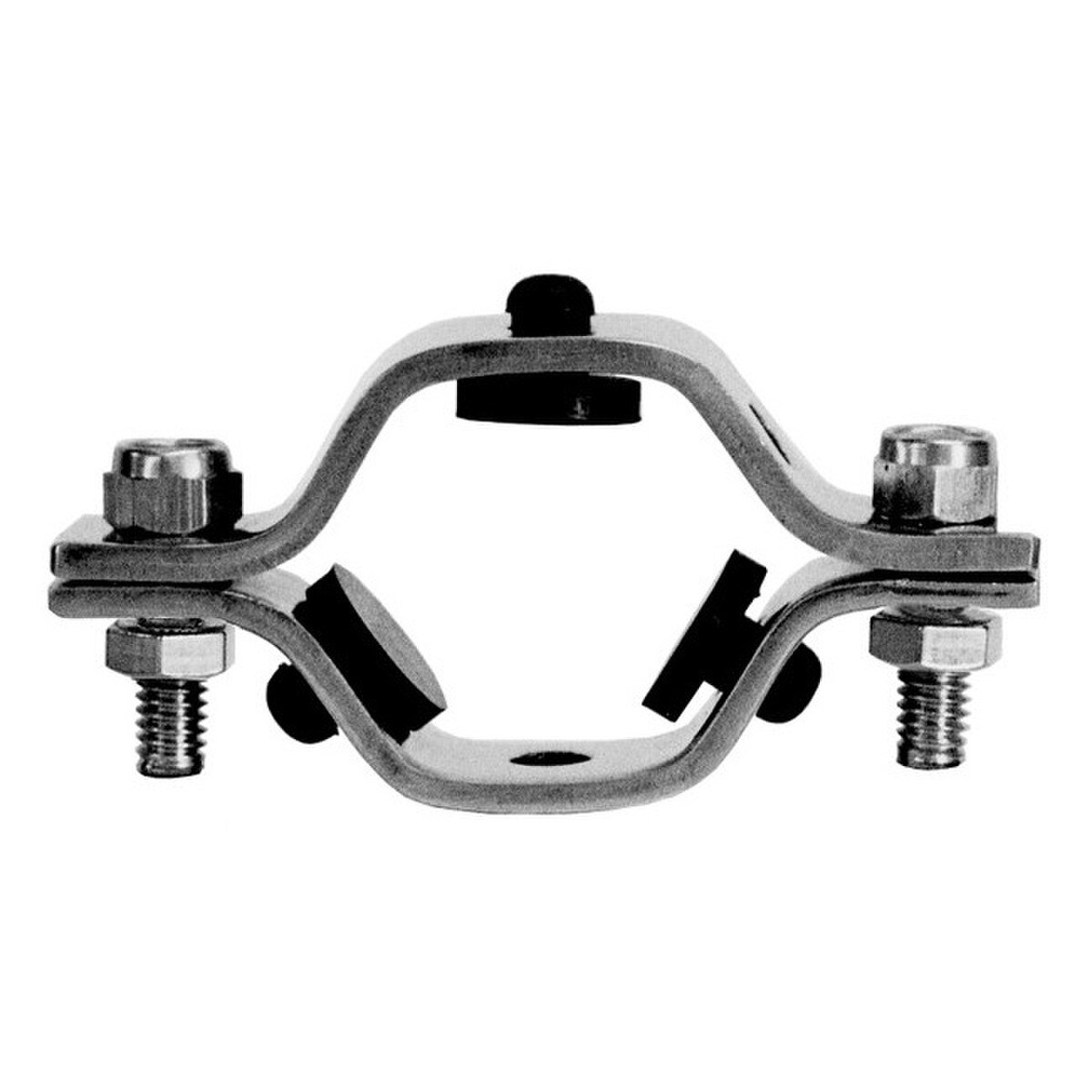

Hex Pipe Hangers with Rubber Grommets
Dixon Sanitary polishes all their hangers and ensures that all sharp edges are removed.
Dixon Offers:
- Hex Pipe Hangers: For flexibility in temperature variations
- Round Pipe Hangers: For resisting movement and vibration
- Block Pipe Hangers: For flexibility and FDA applications
Support Guidelines:
- Lines should not be anchored to equipment.
- Lines need to be able to float with temperature variations
Installing:
- Support straight sections every 10 feet
- Support both sides of every valve at both sides as close to the connection as possible
- Support at every change of direction
 | ||||
| Part Number | Tube OD | A | B | Material |
|---|---|---|---|---|
| B24RV-G100 | 1" | 3.425 | 1.450 | 304 Stainless |
| B24RV-G150 | 1 1/2" | 4.000 | 2.125 | 304 Stainless |
| B24RV-G200 | 2" | 4.500 | 2.500 | 304 Stainless |
| B24RV-G250 | 2 1/2" | 4.950 | 3.125 | 304 Stainless |
| B24RV-G300 | 3" | 5.500 | 3.750 | 304 Stainless |
| B24RV-G400 | 4" | 6.950 | 4.750 | 304 Stainless |
| B24RV-G500 | 5" | 8.000 | 5.625 | 304 Stainless |
| B24RV-G600 | 6" | 9.250 | 6.625 | 304 Stainless |
