Heavy Duty Sanitary Clamps - Nylon Hinge Clamp

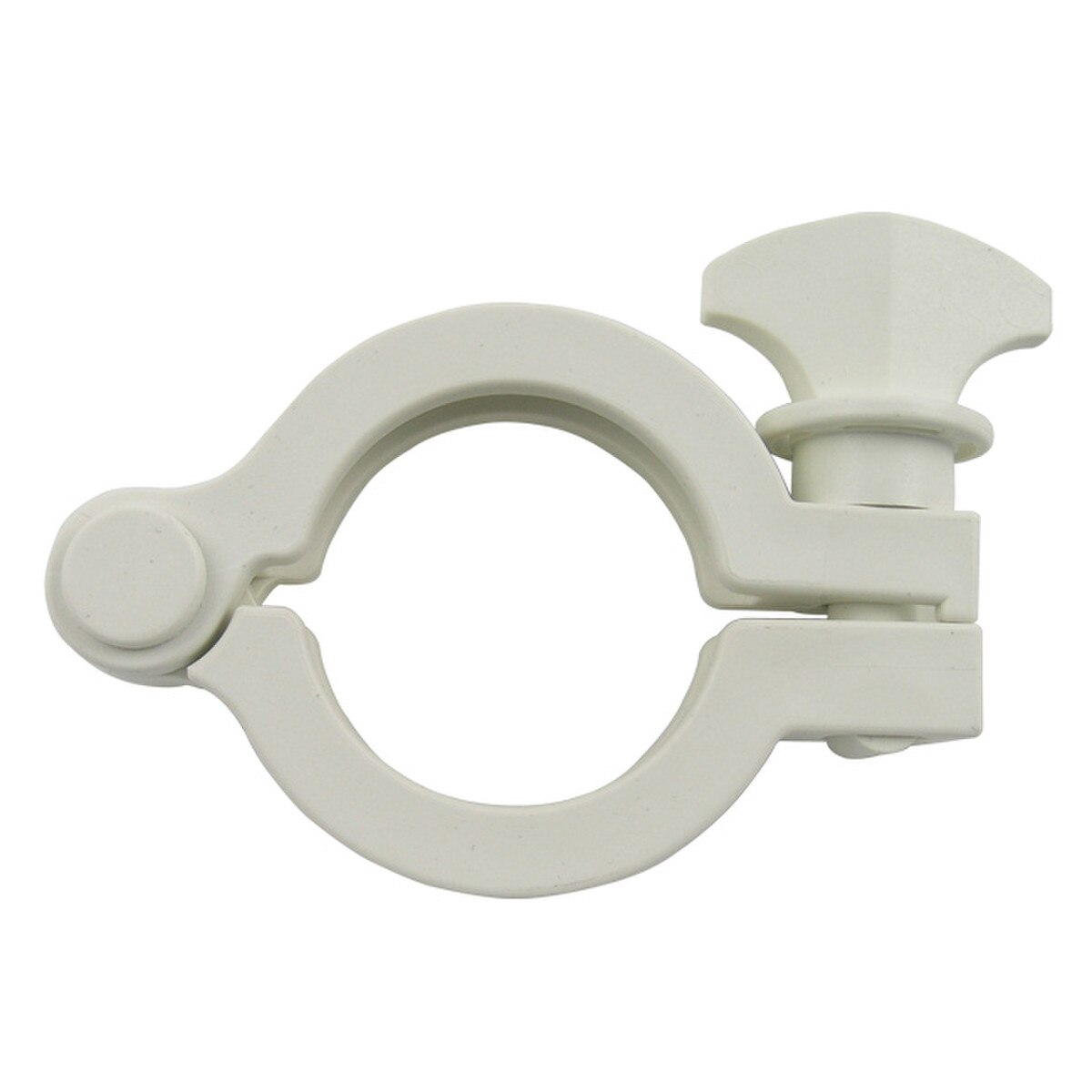

Rubber Fab's Non Metallic sanitary hinge clamp is specifically designed for use on non metal to non metal connections. These sanitary clamps are constructed of Non-Metallic fiberglass reinforced nylon and accept sanitary ferrules according to BS 4825, ISO 2852 and Tri-Clover® Standards. Nylon Hinge Clamps will not cause distortion in non-metallic ferrules, as will stainless steel clamps during high operating temperatures and sterilization. These Sanitary Tri-Clamps® are ideal where reduction of weight and reduced thermal conductivity transfer is of importance. Capable of being used on non-metallic to non-metallic, nonmetallic to metallic and metallic to metallic sanitary mechanical joints.
Note: PTFE gaskets are not to be used in conjuction with the non metallic clamp. Acceptable elastomers are: Tuf-Flex®, Silicone, FKM, and EPDM.
Non Metallic Clamp Features:
 | |||||
| Size | Part Number | A (in.) | B (in.) | R (in.) | Max PSI |
|---|---|---|---|---|---|
| 1/2" & 3/4" | 13MHHM-NGW-050/075 | 2.17 | .749 | 0.394 | 150 |
| 1" & 1-1/2" | 13MHHM-NGW-150 | 3.94 | .749 | 0.886 | 150 |
| 2" | 13MHHM-NGW-200 | 4.64 | .749 | 1.260 | 150 |
| 2-1/2" | 13MHHM-NGW-250 | 5.20 | .749 | 1.497 | 150 |
| 3" | 13MHHM-NGW-300 | 5.75 | .749 | 1.773 | 150 |
| 4" | 13MHHM-NGW-400 | 6.66 | .749 | 2.250 | 150 |
| 6" | 13MHHM-NGW-600 | 8.81 | .962 | 3.135 | 150 |
| 8" | 13MHHM-NGW-800 | 11.14 | .962 | 4.316 | 150 |
