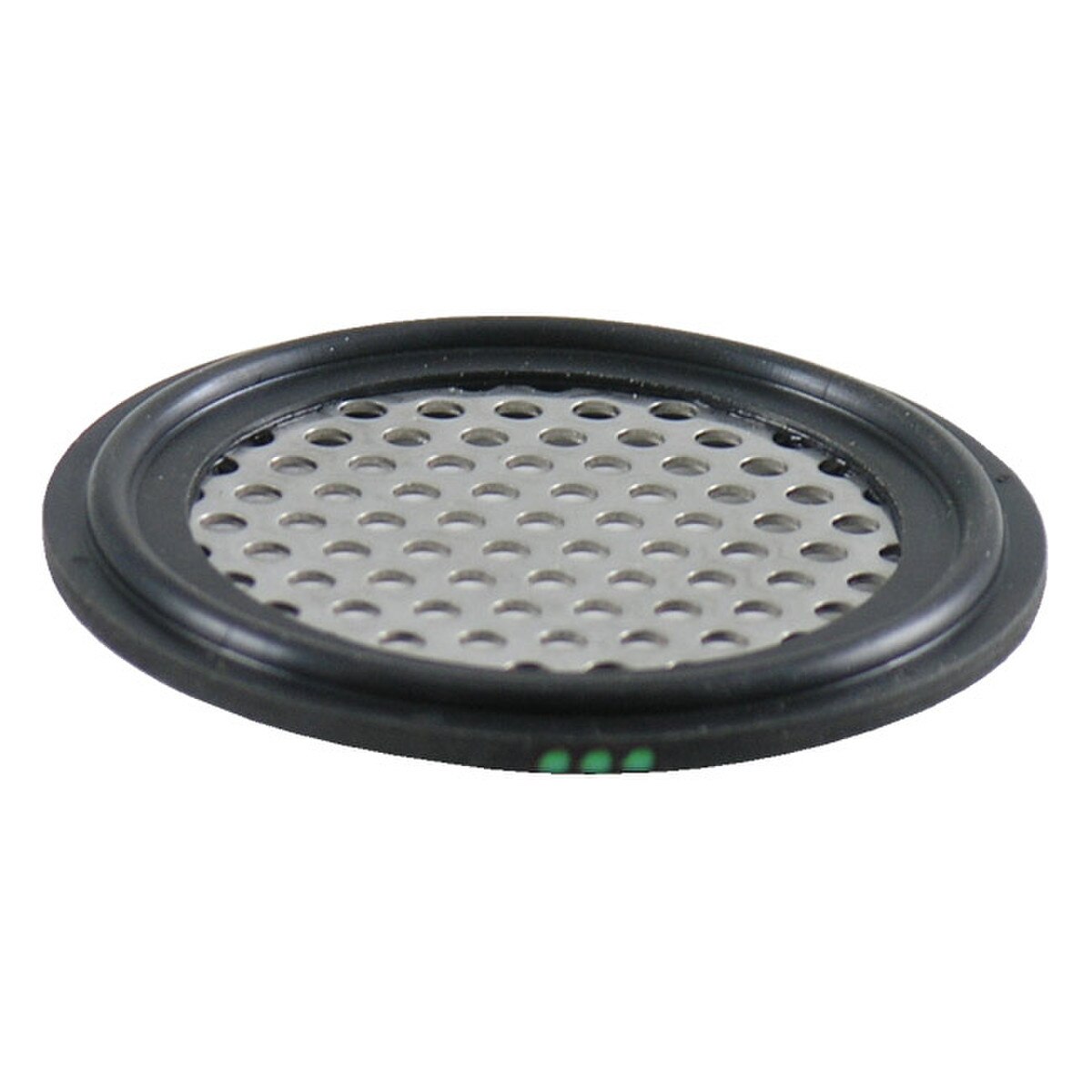

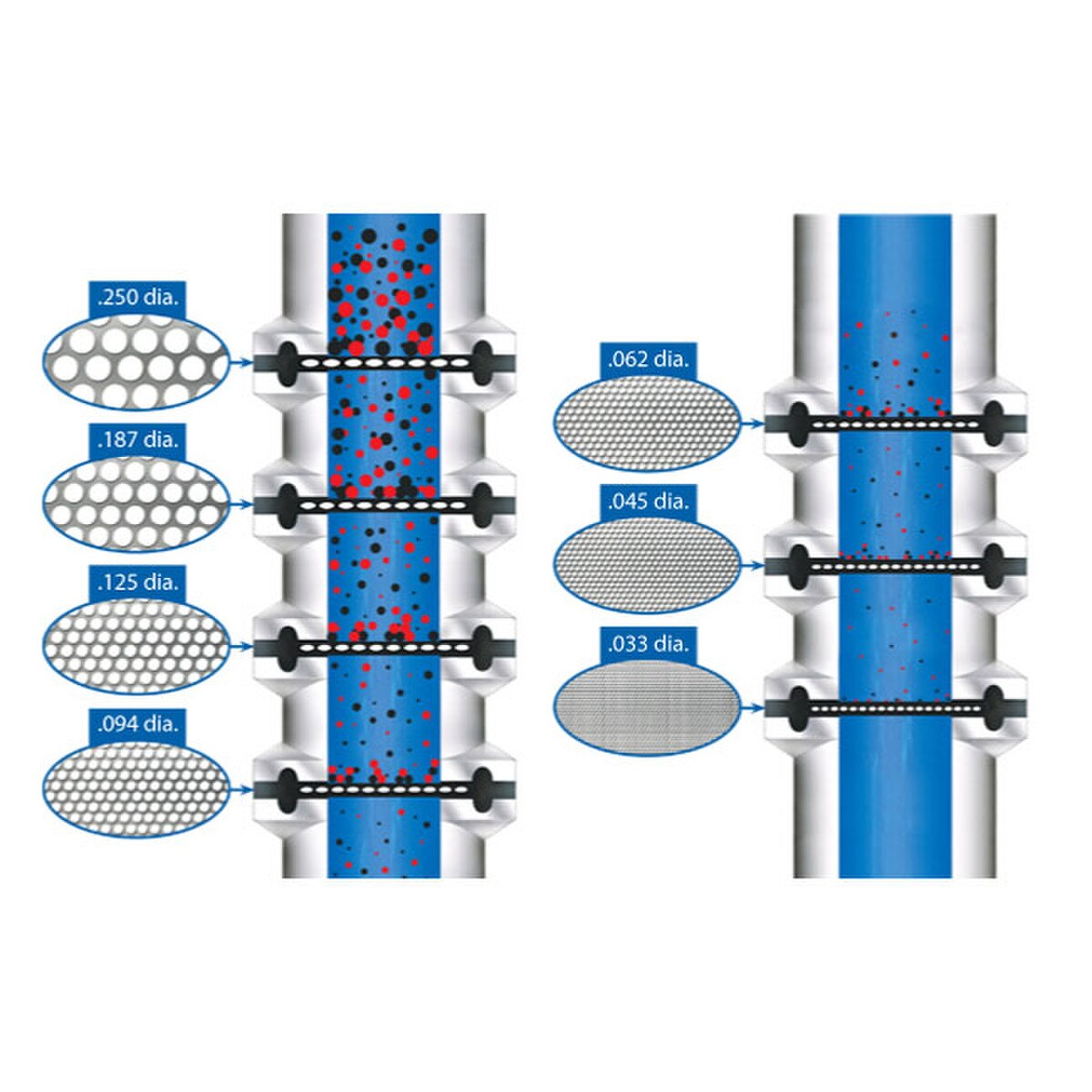

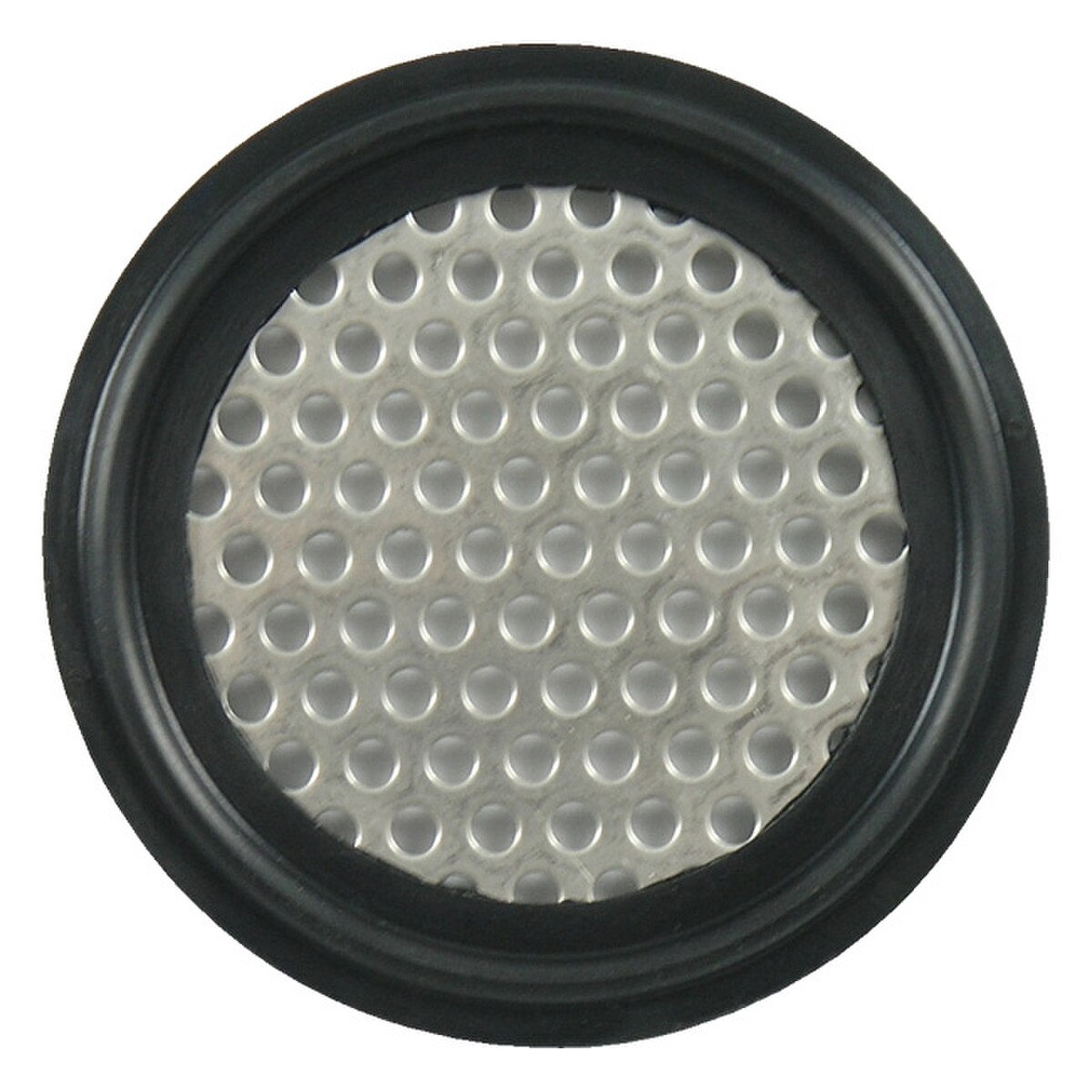

Tri-Clamp® EPDM Perforated Plate Gaskets are manufactured with a 22 Gauge 316L Stainless Steel Perforated Plate that has been flow trapped into the gasket body. These perforated hole gaskets are available standard with 0.033", 0.045", 0.062" (1/16"), 0.094" (3/32"), 0.125" (1/8"), 0.187" (3/16") and 0.250" (1/4") perforations in varying center types, please see the reference chart below for exact specifications. The center type is the center to center distance between each perforation and correlates to the holes per square inch and open area % of each gasket.

With a stringent ASME-BPE design, these filtration gaskets can be utilized for particulate removal in a number or processes and industries. Whether being used as a pre-filter for expensive membrane filters, or straining particulate in fill and finish products, these sanitary gaskets can save you from equipment wear and product contamination.

EPDM gaskets are specified by many process equipment manufacturers and are generally suitable for these applications, however service life must be considered and a preventative maintenance program must be in place to mitigate degradation. EPDM Gaskets are generally only suitable for low pressure steam between -30°F and 300°F. EPDM is a good choice for Tri-Clamp® Gaskets when an economical solution for weather and chemical resistant seals is desired. Chemically, EPDM has good resistance to animal oils, vegetable oils, ozone, strong chemicals, and oxidizing chemicals. Do not use EPDM gaskets for mineral oils, solvents, or aromatic hydrocarbons.

Storing EPDM Gaskets:

• Shelf Life: 10 Years from cure date
• Store in original packaging in clean and dry warehouse
• Do not expose to direct sunlight
• Keep more than 6' away from electric motors
• Maintain temperature between 65°F and 85°F

• FDA CFR 21, 177.2600
• U.S. Pharmacopeia Class VI Certification
• USDA Hazard Analysis and Critical Control Points
• Cytotoxicity Criteria
• USDA and 3-A Sanitary Standards
• ASME-BPE Standards for Type I and Type II
• ADI Free® (Animal Derived Ingredient Free)
• Current Good Manufacturing Practices (CGMP)

• Color Code: three green dots • • •
• -30°F to 300°F Temperature Range
• Acceptable for low pressure steam applications
• Peroxide cured

• Pre-filtration for critical membrane filters
• Coalescence of water vapor from process lines
• Liquid gassing or degassing
• Large particulate removal before fill and finish
• Turbulence generation for enhanced mass or heat transfer
• Protection for pumps, check valves, and components
• Particulate removal in sterile filling operations
• Sparging
• Chromatography purification
