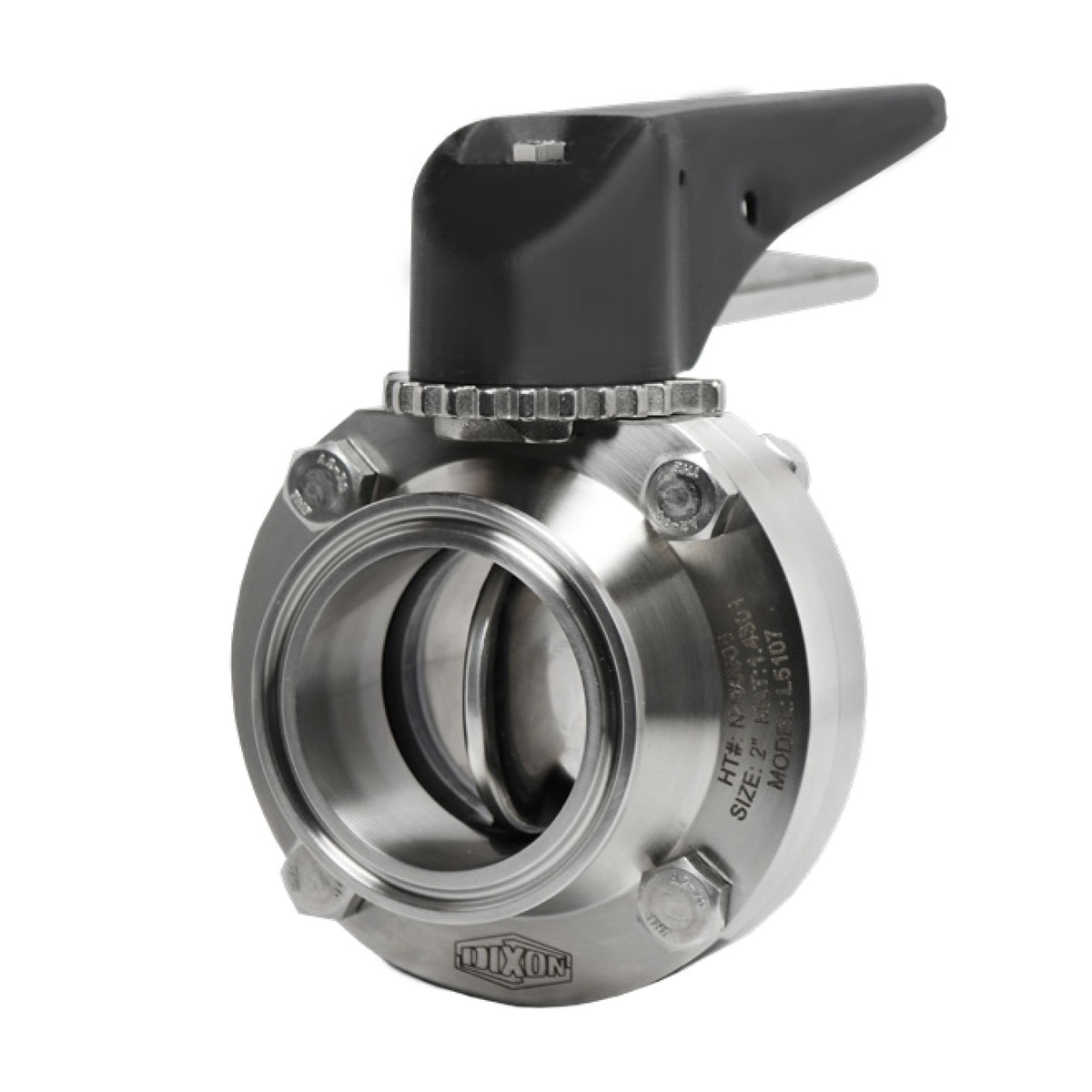

Dixon Sanitary L5107 Butterfly Valve w/ 360° Rotatable Trigger Handle - Clamp Ends
Dixon Sanitary L5107 Butterfly Valves featuring clamp ends are available from 1" up to 4". Dixon L5107 Valves feature their trigger style handle, now with a 360° sprocket that allows the handle to be easily rotated to both sides of the valve without disassembly and reassembly.
All Dixon Sanitary L5107 Butterfly Valves are constructed from forged 304 Stainless Steel with a 32Ra ID/OD polish. All valves are 100% hydraulic tested and 100% inspected prior to shipment! Rated for 0.4 inHg of vacuum at 68°F and operation at temperatures from 15°F to 200°F.
Dixon Sanitary offers a wide selection of stainless steel butterfly valves for use in sanitary process systems. These valves are simple, rugged and above all, dependable. Dixon L5107 Butterfly Valves can be used either as a shutoff valve (on/off service) or as a throttling valve (for flow control). The slim design, superior craftsmanship, choice materials, top quality strength and surface finish make the L5107 the preference of many industries with sanitary requirements. Various elastomers, end types and accessories make this a highly versatile valve. Typical uses would include isolation of equipment, fill/drain systems, bypass systems and other similar applications.
Dixon L5107 Butterfly Valve Features:
- 304 stainless steel body & disc
- 100% hydraulic tested
- 100% inspected
- All wetted surfaces finished to < 32Ra
- Field serviceable (no special tools)
- Tri-Clamp® end connections
- EPDM, silicone, or FKM product contact seals
- 360° rotatable trigger handle
- Vacuum rating: 0.4 inHg @ 68°F
- Temperature range: 15°F to 200°F
L5107 Dimensions | |||||||
| Size | A | B | C | D | E | ||
|---|---|---|---|---|---|---|---|
| 1" | 3" (76.2mm) | 0.866" (22mm) | 3.071" (78mm) | 3.363" (85.42mm) | 6.469" (164.31mm) | ||
| 1-1/2" | 3" (76.2mm) | 0.866" (22mm) | 3.071" (78mm) | 3.363" (85.42mm) | 6.469" (164.31mm) | ||
| 2" | 3" (76.2mm) | 0.866" (22mm) | 3.898" (99.01mm) | 3.707" (94.16mm) | 6.469" (164.31mm) | ||
| 2-1/2" | 3" (76.2mm) | 0.866" (22mm) | 4.606" (116.99mm) | 4.119" (104.62mm) | 6.469" (164.31mm) | ||
| 3" | 3" (76.2mm) | 1.181" (30mm) | 5.197" (132mm) | 4.312" (109.52mm) | 6.469" (164.31mm) | ||
| 4" | 3" (76.2mm) | 1.181" (30mm) | 6.657" (169.09mm) | 5.109" (129.77mm) | 6.469" (164.31mm) | ||
| L5107 Working Specs | ||||||||
| Part Number | Size | Seal Material | End Connection | Break Torque | Flow Coefficient (Cv) | Pressure Rating | Temperature Rating | Vacuum Rating |
|---|---|---|---|---|---|---|---|---|
| L5107E100CC-P | 1" | EPDM | Tri-Clamp® | 13 in-lbs | 23 Cv | 140psi | 15°F thru 200°F | 0.4 inHg @ 68°F |
| L5107E150CC-P | 1-1/2" | EPDM | Tri-Clamp® | 20 in-lbs | 80 Cv | 140psi | 15°F thru 200°F | 0.4 inHg @ 68°F |
| L5107E200CC-P | 2" | EPDM | Tri-Clamp® | 48 in-lbs | 230 Cv | 140psi | 15°F thru 200°F | 0.4 inHg @ 68°F |
| L5107E250CC-P | 2-1/2" | EPDM | Tri-Clamp® | 98 in-lbs | 264 Cv | 110psi | 15°F thru 200°F | 0.4 inHg @ 68°F |
| L5107E300CC-P | 3" | EPDM | Tri-Clamp® | 146 in-lbs | 372 Cv | 110psi | 15°F thru 200°F | 0.4 inHg @ 68°F |
| L5107E400CC-P | 4" | EPDM | Tri-Clamp® | 341 in-lbs | 800 Cv | 85psi | 15°F thru 200°F | 0.4 inHg @ 68°F |
| L5107S100CC-P | 1" | Silicone | Tri-Clamp® | 20 in-lbs | 23 Cv | 140psi | 15°F thru 200°F | 0.4 inHg @ 68°F |
| L5107S150CC-P | 1-1/2" | Silicone | Tri-Clamp® | 35 in-lbs | 80 Cv | 140psi | 15°F thru 200°F | 0.4 inHg @ 68°F |
| L5107S200CC-P | 2" | Silicone | Tri-Clamp® | 35 in-lbs | 230 Cv | 140psi | 15°F thru 200°F | 0.4 inHg @ 68°F |
| L5107S250CC-P | 2-1/2" | Silicone | Tri-Clamp® | 133 in-lbs | 264 Cv | 110psi | 15°F thru 200°F | 0.4 inHg @ 68°F |
| L5107S300CC-P | 3" | Silicone | Tri-Clamp® | 133 in-lbs | 372 Cv | 110psi | 15°F thru 200°F | 0.4 inHg @ 68°F |
| L5107S400CC-P | 4" | Silicone | Tri-Clamp® | 266 in-lbs | 800 Cv | 85psi | 15°F thru 200°F | 0.4 inHg @ 68°F |
| L5107V100CC-P | 1" | FKM | Tri-Clamp® | 70 in-lbs | 23 Cv | 140psi | 15°F thru 200°F | 0.4 inHg @ 68°F |
| L5107V150CC-P | 1-1/2" | FKM | Tri-Clamp® | 125 in-lbs | 80 Cv | 140psi | 15°F thru 200°F | 0.4 inHg @ 68°F |
| L5107V200CC-P | 2" | FKM | Tri-Clamp® | 175 in-lbs | 230 Cv | 140psi | 15°F thru 200°F | 0.4 inHg @ 68°F |
| L5107V250CC-P | 2-1/2" | FKM | Tri-Clamp® | 220 in-lbs | 264 Cv | 110psi | 15°F thru 200°F | 0.4 inHg @ 68°F |
| L5107V300CC-P | 3" | FKM | Tri-Clamp® | 310 in-lbs | 372 Cv | 110psi | 15°F thru 200°F | 0.4 inHg @ 68°F |
| L5107V400CC-P | 4" | FKM | Tri-Clamp® | 450 in-lbs | 800 Cv | 85psi | 15°F thru 200°F | 0.4 inHg @ 68°F |
L5107 Bill of Materials | |||
| Item Number | Description | Material | Quantity |
|---|---|---|---|
| 1 | body bolt | 18-8 | 4 (6 on 4" valves) |
| 2 | body housing | 304 | 2 |
| 3 | valve seat | - | 1 |
| 4 | bushing | polyacetal | 2 |
| 5 | disc | 304 | 1 |
| 6 | body nut | 18-8 | 4 (6 on 4" valves) |
| 7 | sprocket | 304 | 1 |
| 8 | handle | PA55-GF30 / 304 | 1 |
