Dixon Sanitary Cam and Groove Standard Handle Assemblies

WARNING : Under no circumstances should cam and groove couplings be used for compressed air or steam service.

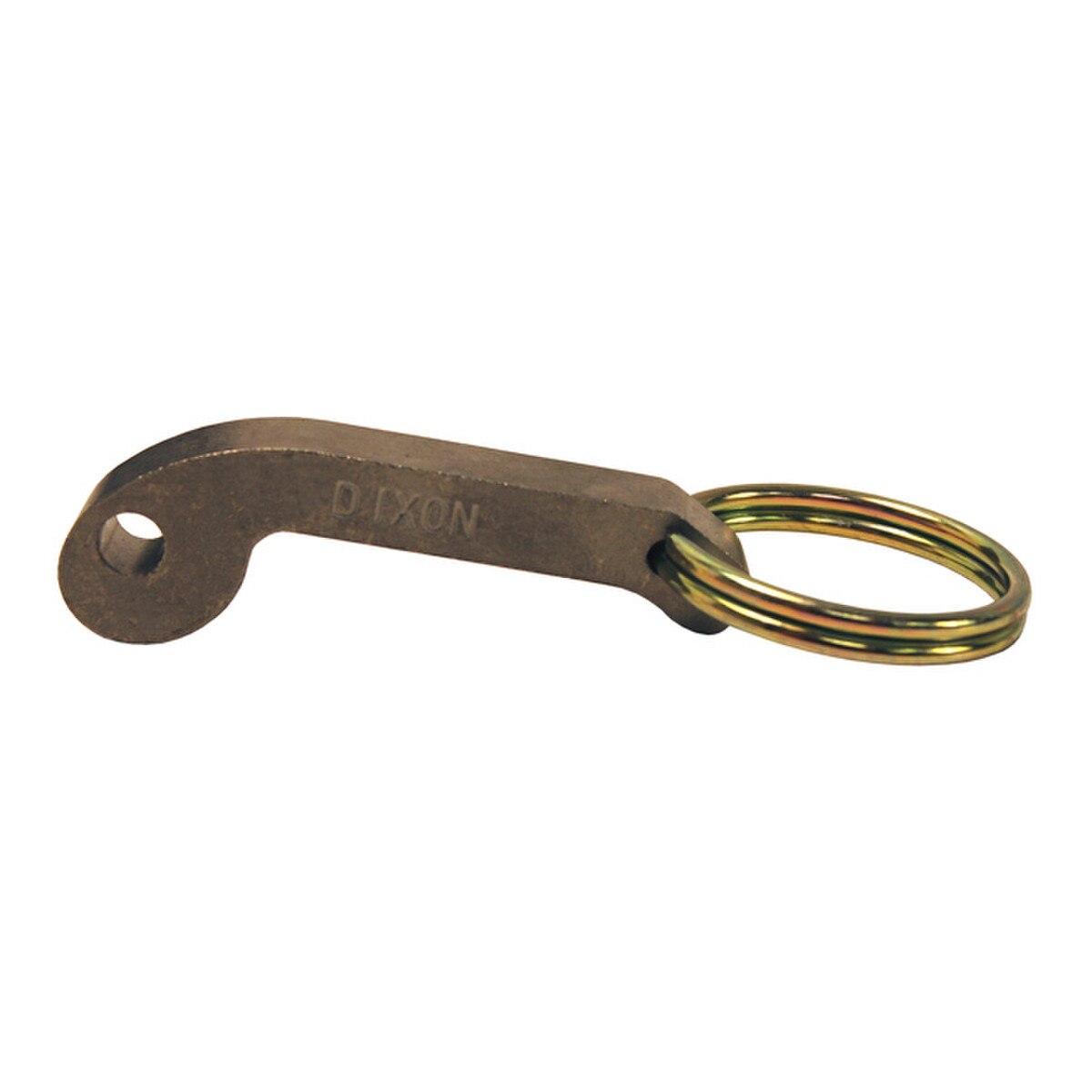

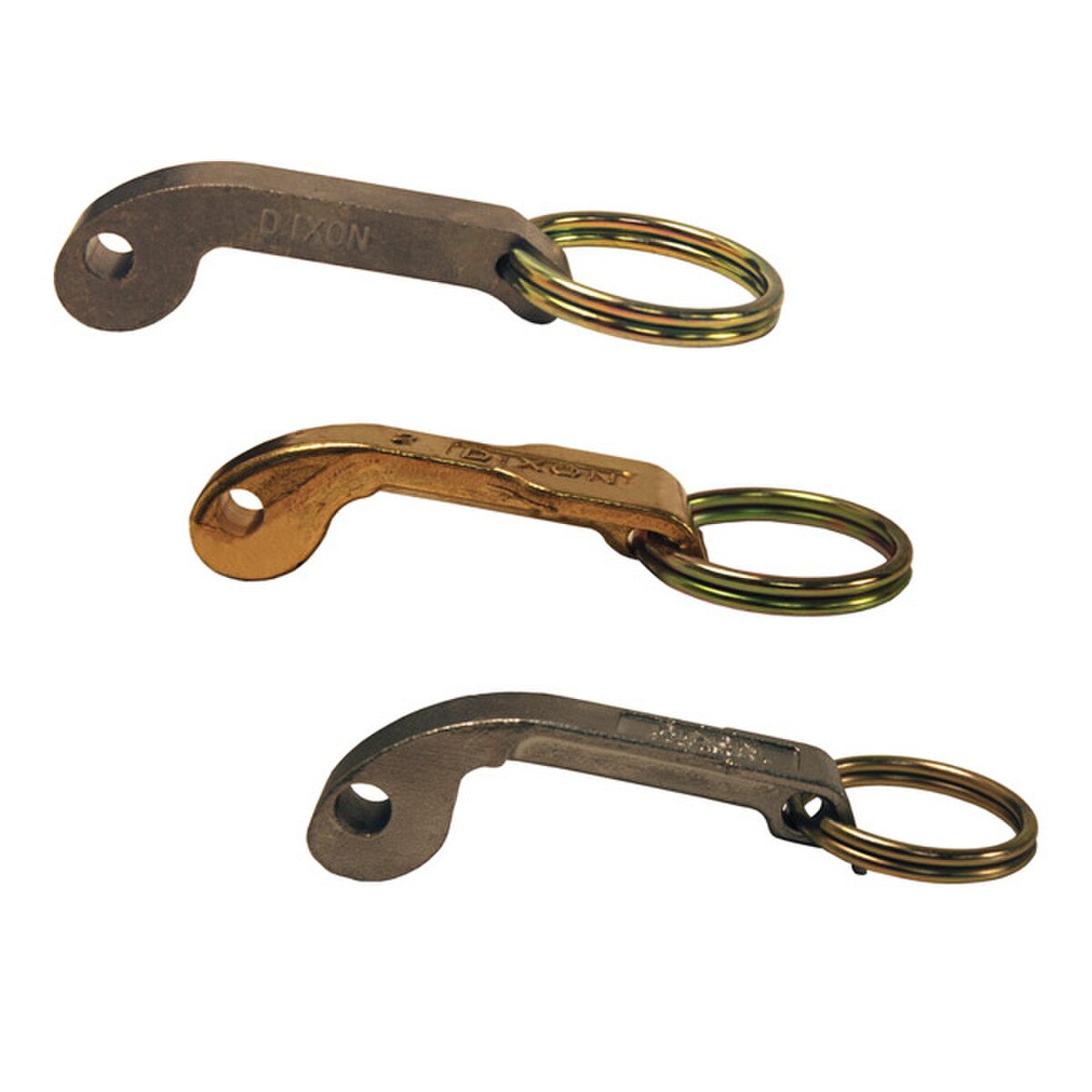

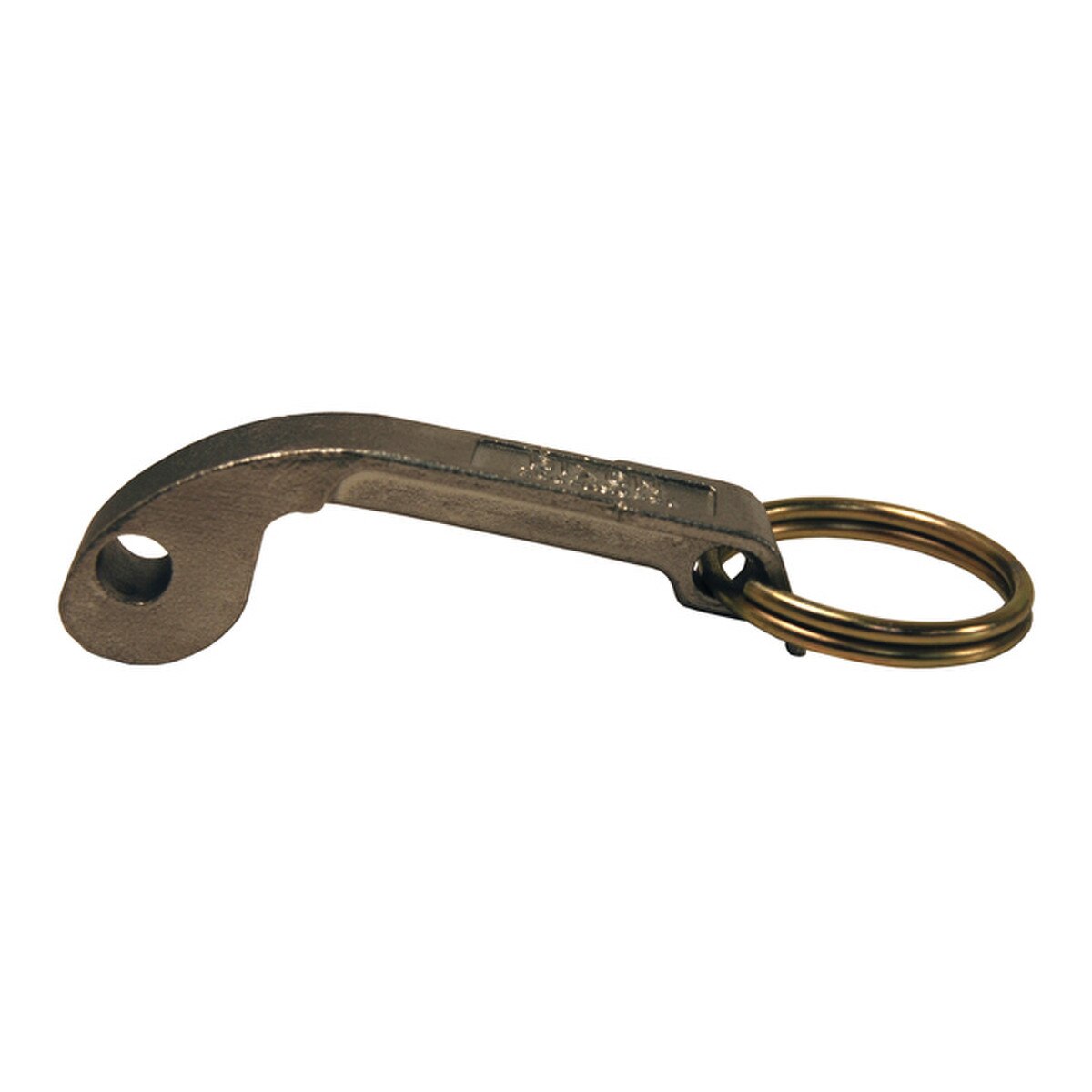

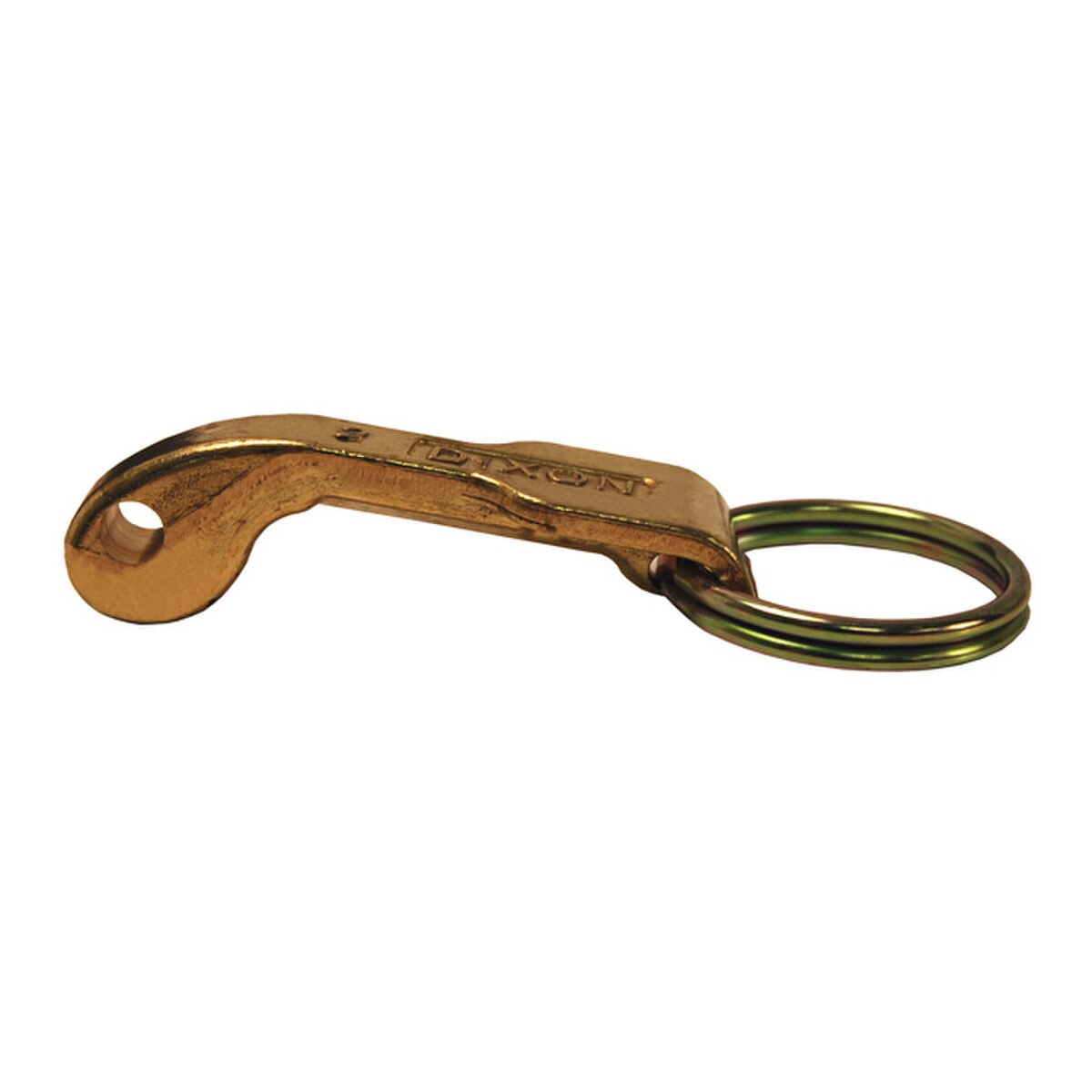

These Dixon Sanitary Cam and Groove Replacement Standard Handle Assemblies are available in Brass, Sintered Stainless Steel, and Investment Stainless Steel for Female Cam Couplers (Type B, C, D, DC). Each replacement assembly includes a cam arm and stainless steel pin. Pull rings come standard on sizes 1-1/4" thru 6" and are optional on other sizes.

Dixon camlock fittings are all precision machined to rigid tolerances and designed to be interchangeable with all products produced to Commercial Item Description A-A-59326B. However, no standard exists for the 1/2" and 8" fittings and generally these will not interchange with other manufacturers. All couplers, regardless of casting material, utilize durable stainless steel cam arm pins that will not rust or bind. The couplers also feature a recess to hold the gasket firmly in place, ensuring proper placement and eliminating any chance for leakage.

Cam and Groove fittings are designed for use as a hose coupling that allows quick connect capabilities to increase operator productivity. To secure a connection, simply slide the adapter into the coupler, and with normal hand pressure press the cam levers down. Uncoupling is just as simple, just lift the cam arms and remove the adapter. Dixon Sanitary also offers Dust Plugs and Dust Caps to keep hoses and process tubes clean while fittings are disconnected.

Dixon Cam and Groove Fittings Features:
