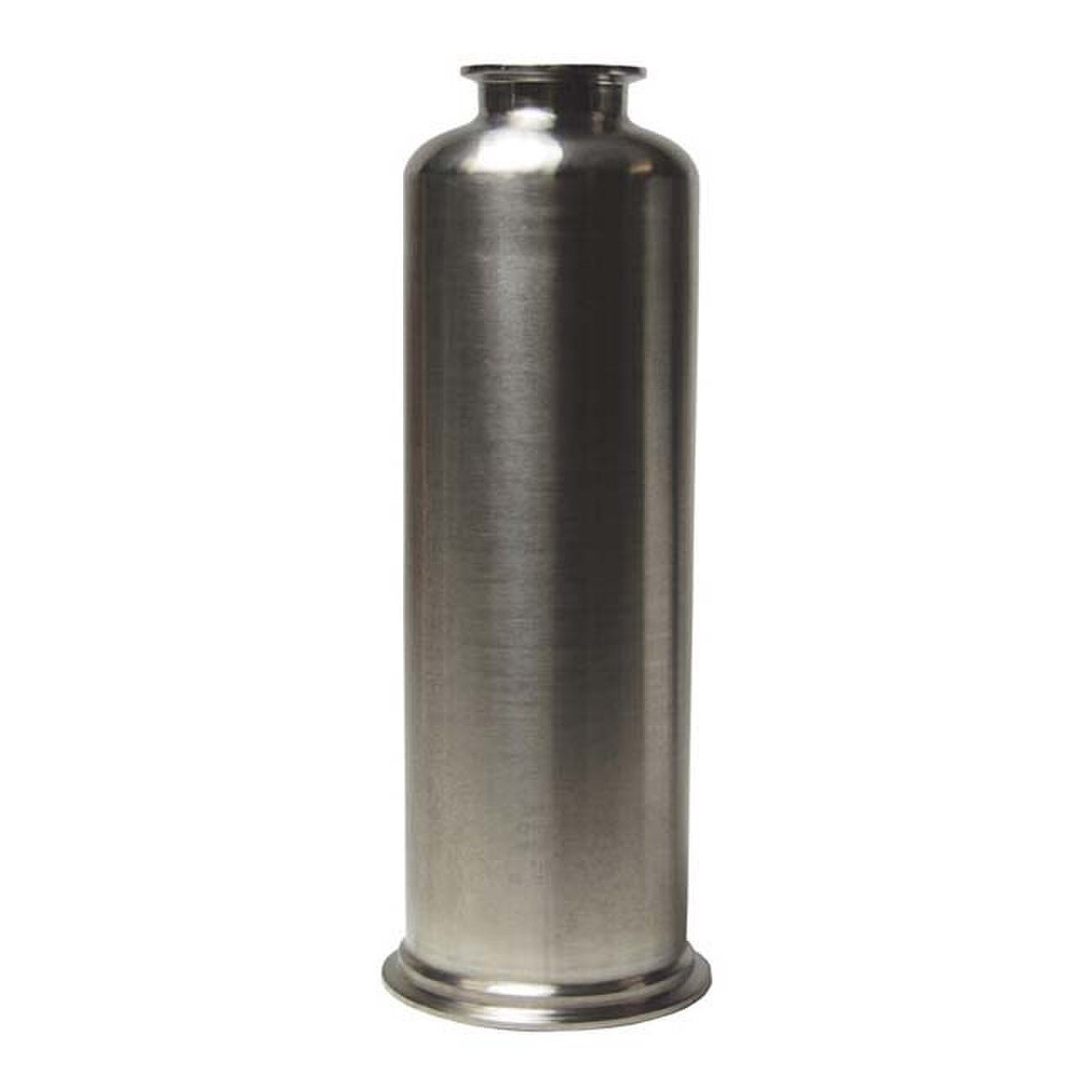

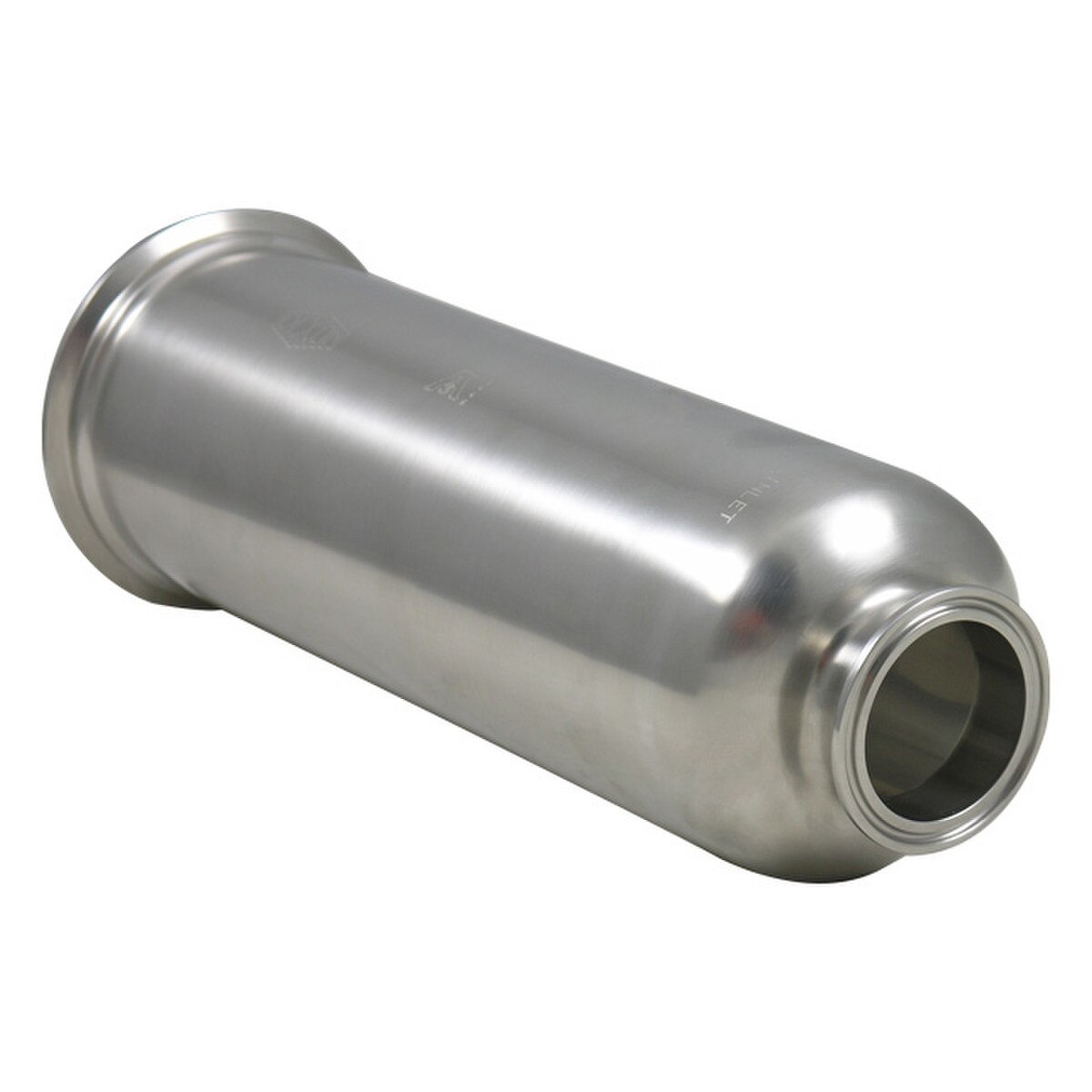

Dixon Sanitary BSCCQ In-Line Filter / Strainer - Replacement Strainer Inlet
Dixon Sanitary BSCCQ Replacement Strainer Caps for In-Line Filter / Strainers. Constructed of 316L stainless steel with a 3A sanitary finish.
 | |||||
| Part # | Size | OAL (A) | OD (B) | C | D |
|---|---|---|---|---|---|
| BSCCQ3-R150 | 1-1/2" | 41.90" | 4.00" | 35.00" | 3.50" |
| BSCCQ3-R200 | 2" | 41.90" | 4.00" | 35.00" | 3.50" |
| BSCCQ3-R300 | 3" | 41.90" | 4.50" | 35.00" | 3.75" |
 | |||||
| Item # | Description | 1-1/2" And 2" Part # | 3" Part # | Material | Quantity |
|---|---|---|---|---|---|
| 1 | End Cap With Handle | BS-31-R100-200 | BS-31-R250-300 | 316L Stainless Steel | 1 |
| 2 | Strainer Spring | BS-32-R100-200 | BS-32-R250-300 | 316L Stainless Steel | 1 |
| 3 | Clamp Gasket | 40MP-U400 | 40MPV-U400> | Buna | 1 |
| 4 | Back-Up Tube With 1/8" Perforations | BS-1418-R100200 | BS-2418-R250300 | 316L Stainless Steel | 1 |
| 4 | Back-Up Tube With 1/4" Perforations | BS-1425-R100200 | BS-2425-R250300 | 316L Stainless Steel | 1 |
| 5 | Distributor | BS-35-R100-200 | BS-35-R250-300 | 316LStainless Steel | 1 |
| 6 | 1-1/2" Strainer Body | BS-36-150 | --- | 316L Stainless Steel | 1 |
| 6 | 2" Strainer Body | BS-36-200 | --- | 316L Stainless Steel | 1 |
| 6 | 3" Strainer Body | BS-36-150 | --- | 316L Stainless Steel | 1 |
| 7 | Various Mesh Over Screens | Part Number On Page 122 | 316L Stainless Steel | 1 | |
| 8 | Various Filter Bag | Part Number On Page 122 | Various | 1 | |
| 9 | Retaining Ring Used With Filter Bags | BS-09-U100-200 | BS-09-U250-300 | Buna | 2 |
| 10 | Squeeze Clamp For Assembly | 13MHHM-Q400 | 13MHHV-Q400 | CF8 | 1 |
