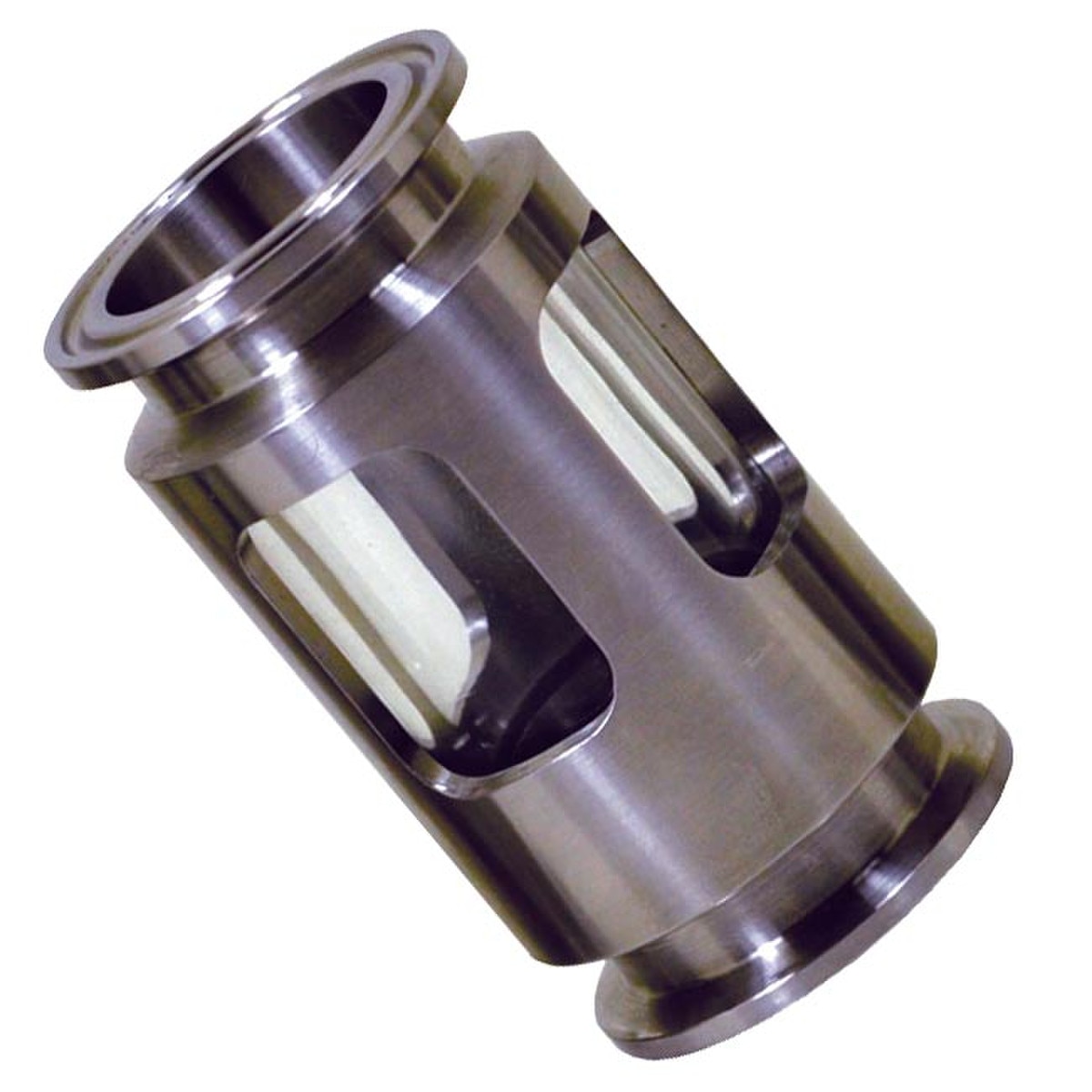

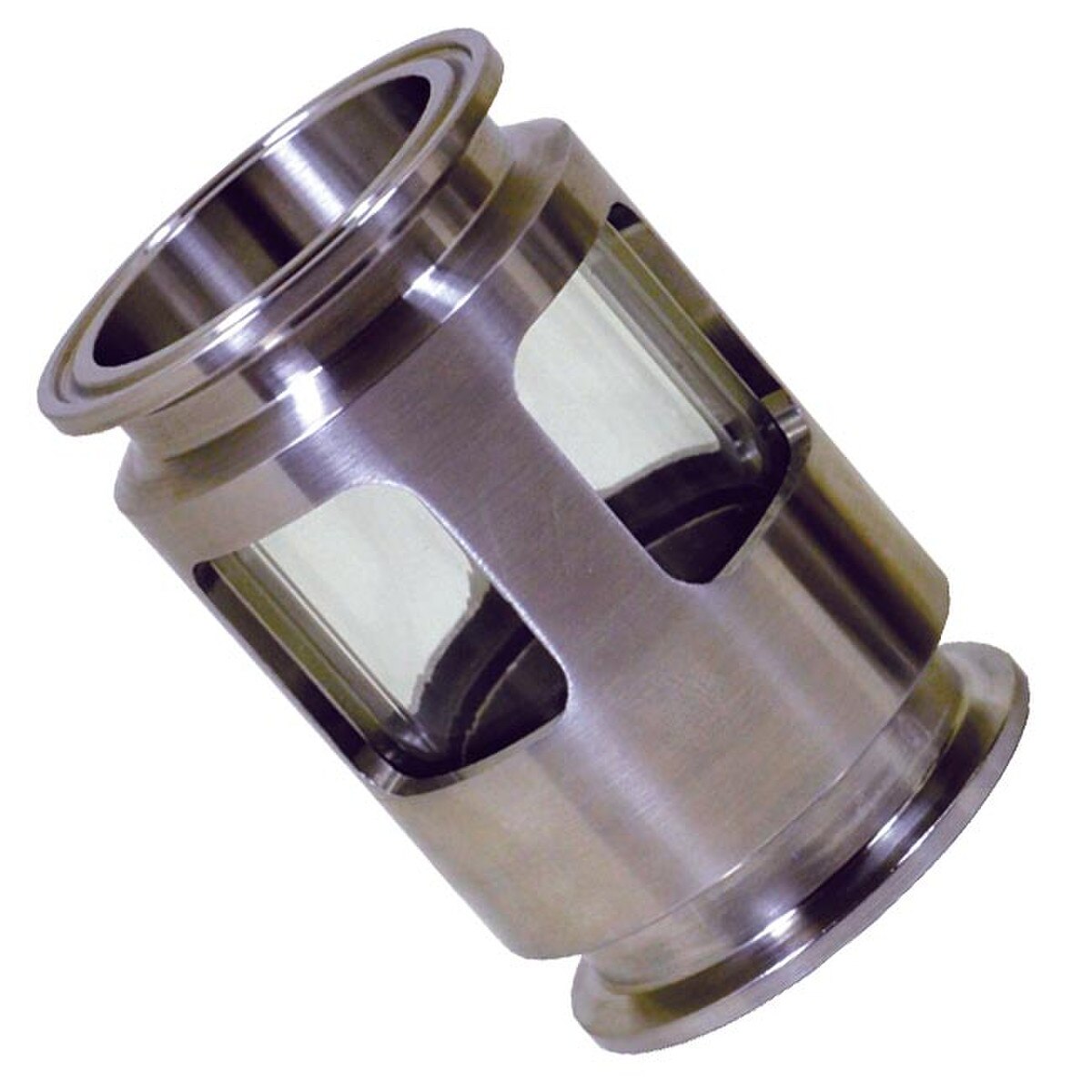

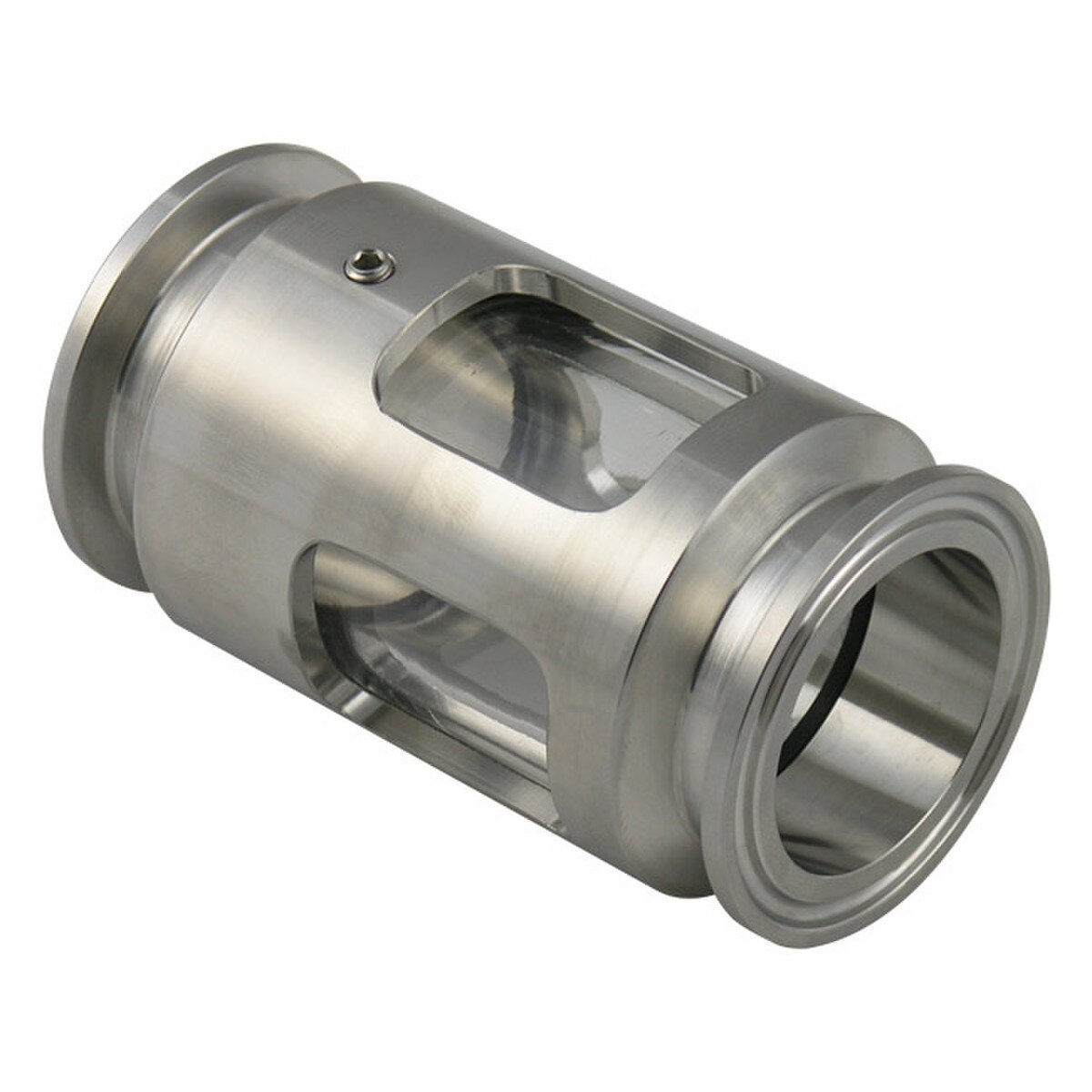

Dixon Sanitary B54BMPS Compact Sight Glass
Dixon Sanitary B54BMPS Compact Sight Glasses are used widely in the food, dairy and beverage sanitary processes to view products and fluids. The compact design of this Tri-Clamp® Sight Glass is perfect for use with hoses. Dixon Sanitary Sights Glasses are constructed with a compact 316L stainless steel housing and your choice of borosilicate glass or polycarbonate plastic insert and buna or FKM seals. These compact glasses are easier to clean and cost less to repair than bolted styles.
The B54BMPS is a fully serviceable unit with replacement seal kits and glass available. Available for 1", 1-1/2", 2" and 3" Tri-Clamp® hoses and process lines. Rated for 200°F and 100 psi max.
Dixon Sanitary Compact Sight Glass Features:
- Low Profile 316L Stainless Steel Body
- Borosilicate Glass or Polycarbonate Plastic Insert
- Buna or FKM Seals
- Easy to clean
- Inexpensive
- Available from 1" to 3"
- 200°F Maximum
- 100 PSI Maximum
 | ||||
| Part # | Size | A | B | Insert Material |
|---|---|---|---|---|
| B54BMPS-R100 | 1" | 3.375" | 1.980" | Borosilicate Glass |
| B54BMPS-R150 | 1-1/2" | 3.640" | 1.980" | Borosilicate Glass |
| B54BMPS-R200 | 2" | 3.830" | 2.516" | Borosilicate Glass |
| B54BMPS-R300 | 3" | 4.130" | 3.800" | Borosilicate Glass |
| B54BMPS-R400 | 4" | 4.340" | 4.680" | Borosilicate Glass |
| B54BMPLX-R100 | 1" | 3.375" | 1.980" | Polycarbonate Plastic |
| B54BMPLX-R150 | 1-1/2" | 3.640" | 1.980" | Polycarbonate Plastic |
| B54BMPLX-R200 | 2" | 3.830" | 2.516" | Polycarbonate Plastic |
| B54BMPLX-R300 | 3" | 4.130" | 3.800" | Polycarbonate Plastic |
| B54BMPLX-R400 | 4" | 4.340" | 4.680" | Polycarbonate Plastic |
