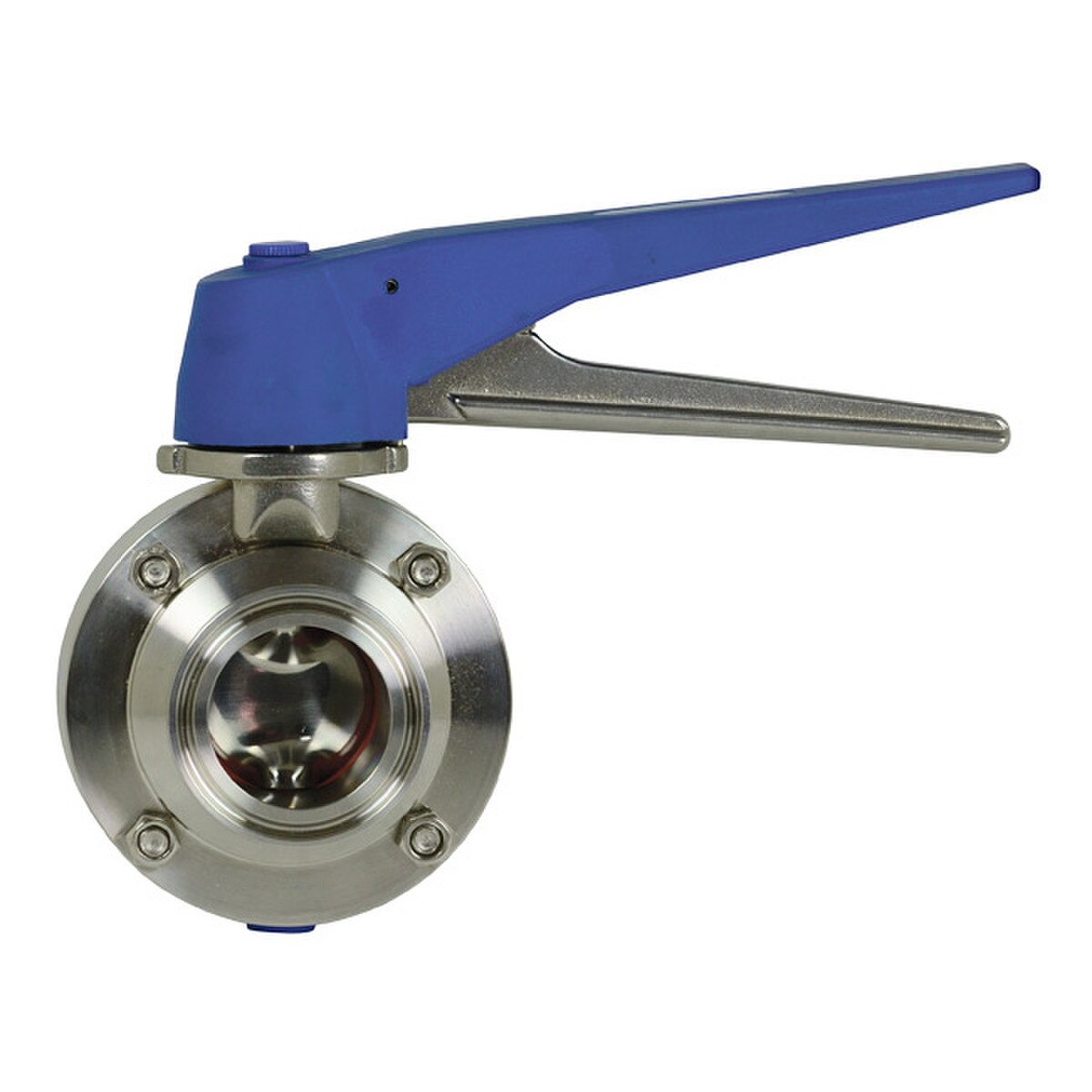

Dixon Sanitary B5116 Butterfly Valve - Clamp Ends w/ Trigger Handle (304 Stainless Steel)
Dixon Sanitary B5116 Series Butterfly Valves are a budget friendly, 304 stainless steel butterfly valve shipped fully assembled for quick and simple installation. The B5116 Butterfly Valves come standard with Dixon's trigger style handle. All product contact surfaces are finished to a 32Ra polish. All valves are 100% hydraulic tested and 100% inspected prior to shipment! Maximum operating pressure of 110 psi and suitbale for temperature ranges from 15°F to 200°F. Available with clamp or weld ends and silicone or EPDM seats. These valves cannot be actuated.
Dixon B5116 Butterfly Valve Features:
- 304 Stainless Steel Body & Disc
- 100% Hydraulic Tested
- 100% Inspected
- All Wetted Surfaces Finished to < 32Ra
- Field Serviceable (no special tools)
- Tri-Clamp® or Weld Ends
- Silicone Seats
- Trigger Handle
- Maximum Operating Pressure: 110 psi
- Temperature Range: 15°F to 200°F
 | ||||||||||
| Part # | Size | Connection Type | Seat Material | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|---|---|
| B5116S150CC-C | 1-1/2" | Tri-Clamp® | Silicone | 6.60" | 3.60" | 1.70" | 0.71" | 2.60" | 1.37" | 3.35" |
| B5116S200CC-C | 2" | Tri-Clamp® | Silicone | 6.60" | 4.00" | 1.70" | 0.71" | 2.76" | 1.87" | 4.13" |
| B5116S300CC-C | 3" | Tri-Clamp® | Silicone | 6.60" | 4.40" | 1.70" | 0.71" | 2.99" | 2.87" | 4.92" |
| B5116S400CC-C | 4" | Tri-Clamp® | Silicone | 6.60" | 5.00" | 1.70" | 0.71" | 2.99" | 3.84" | 6.18" |
| B5116E150CC-C | 1-1/2" | Tri-Clamp® | EPDM | 6.60" | 3.60" | 1.70" | 0.71" | 2.60" | 1.37" | 3.35" |
| B5116E200CC-C | 2" | Tri-Clamp® | EPDM | 6.60" | 4.00" | 1.70" | 0.71" | 2.76" | 1.87" | 4.13" |
| B5116E300CC-C | 3" | Tri-Clamp® | EPDM | 6.60" | 4.40" | 1.70" | 0.71" | 2.99" | 2.87" | 4.92" |
| B5116E400CC-C | 4" | Tri-Clamp® | EPDM | 6.60" | 5.00" | 1.70" | 0.71" | 2.99" | 3.84" | 6.18" |
