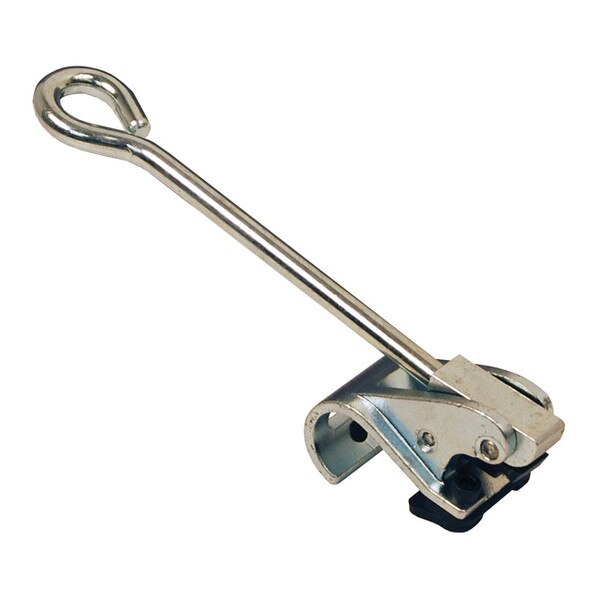

The Dixon 51970 Roll-Over Attachment is for use with Dixon's Screw Action Tool (51960) for installing band and buckles. Constructed of plated steel and measuring in at 10-1/2".

Operating Instructions for the 51960 with 51970 Roll-Over Attachment

1. Slide the 51970 Roll-Over Attachment on to the head of the 51960 Screw-Action Tool.
2. With handle of 51970 facing installer, place 51960 in a vise and tighten.
3. Slide the clamp tail through the slot on the 51970.
4. Press down on pulling-dog lever and rotate handle to begin tightening.
5. Tighten clamp to desired tension.
6. Simultaneously relieve some tension while rolling hose towards cutter.
7. When clamp buckle engages cutter, pull handle.
