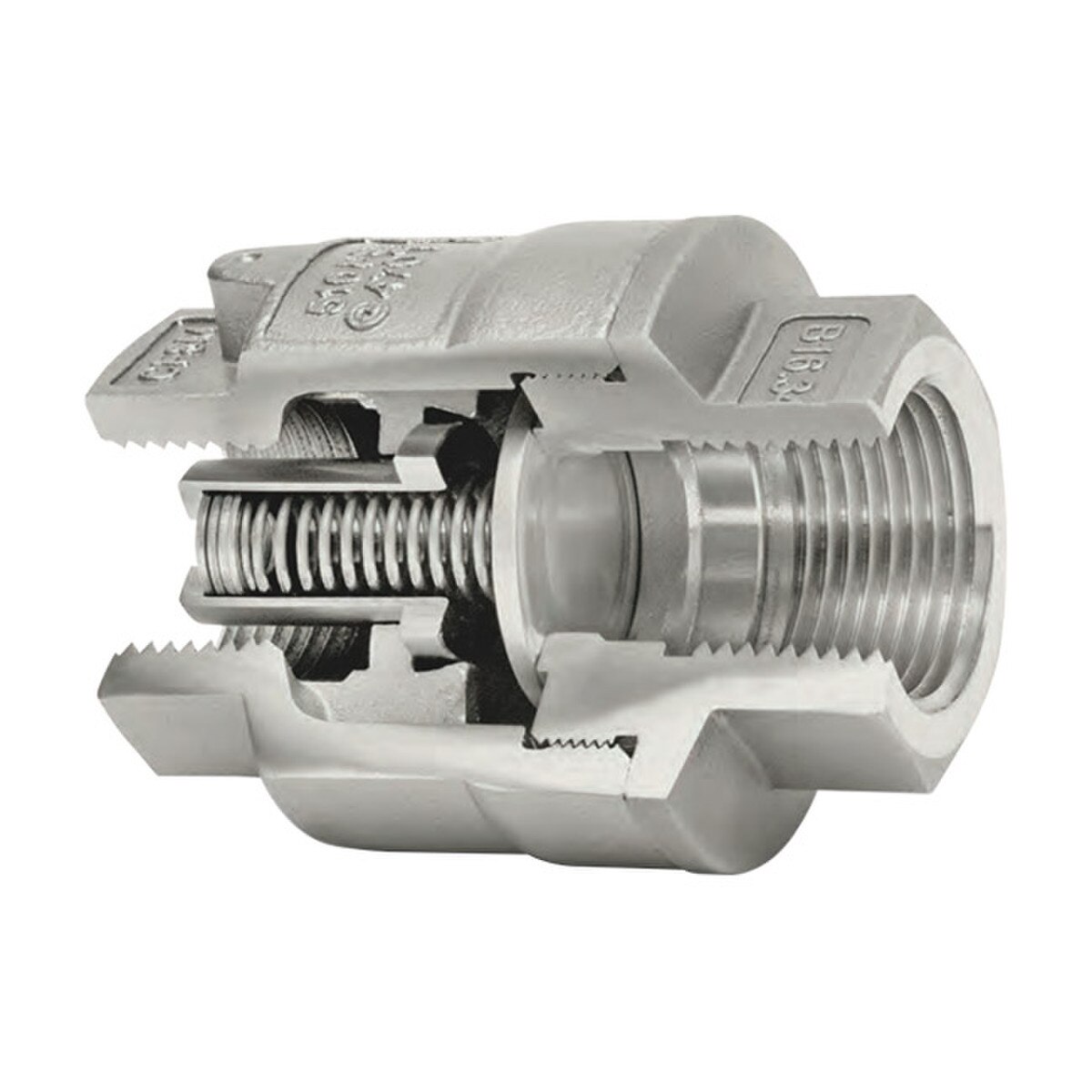

DFT® SCV-R® In-Line Restrictor Check Valve
The DFT® Model SCV-R® Check Valve is a non-slam spring-assisted check valve designed for applications requiring higher cracking pressures than the DFT® Model SCV® check valve. The SCV-R® is a self-contained check valve that installs directly in a pipeline and contains all of the proven features of the SCV® check valve.
The standard SCV-R® valve features a 316 stainless steel (A351 CF8M) body and seat with a 316 stainless steel disc and Inconel® X-750 spring, as well as a Zelon® o-ring body seal with socket weld or threaded female NPT end connections.
For pricing and availability of non-standard options, please contact us.
DFT® SCV-R® Check Valve Options:
- Body Materials:
- 316 Stainless Steel (A351 CF8M, Standard)
- Alloy 20 (A351 CN7M, ASME 300)
- Hastelloy® C (A494 CW-12MW, ASME 300)
- Body Seals:
- Zelon® (Standard)
- Buna-N
- EPDM
- Viton® (FKM)
- TFE-Encapsulated Viton® (FKM)
- Welded
- Seats:
- Metal (Standard, same metal as body)
- Buna-N
- EPDM
- Viton® (FKM)
- Zelon® (FKM)
- TFE-Encapsulated Viton® (FKM)
- NPT x Socket Weld Ends
- Spring-assisted silent closing
- Line sizes from 1/2" up to 2"
- 316SS body and seat
- 316SS disc with Inconel® X-750 spring
- Cracking Pressures: 0.8 to 40.8 psig
- Body-guided disc
- Lapped seat and disc
- Female NPT or socket weld ends
- Easy maintenance
 | ||||||||
| AUX Part # | DFT Part # | Size | Connection Type | (A) | (B) | Cold Working Pressure (CWP) | Flow Coefficient (Cv) | Cracking Pressure |
|---|---|---|---|---|---|---|---|---|
| SCV-R-050-NPT-010 | 845C7B4A5C010 | 1/2" | FNPT | 2.68" | 1.62" | 750 | 6 | 1 psig |
| SCV-R-050-NPT-015 | 845C7B4A5C015 | 1.5 psig | ||||||
| SCV-R-050-NPT-020 | 845C7B4A5C020 | 2 psig | ||||||
| SCV-R-050-NPT-025 | 845C7B4A5C025 | 2.5 psig | ||||||
| SCV-R-050-NPT-029 | 845C7B4A5C029 | 2.9 psig | ||||||
| SCV-R-050-NPT-036 | 845C7B4A5C036 | 3.6 psig | ||||||
| SCV-R-050-NPT-043 | 845C7B4A5C043 | 4.3 psig | ||||||
| SCV-R-050-NPT-050 | 845C7B4A5C050 | 5 psig | ||||||
| SCV-R-050-NPT-058 | 845C7B4A5C058 | 5.8 psig | ||||||
| SCV-R-050-NPT-062 | 845C7B4A5C062 | 6.2 psig | ||||||
| SCV-R-050-NPT-065 | 845C7B4A5C065 | 6.5 psig | ||||||
| SCV-R-050-NPT-068 | 845C7B4A5C068 | 6.8 psig | ||||||
| SCV-R-050-NPT-077 | 845C7B4A5C077 | 7.7 psig | ||||||
| SCV-R-050-NPT-092 | 845C7B4A5C092 | 9.2 psig | ||||||
| SCV-R-050-NPT-096 | 845C7B4A5C096 | 9.6 psig | ||||||
| SCV-R-050-NPT-107 | 845C7B4A5C107 | 10.7 psig | ||||||
| SCV-R-050-NPT-123 | 845C7B4A5C123 | 12.3 psig | ||||||
| SCV-R-050-NPT-150 | 845C7B4A5C150 | 15 psig | ||||||
| SCV-R-050-NPT-178 | 845C7B4A5C178 | 17.8 psig | ||||||
| SCV-R-050-NPT-181 | 845C7B4A5C181 | 18.1 psig | ||||||
| SCV-R-050-NPT-216 | 845C7B4A5C216 | 21.6 psig | ||||||
| SCV-R-050-NPT-250 | 845C7B4A5C250 | 25 psig | ||||||
| SCV-R-050-SW-010 | 845C5B4A5C010 | Socket Weld | 1 psig | |||||
| SCV-R-050-SW-015 | 845C5B4A5C015 | 1.5 psig | ||||||
| SCV-R-050-SW-020 | 845C5B4A5C020 | 2 psig | ||||||
| SCV-R-050-SW-025 | 845C5B4A5C025 | 2.5 psig | ||||||
| SCV-R-050-SW-029 | 845C5B4A5C029 | 2.9 psig | ||||||
| SCV-R-050-SW-036 | 845C5B4A5C036 | 3.6 psig | ||||||
| SCV-R-050-SW-043 | 845C5B4A5C043 | 4.3 psig | ||||||
| SCV-R-050-SW-050 | 845C5B4A5C050 | 5 psig | ||||||
| SCV-R-050-SW-058 | 845C5B4A5C058 | 5.8 psig | ||||||
| SCV-R-050-SW-062 | 845C5B4A5C062 | 6.2 psig | ||||||
| SCV-R-050-SW-065 | 845C5B4A5C065 | 6.5 psig | ||||||
| SCV-R-050-SW-068 | 845C5B4A5C068 | 6.8 psig | ||||||
| SCV-R-050-SW-077 | 845C5B4A5C077 | 7.7 psig | ||||||
| SCV-R-050-SW-092 | 845C5B4A5C092 | 9.2 psig | ||||||
| SCV-R-050-SW-096 | 845C5B4A5C096 | 9.6 psig | ||||||
| SCV-R-050-SW-107 | 845C5B4A5C107 | 10.7 psig | ||||||
| SCV-R-050-SW-123 | 845C5B4A5C123 | 12.3 psig | ||||||
| SCV-R-050-SW-150 | 845C5B4A5C150 | 15 psig | ||||||
| SCV-R-050-SW-178 | 845C5B4A5C178 | 17.8 psig | ||||||
| SCV-R-050-SW-181 | 845C5B4A5C181 | 18.1 psig | ||||||
| SCV-R-050-SW-216 | 845C5B4A5C216 | 21.6 psig | ||||||
| SCV-R-050-SW-250 | 845C5B4A5C250 | 25 psig | ||||||
| SCV-R-075-NPT-008 | 845D7B4A5C008 | 3/4" | FNPT | 3" | 2.13" | 10 | 0.8 psig | |
| SCV-R-075-NPT-010 | 845D7B4A5C010 | 1 psig | ||||||
| SCV-R-075-NPT-012 | 845D7B4A5C012 | 1.2 psig | ||||||
| SCV-R-075-NPT-013 | 845D7B4A5C013 | 1.3 psig | ||||||
| SCV-R-075-NPT-015 | 845D7B4A5C015 | 1.5 psig | ||||||
| SCV-R-075-NPT-016 | 845D7B4A5C016 | 1.6 psig | ||||||
| SCV-R-075-NPT-018 | 845D7B4A5C018 | 1.8 psig | ||||||
| SCV-R-075-NPT-019 | 845D7B4A5C019 | 1.9 psig | ||||||
| SCV-R-075-NPT-021 | 845D7B4A5C021 | 2.1 psig | ||||||
| SCV-R-075-NPT-023 | 845D7B4A5C023 | 2.3 psig | ||||||
| SCV-R-075-NPT-024 | 845D7B4A5C024 | 2.4 psig | ||||||
| SCV-R-075-NPT-035 | 845D7B4A5C035 | 3.5 psig | ||||||
| SCV-R-075-NPT-040 | 845D7B4A5C040 | 4 psig | ||||||
| SCV-R-075-NPT-045 | 845D7B4A5C045 | 4.5 psig | ||||||
| SCV-R-075-NPT-050 | 845D7B4A5C050 | 5 psig | ||||||
| SCV-R-075-NPT-056 | 845D7B4A5C056 | 5.6 psig | ||||||
| SCV-R-075-NPT-061 | 845D7B4A5C061 | 6.1 psig | ||||||
| SCV-R-075-NPT-066 | 845D7B4A5C066 | 6.6 psig | ||||||
| SCV-R-075-NPT-072 | 845D7B4A5C072 | 7.2 psig | ||||||
| SCV-R-075-NPT-077 | 845D7B4A5C077 | 7.7 psig | ||||||
| SCV-R-075-NPT-082 | 845D7B4A5C082 | 8.2 psig | ||||||
| SCV-R-075-NPT-100 | 845D7B4A5C100 | 10 psig | ||||||
| SCV-R-075-NPT-125 | 845D7B4A5C125 | 12.5 psig | ||||||
| SCV-R-075-NPT-140 | 845D7B4A5C140 | 14 psig | ||||||
| SCV-R-075-NPT-182 | 845D7B4A5C182 | 18.2 psig | ||||||
| SCV-R-075-NPT-200 | 845D7B4A5C200 | 20 psig | ||||||
| SCV-R-075-SW-008 | 845D5B4A5C008 | Socket Weld | 0.8 psig | |||||
| SCV-R-075-SW-010 | 845D5B4A5C010 | 1 psig | ||||||
| SCV-R-075-SW-012 | 845D5B4A5C012 | 1.2 psig | ||||||
| SCV-R-075-SW-013 | 845D5B4A5C013 | 1.3 psig | ||||||
| SCV-R-075-SW-015 | 845D5B4A5C015 | 1.5 psig | ||||||
| SCV-R-075-SW-016 | 845D5B4A5C016 | 1.6 psig | ||||||
| SCV-R-075-SW-018 | 845D5B4A5C018 | 1.8 psig | ||||||
| SCV-R-075-SW-019 | 845D5B4A5C019 | 1.9 psig | ||||||
| SCV-R-075-SW-021 | 845D5B4A5C021 | 2.1 psig | ||||||
| SCV-R-075-SW-023 | 845D5B4A5C023 | 2.3 psig | ||||||
| SCV-R-075-SW-024 | 845D5B4A5C024 | 2.4 psig | ||||||
| SCV-R-075-SW-035 | 845D5B4A5C035 | 3.5 psig | ||||||
| SCV-R-075-SW-040 | 845D5B4A5C040 | 4 psig | ||||||
| SCV-R-075-SW-045 | 845D5B4A5C045 | 4.5 psig | ||||||
| SCV-R-075-SW-050 | 845D5B4A5C050 | 5 psig | ||||||
| SCV-R-075-SW-056 | 845D5B4A5C056 | 5.6 psig | ||||||
| SCV-R-075-SW-061 | 845D5B4A5C061 | 6.1 psig | ||||||
| SCV-R-075-SW-066 | 845D5B4A5C066 | 6.6 psig | ||||||
| SCV-R-075-SW-072 | 845D5B4A5C072 | 7.2 psig | ||||||
| SCV-R-075-SW-077 | 845D5B4A5C077 | 7.7 psig | ||||||
| SCV-R-075-SW-082 | 845D5B4A5C082 | 8.2 psig | ||||||
| SCV-R-075-SW-100 | 845D5B4A5C100 | 10 psig | ||||||
| SCV-R-075-SW-125 | 845D5B4A5C125 | 12.5 psig | ||||||
| SCV-R-075-SW-140 | 845D5B4A5C140 | 14 psig | ||||||
| SCV-R-075-SW-182 | 845D5B4A5C182 | 18.2 psig | ||||||
| SCV-R-075-SW-200 | 845D5B4A5C200 | 20 psig | ||||||
| SCV-R-100-NPT-012 | 845E7B4A5C012 | 1" | FNPT | 3.32" | 2.54" | 17 | 1.2 psig | |
| SCV-R-100-NPT-014 | 845E7B4A5C014 | 1.4 psig | ||||||
| SCV-R-100-NPT-016 | 845E7B4A5C016 | 1.6 psig | ||||||
| SCV-R-100-NPT-018 | 845E7B4A5C018 | 1.8 psig | ||||||
| SCV-R-100-NPT-020 | 845E7B4A5C020 | 2 psig | ||||||
| SCV-R-100-NPT-022 | 845E7B4A5C022 | 2.2 psig | ||||||
| SCV-R-100-NPT-024 | 845E7B4A5C024 | 2.4 psig | ||||||
| SCV-R-100-NPT-029 | 845E7B4A5C029 | 2.9 psig | ||||||
| SCV-R-100-NPT-036 | 845E7B4A5C036 | 3.6 psig | ||||||
| SCV-R-100-NPT-043 | 845E7B4A5C043 | 4.3 psig | ||||||
| SCV-R-100-NPT-050 | 845E7B4A5C050 | 5 psig | ||||||
| SCV-R-100-NPT-057 | 845E7B4A5C057 | 5.7 psig | ||||||
| SCV-R-100-NPT-065 | 845E7B4A5C065 | 6.5 psig | ||||||
| SCV-R-100-NPT-077 | 845E7B4A5C077 | 7.7 psig | ||||||
| SCV-R-100-NPT-088 | 845E7B4A5C088 | 8.8 psig | ||||||
| SCV-R-100-NPT-100 | 845E7B4A5C100 | 10 psig | ||||||
| SCV-R-100-NPT-111 | 845E7B4A5C111 | 11.1 psig | ||||||
| SCV-R-100-NPT-123 | 845E7B4A5C123 | 12.3 psig | ||||||
| SCV-R-100-NPT-136 | 845E7B4A5C136 | 13.6 psig | ||||||
| SCV-R-100-NPT-150 | 845E7B4A5C150 | 15 psig | ||||||
| SCV-R-100-NPT-164 | 845E7B4A5C164 | 16.4 psig | ||||||
| SCV-R-100-NPT-186 | 845E7B4A5C186 | 18.6 psig | ||||||
| SCV-R-100-NPT-211 | 845E7B4A5C211 | 21.1 psig | ||||||
| SCV-R-100-NPT-235 | 845E7B4A5C235 | 23.5 psig | ||||||
| SCV-R-100-SW-012 | 845E5B4A5C012 | Socket Weld | 1.2 psig | |||||
| SCV-R-100-SW-014 | 845E5B4A5C014 | 1.4 psig | ||||||
| SCV-R-100-SW-016 | 845E5B4A5C016 | 1.6 psig | ||||||
| SCV-R-100-SW-018 | 845E5B4A5C018 | 1.8 psig | ||||||
| SCV-R-100-SW-020 | 845E5B4A5C020 | 2 psig | ||||||
| SCV-R-100-SW-022 | 845E5B4A5C022 | 2.2 psig | ||||||
| SCV-R-100-SW-024 | 845E5B4A5C024 | 2.4 psig | ||||||
| SCV-R-100-SW-029 | 845E5B4A5C029 | 2.9 psig | ||||||
| SCV-R-100-SW-036 | 845E5B4A5C036 | 3.6 psig | ||||||
| SCV-R-100-SW-043 | 845E5B4A5C043 | 4.3 psig | ||||||
| SCV-R-100-SW-050 | 845E5B4A5C050 | 5 psig | ||||||
| SCV-R-100-SW-057 | 845E5B4A5C057 | 5.7 psig | ||||||
| SCV-R-100-SW-065 | 845E5B4A5C065 | 6.5 psig | ||||||
| SCV-R-100-SW-077 | 845E5B4A5C077 | 7.7 psig | ||||||
| SCV-R-100-SW-088 | 845E5B4A5C088 | 8.8 psig | ||||||
| SCV-R-100-SW-100 | 845E5B4A5C100 | 10 psig | ||||||
| SCV-R-100-SW-111 | 845E5B4A5C111 | 11.1 psig | ||||||
| SCV-R-100-SW-123 | 845E5B4A5C123 | 12.3 psig | ||||||
| SCV-R-100-SW-136 | 845E5B4A5C136 | 13.6 psig | ||||||
| SCV-R-100-SW-150 | 845E5B4A5C150 | 15 psig | ||||||
| SCV-R-100-SW-164 | 845E5B4A5C164 | 16.4 psig | ||||||
| SCV-R-100-SW-186 | 845E5B4A5C186 | 18.6 psig | ||||||
| SCV-R-100-SW-211 | 845E5B4A5C211 | 21.1 psig | ||||||
| SCV-R-100-SW-235 | 845E5B4A5C235 | 23.5 psig | ||||||
| SCV-R-125-NPT-015 | 845F7B4A5C015 | 1-1/4" | FNPT | 3.87" | 3.06" | 33 | 1.5 psig | |
| SCV-R-125-NPT-023 | 845F7B4A5C023 | 2.3 psig | ||||||
| SCV-R-125-NPT-031 | 845F7B4A5C031 | 3.1 psig | ||||||
| SCV-R-125-NPT-039 | 845F7B4A5C039 | 3.9 psig | ||||||
| SCV-R-125-NPT-047 | 845F7B4A5C047 | 4.7 psig | ||||||
| SCV-R-125-NPT-055 | 845F7B4A5C055 | 5.5 psig | ||||||
| SCV-R-125-NPT-062 | 845F7B4A5C062 | 6.2 psig | ||||||
| SCV-R-125-NPT-070 | 845F7B4A5C070 | 7 psig | ||||||
| SCV-R-125-NPT-077 | 845F7B4A5C077 | 7.7 psig | ||||||
| SCV-R-125-NPT-088 | 845F7B4A5C088 | 8.8 psig | ||||||
| SCV-R-125-NPT-100 | 845F7B4A5C100 | 10 psig | ||||||
| SCV-R-125-NPT-112 | 845F7B4A5C112 | 11.2 psig | ||||||
| SCV-R-125-NPT-124 | 845F7B4A5C124 | 12.4 psig | ||||||
| SCV-R-125-NPT-135 | 845F7B4A5C135 | 13.5 psig | ||||||
| SCV-R-125-NPT-147 | 845F7B4A5C147 | 14.7 psig | ||||||
| SCV-R-125-NPT-159 | 845F7B4A5C159 | 15.9 psig | ||||||
| SCV-R-125-NPT-180 | 845F7B4A5C180 | 18 psig | ||||||
| SCV-R-125-NPT-201 | 845F7B4A5C201 | 20.1 psig | ||||||
| SCV-R-125-NPT-222 | 845F7B4A5C222 | 22.2 psig | ||||||
| SCV-R-125-SW-015 | 845F5B4A5C015 | Socket Weld | 1.5 psig | |||||
| SCV-R-125-SW-023 | 845F5B4A5C023 | 2.3 psig | ||||||
| SCV-R-125-SW-031 | 845F5B4A5C031 | 3.1 psig | ||||||
| SCV-R-125-SW-039 | 845F5B4A5C039 | 3.9 psig | ||||||
| SCV-R-125-SW-047 | 845F5B4A5C047 | 4.7 psig | ||||||
| SCV-R-125-SW-055 | 845F5B4A5C055 | 5.5 psig | ||||||
| SCV-R-125-SW-062 | 845F5B4A5C062 | 6.2 psig | ||||||
| SCV-R-125-SW-070 | 845F5B4A5C070 | 7 psig | ||||||
| SCV-R-125-SW-077 | 845F5B4A5C077 | 7.7 psig | ||||||
| SCV-R-125-SW-088 | 845F5B4A5C088 | 8.8 psig | ||||||
| SCV-R-125-SW-100 | 845F5B4A5C100 | 10 psig | ||||||
| SCV-R-125-SW-112 | 845F5B4A5C112 | 11.2 psig | ||||||
| SCV-R-125-SW-124 | 845F5B4A5C124 | 12.4 psig | ||||||
| SCV-R-125-SW-135 | 845F5B4A5C135 | 13.5 psig | ||||||
| SCV-R-125-SW-147 | 845F5B4A5C147 | 14.7 psig | ||||||
| SCV-R-125-SW-159 | 845F5B4A5C159 | 15.9 psig | ||||||
| SCV-R-125-SW-180 | 845F5B4A5C180 | 18 psig | ||||||
| SCV-R-125-SW-201 | 845F5B4A5C201 | 20.1 psig | ||||||
| SCV-R-125-SW-222 | 845F5B4A5C222 | 22.2 psig | ||||||
| SCV-R-150-NPT-014 | 845G7B4A5C014 | 1-1/2" | FNPT | 4.75" | 3.44" | 36 | 1.4 psig | |
| SCV-R-150-NPT-020 | 845G7B4A5C020 | 2 psig | ||||||
| SCV-R-150-NPT-025 | 845G7B4A5C025 | 2.5 psig | ||||||
| SCV-R-150-NPT-031 | 845G7B4A5C031 | 3.1 psig | ||||||
| SCV-R-150-NPT-036 | 845G7B4A5C036 | 3.6 psig | ||||||
| SCV-R-150-NPT-042 | 845G7B4A5C042 | 4.2 psig | ||||||
| SCV-R-150-NPT-047 | 845G7B4A5C047 | 4.7 psig | ||||||
| SCV-R-150-NPT-050 | 845G7B4A5C050 | 5 psig | ||||||
| SCV-R-150-NPT-060 | 845G7B4A5C060 | 6 psig | ||||||
| SCV-R-150-NPT-065 | 845G7B4A5C065 | 6.5 psig | ||||||
| SCV-R-150-NPT-070 | 845G7B4A5C070 | 7 psig | ||||||
| SCV-R-150-NPT-076 | 845G7B4A5C076 | 7.6 psig | ||||||
| SCV-R-150-NPT-081 | 845G7B4A5C081 | 8.1 psig | ||||||
| SCV-R-150-NPT-086 | 845G7B4A5C086 | 8.6 psig | ||||||
| SCV-R-150-NPT-100 | 845G7B4A5C100 | 10 psig | ||||||
| SCV-R-150-NPT-125 | 845G7B4A5C125 | 12.5 psig | ||||||
| SCV-R-150-NPT-132 | 845G7B4A5C132 | 13.2 psig | ||||||
| SCV-R-150-NPT-139 | 845G7B4A5C139 | 13.9 psig | ||||||
| SCV-R-150-NPT-146 | 845G7B4A5C146 | 14.6 psig | ||||||
| SCV-R-150-NPT-151 | 845G7B4A5C151 | 15.1 psig | ||||||
| SCV-R-150-NPT-153 | 845G7B4A5C153 | 15.3 psig | ||||||
| SCV-R-150-NPT-160 | 845G7B4A5C160 | 16 psig | ||||||
| SCV-R-150-NPT-167 | 845G7B4A5C167 | 16.7 psig | ||||||
| SCV-R-150-NPT-174 | 845G7B4A5C174 | 17.4 psig | ||||||
| SCV-R-150-NPT-181 | 845G7B4A5C181 | 18.1 psig | ||||||
| SCV-R-150-NPT-185 | 845G7B4A5C185 | 18.5 psig | ||||||
| SCV-R-150-NPT-188 | 845G7B4A5C188 | 18.8 psig | ||||||
| SCV-R-150-NPT-197 | 845G7B4A5C197 | 19.7 psig | ||||||
| SCV-R-150-NPT-233 | 845G7B4A5C233 | 23.3 psig | ||||||
| SCV-R-150-NPT-257 | 845G7B4A5C257 | 25.7 psig | ||||||
| SCV-R-150-NPT-281 | 845G7B4A5C281 | 28.1 psig | ||||||
| SCV-R-150-NPT-301 | 845G7B4A5C301 | 30.1 psig | ||||||
| SCV-R-150-NPT-322 | 845G7B4A5C322 | 32.2 psig | ||||||
| SCV-R-150-NPT-343 | 845G7B4A5C343 | 34.3 psig | ||||||
| SCV-R-150-NPT-365 | 845G7B4A5C365 | 36.5 psig | ||||||
| SCV-R-150-NPT-386 | 845G7B4A5C386 | 38.6 psig | ||||||
| SCV-R-150-NPT-408 | 845G7B4A5C408 | 40.8 psig | ||||||
| SCV-R-150-SW-014 | 845G5B4A5C014 | Socket Weld | 1.4 psig | |||||
| SCV-R-150-SW-020 | 845G5B4A5C020 | 2 psig | ||||||
| SCV-R-150-SW-025 | 845G5B4A5C025 | 2.5 psig | ||||||
| SCV-R-150-SW-031 | 845G5B4A5C031 | 3.1 psig | ||||||
| SCV-R-150-SW-036 | 845G5B4A5C036 | 3.6 psig | ||||||
| SCV-R-150-SW-042 | 845G5B4A5C042 | 4.2 psig | ||||||
| SCV-R-150-SW-047 | 845G5B4A5C047 | 4.7 psig | ||||||
| SCV-R-150-SW-050 | 845G5B4A5C050 | 5 psig | ||||||
| SCV-R-150-SW-060 | 845G5B4A5C060 | 6 psig | ||||||
| SCV-R-150-SW-065 | 845G5B4A5C065 | 6.5 psig | ||||||
| SCV-R-150-SW-070 | 845G5B4A5C070 | 7 psig | ||||||
| SCV-R-150-SW-076 | 845G5B4A5C076 | 7.6 psig | ||||||
| SCV-R-150-SW-081 | 845G5B4A5C081 | 8.1 psig | ||||||
| SCV-R-150-SW-086 | 845G5B4A5C086 | 8.6 psig | ||||||
| SCV-R-150-SW-100 | 845G5B4A5C100 | 10 psig | ||||||
| SCV-R-150-SW-125 | 845G5B4A5C125 | 12.5 psig | ||||||
| SCV-R-150-SW-132 | 845G5B4A5C132 | 13.2 psig | ||||||
| SCV-R-150-SW-139 | 845G5B4A5C139 | 13.9 psig | ||||||
| SCV-R-150-SW-146 | 845G5B4A5C146 | 14.6 psig | ||||||
| SCV-R-150-SW-151 | 845G5B4A5C151 | 15.1 psig | ||||||
| SCV-R-150-SW-153 | 845G5B4A5C153 | 15.3 psig | ||||||
| SCV-R-150-SW-160 | 845G5B4A5C160 | 16 psig | ||||||
| SCV-R-150-SW-167 | 845G5B4A5C167 | 16.7 psig | ||||||
| SCV-R-150-SW-174 | 845G5B4A5C174 | 17.4 psig | ||||||
| SCV-R-150-SW-181 | 845G5B4A5C181 | 18.1 psig | ||||||
| SCV-R-150-SW-185 | 845G5B4A5C185 | 18.5 psig | ||||||
| SCV-R-150-SW-188 | 845G5B4A5C188 | 18.8 psig | ||||||
| SCV-R-150-SW-197 | 845G5B4A5C197 | 19.7 psig | ||||||
| SCV-R-150-SW-233 | 845G5B4A5C233 | 23.3 psig | ||||||
| SCV-R-150-SW-257 | 845G5B4A5C257 | 25.7 psig | ||||||
| SCV-R-150-SW-281 | 845G5B4A5C281 | 28.1 psig | ||||||
| SCV-R-150-SW-301 | 845G5B4A5C301 | 30.1 psig | ||||||
| SCV-R-150-SW-322 | 845G5B4A5C322 | 32.2 psig | ||||||
| SCV-R-150-SW-343 | 845G5B4A5C343 | 34.3 psig | ||||||
| SCV-R-150-SW-365 | 845G5B4A5C365 | 36.5 psig | ||||||
| SCV-R-150-SW-386 | 845G5B4A5C386 | 38.6 psig | ||||||
| SCV-R-150-SW-408 | 845G5B4A5C408 | 40.8 psig | ||||||
| SCV-R-200-NPT-009 | 845H7B4A5C009 | 2" | FNPT | 5" | 4.4" | 64 | 0.9 psig | |
| SCV-R-200-NPT-013 | 845H7B4A5C013 | 1.3 psig | ||||||
| SCV-R-200-NPT-016 | 845H7B4A5C016 | 1.6 psig | ||||||
| SCV-R-200-NPT-019 | 845H7B4A5C019 | 1.9 psig | ||||||
| SCV-R-200-NPT-023 | 845H7B4A5C023 | 2.3 psig | ||||||
| SCV-R-200-NPT-027 | 845H7B4A5C027 | 2.7 psig | ||||||
| SCV-R-200-NPT-034 | 845H7B4A5C034 | 3.4 psig | ||||||
| SCV-R-200-NPT-037 | 845H7B4A5C037 | 3.7 psig | ||||||
| SCV-R-200-NPT-040 | 845H7B4A5C040 | 4 psig | ||||||
| SCV-R-200-NPT-043 | 845H7B4A5C043 | 4.3 psig | ||||||
| SCV-R-200-NPT-047 | 845H7B4A5C047 | 4.7 psig | ||||||
| SCV-R-200-NPT-052 | 845H7B4A5C052 | 5.2 psig | ||||||
| SCV-R-200-NPT-066 | 845H7B4A5C066 | 6.6 psig | ||||||
| SCV-R-200-NPT-074 | 845H7B4A5C074 | 7.4 psig | ||||||
| SCV-R-200-NPT-083 | 845H7B4A5C083 | 8.3 psig | ||||||
| SCV-R-200-NPT-091 | 845H7B4A5C091 | 9.1 psig | ||||||
| SCV-R-200-NPT-099 | 845H7B4A5C099 | 9.9 psig | ||||||
| SCV-R-200-NPT-100 | 845H7B4A5C100 | 10 psig | ||||||
| SCV-R-200-NPT-120 | 845H7B4A5C120 | 12 psig | ||||||
| SCV-R-200-NPT-130 | 845H7B4A5C130 | 13 psig | ||||||
| SCV-R-200-NPT-144 | 845H7B4A5C144 | 14.4 psig | ||||||
| SCV-R-200-NPT-162 | 845H7B4A5C162 | 16.2 psig | ||||||
| SCV-R-200-NPT-188 | 845H7B4A5C188 | 18.8 psig | ||||||
| SCV-R-200-NPT-214 | 845H7B4A5C214 | 21.4 psig | ||||||
| SCV-R-200-SW-009 | 845H5B4A5C009 | Socket Weld | 0.9 psig | |||||
| SCV-R-200-SW-013 | 845H5B4A5C013 | 1.3 psig | ||||||
| SCV-R-200-SW-016 | 845H5B4A5C016 | 1.6 psig | ||||||
| SCV-R-200-SW-019 | 845H5B4A5C019 | 1.9 psig | ||||||
| SCV-R-200-SW-023 | 845H5B4A5C023 | 2.3 psig | ||||||
| SCV-R-200-SW-027 | 845H5B4A5C027 | 2.7 psig | ||||||
| SCV-R-200-SW-034 | 845H5B4A5C034 | 3.4 psig | ||||||
| SCV-R-200-SW-037 | 845H5B4A5C037 | 3.7 psig | ||||||
| SCV-R-200-SW-040 | 845H5B4A5C040 | 4 psig | ||||||
| SCV-R-200-SW-043 | 845H5B4A5C043 | 4.3 psig | ||||||
| SCV-R-200-SW-047 | 845H5B4A5C047 | 4.7 psig | ||||||
| SCV-R-200-SW-052 | 845H5B4A5C052 | 5.2 psig | ||||||
| SCV-R-200-SW-066 | 845H5B4A5C066 | 6.6 psig | ||||||
| SCV-R-200-SW-074 | 845H5B4A5C074 | 7.4 psig | ||||||
| SCV-R-200-SW-083 | 845H5B4A5C083 | 8.3 psig | ||||||
| SCV-R-200-SW-091 | 845H5B4A5C091 | 9.1 psig | ||||||
| SCV-R-200-SW-099 | 845H5B4A5C099 | 9.9 psig | ||||||
| SCV-R-200-SW-100 | 845H5B4A5C100 | 10 psig | ||||||
| SCV-R-200-SW-120 | 845H5B4A5C120 | 12 psig | ||||||
| SCV-R-200-SW-130 | 845H5B4A5C130 | 13 psig | ||||||
| SCV-R-200-SW-144 | 845H5B4A5C144 | 14.4 psig | ||||||
| SCV-R-200-SW-162 | 845H5B4A5C162 | 16.2 psig | ||||||
| SCV-R-200-SW-188 | 845H5B4A5C188 | 18.8 psig | ||||||
| SCV-R-200-SW-214 | 845H5B4A5C214 | 21.4 psig |
Ratings & Reviews
No reviews available
Be the first to
