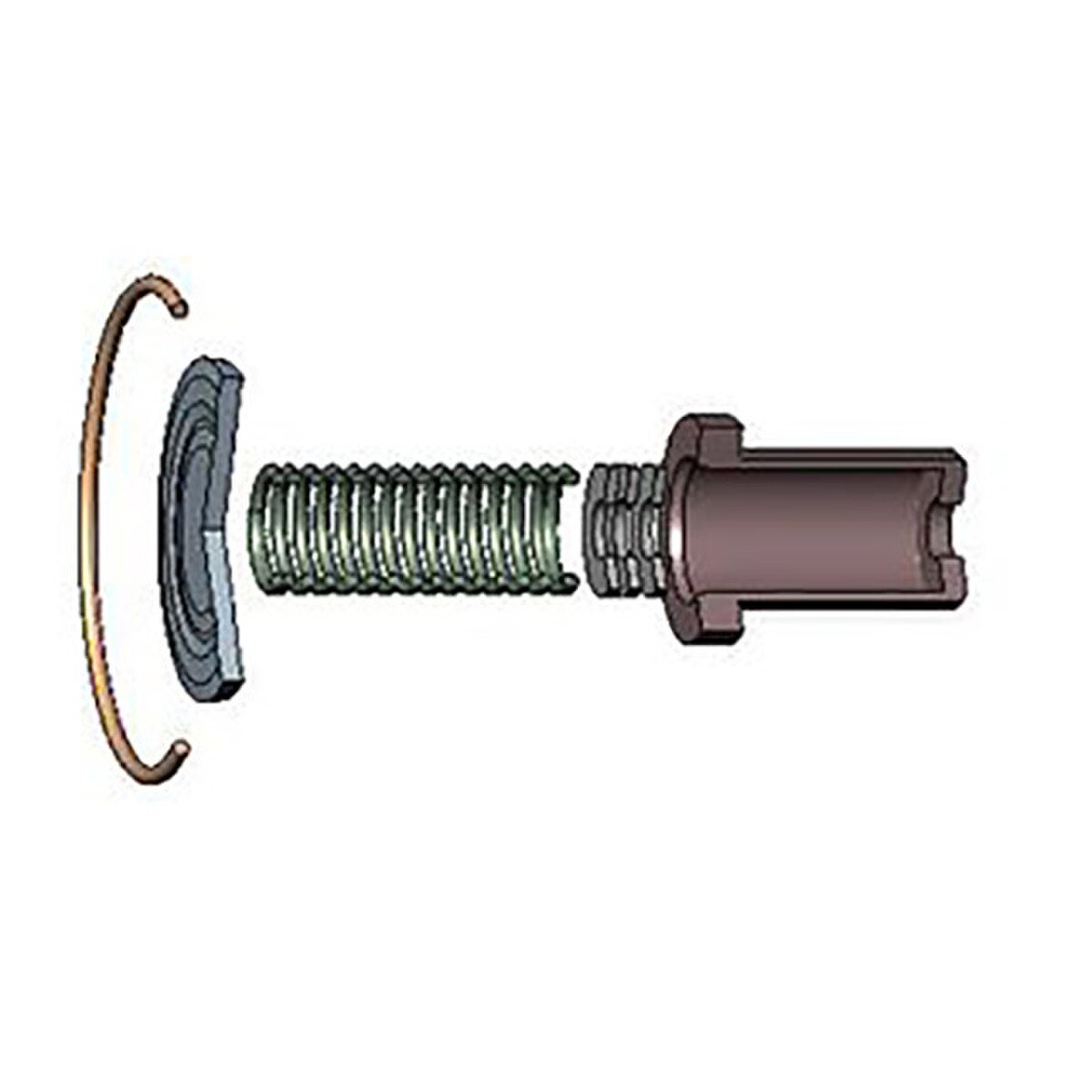

Standard DFT® SCV-R® Sanitary Check Valve Repair Kits include a replacement 316SS disc, Inconel® X-750 spring with retainer assembly, and Zelon® body seal. For pricing and availability of other repair kit options, please contact us.

The DFT® Model SCV-R® Check Valve is a non-slam spring-assisted check valve designed for applications requiring higher cracking pressures than the DFT® Model SCV® check valve. The SCV-R® is a self-contained check valve that installs directly in a pipeline and contains all of the proven features of the SCV® check valve.

The standard SCV-R® valve features a 316 stainless steel (A351 CF8M) body and seat with a 316 stainless steel disc and Inconel® X-750 spring, as well as a Zelon® o-ring body seal with socket weld or threaded female NPT end connections.

For pricing and availability of non-standard options, please contact us.

DFT® SCV-R® Check Valve Options:

• Body Materials:
  • 316 Stainless Steel (A351 CF8M, Standard)
  • Alloy 20 (A351 CN7M, ASME 300)
  • Hastelloy® C (A494 CW-12MW, ASME 300)
• Body Seals:
  • Zelon® (Standard)
  • Buna-N
  • EPDM
  • Viton® (FKM)
  • TFE-Encapsulated Viton® (FKM)
  • Welded
• Seats:
  • Metal (Standard, same metal as body)
  • Buna-N
  • EPDM
  • Viton® (FKM)
  • Zelon® (FKM)
  • TFE-Encapsulated Viton® (FKM)
• NPT x Socket Weld Ends

• Spring-assisted silent closing
• Line sizes from 1/2" up to 1-1/2"
• 316SS body and seat
• 316SS disc with Inconel® X-750 spring
• Cracking Pressures: 0.8 to 40.8 psig
• Body-guided disc
• Lapped seat and disc
• Female NPT or socket weld ends
• Easy maintenance
