Clamp Tee made from 316L Stainless Steel.

This VNE MaxPure ASME BPE Compliant Bio-Pharm Fitting is available with the following finishes:

20Ra Mechanically Polished Inside Surface with a Mill Finished Outside Surface, SFF1 (PC)

20Ra Mechanically Polished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF1 (PL)

15Ra Mechanically Polished & Electropolished Inside Surface with a Mill Finished Outside Surface, SFF4 (PD)

15Ra Mechanically Polished & Electropolished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF4 (PM)

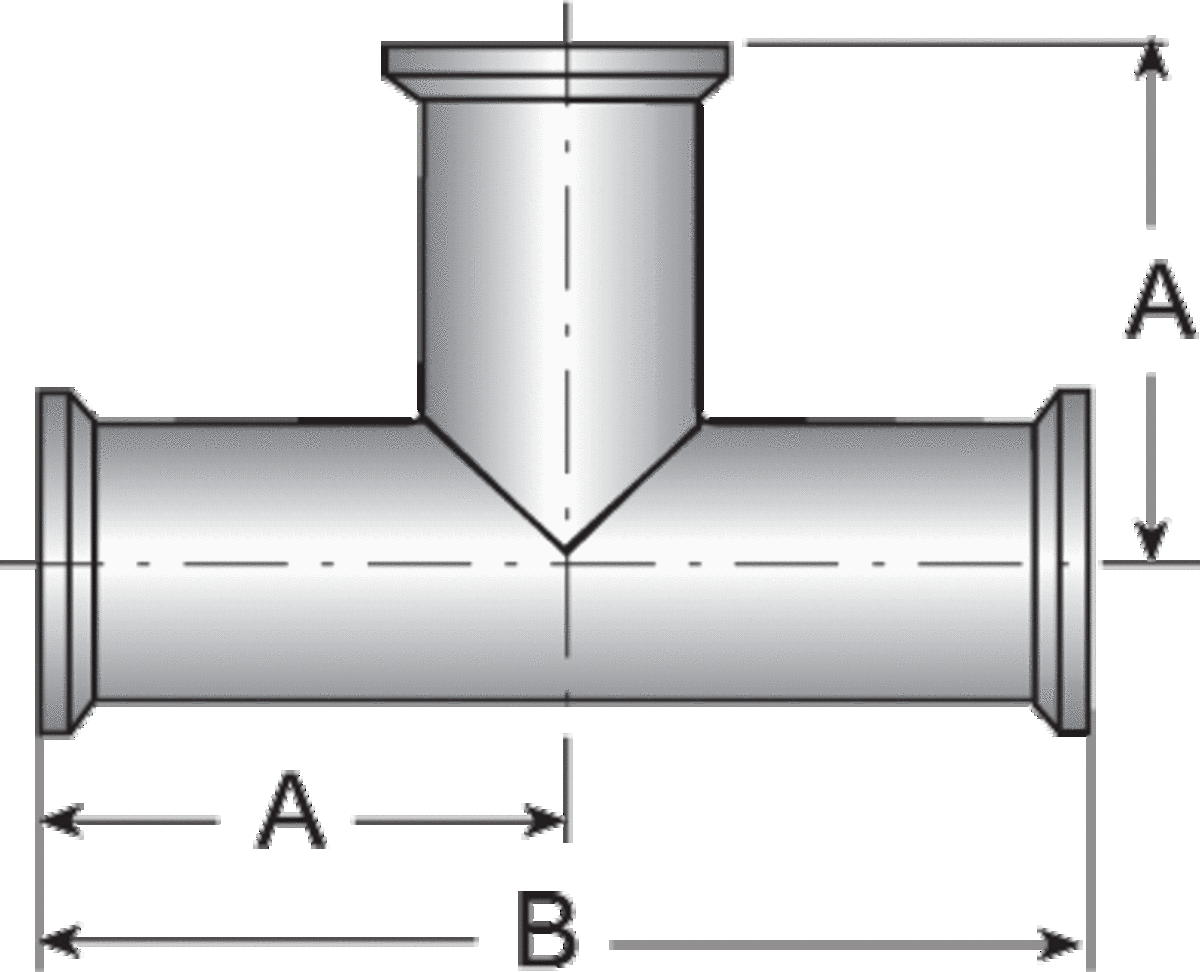

Ordering Code	Nominal Size(in.)	A (in.)	A (mm)

TEG76L.25-..	1/4	2.250in.	57.2mm
TEG76L.375-..	3/8	2.250in.	57.2mm
TEG76L.5-..	1/2	2.250in.	57.2mm
TEG76L.75-..	3/4	2.375in.	60.3mm
TEG76L1.0-..	1	2.625in.	66.7mm
TEG76L1.5-..	1 1/2	2.875in.	73.0mm
TEG76L2.0-..	2	3.375in.	85.7mm
TEG76L2.5-..	2 1/2	3.625in.	92.1mm
TEG76L3.0-..	3	3.875in.	98.4mm
TEG76L4.0-..	4	4.750in.	120.7mm
TEG76L6.0-..	6	7.125in.	181.0mm
