Clamp Cross, 316L SS

(0)No Reviews yet
Back

Clamp Cross made from 316L Stainless Steel.

This VNE MaxPure ASME BPE Compliant Bio-Pharm Fitting is available with the following finishes:

  • 20Ra Mechanically Polished Inside Surface with a Mill Finished Outside Surface, SFF1 (PC)
  • 20Ra Mechanically Polished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF1 (PL)
  • 15Ra Mechanically Polished & Electropolished Inside Surface with a Mill Finished Outside Surface, SFF4 (PD)
  • 15Ra Mechanically Polished & Electropolished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF4 (PM)

    • Back

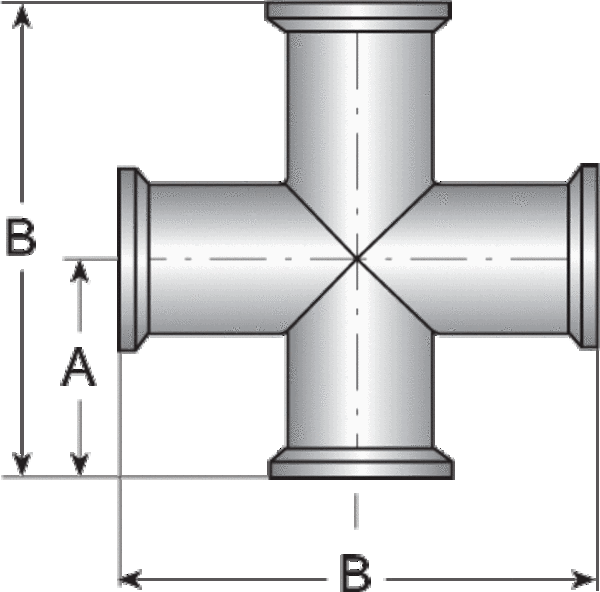

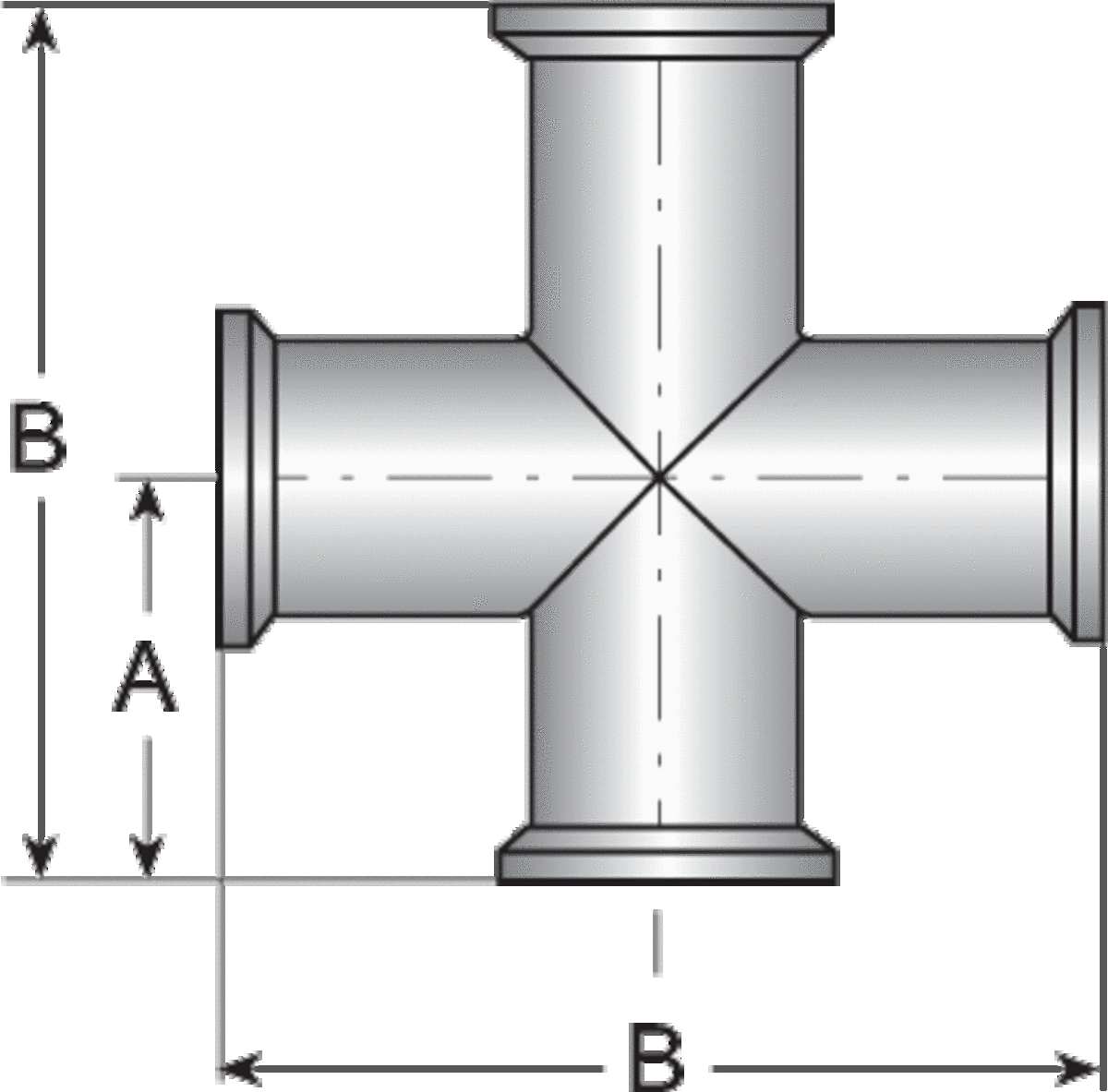

    Ordering CodeNominal Size(in.)A (in.)A (mm)B (in.)B (mm)
    TEG96L.25-..1/42.250in.57.2mm4.500in.114.4mm
    TEG96L.375-..3/82.250in.57.2mm4.500in.114.4mm
    TEG96L.5-..1/22.250in.57.2mm4.500in.114.4mm
    TEG96L.75-..3/42.375in.60.3mm4.750in.120.6mm
    TEG96L1.0-..12.625in.66.7mm5.250in.133.4mm
    TEG96L1.5-..1 1/22.875in.73.0mm5.750in.146.0mm
    TEG96L2.0-..23.375in.85.7mm6.750in.171.4mm
    TEG96L2.5-..2 1/23.625in.92.1mm7.250in.184.2mm
    TEG96L3.0-..33.875in.98.4mm7.750in.196.8mm
    TEG96L4.0-..44.750in.120.7mm9.500in.241.4mm
    TEG96L6.0-..67.125in.181.0mm14.250in.362.0mm
