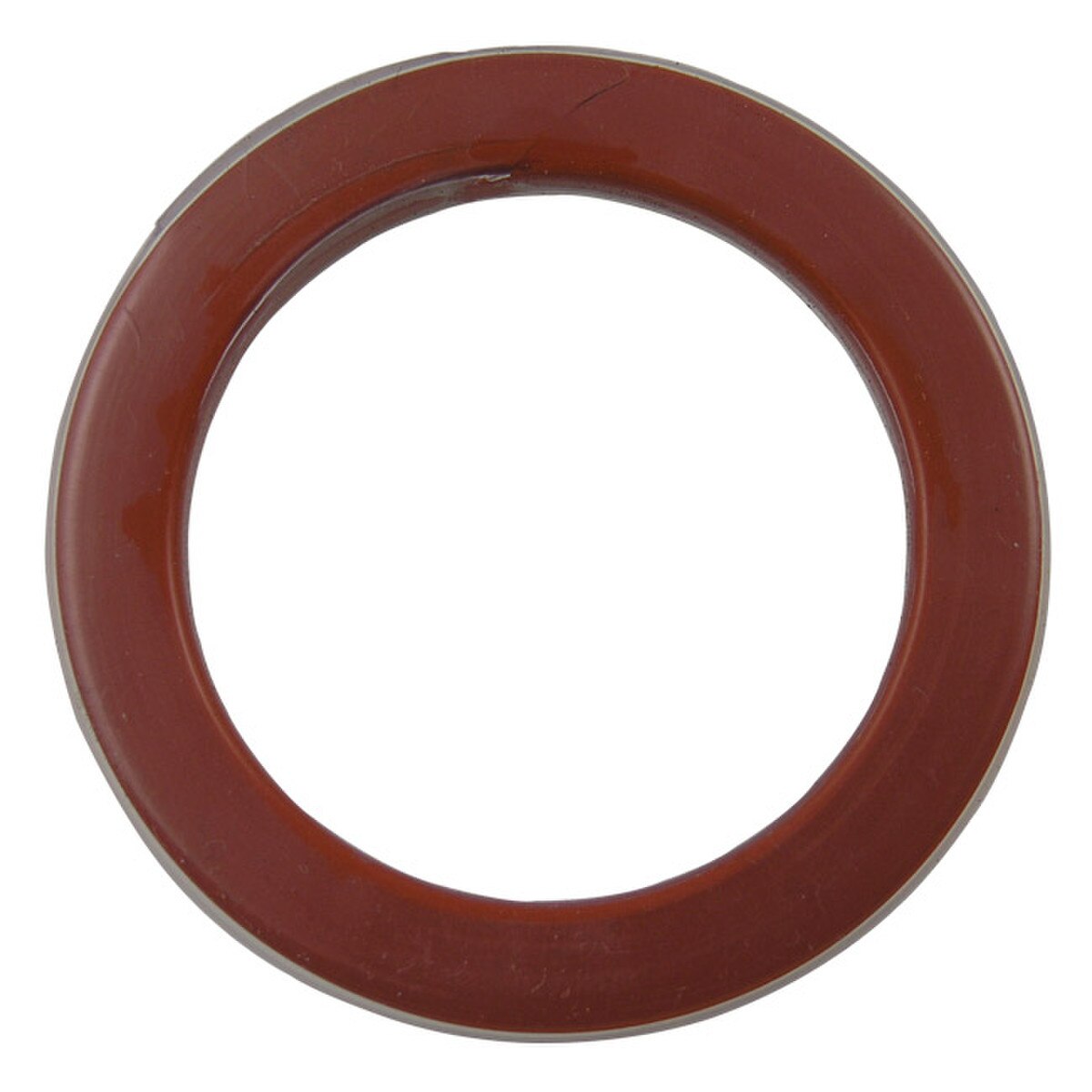

Cam and Groove Gaskets - FEP Encapsulated Silicone
FEP Encapsulated Silicone Cam and Groove Gaskets are the optimal seal for your Camlock fittings. These encapsulated gaskets provide the best qualities of each material to form a superior seal. The silicone core provides the same resilience as tradional silicone gasket, and the FEP encapsulation affords all the benefits of a PTFE gasket. FEP (Fluorinated Ethylene Propylene) has very similar chemical characteristics to traditional PTFE but is engineered to be easily formed. These FEP encapsulated gaskets are designed for use with practically all chemicals, even in the toughest corrosive environments.
Storing FEP Encapsulated Silicone Gaskets:
- Shelf Life: 8 Years from cure date
- Store in original packaging in clean and dry warehouse
- Do not expose to direct sunlight
- Keep more than 6' away from electric motors
- Maintain temperature between 65°F and 85°F
- FDA CFR 21, 177.1550
- U.S. Pharmacopeia Class VI Certification
- USDA Hazard Analysis and Critical Control Points
- Cytotoxicity Criteria
- USDA and 3-A Sanitary Standards
- ASME-BPE Standards for Type I and Type II
- ADI Free® (Animal Derived Ingredient Free)
- Current Good Manufacturing Practices (CGMP)
- Color Code: No Dot
- -100°F to 225°F Temperature Range
- Excellent heat resistance
- Almost no extractables
- Low absorption rate
- Excellent resistance to process fluids
- Good stability
| 1 = Excellent 2 = Good 3 = Acceptable 4 = Marginal 5 = Poor 6 = Do Not Use | ||||||||
|---|---|---|---|---|---|---|---|---|
| Cont. Steam | Inter. Steam | Pure Water Ambient | Pure Water Hot | Process Fluids Ambient | Process Fluids Hot | Process Fluid Variables 0°-100°C | Temperature Range | |
| Tuf-Steel® | 1 | 1 | 1 | 1 | 1 | 1 | 1 | -350°-550°F |
| Tuf-Flex® | 1 | 1 | 1 | 1 | 1 | 1 | 1 | -20°-300°F |
| Food-Flex® | 1 | 1 | 1 | 1 | 1 | 1 | 1 | -30°-250°F |
| PTFE | 1 | 1 | 1 | 1 | 1 | 1 | 3 | -100° to 500°F |
| Silicone (platinum) | 2 | 2 | 2 | 2 | 2 | 2 | 1 | -40°-450°F |
| Silicone (peroxide) | 2 | 2 | 2 | 2 | 2 | 2 | 1 | -40°-450°F |
| FKM | 3 | 2 | 2 | 2 | 2 | 2 | 2 | -30°-400°F |
| EPDM (peroxide) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | -30°-300°F |
| Buna | 0 | 0 | 5 | 5 | 5 | 5 | 5 | -30°-200°F |
