WARNING : Under no circumstances should cam and groove couplings be used for compressed air or steam service.

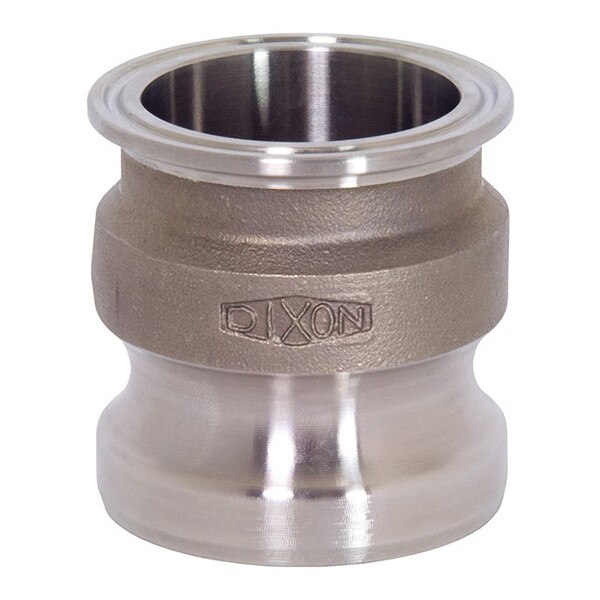

Dixon Sanitary Cam and Groove Adapter by Clamp Adapters allow you to easily transition your process lines to a camlock connection. Simply clamp this fitting to an existing Tri-Clamp® ferrule and you have yourself a camlock connection. These Adapter x Clamp End fittings are only available as 316 stainless steel investment castings.

Dixon camlock fittings are all precision machined to rigid tolerances and designed to be interchangeable with all products produced to Commercial Item Description A-A-59326B. However, no standard exists for the 1/2" and 8" fittings and generally these will not interchange with other manufacturers. All couplers, regardless of casting material, utilize durable stainless steel cam arm pins that will not rust or bind. The couplers also feature a recess to hold the gasket firmly in place, ensuring proper placement and eliminating any chance for leakage.

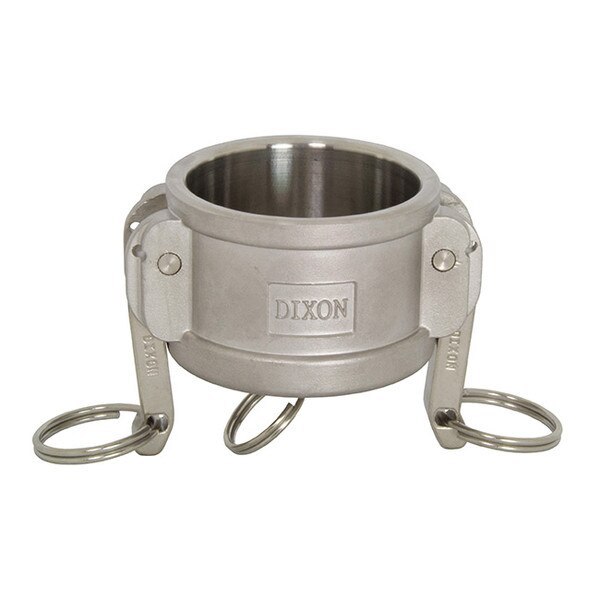

Cam and Groove fittings are designed for use as a hose coupling that allows quick connect capabilities to increase operator productivity. To secure a connection, simply slide the adapter into the coupler, and with normal hand pressure press the cam levers down. Uncoupling is just as simple, just lift the cam arms and remove the adapter. Dixon Sanitary also offers Dust Plugs and Dust Caps to keep hoses and process tubes clean while fittings are disconnected.

Dixon Cam and Groove Fittings Features:
