Behringer Cushion Clamps

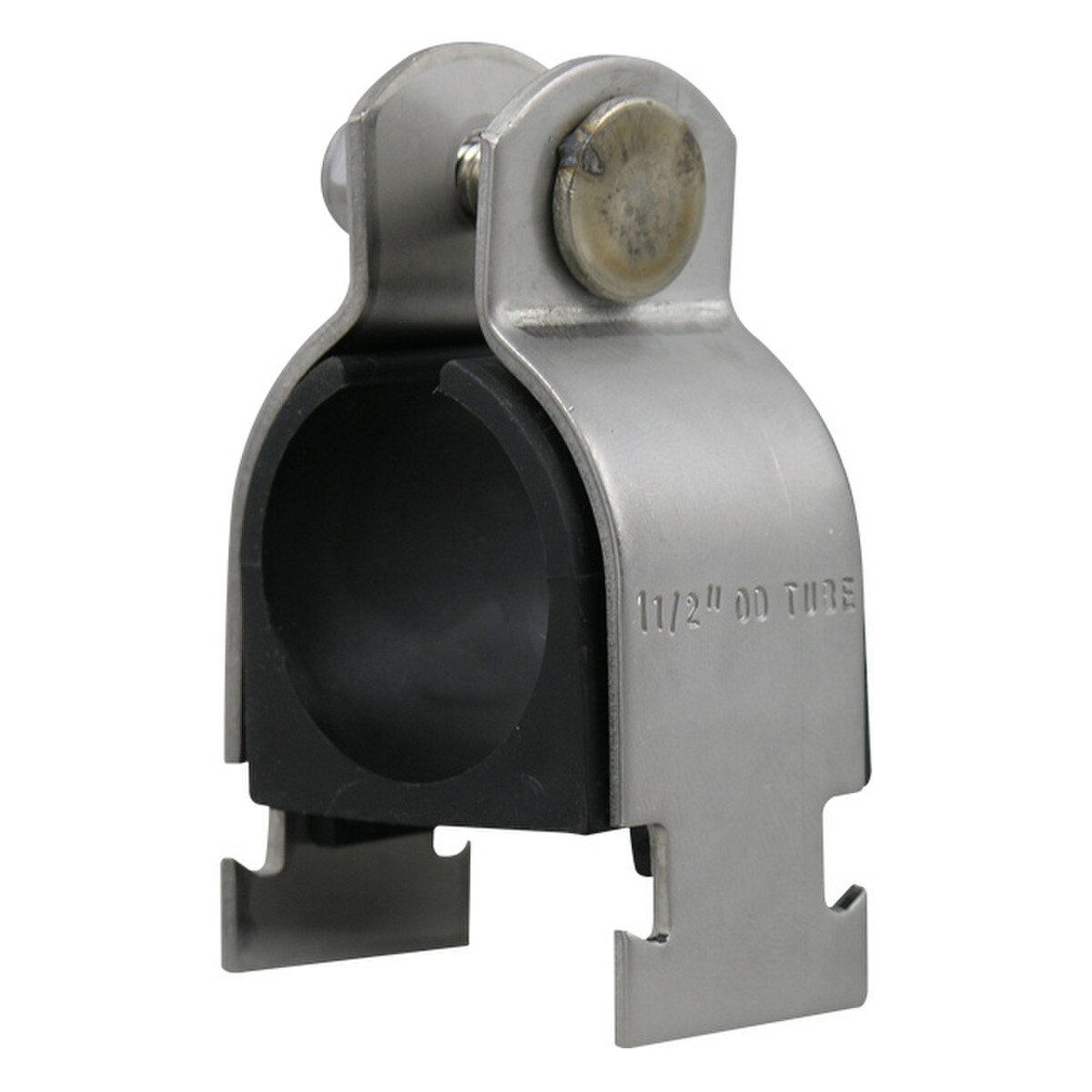

Behringer now offers a complete line of cushioned clamps for use in pneumatic refrigeration, HVAC, and some low pressure hydraulic lines. Berhinger's cushioned clamps feature a thermoplastic elastomer that eliminates metal to metal contact between the fluid lines and the support hardware. Standard material for the hardware is a clear trivalent zinc-plated steel, with options for both 304 and 316 grades stainless steel. Additional special options include aluminum and powder coating. Fits industry standard strut channel with 1-5/8" Width. Available from 1/4" through 6" diameter in both tube and pipe sizes.
 | ||||||
| Part # | Size | OD | A | B | C | D |
|---|---|---|---|---|---|---|
| CC0250-* | 1/4" Tube | 0.250" | 1.11" | 0.22" | 0.075" | 0.62" |
| CC0375-* | 3/8" Tube | 0.375" | 1.24" | 0.28" | 0.075" | 0.75" |
| CC0500-* | 1/2" Tube | 0.500" | 1.36" | 0.34" | 0.075" | 0.87" |
| CC0540-* | 1/4" Pipe | 0.540" | 1.41" | 0.63" | 0.075" | 0.91" |
| CC0625-* | 5/8" Tube | 0.625" | 1.5" | 0.41" | 0.075" | 1" |
| CC0675-* | 3/8" Pipe | 0.675" | 1.59" | 0.45" | 0.075" | 1.07" |
| CC0750-* | 3/4" Tube | 0.750" | 1.78" | 0.53" | 0.075" | 1.33" |
| CC0840-* | 1/2" Pipe | 0.840" | 1.91" | 0.59" | 0.075" | 1.45" |
| CC0875-* | 7/8" Tube | 0.875" | 1.91" | 0.58" | 0.075" | 1.45" |
| CC1000-* | 1" Tube | 1.000" | 2.03" | 0.66" | 0.105" | 1.66" |
| CC1050-* | 3/4" Pipe | 1.050" | 2.16" | 0.72" | 0.105" | 1.79" |
| CC1125-* | 1-1/8" Tube | 1.125" | 2.16" | 0.72" | 0.105" | 1.79" |
| CC1250-* | 1-1/4" Tube | 1.250" | 2.3" | 0.78" | 0.105" | 1.92" |
| CC1315-* | 1" Pipe | 1.315" | 2.75" | 0.91" | 0.119" | 2.22" |
| CC1375-* | 1-3/8" Tube | 1.375" | 2.75" | 0.91" | 0.119" | 2.22" |
| CC1500-* | 1-1/2" Tube | 1.500" | 2.75" | 0.91" | 0.119" | 2.22" |
| CC1625-* | 1-5/8" Tube | 1.625" | 3.03" | 1.03" | 0.119" | 2.47" |
| CC1660-* | 1-1/4" Pipe | 1.660" | 3.03" | 1.03" | 0.119" | 2.47" |
| CC1750-* | 1-3/4" Tube | 1.750" | 3.03" | 1.03" | 0.119" | 2.47" |
| CC1875-* | 1-7/8" Tube | 1.875" | 3.28" | 1.16" | 0.119" | 2.47" |
| CC1900-* | 1-1/2" Pipe | 1.900" | 3.28" | 1.16 | 0.119" | 2.47" |
| CC2000-* | 2" Tube | 2.000" | 3.28" | 1.16" | 0.119" | 2.47" |
| CC2125-* | 1-1/8" Tube | 2.125" | 3.53 | 1.28" | 0.119" | 2.97" |
| CC2375-* | 2-3/8" Tube (2" Pipe) | 2.375" | 3.78 | 1.41" | 0.119" | 3.22" |
| CC2500-* | 2-1/2" Tube | 2.500" | 4.03" | 1.53 | 0.119" | 3.47" |
| CC2625-* | 2-5/8" Tube | 2.625" | 4.03" | 1.53" | 0.119" | 3.47" |
| CC2875-* | 2-1/2" Pipe | 2.875" | 4.27" | 1.66" | 0.119" | 3.72" |
| CC3000-* | 3" Tube | 3.000" | 4.52" | 1.78" | 0.119" | 3.97" |
| CC3125-* | 3-1/8" Tube | 3.125" | 4.52" | 1.78" | 0.119" | 3.97" |
| CC3500-* | 3-1/2" Tube (3" Pipe) | 3.500" | 4.91" | 1.97" | 0.119" | 4.36" |
| CC3625-* | 3-5/8" Tube | 3.625" | 5.03" | .03" | 0.119" | 4.47" |
| CC4000-* | 4" Tube (3-1/2" Pipe) | 4.000" | 5.53" | 2.28" | 0.119" | 4.97" |
| CC4125-* | 4-1/8" Tube | 4.125" | 5.66" | 2.34" | 0.119" | 5.09" |
| CC4500-* | 4" Pipe | 4.500" | 6.03" | 2.53" | 0.119" | 5.47" |
| CC5563-* | 5" Pipe | 5.563" | 7.03" | 3.03" | 0.119" | 6.47" |
| CC6625-* | 6" Pipe | 6.625" | 8.03" | 3.53" | 0.119" | 7.47" |
| * T = 304SS, X = 316SS, Z = Zinc Plated | ||||||
