Behringer CHW Series - Compact Hygienic Weld Plate Mount Supports

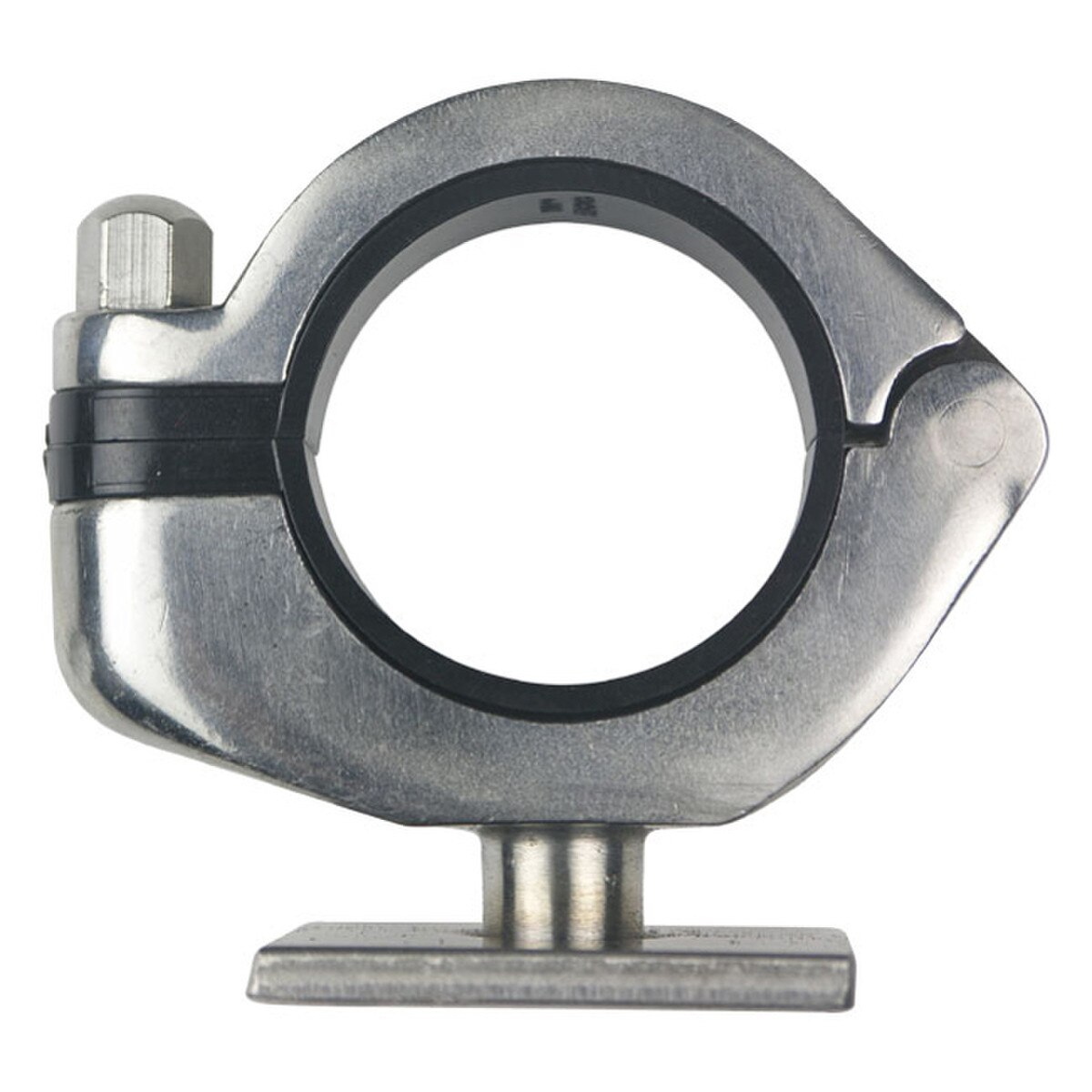

The CHW Series hanger is a one piece unit with a weld plate attached to the housing. Use this unit to support vertical runs and to reduce vibrations. The connection is rigid so these do not allow for any slope adjustment. For installation simply weld this unit to a support structure. These are available in either 304 or 316 Stainless Steel, both have a 25 Ra finish.
- Anchor (Black) - No thermal expansion, greater shear force
- Guide (Gray) - Allows free axial movement for thermal expansion
- Temperature Rating: 320ºF/160ºC
 | ||||||||||

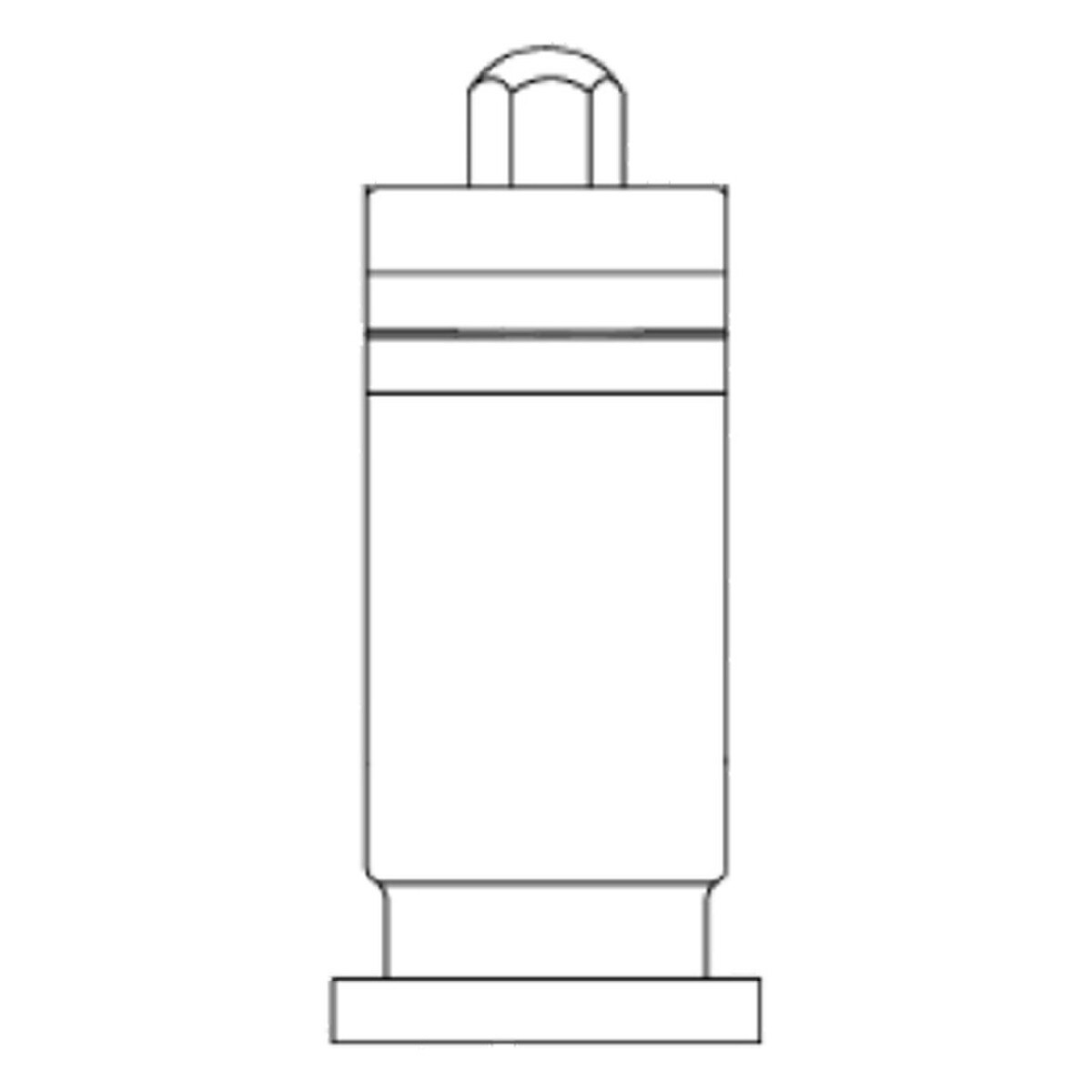

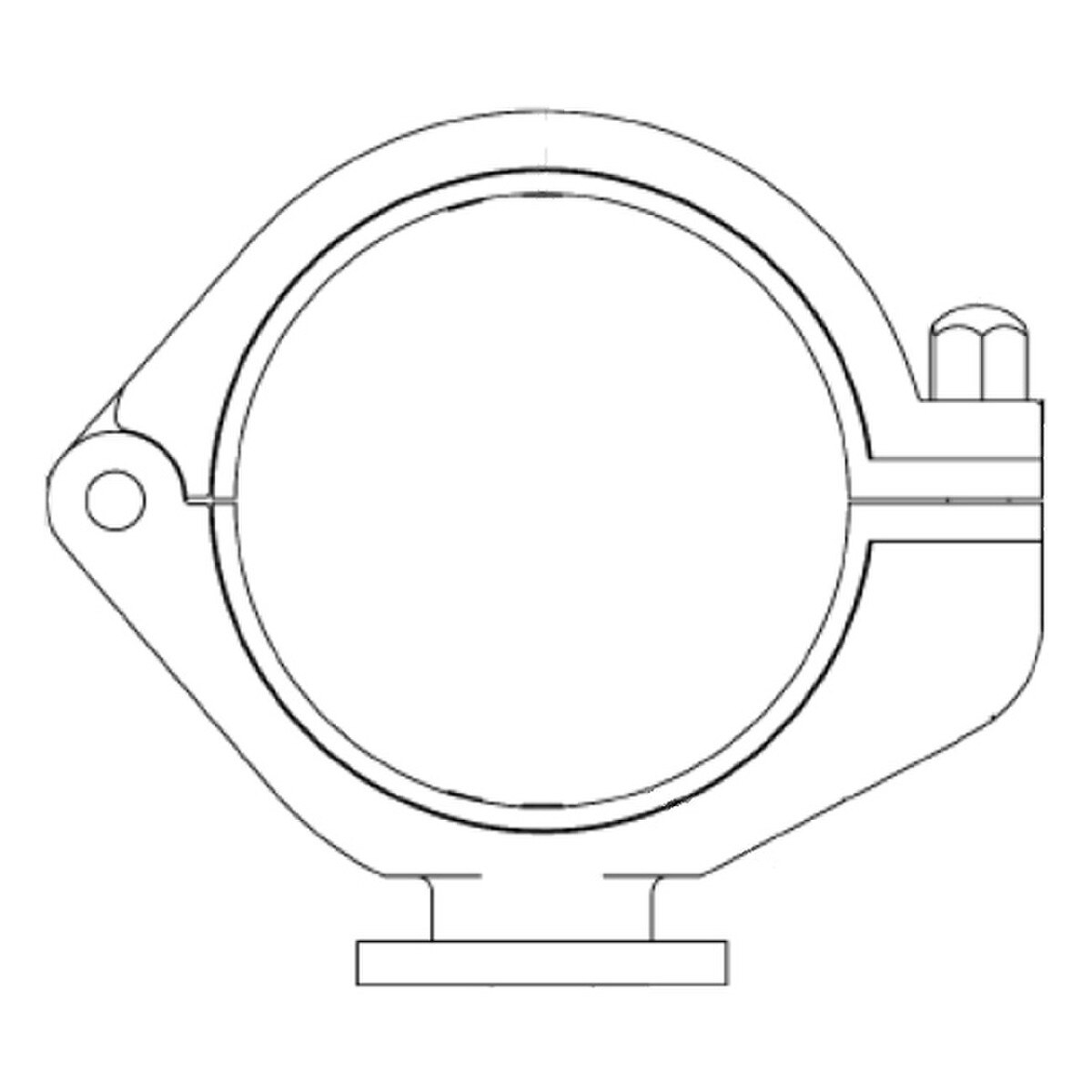

| Group | Part No. | D or G | W1 | W2 | Z | U | H | T | L | W |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | CHW-PS-024- | 0.24 | 0.93" (24mm) | 1.02" (26mm) | 0.75" (19mm) | 1.17" (30mm) | 1.76" (45mm) | 3/16" (4.7mm) | 1.50" (38mm) | 1.50" (38mm) |
| CHW-PG-024- | 0.27 | |||||||||
| CHW-PS-025- | 0.25 | |||||||||
| CHW-PG-025- | 0.29 | |||||||||
| CHW-PS-038- | 0.38 | |||||||||
| CHW-PG-038- | 0.40 | |||||||||
| CHW-PS-050- | 0.50 | |||||||||
| CHW-PG-050- | 0.54 | |||||||||
| 2 | CHW-PS-054- | 0.54 | 1.06" (27mm) | 1.15" (29mm) | 0.75" (19mm) | 1.32" (33mm) | 2.02" (51mm) | 3/16" (4.7mm) | 1.50" (38mm) | 1.50" (38mm) |
| CHW-PG-054- | 0.58 | |||||||||
| CHW-PS-063- | 0.63 | |||||||||
| CHW-PG-063- | 0.67 | |||||||||
| CHW-PS-075- | 0.75 | |||||||||
| CHW-PG-075- | 0.79 | |||||||||
| 3 | CHW-PS-079- | 0.79 | 1.20" (31mm) | 1.28" (33mm) | 0.75" (19mm) | 1.44" (34mm) | 2.28" (58mm) | 3/16" (4.7mm) | 1.50" (38mm) | 1.50" (38mm) |
| CHW-PG-079- | 0.82 | |||||||||
| CHW-PS-084- | 0.84 | |||||||||
| CHW-PG-084- | 0.88 | |||||||||
| CHW-PS-088- | 0.88 | |||||||||
| CHW-PG-088- | 0.91 | |||||||||
| CHW-PS-100- | 1.00 | |||||||||
| CHW-PG-100- | 1.04 | |||||||||
| 4 | CHW-PS-105- | 1.05 | 1.45" (37mm) | 1.56" (39mm) | 0.75" (19mm) | 1.75" (44mm) | 2.83" (72mm) | 3/16" (4.7mm) | 1.75" (44mm) | 1.75" (44mm) |
| CHW-PG-105- | 1.09 | |||||||||
| CHW-PS-113- | 1.13 | |||||||||
| CHW-PG-113- | 1.16 | |||||||||
| CHW-PS-132- | 1.32 | |||||||||
| CHW-PG-132- | 1.35 | |||||||||
| CHW-PS-150- | 1.50 | |||||||||
| CHW-PG-150- | 1.54 | |||||||||
| 5 | CHW-PS-158- | 1.58 | 1.74" (44mm) | 1.79" (46mm) | 0.75" (19mm) | 1.94" (49mm) | 3.27" (83mm) | 3/16" (4.7mm) | 1.75" (44mm) | 1.75" (44mm) |
| CHW-PG-158- | 1.61 | |||||||||
| CHW-PS-163- | 1.63 | |||||||||
| CHW-PG-163- | 1.66 | |||||||||
| CHW-PS-190- | 1.90 | |||||||||
| CHW-PG-190- | 1.94 | |||||||||
| CHW-PS-200- | 2.00 | |||||||||
| CHW-PG-200- | 2.04 | |||||||||
| 6 | CHW-PS-205- | 2.05 | 2.02" (51mm) | 2.04" (52mm) | 1.00" (25mm) | 2.27" (58mm) | 3.86" (98mm) | 3/16" (4.7mm) | 2.50" (64mm) | 1.75" (44mm) |
| CHW-PG-205- | 2.10 | |||||||||
| CHW-PS-213- | 2.13 | |||||||||
| CHW-PG-213- | 2.18 | |||||||||
| CHW-PS-238- | 2.38 | |||||||||
| CHW-PG-238- | 2.43 | |||||||||
| CHW-PS-250- | 2.50 | |||||||||
| CHW-PG-250- | 2.55 | |||||||||
| 7 | CHW-PS-276- | 2.76 | 2.27" (58mm) | 2.29" (58mm) | 1.00" (25mm) | 2.43" (62mm) | 4.27" (108mm) | 3/16" (4.7mm) | 2.50" (64mm) | 1.75" (44mm) |
| CHW-PG-276- | 2.81 | |||||||||
| CHW-PS-288- | 2.88 | |||||||||
| CHW-PG-288- | 2.93 | |||||||||
| CHW-PS-300- | 3.00 | |||||||||
| CHW-PG-300- | 3.05 | |||||||||
| 8 | CHW-PS-313- | 3.13 | 2.76" (70mm) | 2.79" (71mm) | 1.00" (25mm) | 3.17" (81mm) | 5.51" (140mm) | 3/16" (4.7mm) | 2.50" (64mm) | 1.75" (44mm) |
| CHW-PG-313- | 3.18 | |||||||||
| CHW-PS-350- | 3.50 | |||||||||
| CHW-PG-350- | 3.55 | |||||||||
| CHW-PS-400- | 4.00 | |||||||||
| CHW-PG-400- | 4.05 | |||||||||
| 8A | CHW-PS-409- | 4.09 | 3.00" (76mm) | 3.09" (78mm) | 1.00" (25.4mm) | 3.37" (86mm) | 5.96" (151mm) | 3/16" (4.7mm) | 2.50" (64mm) | 1.75" (44mm) |
| CHW-PG-409- | 4.14 | |||||||||
| CHW-PS-413- | 4.13 | |||||||||
| CHW-PG-413- | 4.18 | |||||||||
| CHW-PS-450- | 4.50 | |||||||||
| CHW-PG-450- | 4.55 | |||||||||
| 9 | CHW-PS-508- | 5.08 | 3.98" (101mm) | 4.46" (113mm) | 1.50" (38mm) | 4.54" (115mm) | 8.12" (206mm) | 1/4" (6.4mm) | 4.00" (108mm) | 1.75" (44mm) |
| CHW-PG-508- | 5.13 | |||||||||
| CHW-PS-600- | 6.00 | |||||||||
| CHW-PG-600- | 6.05 | |||||||||
