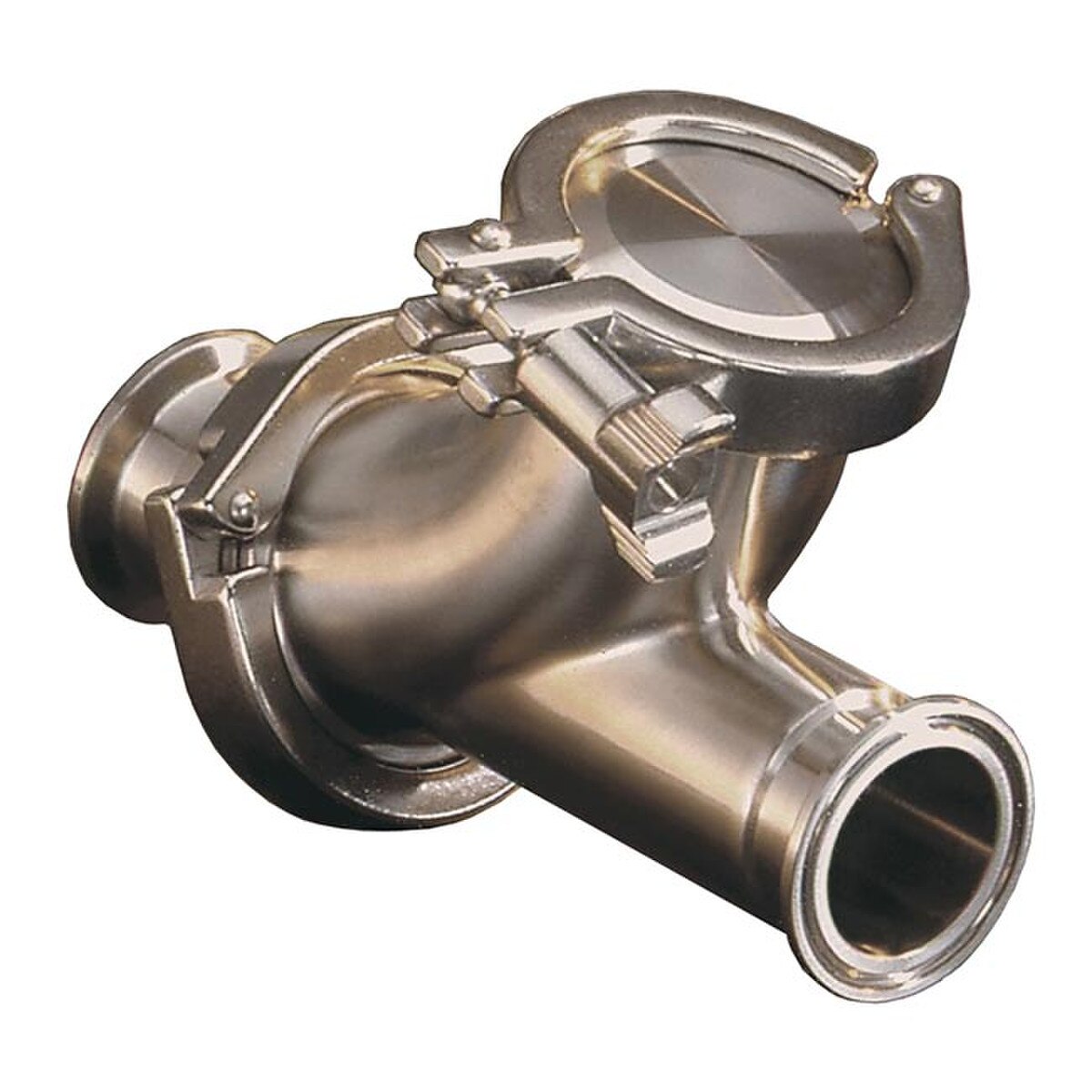

Get control with Dixon Sanitary's ball check valves. Dixon™ rugged valves are designed to prevent reverse flow in systems moving liquid products. When liquid flows into the inlet, a PTFE ball rolls up into the branch of the valve allowing full fluid flow. When the flow stops, equalizing the pressure, the ball drops back into the seat, preventing backflow. Should reverse flow occur, the opposing pressure will cause the ball to seat firmly against the inlet gasket preventing backflow.

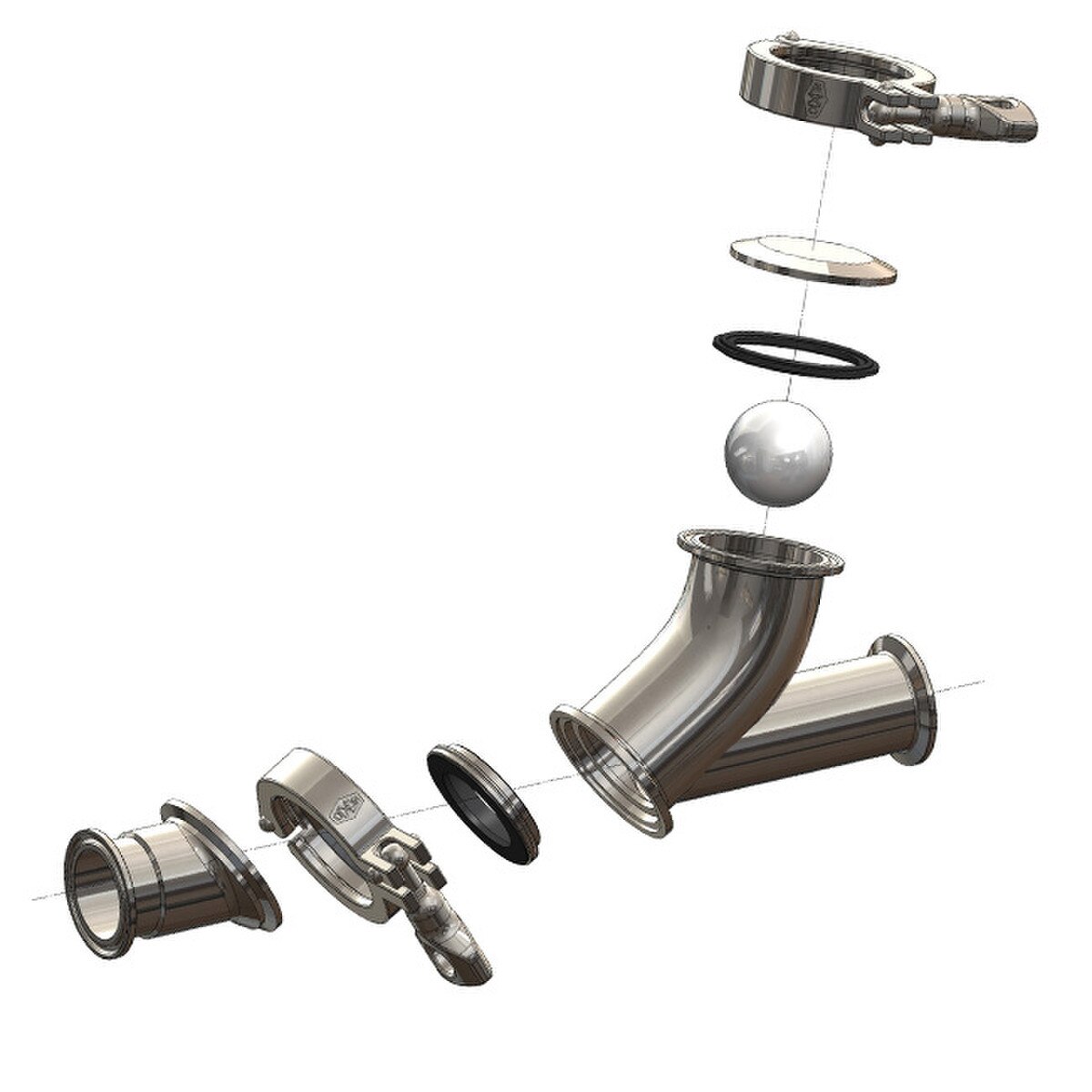

• Two piece construction for easier alignment during installation
• Various end configurations available: Clamp, Buttweld, I-Line, Q-Line, Bevel Seat and John Perry
• Polished ID and OD to 3A standards
• All metal contact surfaces of 316 (CF8M) stainless steel construction
• Sizes from 1-1/2" - 3"
• Air blow check valve can be added (see air blow for sizing)
• PTFE ball

A variety of industries have trusted Dixon™ sanitary check valves for many years and the reason is that Dixon Sanitary has the quality valves they need. check Dixon™ valves feature quick disconnect clamp ends for quick easy cleaning (other ends are available). Check valves are used for sanitary, as well as industrial applications, to prevent backflow.

• Spring Check Valves are designed to prevent reverse flow. Concentric valves are available in 1/2" - 4".
• Ball Check Valves are used where full flow and low pressure drop of product during process is required. When the flow of product is reversed, the PTFE ball rolls back and seats, thus preventing backflow. Sizes are available from 1-1/2" - 3".
• Air Blow Check Valves are used to clear lines of CIP solutions or other products. Sizes are availble from 1" - 4".

Dixon™ Fittings maintain the 3A standard. The 3A Sanitary Standard was created by the dairy industry as a voluntary benchmark for product performance and sanitary safety. The standard, collaboratively developed by a group of processors, suppliers, regulatory officials and sanitation specialists, is generally accepted by federal, state and local regulatory authorities.

Dixon™ Check Valves have earned the 3A symbol, which requires an annual assessment to make certain each product conforms in all respects to the published standard. Dixon™ Check Valves carrying the 3A symbol conform to the 3A sanitary standards for fittings for milk and milk products (#63-03). Dixon Sanitary is proud to be a participant in the 3A program.
