90 Degree Weld x Clamp Elbow made from 316L Stainless Steel.

This VNE MaxPure ASME BPE Compliant Bio-Pharm Fitting is available with the following finishes:

20Ra Mechanically Polished Inside Surface with a Mill Finished Outside Surface, SFF1 (PC)

20Ra Mechanically Polished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF1 (PL)

15Ra Mechanically Polished & Electropolished Inside Surface with a Mill Finished Outside Surface, SFF4 (PD)

15Ra Mechanically Polished & Electropolished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF4 (PM)

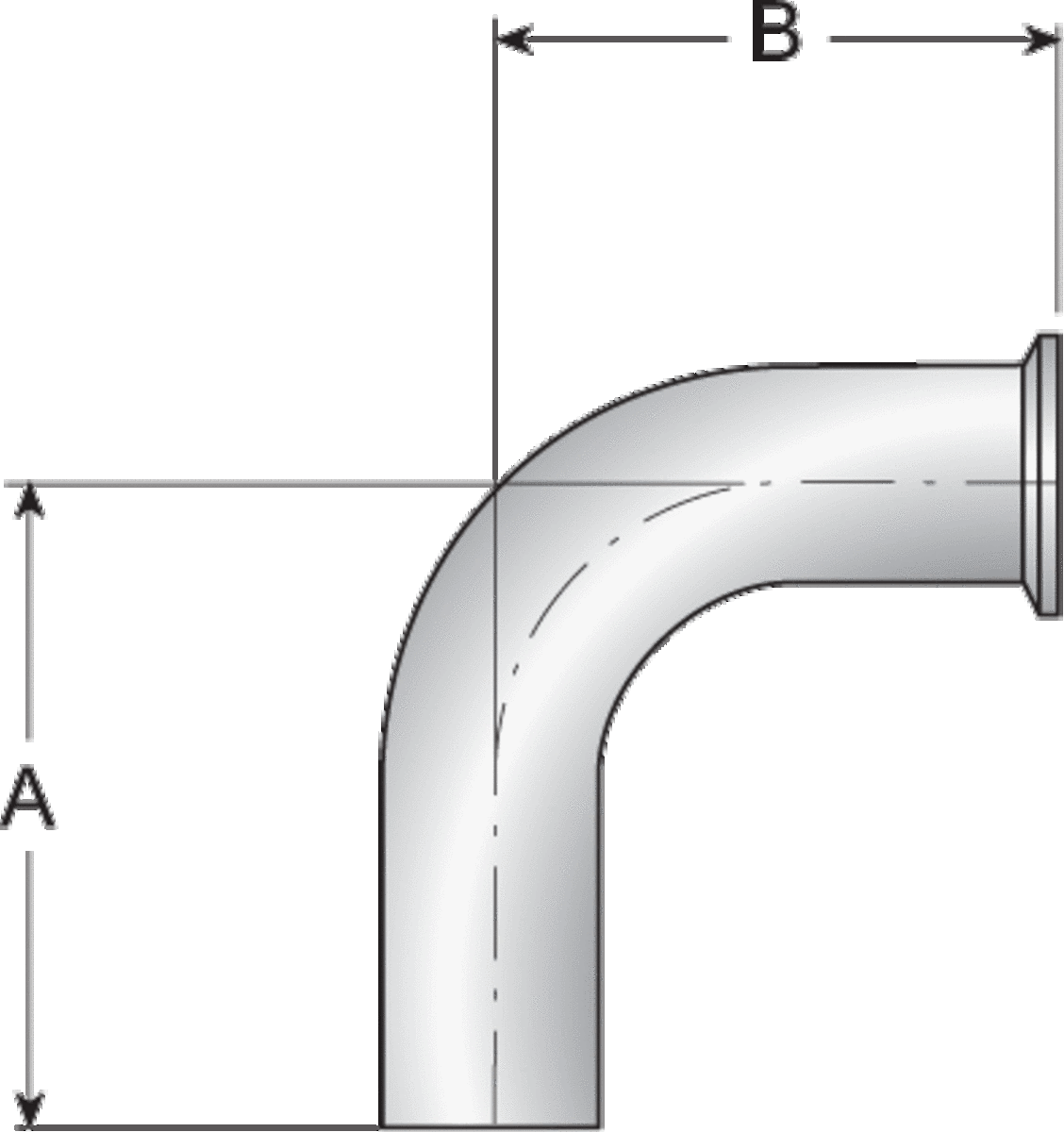

Ordering Code	Nominal Size(in.)	A (in.)	A (mm)	B (in.)	B (mm)

TE2C6L.25-..	1/4	2.625in.	66.7mm	1.625in.	41.3mm
TE2C6L.375-..	3/8	2.625in.	66.7mm	1.625in.	41.3mm
TE2C6L.5-..	1/2	3.000in.	76.2mm	1.625in.	41.3mm
TE2C6L.75-..	3/4	3.000in.	76.2mm	1.625in.	41.3mm
TE2C6L1.0-..	1	3.000in.	76.2mm	2.000in.	50.8mm
TE2C6L1.5-..	1 1/2	3.750in.	95.3mm	2.750in.	69.9mm
TE2C6L2.0-..	2	4.750in.	120.7mm	3.500in.	88.9mm
TE2C6L2.5-..	2 1/2	5.500in.	139.7mm	4.250in.	108.0mm
TE2C6L3.0-..	3	6.250in.	158.8mm	5.000in.	127.0mm
TE2C6L4.0-..	4	8.000in.	203.2mm	6.625in.	168.3mm
TE2C6L6.0-..	6	11.500in.	292.1mm	10.500in.	266.7mm
