90 Degree Clamp x Clamp Elbow made from 316L Stainless Steel.

This VNE MaxPure ASME BPE Compliant Bio-Pharm Fitting is available with the following finishes:

20Ra Mechanically Polished Inside Surface with a Mill Finished Outside Surface, SFF1 (PC)

20Ra Mechanically Polished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF1 (PL)

15Ra Mechanically Polished & Electropolished Inside Surface with a Mill Finished Outside Surface, SFF4

15Ra Mechanically Polished & Electropolished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF4 (PM)

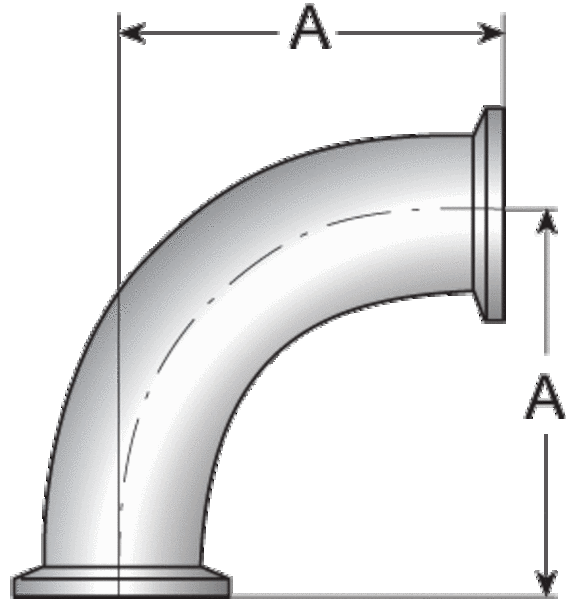

Ordering Code	Nominal Size(in.)	A (in.)	A (mm)

TEG2C6L.25-..	1/4	1.625in.	41.3mm
TEG2C6L.375-..	3/8	1.625in.	41.3mm
TEG2C6L.5-..	1/2	1.625in.	41.3mm
TEG2C6L.75-..	3/4	1.625in.	41.3mm
TEG2C6L1.0-..	1	2.000in.	50.8mm
TEG2C6L1.5-..	1 1/2	2.750in.	69.9mm
TEG2C6L2.0-..	2	3.500in.	88.9mm
TEG2C6L2.5-..	2 1/2	4.250in.	108.0mm
TEG2C6L3.0-..	3	5.000in.	127.0mm
TEG2C6L4.0-..	4	6.625in.	168.3mm
TEG2C6L6.0-..	6	10.500in.	266.7mm
