45 Degree Weld x Clamp Elbow made from 316L Stainless Steel.

This VNE MaxPure ASME BPE Compliant Bio-Pharm Fitting is available with the following finishes:

20Ra Mechanically Polished Inside Surface with a Mill Finished Outside Surface, SFF1 (PC)

20Ra Mechanically Polished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF1 (PL)

15Ra Mechanically Polished & Electropolished Inside Surface with a Mill Finished Outside Surface, SFF4 (PD)

15Ra Mechanically Polished & Electropolished Inside Surface with a 32Ra Mechanically Polished Outside Surface, SFF4 (PM)

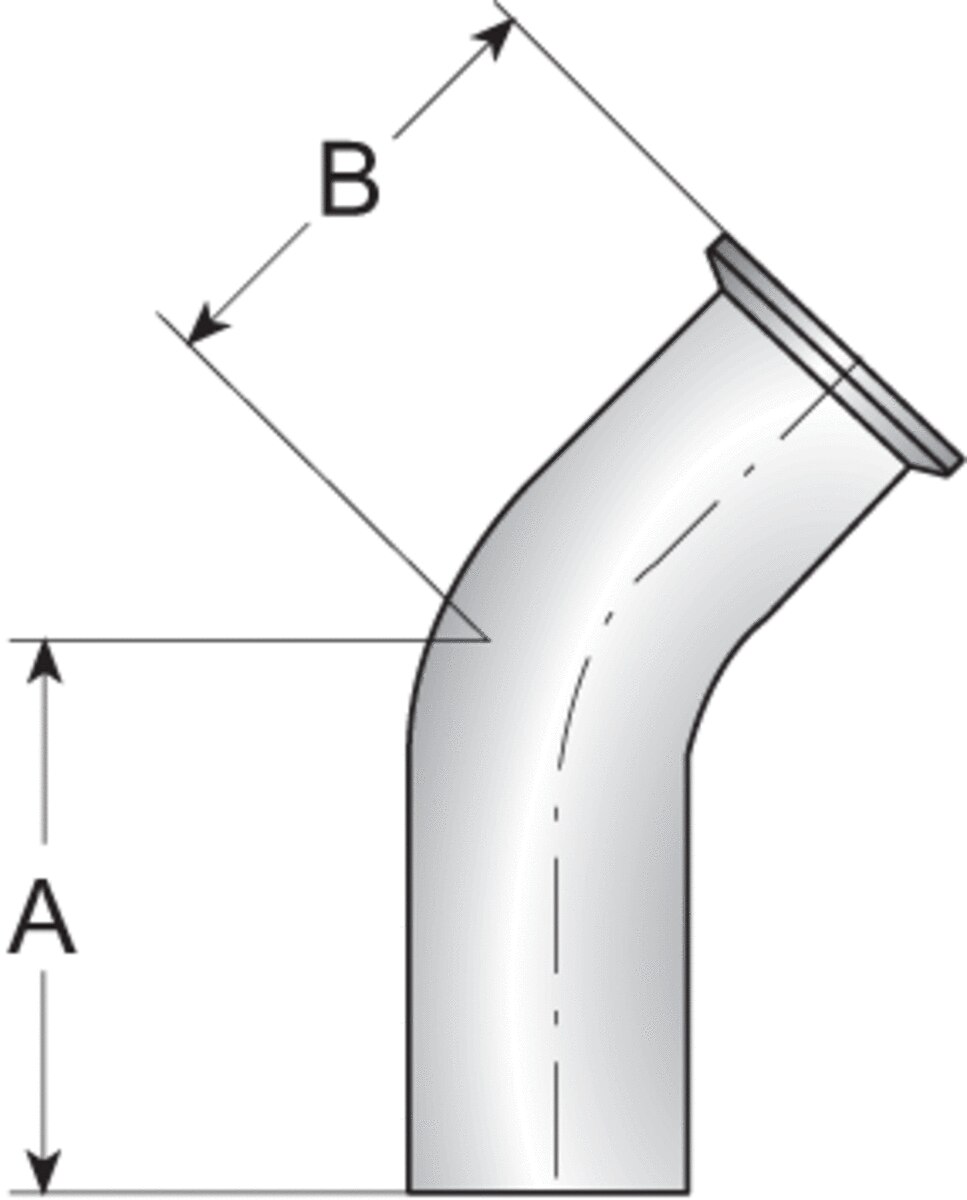

Ordering Code	Nominal Size(in.)	A (in.)	A (mm)	B (in.)	B (mm)

TE2KC6L.25-..	1/4	2.000in.	50.8mm	1.000in.	25.4mm
TE2KC6L.375-..	3/8	2.000in.	50.8mm	1.000in.	25.4mm
TE2KC6L.5-..	1/2	2.250in.	57.2mm	1.000in.	25.4mm
TE2KC6L.75-..	3/4	2.250in.	57.2mm	1.000in.	25.4mm
TE2KC6L1.0-..	1	2.250in.	57.2mm	1.125in.	28.6mm
TE2KC6L1.5-..	1 1/2	2.500in.	63.5mm	1.438in.	36.5mm
TE2KC6L2.0-..	2	3.000in.	76.2mm	1.750in.	44.5mm
TE2KC6L2.5-..	2 1/2	3.375in.	85.7mm	2.063in.	52.4mm
TE2KC6L3.0-..	3	3.625in.	92.1mm	2.375in.	60.3mm
TE2KC6L4.0-..	4	4.500in.	114.3mm	3.125in.	79.4mm
TE2KC6L6.0-..	6	6.250in.	158.8mm	5.250in.	133.4mm
