3000# Forged Hex Bushing Stainless Steel Pipe Fittings - Threaded

(0)No Reviews yet
$4.48 to $160.05
SKU: 3MTHHBUSH
Back
$4.48 to $160.05
Back

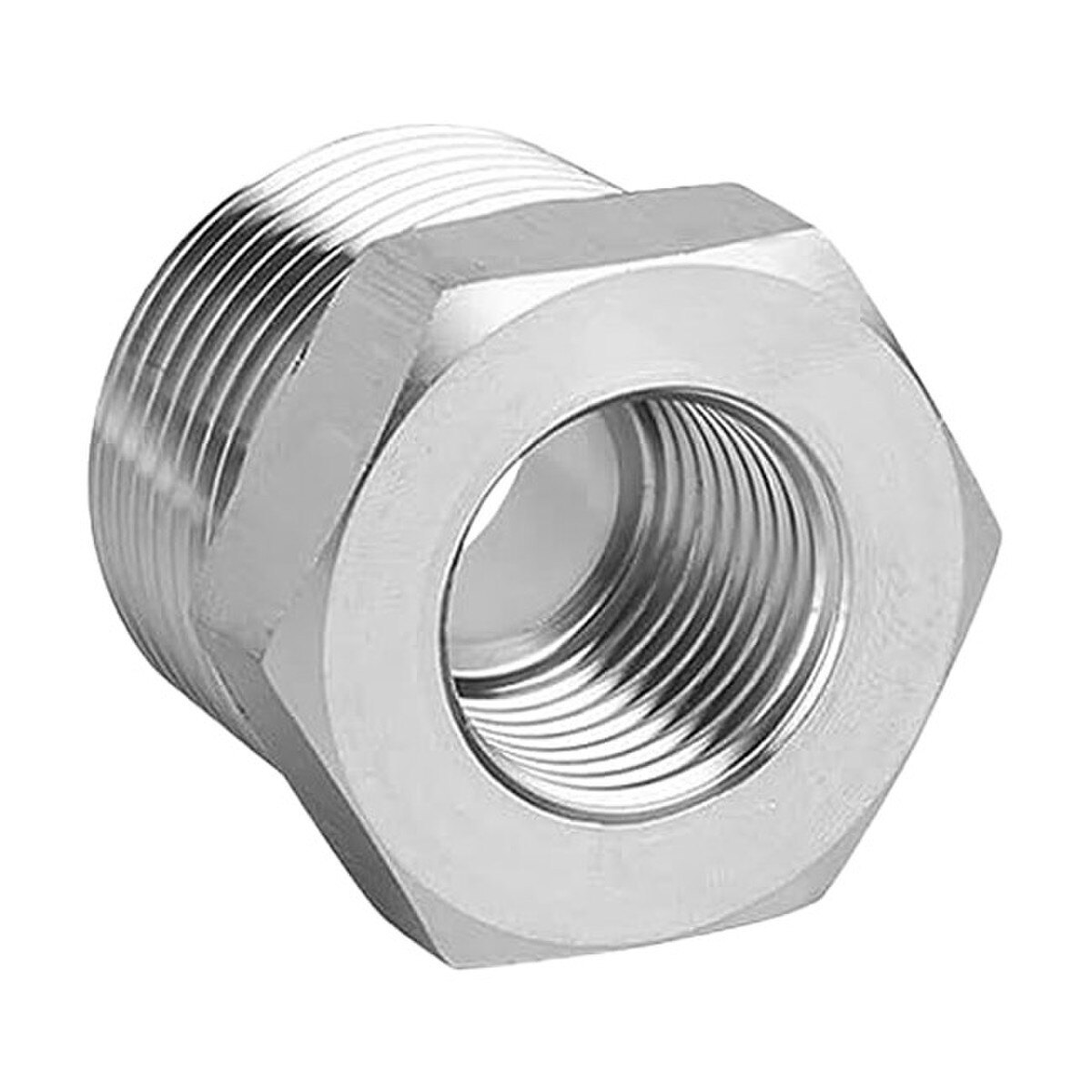

3000# hex bushing pipe fittings forged out of stainless steel to ASTM 182 and ANSI B16.11 specifications with threaded end connections. Available in 304 and 316 stainless steel alloys.

Back
Part
No.		Size
(in.)		Length
Min. (A)		Width
Flats (F)		Hex
Height
(G)		Material
3MTHHBUSH4S-025-0131/4" x 1/8"0.433"
(11.0mm)		0.630"
(16.0mm)		0.118"
(3.0mm)		304 SS
3MTHHBUSH4S-038-0133/8" x 1/8"0.512"
(13.0mm)		0.709"
(18.0mm)		0.157"
(4.0mm)		304 SS
3MTHHBUSH4S-038-0253/8" x 1/4"0.512"
(13.0mm)		0.709"
(18.0mm)		0.157"
(4.0mm)		304 SS
3MTHHBUSH4S-050-0131/2" x 1/8"0.551"
(14.0mm)		0.866"
(22.0mm)		0.197"
(5.0mm)		304 SS
3MTHHBUSH4S-050-0251/2" x 1/4"0.551"
(14.0mm)		0.866"
(22.0mm)		0.197"
(5.0mm)		304 SS
3MTHHBUSH4S-050-0381/2" x 3/8"0.551"
(14.0mm)		0.866"
(22.0mm)		0.197"
(5.0mm)		304 SS
3MTHHBUSH4S-075-0133/4" x 1/8"0.630"
(16.0mm)		1.063"
(27.0mm)		0.236"
(6.0mm)		304 SS
3MTHHBUSH4S-075-0253/4" x 1/4"0.630"
(16.0mm)		1.063"
(27.0mm)		0.236"
(6.0mm)		304 SS
3MTHHBUSH4S-075-0383/4" x 3/8"0.630"
(16.0mm)		1.063"
(27.0mm)		0.236"
(6.0mm)		304 SS
3MTHHBUSH4S-075-0503/4" x 1/2"0.630"
(16.0mm)		1.063"
(27.0mm)		0.236"
(6.0mm)		304 SS
3MTHHBUSH4S-100-0131" x 1/8"0.748"
(19.0mm)		1.417"
(36.0mm)		0.236"
(6.0mm)		304 SS
3MTHHBUSH4S-100-0251" x 1/4"0.748"
(19.0mm)		1.417"
(36.0mm)		0.236"
(6.0mm)		304 SS
3MTHHBUSH4S-100-0381" x 3/8"0.748"
(19.0mm)		1.417"
(36.0mm)		0.236"
(6.0mm)		304 SS
3MTHHBUSH4S-100-0501" x 1/2"0.748"
(19.0mm)		1.417"
(36.0mm)		0.236"
(6.0mm)		304 SS
3MTHHBUSH4S-100-0751" x 3/4"0.748"
(19.0mm)		1.417"
(36.0mm)		0.236"
(6.0mm)		304 SS
3MTHHBUSH4S-125-0131-1/4" x 1/8"0.827"
(21.0mm)		1.811"
(46.0mm)		0.276"
(7.0mm)		304 SS
3MTHHBUSH4S-125-0251-1/4" x 1/4"0.827"
(21.0mm)		1.811"
(46.0mm)		0.276"
(7.0mm)		304 SS
3MTHHBUSH4S-125-0381-1/4" x 3/8"0.827"
(21.0mm)		1.811"
(46.0mm)		0.276"
(7.0mm)		304 SS
3MTHHBUSH4S-125-0501-1/4" x 1/2"0.827"
(21.0mm)		1.811"
(46.0mm)		0.276"
(7.0mm)		304 SS
3MTHHBUSH4S-125-0751-1/4" x 3/4"0.827"
(21.0mm)		1.811"
(46.0mm)		0.276"
(7.0mm)		304 SS
3MTHHBUSH4S-125-1001-1/4" x 1"0.827"
(21.0mm)		1.811"
(46.0mm)		0.276"
(7.0mm)		304 SS
3MTHHBUSH4S-150-0131-1/2" x 1/8"0.827"
(21.0mm)		1.969"
(50.0mm)		0.315"
(8.0mm)		304 SS
3MTHHBUSH4S-150-0251-1/2" x 1/4"0.827"
(21.0mm)		1.969"
(50.0mm)		0.315"
(8.0mm)		304 SS
3MTHHBUSH4S-150-0381-1/2" x 3/8"0.827"
(21.0mm)		1.969"
(50.0mm)		0.315"
(8.0mm)		304 SS
3MTHHBUSH4S-150-0501-1/2" x 1/2"0.827"
(21.0mm)		1.969"
(50.0mm)		0.315"
(8.0mm)		304 SS
3MTHHBUSH4S-150-0751-1/2" x 3/4"0.827"
(21.0mm)		1.969"
(50.0mm)		0.315"
(8.0mm)		304 SS
3MTHHBUSH4S-150-1001-1/2" x 1"0.827"
(21.0mm)		1.969"
(50.0mm)		0.315"
(8.0mm)		304 SS
3MTHHBUSH4S-150-1251-1/2" x 1-1/4"0.827"
(21.0mm)		1.969"
(50.0mm)		0.315"
(8.0mm)		304 SS
3MTHHBUSH4S-200-0252" x 1/4"0.866"
(22.0mm)		2.559"
(65.0mm)		0.354"
(9.0mm)		304 SS
3MTHHBUSH4S-200-0382" x 3/8"0.866"
(22.0mm)		2.559"
(65.0mm)		0.354"
(9.0mm)		304 SS
3MTHHBUSH4S-200-0502" x 1/2"0.866"
(22.0mm)		2.559"
(65.0mm)		0.354"
(9.0mm)		304 SS
3MTHHBUSH4S-200-0752" x 3/4"0.866"
(22.0mm)		2.559"
(65.0mm)		0.354"
(9.0mm)		304 SS
3MTHHBUSH4S-200-1002" x 1"0.866"
(22.0mm)		2.559"
(65.0mm)		0.354"
(9.0mm)		304 SS
3MTHHBUSH4S-200-1252" x 1-1/4"0.866"
(22.0mm)		2.559"
(65.0mm)		0.354"
(9.0mm)		304 SS
3MTHHBUSH4S-200-1502" x 1-1/2"0.866"
(22.0mm)		2.559"
(65.0mm)		0.354"
(9.0mm)		304 SS
3MTHHBUSH4S-250-0502-1/2" x 1/2"1.063"
(27.0mm)		2.953"
(75.0mm)		0.394"
(10.0mm)		304 SS
3MTHHBUSH4S-250-0752-1/2" x 3/4"1.063"
(27.0mm)		2.953"
(75.0mm)		0.394"
(10.0mm)		304 SS
3MTHHBUSH4S-250-1002-1/2" x 1"1.063"
(27.0mm)		2.953"
(75.0mm)		0.394"
(10.0mm)		304 SS
3MTHHBUSH4S-250-1252-1/2" x 1-1/4"1.063"
(27.0mm)		2.953"
(75.0mm)		0.394"
(10.0mm)		304 SS
3MTHHBUSH4S-250-1502-1/2" x 1-1/2"1.063"
(27.0mm)		2.953"
(75.0mm)		0.394"
(10.0mm)		304 SS
3MTHHBUSH4S-250-2002-1/2" x 2"1.063"
(27.0mm)		2.953"
(75.0mm)		0.394"
(10.0mm)		304 SS
3MTHHBUSH4S-300-0253" x 1/4"1.102"
(28.0mm)		3.543"
(90.0mm)		0.394"
(10.0mm)		304 SS
3MTHHBUSH4S-300-0503" x 1/2"1.102"
(28.0mm)		3.543"
(90.0mm)		0.394"
(10.0mm)		304 SS
3MTHHBUSH4S-300-0753" x 3/4"1.102"
(28.0mm)		3.543"
(90.0mm)		0.394"
(10.0mm)		304 SS
3MTHHBUSH4S-300-1003" x 1"1.102"
(28.0mm)		3.543"
(90.0mm)		0.394"
(10.0mm)		304 SS
3MTHHBUSH4S-300-1253" x 1-1/4"1.102"
(28.0mm)		3.543"
(90.0mm)		0.394"
(10.0mm)		304 SS
3MTHHBUSH4S-300-1503" x 1-1/2"1.102"
(28.0mm)		3.543"
(90.0mm)		0.394"
(10.0mm)		304 SS
3MTHHBUSH4S-300-2003" x 2"1.102"
(28.0mm)		3.543"
(90.0mm)		0.394"
(10.0mm)		304 SS
3MTHHBUSH4S-300-2503" x 2-1/2"1.102"
(28.0mm)		3.543"
(90.0mm)		0.394"
(10.0mm)		304 SS
3MTHHBUSH6S-025-0131/4" x 1/8"0.433"
(11.0mm)		0.630"
(16.0mm)		0.118"
(3.0mm)		316 SS
3MTHHBUSH6S-038-0133/8" x 1/8"0.512"
(13.0mm)		0.709"
(18.0mm)		0.157"
(4.0mm)		316 SS
3MTHHBUSH6S-038-0253/8" x 1/4"0.512"
(13.0mm)		0.709"
(18.0mm)		0.157"
(4.0mm)		316 SS
3MTHHBUSH6S-050-0131/2" x 1/8"0.551"
(14.0mm)		0.866"
(22.0mm)		0.197"
(5.0mm)		316 SS
3MTHHBUSH6S-050-0251/2" x 1/4"0.551"
(14.0mm)		0.866"
(22.0mm)		0.197"
(5.0mm)		316 SS
3MTHHBUSH6S-050-0381/2" x 3/8"0.551"
(14.0mm)		0.866"
(22.0mm)		0.197"
(5.0mm)		316 SS
3MTHHBUSH6S-075-0133/4" x 1/8"0.630"
(16.0mm)		1.063"
(27.0mm)		0.236"
(6.0mm)		316 SS
3MTHHBUSH6S-075-0253/4" x 1/4"0.630"
(16.0mm)		1.063"
(27.0mm)		0.236"
(6.0mm)		316 SS
3MTHHBUSH6S-075-0383/4" x 3/8"0.630"
(16.0mm)		1.063"
(27.0mm)		0.236"
(6.0mm)		316 SS
3MTHHBUSH6S-075-0503/4" x 1/2"0.630"
(16.0mm)		1.063"
(27.0mm)		0.236"
(6.0mm)		316 SS
3MTHHBUSH6S-100-0131" x 1/8"0.748"
(19.0mm)		1.417"
(36.0mm)		0.236"
(6.0mm)		316 SS
3MTHHBUSH6S-100-0251" x 1/4"0.748"
(19.0mm)		1.417"
(36.0mm)		0.236"
(6.0mm)		316 SS
3MTHHBUSH6S-100-0381" x 3/8"0.748"
(19.0mm)		1.417"
(36.0mm)		0.236"
(6.0mm)		316 SS
3MTHHBUSH6S-100-0501" x 1/2"0.748"
(19.0mm)		1.417"
(36.0mm)		0.236"
(6.0mm)		316 SS
3MTHHBUSH6S-100-0751" x 3/4"0.748"
(19.0mm)		1.417"
(36.0mm)		0.236"
(6.0mm)		316 SS
3MTHHBUSH6S-125-0131-1/4" x 1/8"0.827"
(21.0mm)		1.811"
(46.0mm)		0.276"
(7.0mm)		316 SS
3MTHHBUSH6S-125-0251-1/4" x 1/4"0.827"
(21.0mm)		1.811"
(46.0mm)		0.276"
(7.0mm)		316 SS
3MTHHBUSH6S-125-0381-1/4" x 3/8"0.827"
(21.0mm)		1.811"
(46.0mm)		0.276"
(7.0mm)		316 SS
3MTHHBUSH6S-125-0501-1/4" x 1/2"0.827"
(21.0mm)		1.811"
(46.0mm)		0.276"
(7.0mm)		316 SS
3MTHHBUSH6S-125-0751-1/4" x 3/4"0.827"
(21.0mm)		1.811"
(46.0mm)		0.276"
(7.0mm)		316 SS
3MTHHBUSH6S-125-1001-1/4" x 1"0.827"
(21.0mm)		1.811"
(46.0mm)		0.276"
(7.0mm)		316 SS
3MTHHBUSH6S-150-0131-1/2" x 1/8"0.827"
(21.0mm)		1.969"
(50.0mm)		0.315"
(8.0mm)		316 SS
3MTHHBUSH6S-150-0251-1/2" x 1/4"0.827"
(21.0mm)		1.969"
(50.0mm)		0.315"
(8.0mm)		316 SS
3MTHHBUSH6S-150-0381-1/2" x 3/8"0.827"
(21.0mm)		1.969"
(50.0mm)		0.315"
(8.0mm)		316 SS
3MTHHBUSH6S-150-0501-1/2" x 1/2"0.827"
(21.0mm)		1.969"
(50.0mm)		0.315"
(8.0mm)		316 SS
3MTHHBUSH6S-150-0751-1/2" x 3/4"0.827"
(21.0mm)		1.969"
(50.0mm)		0.315"
(8.0mm)		316 SS
3MTHHBUSH6S-150-1001-1/2" x 1"0.827"
(21.0mm)		1.969"
(50.0mm)		0.315"
(8.0mm)		316 SS
3MTHHBUSH6S-150-1251-1/2" x 1-1/4"0.827"
(21.0mm)		1.969"
(50.0mm)		0.315"
(8.0mm)		316 SS
3MTHHBUSH6S-200-0252" x 1/4"0.866"
(22.0mm)		2.559"
(65.0mm)		0.354"
(9.0mm)		316 SS
3MTHHBUSH6S-200-0382" x 3/8"0.866"
(22.0mm)		2.559"
(65.0mm)		0.354"
(9.0mm)		316 SS
3MTHHBUSH6S-200-0502" x 1/2"0.866"
(22.0mm)		2.559"
(65.0mm)		0.354"
(9.0mm)		316 SS
3MTHHBUSH6S-200-0752" x 3/4"0.866"
(22.0mm)		2.559"
(65.0mm)		0.354"
(9.0mm)		316 SS
3MTHHBUSH6S-200-1002" x 1"0.866"
(22.0mm)		2.559"
(65.0mm)		0.354"
(9.0mm)		316 SS
3MTHHBUSH6S-200-1252" x 1-1/4"0.866"
(22.0mm)		2.559"
(65.0mm)		0.354"
(9.0mm)		316 SS
3MTHHBUSH6S-200-1502" x 1-1/2"0.866"
(22.0mm)		2.559"
(65.0mm)		0.354"
(9.0mm)		316 SS
3MTHHBUSH6S-250-0502-1/2" x 1/2"1.063"
(27.0mm)		2.953"
(75.0mm)		0.394"
(10.0mm)		316 SS
3MTHHBUSH6S-250-0752-1/2" x 3/4"1.063"
(27.0mm)		2.953"
(75.0mm)		0.394"
(10.0mm)		316 SS
3MTHHBUSH6S-250-1002-1/2" x 1"1.063"
(27.0mm)		2.953"
(75.0mm)		0.394"
(10.0mm)		316 SS
3MTHHBUSH6S-250-1252-1/2" x 1-1/4"1.063"
(27.0mm)		2.953"
(75.0mm)		0.394"
(10.0mm)		316 SS
3MTHHBUSH6S-250-1502-1/2" x 1-1/2"1.063"
(27.0mm)		2.953"
(75.0mm)		0.394"
(10.0mm)		316 SS
3MTHHBUSH6S-250-2002-1/2" x 2"1.063"
(27.0mm)		2.953"
(75.0mm)		0.394"
(10.0mm)		316 SS
3MTHHBUSH6S-300-0253" x 1/4"1.102"
(28.0mm)		3.543"
(90.0mm)		0.394"
(10.0mm)		316 SS
3MTHHBUSH6S-300-0503" x 1/2"1.102"
(28.0mm)		3.543"
(90.0mm)		0.394"
(10.0mm)		316 SS
3MTHHBUSH6S-300-0753" x 3/4"1.102"
(28.0mm)		3.543"
(90.0mm)		0.394"
(10.0mm)		316 SS
3MTHHBUSH6S-300-1003" x 1"1.102"
(28.0mm)		3.543"
(90.0mm)		0.394"
(10.0mm)		316 SS
3MTHHBUSH6S-300-1253" x 1-1/4"1.102"
(28.0mm)		3.543"
(90.0mm)		0.394"
(10.0mm)		316 SS
3MTHHBUSH6S-300-1503" x 1-1/2"1.102"
(28.0mm)		3.543"
(90.0mm)		0.394"
(10.0mm)		316 SS
3MTHHBUSH6S-300-2003" x 2"1.102"
(28.0mm)		3.543"
(90.0mm)		0.394"
(10.0mm)		316 SS
3MTHHBUSH6S-300-2503" x 2-1/2"1.102"
(28.0mm)		3.543"
(90.0mm)		0.394"
(10.0mm)		316 SS
