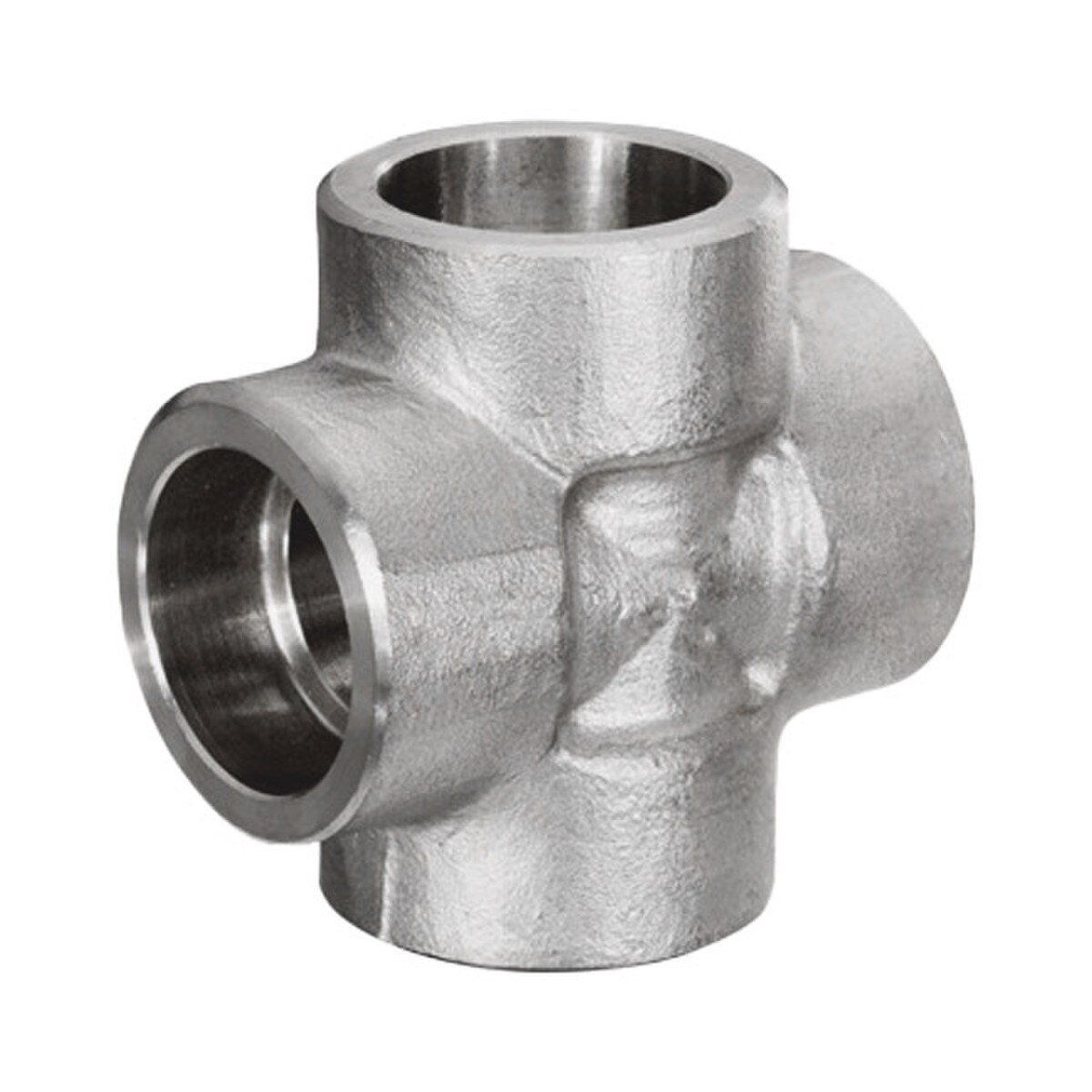

3000# Forged Cross Stainless Steel Pipe Fittings - Socket Weld
3000# cross pipe fittings forged out of stainless steel to ASTM 182 and ANSI B16.11 specifications with socket weld end connections. Available in 304 and 316 stainless steel alloys.
 | ||||||||||
| Part No. | Size (in.) | Center to Bottom of Socket (A) | Socket Bore Dia. (B) Min. | Socket Bore Dia. (B) Max. | Socket Wall Thickness (C) Avg. | Socket Wall Thickness (C) Min. | Fitting Bore Dia. (D) Min. | Fitting Bore Dia. (D) Max. | Depth of Socket (J) Min. | Material |
|---|---|---|---|---|---|---|---|---|---|---|
| 3MSWX4S-013 | 1/8" | 0.433" (11.0mm) | 0.425" (10.8mm) | 0.441" (11.2mm) | 0.125" (3.2mm) | 0.125" (3.2mm) | 0.240" (6.1mm) | 0.299" (7.6mm) | 0.374" (9.5mm) | 304 SS |
| 3MSWX4S-025 | 1/4" | 0.433" (11.0mm) | 0.559" (14.2mm) | 0.575" (14.6mm) | 0.149" (3.8mm) | 0.130" (3.3mm) | 0.335" (8.5mm) | 0.394" (10.0mm) | 0.374" (9.5mm) | 304 SS |
| 3MSWX4S-038 | 3/8" | 0.531" (13.5mm) | 0.693" (17.6mm) | 0.709" (18.0mm) | 0.158" (4.0mm) | 0.138" (3.5mm) | 0.465" (11.8mm) | 0.524" (13.3mm) | 0.374" (9.5mm) | 304 SS |
| 3MSWX4S-050 | 1/2" | 0.610" (15.5mm) | 0.858" (21.8mm) | 0.874" (22.2mm) | 0.184" (4.7mm) | 0.161" (4.1mm) | 0.591" (15.0mm) | 0.654" (16.6mm) | 0.374" (9.5mm) | 304 SS |
| 3MSWX4S-075 | 3/4" | 0.748" (19.0mm) | 1.071" (27.2mm) | 1.087" (27.6mm) | 0.193" (4.9mm) | 0.168" (4.3mm) | 0.795" (20.2mm) | 0.854" (21.7mm) | 0.492" (12.5mm) | 304 SS |
| 3MSWX4S-100 | 1" | 0.886" (22.5mm) | 1.335" (33.9mm) | 1.350" (34.3mm) | 0.224" (5.7mm) | 0.196" (5.0mm) | 1.020" (25.9mm) | 1.079" (27.4mm) | 0.492" (12.5mm) | 304 SS |
| 3MSWX4S-125 | 1-1/4" | 1.063" (27.0mm) | 1.681" (42.7mm) | 1.697" (43.1mm) | 0.239" (6.1mm) | 0.208" (5.3mm) | 1.350" (34.3mm) | 1.409" (35.8mm) | 0.492" (12.5mm) | 304 SS |
| 3MSWX4S-150 | 1-1/2" | 1.260" (32.0mm) | 1.921" (48.8mm) | 1.937" (49.2mm) | 0.250" (6.4mm) | 0.218" (5.5mm) | 1.579" (40.1mm) | 1.638" (41.6mm) | 0.492" (12.5mm) | 304 SS |
| 3MSWX4S-200 | 2" | 1.496" (38.0mm) | 2.409" (61.2mm) | 2.429" (61.7mm) | 0.273" (6.9mm) | 0.238" (6.0mm) | 2.035" (51.7mm) | 2.098" (53.3mm) | 0.630" (16.0mm) | 304 SS |
| 3MSWX4S-250 | 2-1/2" | 1.614" (41.0mm) | 2.909" (73.9mm) | 2.929" (74.4mm) | 0.345" (8.8mm) | 0.302" (7.7mm) | 2.409" (61.2mm) | 2.528" (64.2mm) | 0.630" (16.0mm) | 304 SS |
| 3MSWX4S-300 | 3" | 2.244" (57.0mm) | 3.535" (89.8mm) | 3.555" (90.3mm) | 0.375" (9.5mm) | 0.327" (8.3mm) | 3.008" (76.4mm) | 3.126" (79.4mm) | 0.630" (16.0mm) | 304 SS |
| 3MSWX6S-013 | 1/8" | 0.433" (11.0mm) | 0.425" (10.8mm) | 0.441" (11.2mm) | 0.125" (3.2mm) | 0.125" (3.2mm) | 0.240" (6.1mm) | 0.299" (7.6mm) | 0.374" (9.5mm) | 316 SS |
| 3MSWX6S-025 | 1/4" | 0.433" (11.0mm) | 0.559" (14.2mm) | 0.575" (14.6mm) | 0.149" (3.8mm) | 0.130" (3.3mm) | 0.335" (8.5mm) | 0.394" (10.0mm) | 0.374" (9.5mm) | 316 SS |
| 3MSWX6S-038 | 3/8" | 0.531" (13.5mm) | 0.693" (17.6mm) | 0.709" (18.0mm) | 0.158" (4.0mm) | 0.138" (3.5mm) | 0.465" (11.8mm) | 0.524" (13.3mm) | 0.374" (9.5mm) | 316 SS |
| 3MSWX6S-050 | 1/2" | 0.610" (15.5mm) | 0.858" (21.8mm) | 0.874" (22.2mm) | 0.184" (4.7mm) | 0.161" (4.1mm) | 0.591" (15.0mm) | 0.654" (16.6mm) | 0.374" (9.5mm) | 316 SS |
| 3MSWX6S-075 | 3/4" | 0.748" (19.0mm) | 1.071" (27.2mm) | 1.087" (27.6mm) | 0.193" (4.9mm) | 0.168" (4.3mm) | 0.795" (20.2mm) | 0.854" (21.7mm) | 0.492" (12.5mm) | 316 SS |
| 3MSWX6S-100 | 1" | 0.886" (22.5mm) | 1.335" (33.9mm) | 1.350" (34.3mm) | 0.224" (5.7mm) | 0.196" (5.0mm) | 1.020" (25.9mm) | 1.079" (27.4mm) | 0.492" (12.5mm) | 316 SS |
| 3MSWX6S-125 | 1-1/4" | 1.063" (27.0mm) | 1.681" (42.7mm) | 1.697" (43.1mm) | 0.239" (6.1mm) | 0.208" (5.3mm) | 1.350" (34.3mm) | 1.409" (35.8mm) | 0.492" (12.5mm) | 316 SS |
| 3MSWX6S-150 | 1-1/2" | 1.260" (32.0mm) | 1.921" (48.8mm) | 1.937" (49.2mm) | 0.250" (6.4mm) | 0.218" (5.5mm) | 1.579" (40.1mm) | 1.638" (41.6mm) | 0.492" (12.5mm) | 316 SS |
| 3MSWX6S-200 | 2" | 1.496" (38.0mm) | 2.409" (61.2mm) | 2.429" (61.7mm) | 0.273" (6.9mm) | 0.238" (6.0mm) | 2.035" (51.7mm) | 2.098" (53.3mm) | 0.630" (16.0mm) | 316 SS |
| 3MSWX6S-250 | 2-1/2" | 1.614" (41.0mm) | 2.909" (73.9mm) | 2.929" (74.4mm) | 0.345" (8.8mm) | 0.302" (7.7mm) | 2.409" (61.2mm) | 2.528" (64.2mm) | 0.630" (16.0mm) | 316 SS |
| 3MSWX6S-300 | 3" | 2.244" (57.0mm) | 3.535" (89.8mm) | 3.555" (90.3mm) | 0.375" (9.5mm) | 0.327" (8.3mm) | 3.008" (76.4mm) | 3.126" (79.4mm) | 0.630" (16.0mm) | 316 SS |
