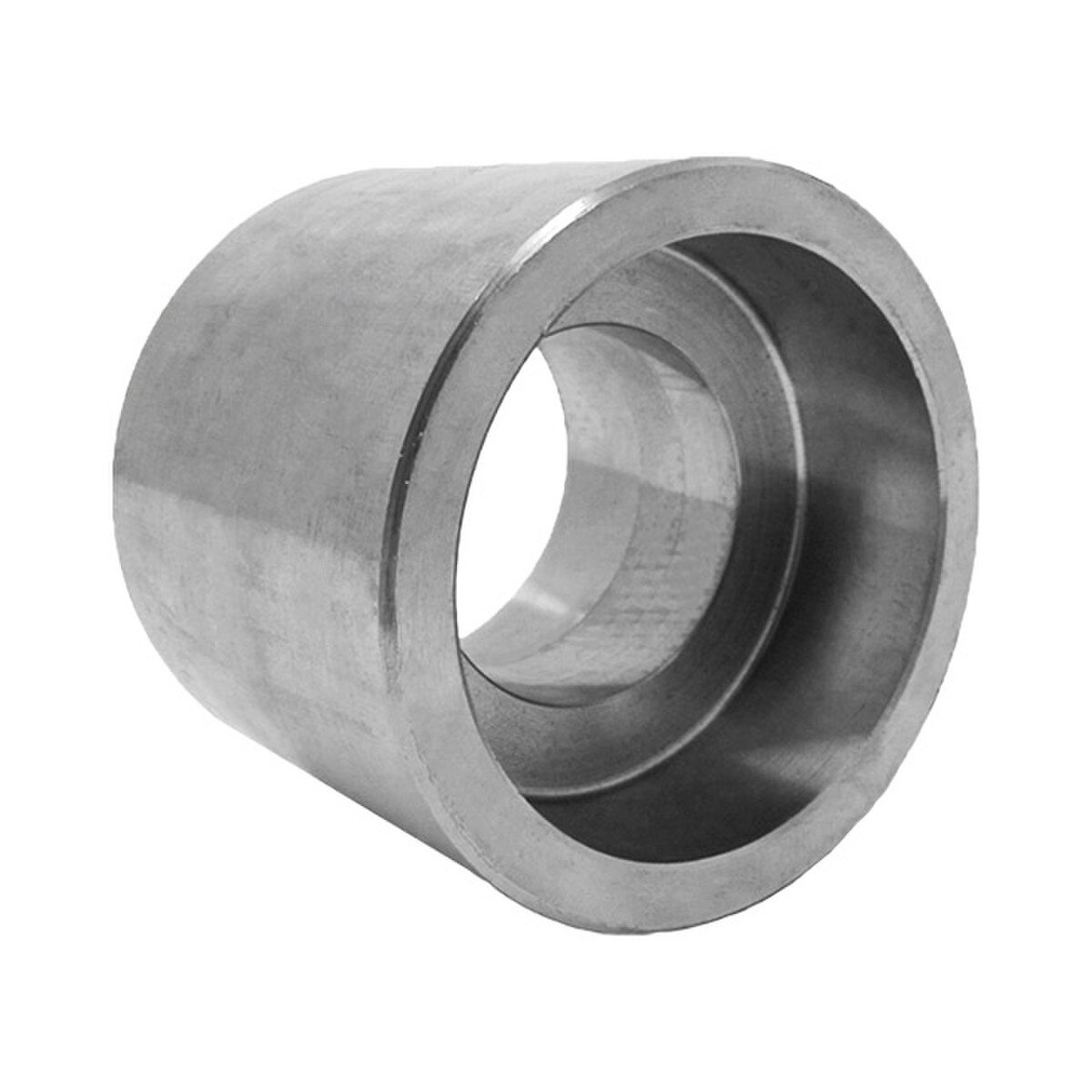

3000# Forged Reducing Coupling Stainless Steel Pipe Fittings - Socket Weld
3000# reducing coupling pipe fittings forged out of stainless steel to ASTM 182 and ANSI B16.11 specifications with socket weld end connections. Available in 304 and 316 stainless steel alloys.
 | ||||||||||
| Part No. | Size (in.) | B1 | B2 | C (Min.) | D | E | H (Min.) | J | L | Material |
|---|---|---|---|---|---|---|---|---|---|---|
| 3MSWRCPL4S-025-013 | 1/4" x 1/8" | 0.56" (14.2mm) | 0.43" (10.9mm) | 0.15" (3.8mm) | 0.27" (6.9mm) | 0.26" (6.6mm) | 0.86" (21.8mm) | 0.41" (10.4mm) | 1.08" (27.4mm) | 304 SS |
| 3MSWRCPL4S-038-013 | 3/8" x 1/8" | 0.70" (17.8mm) | 0.43" (10.9mm) | 0.16" (4.1mm) | 0.27" (6.9mm) | 0.26" (6.6mm) | 1.02" (25.9mm) | 0.41" (10.4mm) | 1.12" (28.4mm) | 304 SS |
| 3MSWRCPL4S-038-025 | 3/8" x 1/4" | 0.70" (17.8mm) | 0.56" (14.2mm) | 0.16" (4.1mm) | 0.37" (9.4mm) | 0.26" (6.6mm) | 1.02" (25.9mm) | 0.41" (10.4mm) | 1.12" (28.4mm) | 304 SS |
| 3MSWRCPL4S-050-013 | 1/2" x 1/8" | 0.86" (21.8mm) | 0.43" (10.9mm) | 1.23" (31.2mm) | 0.27" (6.9mm) | 0.37" (9.4mm) | 1.23" (31.2mm) | 0.49" (12.4mm) | 1.36" (34.5mm) | 304 SS |
| 3MSWRCPL4S-050-025 | 1/2" x 1/4" | 0.11" (2.8mm) | 0.56" (14.2mm) | 1.23" (31.2mm) | 0.37" (9.4mm) | 0.37" (9.4mm) | 1.23" (31.2mm) | 0.49" (12.4mm) | 1.36" (34.5mm) | 304 SS |
| 3MSWRCPL4S-050-038 | 1/2" x 3/8" | 0.86" (21.8mm) | 0.70" (17.8mm) | 1.23" (31.2mm) | 0.50" (12.7mm) | 0.37" (9.4mm) | 1.23" (31.2mm) | 0.49" (12.4mm) | 1.36" (34.5mm) | 304 SS |
| 3MSWRCPL4S-075-025 | 3/4" x 1/4" | 1.07" (27.2mm) | 0.56" (14.2mm) | 1.46" (37.1mm) | 0.37" (9.4mm) | 0.37" (9.4mm) | 1.46" (37.1mm) | 0.55" (14.0mm) | 1.48" (37.6mm) | 304 SS |
| 3MSWRCPL4S-075-038 | 3/4" x 3/8" | 1.07" (27.2mm) | 0.70" (17.8mm) | 1.46" (37.1mm) | 5.00" (127.0mm) | 0.37" (9.4mm) | 1.46" (37.1mm) | 0.55" (14.0mm) | 1.48" (37.6mm) | 304 SS |
| 3MSWRCPL4S-075-050 | 3/4" x 1/2" | 1.07" (27.2mm) | 0.86" (21.8mm) | 1.46" (37.1mm) | 0.62" (15.7mm) | 0.37" (9.4mm) | 1.46" (37.1mm) | 0.55" (14.0mm) | 1.48" (37.6mm) | 304 SS |
| 3MSWRCPL4S-100-025 | 1" x 1/4" | 1.34" (34.0mm) | 0.56" (14.2mm) | 1.79" (45.5mm) | 0.37" (9.4mm) | 0.49" (12.4mm) | 1.79" (45.5mm) | 0.59" (15.0mm) | 1.69" (42.9mm) | 304 SS |
| 3MSWRCPL4S-100-038 | 1" x 3/8" | 1.34" (34.0mm) | 0.70" (17.8mm) | 1.79" (45.5mm) | 0.50" (12.7mm) | 0.49" (12.4mm) | 1.79" (45.5mm) | 0.59" (15.0mm) | 1.69" (42.9mm) | 304 SS |
| 3MSWRCPL4S-100-050 | 1" x 1/2" | 1.34" (34.0mm) | 0.86" (21.8mm) | 1.79" (45.5mm) | 0.62" (15.7mm) | 0.49" (12.4mm) | 1.79" (45.5mm) | 0.59" (15.0mm) | 1.69" (42.9mm) | 304 SS |
| 3MSWRCPL4S-100-075 | 1" x 3/4" | 1.34" (34.0mm) | 1.07" (27.2mm) | 0.24" (6.1mm) | 0.83" (21.1mm) | 0.49" (12.4mm) | 1.79" (45.5mm) | 0.59" (15.0mm) | 1.69" (42.9mm) | 304 SS |
| 3MSWRCPL4S-125-050 | 1-1/4" x 1/2" | 1.69" (42.9mm) | 0.86" (21.8mm) | 0.24" (6.1mm) | 0.62" (15.7mm) | 0.49" (12.4mm) | 2.17" (55.1mm) | 0.67" (17.0mm) | 1.85" (47.0mm) | 304 SS |
| 3MSWRCPL4S-125-075 | 1-1/4" x 3/4" | 1.69" (42.9mm) | 1.07" (27.2mm) | 0.24" (6.1mm) | 0.83" (21.1mm) | 0.49" (12.4mm) | 2.17" (55.1mm) | 0.67" (17.0mm) | 1.85" (47.0mm) | 304 SS |
| 3MSWRCPL4S-125-100 | 1-1/4" x 1" | 1.69" (42.9mm) | 1.34" (34.0mm) | 0.24" (6.1mm) | 1.05" (26.7mm) | 0.49" (12.4mm) | 2.17" (55.1mm) | 0.67" (17.0mm) | 1.85" (47.0mm) | 304 SS |
| 3MSWRCPL4S-150-038 | 1-1/2" x 3/8" | 1.93" (49.0mm) | 0.70" (17.8mm) | 0.25" (6.4mm) | 0.50" (12.7mm) | 0.49" (12.4mm) | 2.43" (61.7mm) | 0.69" (17.5mm) | 1.89" (48.0mm) | 304 SS |
| 3MSWRCPL4S-150-050 | 1-1/2" x 1/2" | 1.93" (49.0mm) | 0.86" (21.8mm) | 0.25" (6.4mm) | 0.62" (15.7mm) | 0.49" (12.4mm) | 2.43" (61.7mm) | 0.69" (17.5mm) | 1.89" (48.0mm) | 304 SS |
| 3MSWRCPL4S-150-075 | 1-1/2" x 3/4" | 1.93" (49.0mm) | 1.07" (27.2mm) | 0.25" (6.4mm) | 0.83" (21.1mm) | 0.49" (12.4mm) | 2.43" (61.7mm) | 0.69" (17.5mm) | 1.89" (48.0mm) | 304 SS |
| 3MSWRCPL4S-150-100 | 1-1/2" x 1" | 1.93" (49.0mm) | 1.34" (34.0mm) | 0.25" (6.4mm) | 1.05" (26.7mm) | 0.49" (12.4mm) | 2.43" (61.7mm) | 0.69" (17.5mm) | 1.89" (48.0mm) | 304 SS |
| 3MSWRCPL4S-150-125 | 1-1/2" x 1-1/4" | 1.93" (49.0mm) | 1.69" (42.9mm) | 0.25" (6.4mm) | 1.38" (35.1mm) | 0.49" (12.4mm) | 2.43" (61.7mm) | 0.69" (17.5mm) | 1.89" (48.0mm) | 304 SS |
| 3MSWRCPL4S-200-050 | 2" x 1/2" | 2.42" (61.5mm) | 0.86" (21.8mm) | 0.27" (6.9mm) | 0.62" (15.7mm) | 0.75" (19.1mm) | 2.96" (75.2mm) | 0.87" (22.1mm) | 2.48" (63.0mm) | 304 SS |
| 3MSWRCPL4S-200-075 | 2" x 3/4" | 2.42" (61.5mm) | 1.07" (27.2mm) | 0.27" (6.9mm) | 0.83" (21.1mm) | 0.75" (19.1mm) | 2.96" (75.2mm) | 0.87" (22.1mm) | 2.48" (63.0mm) | 304 SS |
| 3MSWRCPL4S-200-100 | 2" x 1" | 2.42" (61.5mm) | 1.34" (34.0mm) | 0.27" (6.9mm) | 1.05" (26.7mm) | 0.75" (19.1mm) | 2.96" (75.2mm) | 0.87" (22.1mm) | 2.48" (63.0mm) | 304 SS |
| 3MSWRCPL4S-200-125 | 2" x 1-1/4" | 2.42" (61.5mm) | 1.69" (42.9mm) | 0.27" (6.9mm) | 1.38" (35.1mm) | 0.75" (19.1mm) | 2.96" (75.2mm) | 0.87" (22.1mm) | 2.48" (63.0mm) | 304 SS |
| 3MSWRCPL4S-200-150 | 2" x 1-1/2" | 2.42" (61.5mm) | 1.93" (49.0mm) | 0.27" (6.9mm) | 1.61" (40.9mm) | 0.75" (19.1mm) | 2.96" (75.2mm) | 0.87" (22.1mm) | 2.48" (63.0mm) | 304 SS |
| 3MSWRCPL4S-250-200 | 2-1/2" x 2" | 2.92" (74.2mm) | 2.42" (61.5mm) | 0.35" (8.9mm) | 2.07" (52.6mm) | 0.75" (19.1mm) | 3.61" (91.7mm) | 0.87" (22.1mm) | 2.48" (63.0mm) | 304 SS |
| 3MSWRCPL4S-300-150 | 3" x 1-1/2" | 3.54" (89.9mm) | 1.93" (49.0mm) | 0.38" (9.7mm) | 1.61" (40.9mm) | 0.75" (19.1mm) | 4.30" (109.2mm) | 0.87" (22.1mm) | 2.48" (63.0mm) | 304 SS |
| 3MSWRCPL4S-300-200 | 3" x 2" | 3.54" (89.9mm) | 2.42" (61.5mm) | 0.38" (9.7mm) | 2.07" (52.6mm) | 0.75" (19.1mm) | 4.30" (109.2mm) | 0.87" (22.1mm) | 2.48" (63.0mm) | 304 SS |
| 3MSWRCPL6S-025-013 | 1/4" x 1/8" | 0.56" (14.2mm) | 0.43" (10.9mm) | 0.15" (3.8mm) | 0.27" (6.9mm) | 0.26" (6.6mm) | 0.86" (21.8mm) | 0.41" (10.4mm) | 1.08" (27.4mm) | 316 SS |
| 3MSWRCPL6S-038-013 | 3/8" x 1/8" | 0.70" (17.8mm) | 0.43" (10.9mm) | 0.16" (4.1mm) | 0.27" (6.9mm) | 0.26" (6.6mm) | 1.02" (25.9mm) | 0.41" (10.4mm) | 1.12" (28.4mm) | 316 SS |
| 3MSWRCPL6S-038-025 | 3/8" x 1/4" | 0.70" (17.8mm) | 0.56" (14.2mm) | 0.16" (4.1mm) | 0.37" (9.4mm) | 0.26" (6.6mm) | 1.02" (25.9mm) | 0.41" (10.4mm) | 1.12" (28.4mm) | 316 SS |
| 3MSWRCPL6S-050-013 | 1/2" x 1/8" | 0.86" (21.8mm) | 0.43" (10.9mm) | 1.23" (31.2mm) | 0.27" (6.9mm) | 0.37" (9.4mm) | 1.23" (31.2mm) | 0.49" (12.4mm) | 1.36" (34.5mm) | 316 SS |
| 3MSWRCPL6S-050-025 | 1/2" x 1/4" | 0.11" (2.8mm) | 0.56" (14.2mm) | 1.23" (31.2mm) | 0.37" (9.4mm) | 0.37" (9.4mm) | 1.23" (31.2mm) | 0.49" (12.4mm) | 1.36" (34.5mm) | 316 SS |
| 3MSWRCPL6S-050-038 | 1/2" x 3/8" | 0.86" (21.8mm) | 0.70" (17.8mm) | 1.23" (31.2mm) | 0.50" (12.7mm) | 0.37" (9.4mm) | 1.23" (31.2mm) | 0.49" (12.4mm) | 1.36" (34.5mm) | 316 SS |
| 3MSWRCPL6S-075-025 | 3/4" x 1/4" | 1.07" (27.2mm) | 0.56" (14.2mm) | 1.46" (37.1mm) | 0.37" (9.4mm) | 0.37" (9.4mm) | 1.46" (37.1mm) | 0.55" (14.0mm) | 1.48" (37.6mm) | 316 SS |
| 3MSWRCPL6S-075-038 | 3/4" x 3/8" | 1.07" (27.2mm) | 0.70" (17.8mm) | 1.46" (37.1mm) | 5.00" (127.0mm) | 0.37" (9.4mm) | 1.46" (37.1mm) | 0.55" (14.0mm) | 1.48" (37.6mm) | 316 SS |
| 3MSWRCPL6S-075-050 | 3/4" x 1/2" | 1.07" (27.2mm) | 0.86" (21.8mm) | 1.46" (37.1mm) | 0.62" (15.7mm) | 0.37" (9.4mm) | 1.46" (37.1mm) | 0.55" (14.0mm) | 1.48" (37.6mm) | 316 SS |
| 3MSWRCPL6S-100-025 | 1" x 1/4" | 1.34" (34.0mm) | 0.56" (14.2mm) | 1.79" (45.5mm) | 0.37" (9.4mm) | 0.49" (12.4mm) | 1.79" (45.5mm) | 0.59" (15.0mm) | 1.69" (42.9mm) | 316 SS |
| 3MSWRCPL6S-100-038 | 1" x 3/8" | 1.34" (34.0mm) | 0.70" (17.8mm) | 1.79" (45.5mm) | 0.50" (12.7mm) | 0.49" (12.4mm) | 1.79" (45.5mm) | 0.59" (15.0mm) | 1.69" (42.9mm) | 316 SS |
| 3MSWRCPL6S-100-050 | 1" x 1/2" | 1.34" (34.0mm) | 0.86" (21.8mm) | 1.79" (45.5mm) | 0.62" (15.7mm) | 0.49" (12.4mm) | 1.79" (45.5mm) | 0.59" (15.0mm) | 1.69" (42.9mm) | 316 SS |
| 3MSWRCPL6S-100-075 | 1" x 3/4" | 1.34" (34.0mm) | 1.07" (27.2mm) | 0.24" (6.1mm) | 0.83" (21.1mm) | 0.49" (12.4mm) | 1.79" (45.5mm) | 0.59" (15.0mm) | 1.69" (42.9mm) | 316 SS |
| 3MSWRCPL6S-125-050 | 1-1/4" x 1/2" | 1.69" (42.9mm) | 0.86" (21.8mm) | 0.24" (6.1mm) | 0.62" (15.7mm) | 0.49" (12.4mm) | 2.17" (55.1mm) | 0.67" (17.0mm) | 1.85" (47.0mm) | 316 SS |
| 3MSWRCPL6S-125-075 | 1-1/4" x 3/4" | 1.69" (42.9mm) | 1.07" (27.2mm) | 0.24" (6.1mm) | 0.83" (21.1mm) | 0.49" (12.4mm) | 2.17" (55.1mm) | 0.67" (17.0mm) | 1.85" (47.0mm) | 316 SS |
| 3MSWRCPL6S-125-100 | 1-1/4" x 1" | 1.69" (42.9mm) | 1.34" (34.0mm) | 0.24" (6.1mm) | 1.05" (26.7mm) | 0.49" (12.4mm) | 2.17" (55.1mm) | 0.67" (17.0mm) | 1.85" (47.0mm) | 316 SS |
| 3MSWRCPL6S-150-038 | 1-1/2" x 3/8" | 1.93" (49.0mm) | 0.70" (17.8mm) | 0.25" (6.4mm) | 0.50" (12.7mm) | 0.49" (12.4mm) | 2.43" (61.7mm) | 0.69" (17.5mm) | 1.89" (48.0mm) | 316 SS |
| 3MSWRCPL6S-150-050 | 1-1/2" x 1/2" | 1.93" (49.0mm) | 0.86" (21.8mm) | 0.25" (6.4mm) | 0.62" (15.7mm) | 0.49" (12.4mm) | 2.43" (61.7mm) | 0.69" (17.5mm) | 1.89" (48.0mm) | 316 SS |
| 3MSWRCPL6S-150-075 | 1-1/2" x 3/4" | 1.93" (49.0mm) | 1.07" (27.2mm) | 0.25" (6.4mm) | 0.83" (21.1mm) | 0.49" (12.4mm) | 2.43" (61.7mm) | 0.69" (17.5mm) | 1.89" (48.0mm) | 316 SS |
| 3MSWRCPL6S-150-100 | 1-1/2" x 1" | 1.93" (49.0mm) | 1.34" (34.0mm) | 0.25" (6.4mm) | 1.05" (26.7mm) | 0.49" (12.4mm) | 2.43" (61.7mm) | 0.69" (17.5mm) | 1.89" (48.0mm) | 316 SS |
| 3MSWRCPL6S-150-125 | 1-1/2" x 1-1/4" | 1.93" (49.0mm) | 1.69" (42.9mm) | 0.25" (6.4mm) | 1.38" (35.1mm) | 0.49" (12.4mm) | 2.43" (61.7mm) | 0.69" (17.5mm) | 1.89" (48.0mm) | 316 SS |
| 3MSWRCPL6S-200-050 | 2" x 1/2" | 2.42" (61.5mm) | 0.86" (21.8mm) | 0.27" (6.9mm) | 0.62" (15.7mm) | 0.75" (19.1mm) | 2.96" (75.2mm) | 0.87" (22.1mm) | 2.48" (63.0mm) | 316 SS |
| 3MSWRCPL6S-200-075 | 2" x 3/4" | 2.42" (61.5mm) | 1.07" (27.2mm) | 0.27" (6.9mm) | 0.83" (21.1mm) | 0.75" (19.1mm) | 2.96" (75.2mm) | 0.87" (22.1mm) | 2.48" (63.0mm) | 316 SS |
| 3MSWRCPL6S-200-100 | 2" x 1" | 2.42" (61.5mm) | 1.34" (34.0mm) | 0.27" (6.9mm) | 1.05" (26.7mm) | 0.75" (19.1mm) | 2.96" (75.2mm) | 0.87" (22.1mm) | 2.48" (63.0mm) | 316 SS |
| 3MSWRCPL6S-200-125 | 2" x 1-1/4" | 2.42" (61.5mm) | 1.69" (42.9mm) | 0.27" (6.9mm) | 1.38" (35.1mm) | 0.75" (19.1mm) | 2.96" (75.2mm) | 0.87" (22.1mm) | 2.48" (63.0mm) | 316 SS |
| 3MSWRCPL6S-200-150 | 2" x 1-1/2" | 2.42" (61.5mm) | 1.93" (49.0mm) | 0.27" (6.9mm) | 1.61" (40.9mm) | 0.75" (19.1mm) | 2.96" (75.2mm) | 0.87" (22.1mm) | 2.48" (63.0mm) | 316 SS |
| 3MSWRCPL6S-250-150 | 2-1/2" x 1-1/2" | 2.92" (74.2mm) | 1.93" (49.0mm) | 0.35" (8.9mm) | 1.61" (40.9mm) | 0.75" (19.1mm) | 3.61" (91.7mm) | 0.87" (22.1mm) | 2.48" (63.0mm) | 316 SS |
| 3MSWRCPL6S-250-200 | 2-1/2" x 2" | 2.92" (74.2mm) | 2.42" (61.5mm) | 0.35" (8.9mm) | 2.07" (52.6mm) | 0.75" (19.1mm) | 3.61" (91.7mm) | 0.87" (22.1mm) | 2.48" (63.0mm) | 316 SS |
| 3MSWRCPL6S-300-150 | 3" x 1-1/2" | 3.54" (89.9mm) | 1.93" (49.0mm) | 0.38" (9.7mm) | 1.61" (40.9mm) | 0.75" (19.1mm) | 4.30" (109.2mm) | 0.87" (22.1mm) | 2.48" (63.0mm) | 316 SS |
| 3MSWRCPL6S-300-200 | 3" x 2" | 3.54" (89.9mm) | 2.42" (61.5mm) | 0.38" (9.7mm) | 2.07" (52.6mm) | 0.75" (19.1mm) | 4.30" (109.2mm) | 0.87" (22.1mm) | 2.48" (63.0mm) | 316 SS |
